User Manual: Homenjoy Outdoor Bar Stools

1. Producte acabatview

The Homenjoy Outdoor Bar Stools are designed for durability and comfort in various outdoor settings. Crafted from 100% HDPE, these counter height stools are built to withstand diverse weather conditions while maintaining their appearance and structural integrity.

• Stable and Sturdy HDPE: Made from 100% HDPE, designed for stability and durability, supporting up to 300 lbs. Resists deformation, damage, and abrasion.
• All Weather Resistance: Built to endure various weather conditions including rain, snow, and sunlight. Suitable for both indoor and outdoor use.
• Disseny Premium: Features an A-frame and square legs for stable support, preventing shaking. Retro wood grain pattern complements various home styles.
• Saddle Comfort: Ergonomically designed curved seat for superior comfort in outdoor settings.

Figure 1.1: Set of four Homenjoy Outdoor Bar Stools in dark brown.

Figure 1.2: Homenjoy bar stools in an outdoor patio setting, demonstrating their intended use.

Product Display Video

2. Especificacions

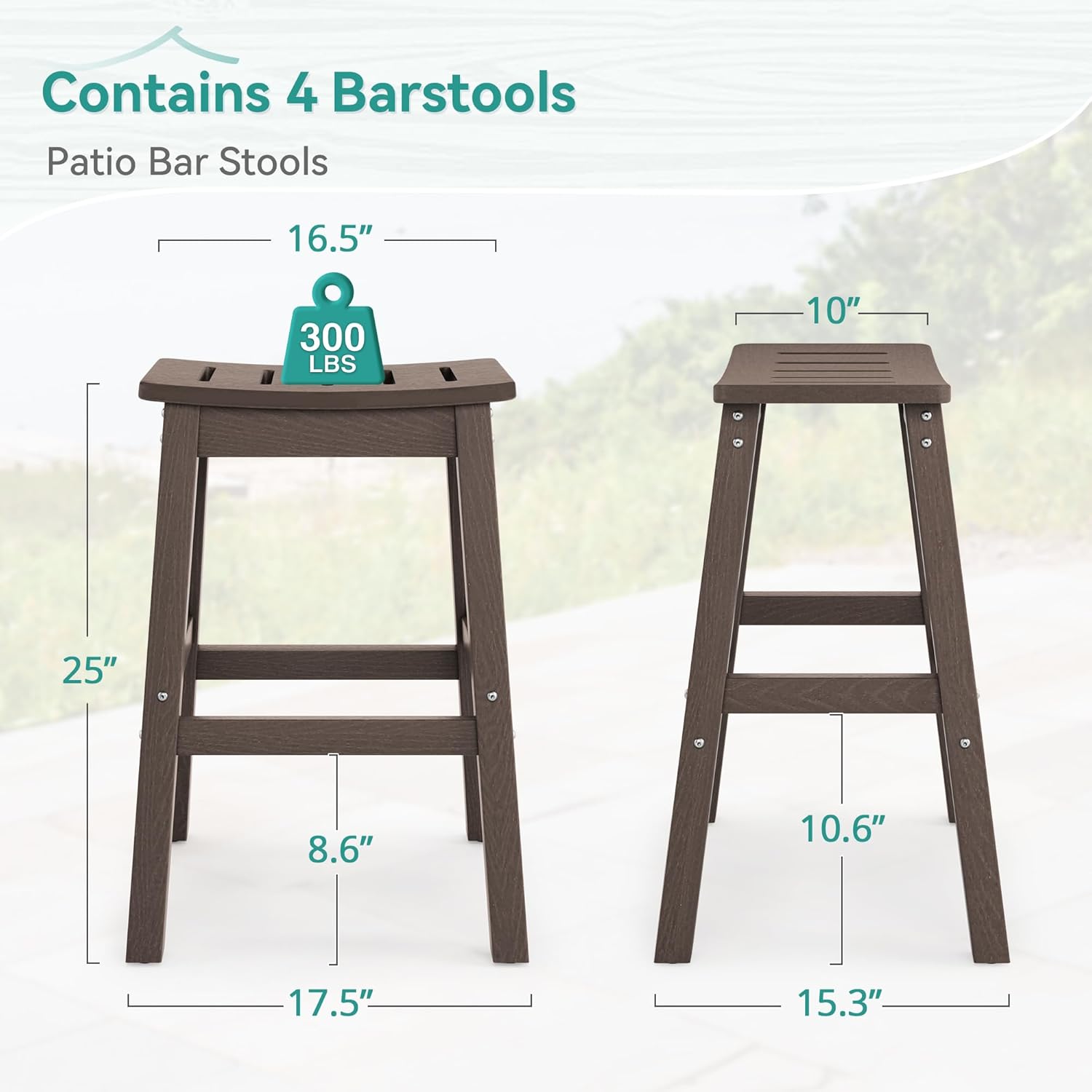

Figure 2.1: Detailed dimensions and weight capacity of a single Homenjoy bar stool.

3. Muntatge i muntatge

Assembly of the Homenjoy Outdoor Bar Stools is straightforward. Please follow these steps carefully to ensure proper and safe construction.

Passos de muntatge:

1. Step 1: Attach the Legs to the Seat Base.

   Identify the seat base and the four main leg pieces. Using the provided screws (Type A, x8), attach each leg to the designated points on the underside of the seat base. Ensure the legs are oriented correctly, with the pre-drilled holes for the crossbars facing inwards. (Refer to video timestamp 0:07 - 0:19)

2. Step 2: Install the First Set of Crossbars.

   Take the four shorter crossbar pieces. Align them between the legs, ensuring the pre-drilled holes match. Use the provided screws (Type A, x4) to secure these crossbars. Do not fully tighten the screws at this stage; leave them slightly loose to allow for adjustment. (Refer to video timestamp 0:20 - 0:25)
3. Step 3: Install the Second Set of Crossbars.

   Take the remaining four shorter crossbar pieces. Align them between the legs at the lower position, ensuring the pre-drilled holes match. Use the provided screws (Type A, x4) to secure these crossbars. Again, do not fully tighten the screws yet. (Refer to video timestamp 0:26 - 0:30)

4. Step 4: Fully Tighten All Bolts.

   Once all components are in place, carefully place the stool upright on a flat, level surface. Now, go back and 100% tighten all screws from Steps 1, 2, and 3. This ensures the stool is stable and sturdy for use. (Refer to video timestamp 0:31 - 0:43)

5. Step 5: Attach Non-slip Leveling Feet.

   Finally, attach the non-slip leveling feet (Type C, x4) to the bottom of each leg. These feet help protect your floors and provide additional stability. (Refer to video timestamp 0:44 - 0:47)

Nota important: It is crucial to leave all bolts slightly loose during initial assembly and only fully tighten them once all parts are correctly aligned and the stool is on a level surface. This prevents warping and ensures maximum stability.

Vídeo d'instruccions de muntatge

4. Instruccions de funcionament

The Homenjoy Outdoor Bar Stools are designed for versatile use in various outdoor and indoor environments. Their robust HDPE construction ensures long-lasting performance.

• Col·locació: Suitable for balconies, backyards, patios, and indoor bar areas. Ensure placement on a flat, stable surface to prevent wobbling.
• Límit de pes: Do not exceed the maximum weight capacity of 300 lbs per stool to ensure safety and product longevity.
• Resistència a la intempèrie: These stools are designed to be all-weather resistant, making them ideal for year-round outdoor use without significant degradation.

Figure 4.1: Key properties of the HDPE material used in Homenjoy bar stools.

Figure 4.2: Design features contributing to the comfort and stability of the bar stools.

5. Manteniment

Maintaining your Homenjoy Outdoor Bar Stools is simple due to their durable HDPE construction.

• Neteja: For general cleaning, wipe the stools with a dry cloth to remove dust. For more thorough cleaning, use a damp cloth with mild soap and water. Avoid harsh chemicals or abrasive cleaners, as these may damage the material.
• Inspecció: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and safety.
• Emmagatzematge: While designed for all-weather use, storing the stools in a covered area during extreme weather conditions (e.g., heavy snow, prolonged freezing temperatures) can further extend their lifespan.

6. Solució De Problemes

Most common issues can be resolved with simple checks.

• Femta que es balanceja: If the stool wobbles after assembly, ensure all bolts are fully tightened. Place the stool on a flat, level surface and re-tighten any loose connections. The adjustable non-slip leveling feet can also be adjusted to compensate for uneven surfaces.
• Dificultat de muntatge: If you encounter difficulty during assembly, refer to the "Setup and Assembly" section and the provided video instructions. Ensure you are not overtightening bolts until all components are in place and aligned.
• Decoloració/esvaïment: While the HDPE material is weather-resistant, prolonged exposure to intense direct sunlight over many years may cause slight fading. Regular cleaning and occasional application of a UV protectant designed for plastics can help preserve the color.

7. Informació de seguretat

Please read and follow all safety instructions carefully to prevent injury and ensure the longevity of your product.

• Muntatge: Assembly is required. Follow the instructions carefully for safe use. Ensure all parts are correctly installed and tightened before using the stools.
• Límit de pes: Do not exceed the stated weight capacity of 300 lbs per stool. Overloading can lead to structural failure and injury.
• Superfície estable: Always place the stools on a flat, stable, and level surface to prevent tipping.
• Nens: Supervise children when they are using the stools to prevent accidents.
• Moviment: Do not stand on the stools or use them as a step ladder. Do not drag the stools across rough surfaces, as this may damage the feet or legs. Lift and move them instead.

8. Garantia i Suport

Homenjoy is committed to providing high-quality products. For any questions, concerns, or support needs regarding your Outdoor Bar Stools, please contact our customer service team.

• Atenció al client: Refer to your purchase documentation or the Homenjoy brand store on Amazon for contact information.
• Plans de protecció: Additional protection plans may be available for purchase at the time of product acquisition. Please check your order details for more information.
• Devolucions: This product typically comes with a 30-day easy return policy. Please consult Amazon's return policy or your seller's specific terms for details.

We value your satisfaction and are here to assist you.
