Manual d'instruccions de la ràdio amateur portàtil BAOFENG UV-5RM

1. Introducció

The BAOFENG UV-5RM is a high-power, multi-band handheld ham radio designed for reliable long-range communication. This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your UV-5RM radio.

Key features include 10W power output, a 1.8-inch color display, 999 storage channels, Type-C charging, and support for multiple bands including UHF, VHF, GMRS, FM, AM, and NOAA weather alerts.

2. Contingut del paquet

Upon unboxing your BAOFENG UV-5RM radio set, please verify that all components listed below are present and in good condition:

• 2 × BAOFENG UV-5RM Radios
• 2 × Bateries de ions de liti de 2500 mAh
• 2 × Original Headphones
• 2 × Hand Microphones
• 2 × BF-771 High Gain Antennas
• 2 × Original Antennas
• 2 × adaptadors de corrent
• 2 × Belt Clips
• 2 × Hand Straps
• 1 × Cable de programació
• 1 × Manual d'usuari

Figure 1: Complete package contents of the BAOFENG UV-5RM radio set.

3. Configuració

3.1. Instal·lació i càrrega de la bateria

1. Assegureu-vos que la ràdio estigui apagada.
2. Alineeu el paquet de bateries amb les ranures de la part posterior de la ràdio.
3. Feu lliscar la bateria cap amunt fins que encaixi fermament al seu lloc.
4. To charge, connect the power adapter to the charging base.
5. Place the radio (with battery installed) into the charging base. The indicator light on the base will show charging status.
6. Alternatively, use the Type-C charging port directly on the battery for convenient charging via USB wall adapter, power bank, or vehicle USB port.

Figure 2: The 2500mAh Type-C charging battery and its estimated usage times.

Figure 3: Multiple convenient charging solutions for the UV-5RM radio.

3.2. Fixació de l'antena

Screw the desired antenna (standard or high-gain BF-771) clockwise onto the antenna connector at the top of the radio until it is finger-tight. Do not overtighten.

Figure 4: The 771 long antenna enhances long-distance communication.

3.3. Fixació d'accessoris (opcional)

• Micròfon de mà: Plug the hand microphone into the side port of the radio. The microphone features a 360° rotating clip and a 3.5mm headphone jack.
• Auriculars: Connect the original headphones to the side port for private listening and communication.
• Clip de cinturó: Attach the belt clip to the back of the radio using the provided screws for easy carrying.
• Corretja de mà: Secure the hand strap to the designated loop on the radio to prevent accidental drops.

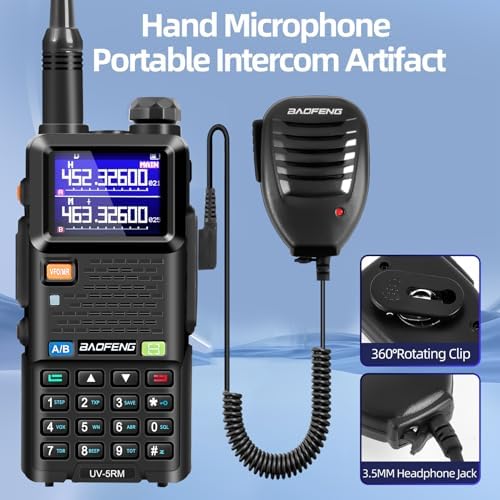

Figure 5: The hand microphone provides convenient portable intercom functionality.

4. Instruccions de funcionament

4.1. Encendre/apagar i control de volum

To power on the radio, rotate the top knob clockwise. To power off, rotate it counter-clockwise until it clicks. Adjust the volume by rotating the same knob.

4.2. Selecció de freqüència i canal

• Mode VFO (Mode de freqüència): Allows direct frequency input. Use the keypad to enter frequencies.
• MR Mode (Memory Channel Mode): Allows selection of pre-programmed channels. Use the up/down arrow keys to navigate through channels.
• Premeu el botó VFO/MR button to switch between VFO and MR modes.
• The UV-5RM supports multi-band operation including UHF, VHF, GMRS, FM, AM, and NOAA.

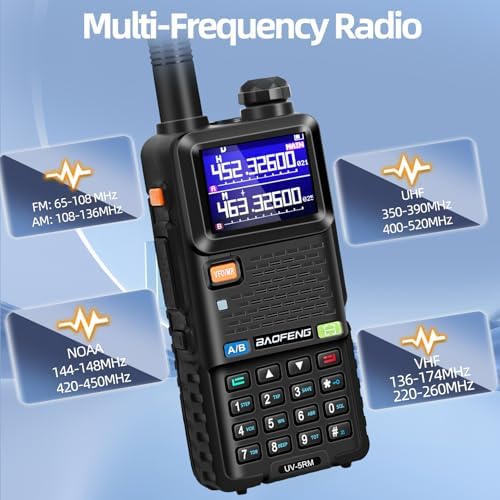

Figure 6: The UV-5RM supports a wide range of frequencies across multiple bands.

4.3. Transmissió i recepció

• Per transmetre, premeu i manteniu premut el botó PTT (prem per parlar) botó al lateral de la ràdio. Parla clarament al micròfon.
• Allibera el PTT botó per aturar la transmissió i tornar al mode de recepció.
• Ensure your selected frequency or channel is clear before transmitting.

4.4. One-Click Frequency Copy

The UV-5RM features a convenient one-click frequency matching function to quickly copy frequencies from other radios:

1. Place the UV-5RM radio near the radio from which you want to copy the frequency.
2. Press and hold the green key (often labeled F or ESCANEAR) to initiate frequency search.
3. Once the frequency is detected, press another key (e.g., MENÚ or DESA) to save the copied frequency to a channel. Refer to the specific manual for exact key assignments.

Figure 7: One-click frequency copy simplifies channel programming.

4.5. Funcions avançades

• VOX (Transmissió Operada per Veu): Enables hands-free transmission when voice is detected. Activate and adjust VOX sensitivity in the menu.
• Suprimir: Adjusts the receiver's sensitivity to block out weak signals and background noise. Higher squelch levels require stronger signals.
• Llanterna: The radio includes a built-in flashlight. Refer to the user manual for specific button presses to activate and cycle through modes (e.g., steady, SOS).
• DTMF (multifreqüència de doble to): Used for various control functions, such as remote control of repeaters.
• BCL (Bloqueig de canal ocupat): Impedeix la transmissió en un canal concorregut.
• TOT (temporitzador de temps mort): Limits the maximum transmission time to prevent accidental continuous transmission.
• Gestió de contrasenyes d'engegada: Set a password to prevent unauthorized use of the radio.
• Cronòmetre: The radio includes a stopwatch function for timing activities.

Figure 8: The stopwatch timing function on the UV-5RM display.

Figure 9: The high brightness flashlight integrated into the radio.

Figure 10: Intelligent noise reduction for clearer communication.

5. Manteniment

• Neteja: Utilitzeu un suau, damp drap per netejar l'exterior de la ràdio. Eviteu productes químics agressius o netejadors abrasius.
• Cura de la bateria: Per allargar la durada de la bateria, eviteu sobrecarregar-la o esgotar-la completament. Guardeu la ràdio i les bateries en un lloc fresc i sec quan no les utilitzeu durant períodes prolongats.
• Cura de l'antena: Handle antennas carefully to prevent bending or breaking. Do not use the radio without an antenna attached, as this can damage the transmitter.
• Emmagatzematge: Guardeu la ràdio en un lloc sec i sense pols, allunyat de la llum solar directa i de temperatures extremes.

6. Solució De Problemes

7. Especificacions

• Model: UV-5RM
• Identificador FCC: 2AJGM-5RM
• Potència de sortida: 10W
• Storage Channels: 999
• Visualització: Pantalla a color de 1.8 polzades
• Capacitat de la bateria: 2500mAh Ió de liti
• Càrrega: Type-C Port, Charging Base
• Interval de freqüència:
  • UHF: 350-390MHz (RX) / 400-520MHz (TX&RX)
  • VHF: 136-174MHz (TX&RX) / 220-260MHz (RX)
  • NOAA: 144-148MHz / 420-450MHz
  • FM: 65-108 MHz (RX)
  • AM: 108-136 MHz (RX)
• Antena: 15-inch 771 Long Antenna (High Gain)
• Característiques especials: Stopwatch, Power-on Password Management, DTMF, BCL, TOT, One-click Frequency Copy, Flashlight, VOX, Squelch.
• Nivell de resistència a l'aigua: Repel·lent a l'aigua
• Pes de l'article: 10.6oz (radio only) / 3.08 pounds (package)
• Dimensions: 5.3in/135mm (height) x 2.36in/60mm (width) x 1.3in/33mm (depth) - radio only
• País d'origen: Xina

Figure 11: Model comparison highlighting UV-5RM's enhanced features.

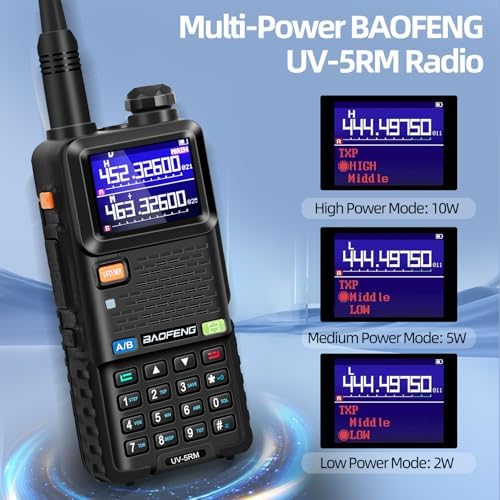

Figure 12: Multi-power output modes of the UV-5RM radio.

8. Garantia i Suport

The BAOFENG UV-5RM radio comes with a 1-year warranty from the date of purchase. For any product-related issues, technical assistance, or warranty claims, please contact our professional customer service team. We are committed to providing responses and solutions within 24 hours.

Contact information can typically be found on the product packaging or the official BAOFENG weblloc.
