1. Producte acabatview
The Vente-unique VIAZO Aluminum Sliding Gate is designed to provide security and a contemporary aesthetic for your property. Constructed from durable aluminum, it offers excellent resistance to weather and corrosion, ensuring minimal maintenance. This manual provides essential information for the proper assembly, operation, and care of your sliding gate.

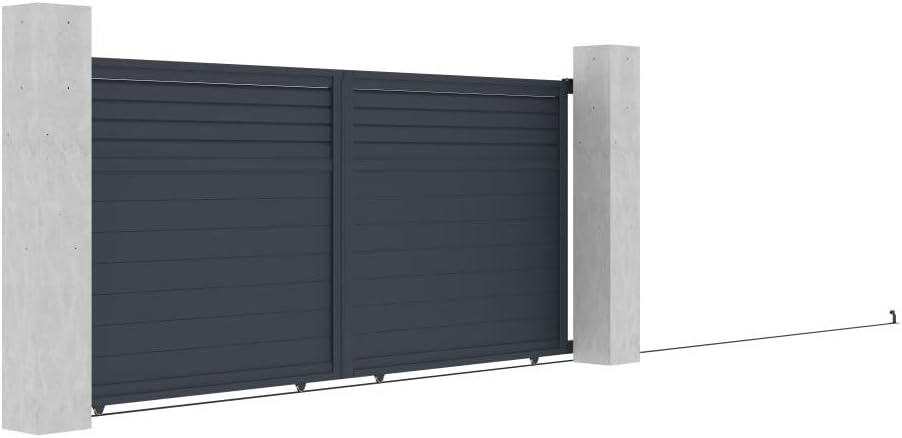

Figure 1.1: The VIAZO Aluminum Sliding Gate in a closed position, showcasing its modern design and louvered panels.
2. Informació de seguretat
Always read and understand all instructions before beginning assembly or operation. Failure to follow safety guidelines may result in injury or damage to the product. Keep children and pets away from the gate during operation.
- Assegureu-vos que tots els components siguin presents i no estiguin danyats abans del muntatge.
- Utilitzeu l'equip de protecció individual (EPI) adequat durant la instal·lació.
- Do not attempt to modify the gate or its components.
- Mantingueu les mans i la roba allunyades de les parts mòbils durant el funcionament.
- Securely anchor the gate according to local building codes and instructions.
3. Configuració i instal·lació
The VIAZO sliding gate requires assembly. It is recommended that two or more people assist with the installation due to the size and weight of the components. Ensure the installation area is level and clear of obstructions.
3.1. Desembalatge i comprovació de components
Carefully unpack all items from the packaging. Verify that all parts listed in the packing list are present and undamaged. Report any missing or damaged parts immediately to Vente-unique customer service.
| paquet | Dimensions (L x P x A) | Pes |
|---|---|---|
| Paquet 1 | 198 cm x 23 cm x 20 cm | 23 kg |
| Paquet 2 | 189 cm x 22 cm x 17 cm | 21 kg |
3.2. Preparació del lloc
Ensure the ground where the gate will be installed is level and capable of supporting the gate's weight (total 87 kg). Proper foundation and support posts are crucial for stable and safe operation. Refer to the technical drawing for precise measurements and clearances.

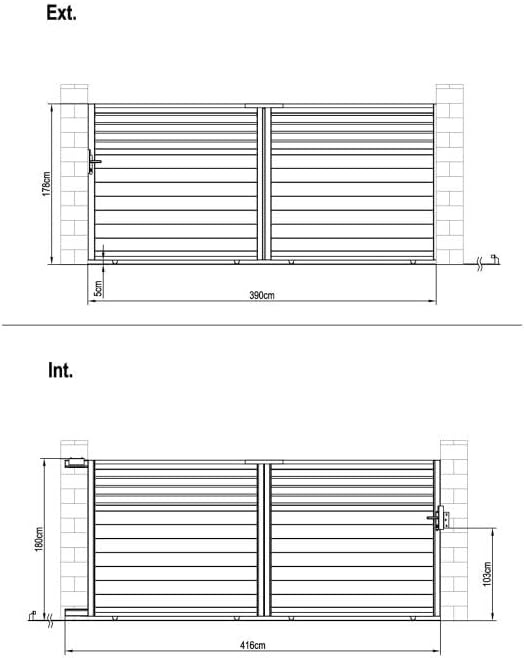

Figure 3.1: Technical drawing showing external (Ext.) and internal (Int.) dimensions of the gate, including height and length measurements.
3.3. Passos de muntatge
- Assemble the main gate frame according to the provided diagrams.
- Attach the louvered panels securely to the frame.
- Install the sliding mechanism components, including the rollers and guide rail.
- Mount the gate onto the prepared support posts, ensuring it is level and plumb.
- Install the included handle, key lock, and door stop.
- Verify that the gate slides smoothly and that the locking mechanism functions correctly.
Figura 3.2: De dalt a baix view illustrating the gate's sliding track and roller system, crucial for smooth operation.
Figure 3.3: Angled perspective of the gate, highlighting the sliding mechanism and its connection to the support structure.
4. Instruccions de funcionament
The VIAZO gate features a manual sliding mechanism. It is designed for horizontal opening and is reversible, allowing for left or right-hand opening depending on your installation preference.
4.1. Opening the Gate
- Unlock the gate using the provided key.
- Agafeu el mànec fermament.
- Apply gentle, consistent force to slide the gate horizontally along its track until it reaches the desired open position. The maximum opening angle is 100 degrees.
- Ensure the gate is fully open and secured by the door stop if required, to prevent accidental closure.
4.2. Closing the Gate
- Agafeu el mànec fermament.
- Apply gentle, consistent force to slide the gate horizontally along its track until it is fully closed.
- Lock the gate using the key to secure it in the closed position.
Figure 4.1: The VIAZO gate in a partially open state, demonstrating its horizontal sliding operation.
5. Manteniment
The aluminum construction of the VIAZO gate requires minimal maintenance. Regular cleaning and inspection will ensure its longevity and smooth operation.
5.1. Neteja
- Clean the gate surfaces periodically with mild soap and water.
- Eviteu netejadors abrasius o productes químics agressius que puguin danyar l'acabat.
- Rentar bé amb aigua neta i assecar amb un drap suau.
- Clear any debris from the sliding track to ensure smooth movement.
5.2. Inspecció
- Regularly inspect the sliding mechanism, rollers, and track for wear or damage.
- Check all fasteners and connections to ensure they are tight.
- Lubricate moving parts (e.g., rollers, lock mechanism) with a silicone-based lubricant annually or as needed.
- Inspect the gate for any signs of corrosion or structural fatigue.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Gate is difficult to slide | Debris in track, worn rollers, lack of lubrication | Clean track, inspect/replace rollers, lubricate moving parts |
| Gate does not close completely | Obstruction in path, misaligned track, damaged stop | Remove obstruction, check track alignment, inspect/replace stop |
| Lock mechanism is stiff | Lack of lubrication, dirt in mechanism | Clean and lubricate the lock mechanism |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact Vente-unique customer support.
7. Especificacions
| Característica | Detall |
|---|---|
| Model | VIAZO |
| Marca | Vente-únic |
| Material | Alumini |
| Color | Antracita (RAL 7016) |
| Gate Length (L) | 390 cm |
| Gate Height (H) | 178 cm |
| Gate Depth | 4.6 cm |
| Total Length (including posts) | 416 cm |
| Total Height (including posts) | 180 cm |
| Metal Thickness | 1.2 mm |
| Sistema d'obertura | Sliding, Manual |
| Max Opening Angle | 100° |
| Equipament inclòs | Handle, Key Lock, Door Stop |
| Direcció d'obertura | Horizontal, Reversible (Left/Right) |
| Pes del producte | 87 kg |
8. Garantia i Suport
8.1. Informació de la garantia
This product is covered by a standard return policy allowing for refund or replacement within 30 days of purchase, as per Amazon's terms. For specific warranty details beyond this period, please refer to the manufacturer's documentation or contact Vente-unique directly.
8.2. Atenció al client
For technical assistance, missing parts, or any other inquiries regarding your Vente-unique VIAZO Aluminum Sliding Gate, please contact Vente-unique customer service. You can typically find contact information on the Vente-unique official weblloc o a través de la seva pàgina de botiga d'Amazon.
Visit the official Vente-unique store on Amazon: Vente-unique Amazon Store
