Manual d'usuari del subwoofer DD Audio 710F-D4 de 10" amb doble 4 ohms i 4500 W

Introducció

This manual provides essential information for the proper installation, operation, and maintenance of your DD Audio 710F-D4 10" Dual 4-Ohm 4500W Subwoofer. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your product.

The DD Audio 710F-D4 subwoofer is engineered for high-performance audio systems, featuring advanced thermal cooling enhancements and robust construction to deliver powerful and clean bass reproduction. Its design prioritizes efficiency and heat management for extended periods of high-output operation.

Informació de seguretat

ADVERTIMENT:

• Always disconnect the vehicle's battery before installing or servicing any audio components.
• Assegureu-vos que totes les connexions del cablejat estiguin ben fixades i degudament aïllades per evitar curtcircuits.
• No exposeu el subwoofer a la humitat ni a temperatures extremes.
• High sound pressure levels can cause permanent hearing damage. Use caution when operating at high volumes.
• Consulteu un instal·lador professional si teniu dubtes sobre algun aspecte del procés d'instal·lació.

Què hi ha a la caixa

En obrir el paquet, comproveu que tots els components hi són i no estan danyats:

• 1 x DD Audio 710F-D4 10" Dual 4-Ohm 4500W Subwoofer

If any items are missing or damaged, please contact your authorized DD Audio dealer immediately.

Configuració i instal·lació

Requisits de tancament

The 710F-D4 subwoofer is designed for optimal performance in a properly constructed enclosure. Refer to the specifications section for recommended enclosure volumes.

• Ported Enclosure Volume: 1.5 CuFt (Cubic Feet)
• Ensure the enclosure is rigid and sealed to prevent air leaks.
• Proper port tuning is crucial for ported enclosures.

Muntatge

The subwoofer requires a mounting diameter of 9.312 inches and a mounting depth of 7.625 inches. Ensure adequate clearance behind the mounting surface.

Davant view of the DD Audio 710F-D4 subwoofer, showing the cone and surround. This view highlights the speaker's face, which should be flush-mounted.

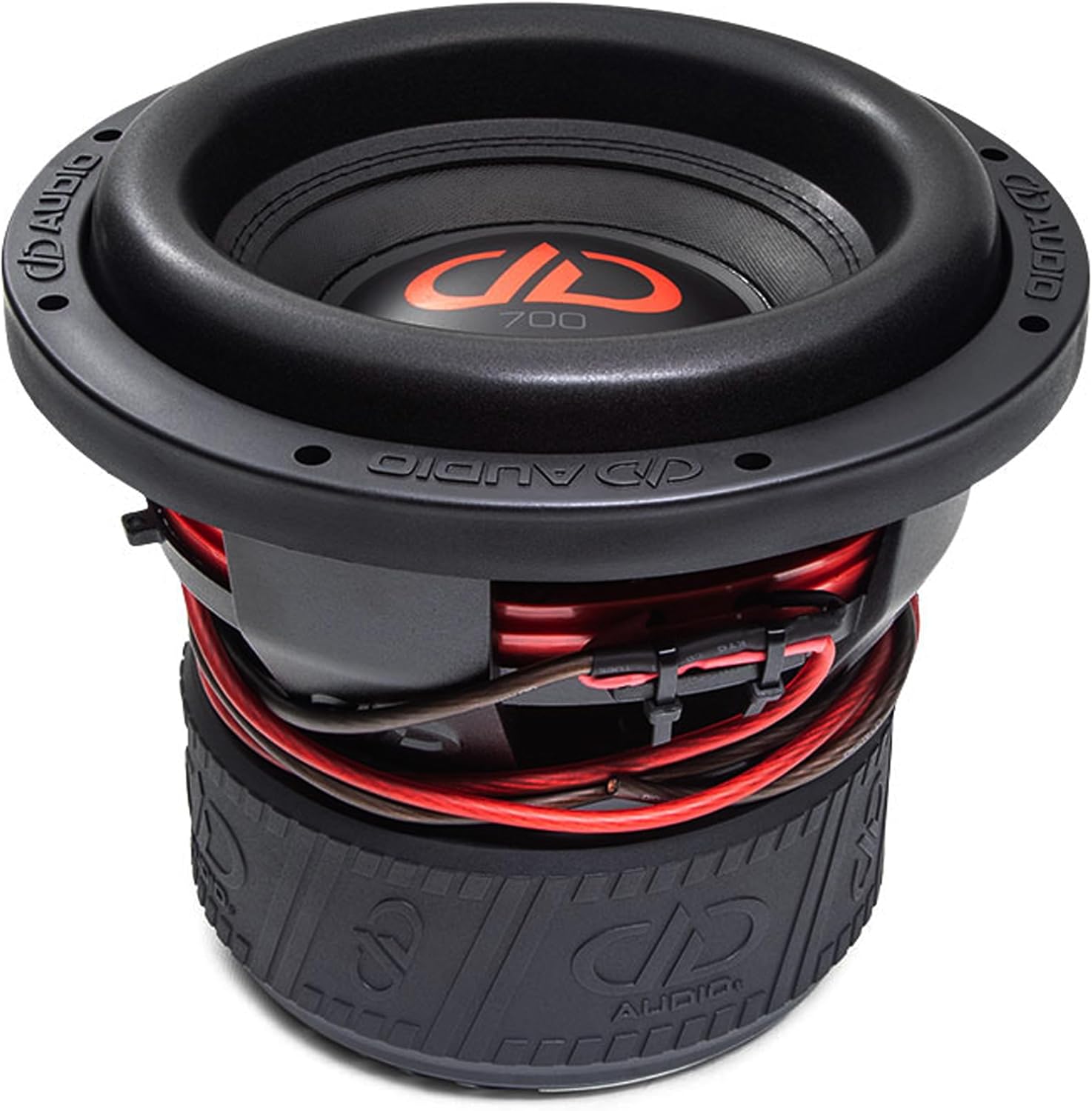

Angle de dalt a baix view of the DD Audio 710F-D4 subwoofer, showcasing the robust surround and the DD Audio logo on the cone. This perspective helps visualize the overall form factor.

Connexions de cablejat

The 710F-D4 features a Dual 4-Ohm voice coil configuration. Proper wiring is critical for optimal performance and to match your amprequisits d'impedància del transformador.

• Cablejat en paral·lel (càrrega de 1 ohms): Connect positive of coil 1 to positive of coil 2, and negative of coil 1 to negative of coil 2. Then connect to ampmés viu.
• Cablejat en sèrie (càrrega de 8 ohms): Connect positive of coil 1 to amplifier positive, negative of coil 1 to positive of coil 2, and negative of coil 2 to amplifier negatiu.
• Use appropriate gauge speaker wire for the power levels.

A baix view of the DD Audio 710F-D4 subwoofer, revealing the dual voice coil wiring terminals and the robust motor structure. This image is crucial for understanding wiring connections.

lateral view of the DD Audio 710F-D4 subwoofer, emphasizing the vented, finned aluminum heatsink and the red wiring. This view illustrates the thermal cooling enhancements.

Instruccions de funcionament

Once installed, the subwoofer will operate as part of your car audio system. Proper gain setting and crossover configuration are essential for optimal sound quality and to prevent damage.

• AmpGuany lifier: Estableix el amplifier gain using a multimeter or oscilloscope to match the output voltage of your head unit, ensuring no clipping occurs.
• Filtre de pas baix (LPF): Estableix el teu amplifier's or head unit's LPF to a frequency typically between 60Hz and 80Hz to ensure only bass frequencies are sent to the subwoofer.
• Filtre subsònic (HPF): Si el teu amplifier has a subsonic filter, set it slightly below your enclosure's tuning frequency to protect the subwoofer from over-excursion at very low frequencies.
• Període d'entrada: Allow a break-in period of approximately 20-30 hours of moderate listening before operating the subwoofer at full power. This allows the suspension components to loosen up.

Manteniment

The DD Audio 710F-D4 subwoofer requires minimal maintenance. Follow these guidelines to ensure its longevity:

• Keep the subwoofer clean and free of dust and debris. Use a soft, dry cloth for cleaning.
• Avoid exposing the subwoofer to direct sunlight for extended periods, as this can degrade the surround and cone materials.
• Comproveu regularment totes les connexions del cablejat per verificar si estan ben ajustades i si hi ha corrosió.
• Ensure proper ventilation around the subwoofer and amplificador per evitar el sobreescalfament.

Resolució de problemes

If troubleshooting steps do not resolve the issue, contact DD Audio customer support or an authorized service center.

Especificacions

Garantia i Suport

Informació de la garantia

The DD Audio 710F-D4 subwoofer comes with a Limited Warranty. Please refer to the warranty card included with your product or visit the official DD Audio weblloc web per obtenir els termes i condicions detallats sobre la cobertura, la durada i els procediments de reclamació.

This warranty typically covers manufacturing defects and workmanship under normal use. It does not cover damage caused by improper installation, abuse, accidents, modifications, or unauthorized repairs.

Atenció al client

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact DD Audio customer support:

• Weblloc: ddaudio.com (Si us plau, consulteu la informació oficial) weblloc web per obtenir la informació de contacte més actualitzada.)
• When contacting support, please have your product model number (710F-D4) and purchase information readily available.
