HT609PRO Gas Leak Detector User Manual

1. Introducció

The Irfora HT609PRO is a professional handheld combustible gas detector designed for fast and reliable detection of flammable gas leaks. It also integrates high-precision temperature and humidity sensors to measure the current environment's relative humidity and temperature. This versatile instrument is essential for professionals requiring accurate gas leak detection and environmental monitoring.

Key features include adjustable sensitivity, a telescopic rod for extended reach, audio-visual alarms, a highly sensitive sensor for quick response, and a high-definition backlit LCD display for clear readings in various lighting conditions.

2. Producte acabatview

Davant view of the HT609PRO Gas Leak Detector, showing the display, buttons, and sensor probe.

Acabatview of key features including backlit color screen, automatic shutdown, highly sensitive sensor, visual/audio alarm, fast response, and low battery indication.

2.1. Contingut del paquet

En obrir el paquet, assegureu-vos que hi hagi tots els elements presents:

• 1 x HT609PRO Gas Leak Detector
• 1 x bossa d'emmagatzematge
• 1 manual d'usuari (anglès)

Image showing the HT609PRO Gas Leak Detector, its storage bag, and the included user manual.

2.2. Components del dispositiu

• Gas Sensor Probe: Located at the top, extends for detection.
• Pantalla LCD: Shows gas concentration, temperature, humidity, sensitivity level, and battery status.
• Botó d'encendre (): Encén/apaga el dispositiu.
• Botó APO: Activates/deactivates Auto Power Off function.
• SENS Button: Adjusts sensitivity (Low, Medium, High).
• Botó °C/°F: Toggles temperature unit between Celsius and Fahrenheit.
• Botó Silenciar (): Toggles buzzer sound on/off.
• Compartiment de la bateria: Located at the rear, holds 3 AAA batteries.

3. Configuració

3.1. Instal·lació de la bateria

1. Localitzeu la tapa del compartiment de la bateria a la part posterior del dispositiu.
2. Feu lliscar o desenganxeu la coberta per obrir-la.
3. Insert 3 x 1.5V AAA Alkaline batteries, ensuring correct polarity (+/-).
4. Col·loqueu la coberta del compartiment de la bateria amb seguretat.

Note: Batteries are not included with the product.

4. Instruccions de funcionament

4.1. Encendre/apagar

• Per encendre, premeu i manteniu premut button until the display illuminates. The device will undergo a warm-up period of approximately 30 seconds, indicated by "WAIT..." on the screen.
• Per apagar-lo, manteniu premut el botó botó fins que la pantalla s'apagui.

4.2. Gas Leak Detection

1. After warm-up, the device is ready for detection.
2. Extend the telescopic sensor probe to the desired length.
3. Move the sensor probe slowly around the area where a gas leak is suspected.
4. The device will provide visual (screen color change) and audible (buzzer) alarms if combustible gas is detected. The screen will change colors based on the measured concentration value.
5. The response time is typically ≤500ppm: Approx. 5sec; >500ppm: Approx. 2sec.

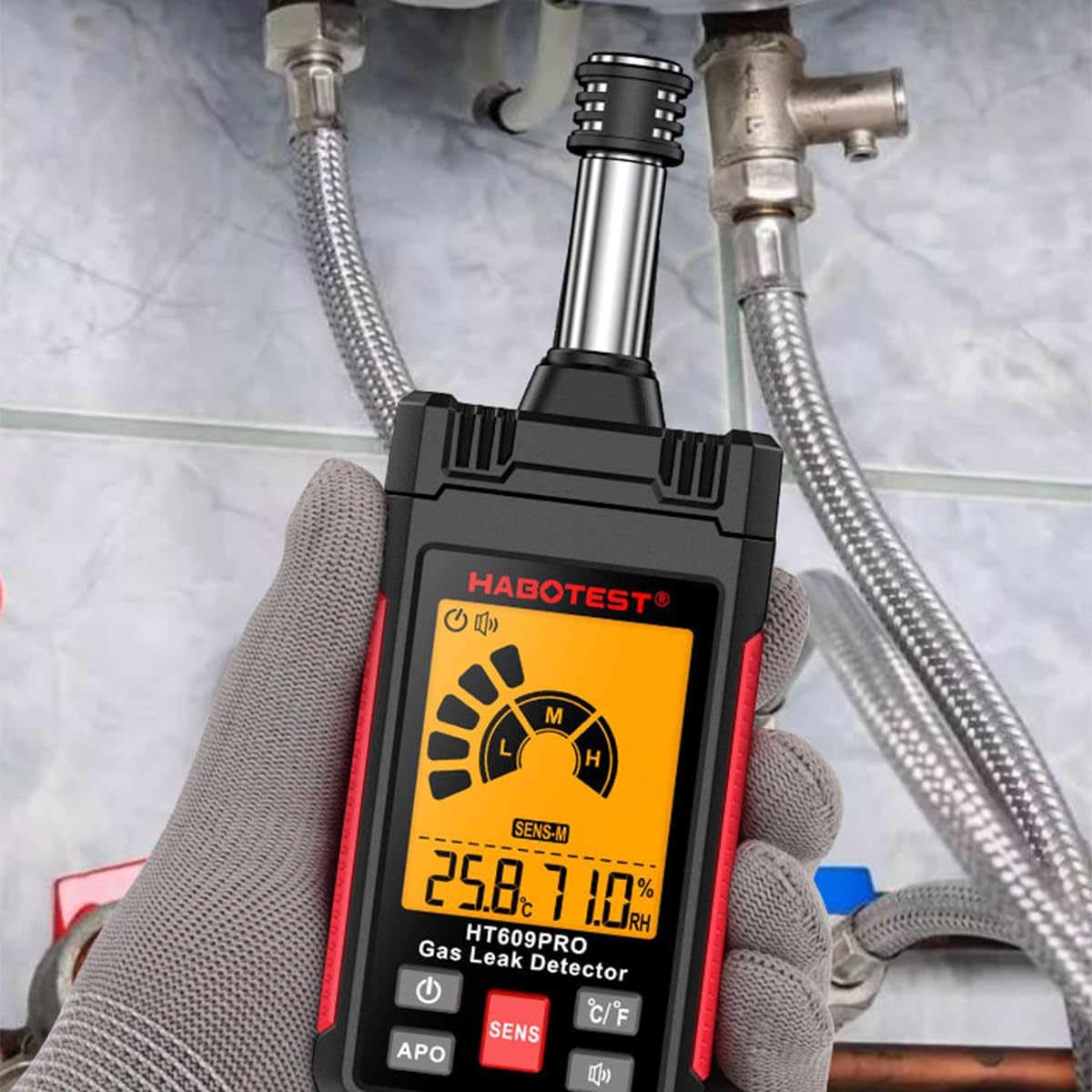

The HT609PRO Gas Leak Detector being used to check for leaks near gas pipes.

4.3. Ajust de sensibilitat

Premeu el botó SENS button to cycle through the three sensitivity levels:

• SENS-L (Low Sensitivity): For general detection in areas with higher background gas levels.
• SENS-M (Medium Sensitivity): Standard detection for most applications.
• SENS-H (High Sensitivity): For detecting very small leaks or in areas requiring maximum precision.

4.4. Mesura de temperatura i humitat

The device continuously displays ambient temperature and relative humidity on the LCD screen. Press the ° C / ° F botó per canviar entre les unitats de temperatura Celsius i Fahrenheit.

4.5. Apagat automàtic (APO)

The device features an automatic power-off function to conserve battery life. Press the APO button to toggle this feature on or off. When active, the device will automatically shut down after a period of inactivity.

4.6. Funció de silenci

Premeu el botó button to mute or unmute the buzzer alarm. The visual alarm on the screen will continue to function regardless of the mute setting.

5. Especificacions

Visual representation of various combustible gases the HT609PRO can detect, including CH4 (Methane), CO (Carbon Monoxide), C2~C12 hydrocarbons, C2H2 (Acetylene), C6H6 (Benzene), C2H4O (Ethylene Oxide), C6H14 (Hexane), C4H10 (Butane), and CH2Cl2 (Dichloromethane).

6. Manteniment

6.1. Neteja

Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the casing or display. Ensure the sensor probe is kept clean and free of debris.

6.2. Substitució de la bateria

When the low battery indicator appears on the display, replace all three AAA batteries promptly to ensure accurate readings and proper device function. Refer to Section 3.1 for battery installation instructions.

6.3. Emmagatzematge

When not in use for extended periods, store the device in its provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures. Remove batteries if storing for more than one month to prevent leakage.

7. Solució De Problemes

7.1. El dispositiu no s'encén

• Comproveu si les piles estan instal·lades correctament amb la polaritat correcta.
• Replace with new AAA alkaline batteries.
• Assegureu-vos que el botó d'engegada estigui premut i mantingut prou premut.

7.2. Inaccurate Readings / No Gas Detection

• Ensure the device has completed its warm-up period (approx. 30 seconds).
• Check the sensitivity setting (SENS-L, SENS-M, SENS-H) and adjust as needed for the environment.
• Ensure the sensor probe is clean and unobstructed.
• Verify that the gas being detected is one of the combustible gases listed in the specifications.

7.3. L'alarma no sona

• Check if the mute function is activated (indicated by an icon on the display). Press the botó per activar el so.
• Ensure gas concentration is above the detection threshold to trigger the alarm.

8. Informació de seguretat

• This device is intended for detecting combustible gases. It is not a substitute for proper ventilation or other safety measures.
• No exposeu el dispositiu a temperatures extremes, humitat ni ambients corrosius.
• No intenteu desmuntar ni modificar el dispositiu, ja que això anul·larà la garantia i pot causar danys o lesions.
• Mantenir fora de l'abast dels nens.
• Always follow local safety regulations and guidelines when working with gas lines or combustible materials.

9. Garantia i Suport

For warranty information and technical support, please refer to the specific warranty card included with your product or visit the official Irfora website. The user manual included in the package contains detailed contact information for customer service.
