1. Introducció
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Napoleon Built-In 700 Series 44-inch Propane Gas Grill Head. Please read all instructions carefully before using the appliance.

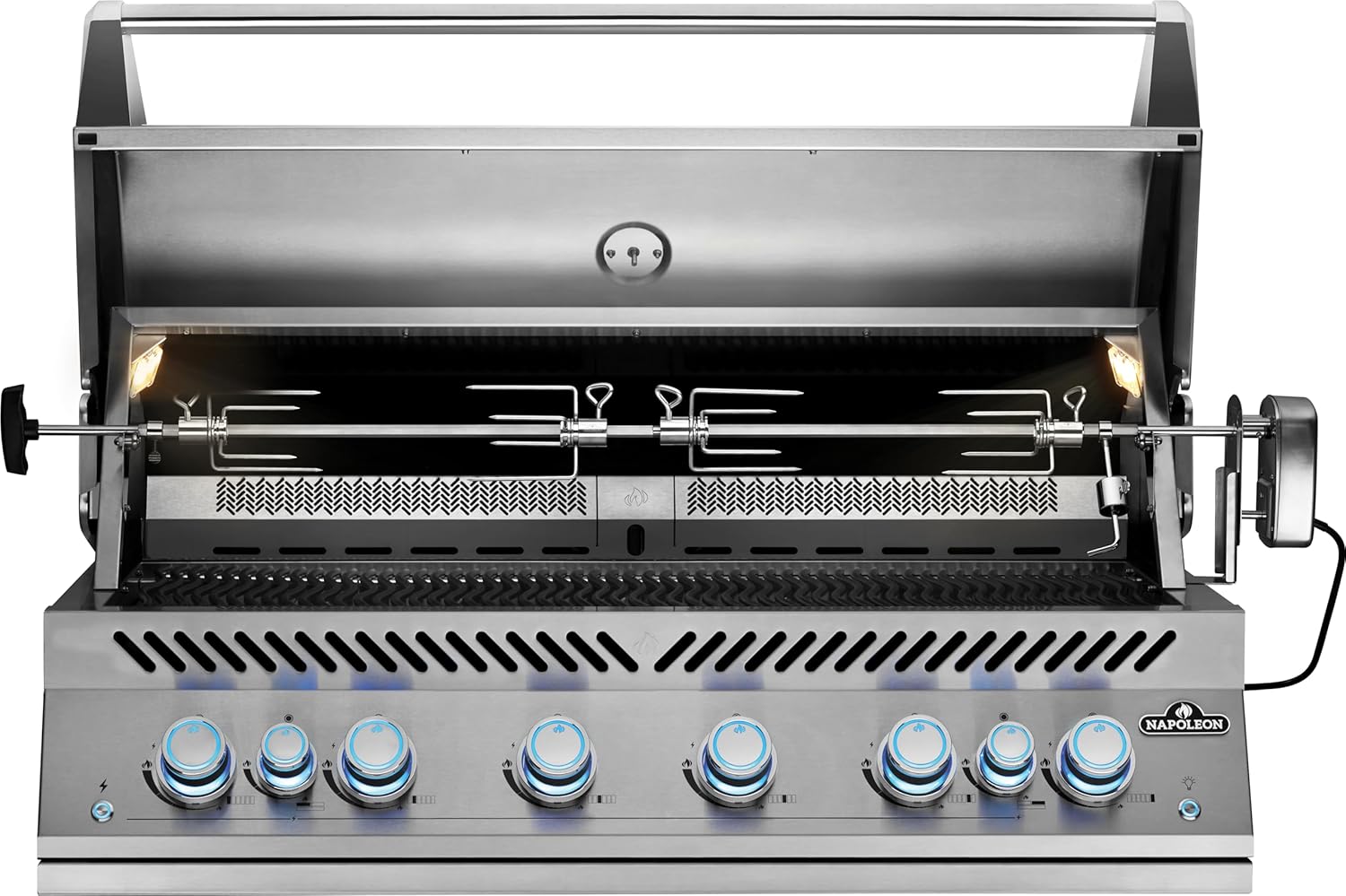

Figura 1.1: Frontal view of the Napoleon Built-In 700 Series 44-inch Propane Gas Grill Head.
2. Configuració i instal·lació
The Napoleon Built-In 700 Series 44-inch Gas Grill is designed for ease of installation into your outdoor kitchen. Professional installation is recommended.
2.1 Dimensions and Cut-Out Requirements
Ensure your outdoor kitchen counter cut-out meets the specified dimensions for proper fit. The design allows for a 2-inch (5.08 cm) tolerance for cut-outs, simplifying planning and installation.
Figure 2.1: Product dimensions for the grill head.
2.2 Electrical and Gas Connections
The grill features longer electrical wiring and an extra-long flexible gas line to accommodate various installation designs. All gas and electrical connections must be performed by a qualified technician in accordance with local codes and regulations.
Figura 2.2: Example of a built-in installation in an outdoor kitchen.
3. Instruccions de funcionament
3.1 Sistema d'encesa
The grill is equipped with a battery-free JETFIRE ignition system. This system lights burners instantly with a jet of flame for quick start-ups. If a burner goes out or fails to light, cross-lighting brackets automatically ignite adjacent burners.
Figure 3.1: JETFIRE ignition system in operation.
3.2 Burner Operation and Control
The grill features six main stainless steel burners and a dual infrared rear rotisserie burner. Ergonomic control knobs are backlit in blue, changing to red when a burner is in use, providing visual indication of active burners. The ACCU-PROBE temperature gauge allows for precise temperature control for various cooking styles including searing, smoking, roasting, and baking.
Figure 3.2: Grill with lid open, showcasing the main burners and rotisserie setup.
3.3 Rotisserie Kit Usage
A commercial-grade rotisserie kit is included for spit-roasted meals, utilizing the infrared rear burner. The rotisserie kit can be safely stored in the integrated storage compartment located under the barbecue when not in use.
Figura 3.3: Detallada view of the infrared rotisserie burner and kit.
3.4 Nighttime Grilling
Integrated halogen interior hood lights illuminate the grilling surface, making nighttime grilling convenient and enjoyable.
4. Manteniment i Neteja
Regular maintenance ensures optimal performance and longevity of your grill.
4.1 Cooking Grids
The 0.354-inch (9 mm) thick stainless steel cooking grids are designed for low maintenance. Their unique wave shape provides even heating and prevents smaller food items from falling through, while producing distinct sear marks.
Figure 4.1: Close-up of the stainless steel WAVE cooking grids.
4.2 Sear Plates and Grease Management
Dual-level stainless steel sear plates protect the burners by catching and vaporizing food drippings. Any unvaporized grease is directed to perforated, angular grease management plates, which channel drippings for improved collection and ease of cleaning. This system significantly reduces grease buildup and the risk of grease fires.
Figure 4.2: Stainless steel sear plates protecting the burners.
4.3 Neteja general
Regularly clean the exterior stainless steel surfaces with a non-abrasive cleaner. Ensure the grease tray is emptied and cleaned after each use to prevent buildup.
5. Solució De Problemes
For common operational issues, refer to the comprehensive troubleshooting guide in the full user manual provided with your product. If problems persist, contact Napoleon customer support.
- El cremador no s'encén: Check gas supply, ensure ignition system is clean.
- Escalfament desigual: Clean burners and cooking grids, check for blockages.
- Erupcions excessives: Clean grease management system, reduce fat content in food.
6. Especificacions
| Marca | Napoleó |
| Nom del model | Built-In 700 Series |
| Número de model de l'article | BIG44RBPSS-1 |
| Dimensions del producte | 27.6 "P x 45.5" W x 24" H |
| Pes de l'article | 233 lliures |
| Material | Acer inoxidable |
| Tipus de combustible | Gas propà |
| Nombre de cremadors principals | 6 |
| Cremador posterior d'infrarojos | Sí |
| Total BTU's | 108,000 |
| Superfície de Cocció | 41.5-inches x 18-inches (approx. 747 sq. inches) |
| Components inclosos | Rotisserie Kit, User Manual |
| Característiques especials | Corrosion Resistant, Removable Grease Tray, Removable Plate, Rust Resistant, Warming Rack, Integrated Lighting |
7. Garantia i Suport
Warranty information for your Napoleon Built-In 700 Series Grill Head is typically included with the product packaging or available on the official Napoleon website. For technical support, replacement parts, or warranty claims, please contact Napoleon customer service directly.
Visita el Napoleon Store per a més informació.
