Yesido Dual Dash Camera KM15 User Manual

1. Introducció

Thank you for choosing the Yesido KM15 Dual Dash Camera. This manual provides detailed instructions for the installation, operation, and maintenance of your device. The KM15 offers high-resolution 4K front recording and 1080P rear recording, ensuring comprehensive coverage of your journeys. Its advanced features include 24-hour parking monitoring, loop recording, and Wi-Fi connectivity for easy access to your footage.

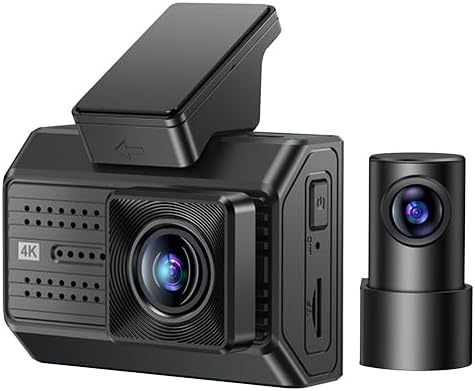

Figure 1.1: Yesido KM15 Dual Dash Camera (Front and Rear Units)

The KM15 is designed for reliability and ease of use, providing crucial evidence in case of incidents and peace of mind during parking. Please read this manual thoroughly before using the product to ensure proper operation and to maximize its lifespan.

2. Contingut del paquet

Si us plau, verifiqueu que tots els elements següents estiguin inclosos al vostre paquet:

• Front Camera Unit (Host)
• Rear Camera Unit with Cable
• ACC Power Cord
• Targeta TF de 32 GB
• Static Stickers for Mounting
• Manual d'usuari (aquest document)

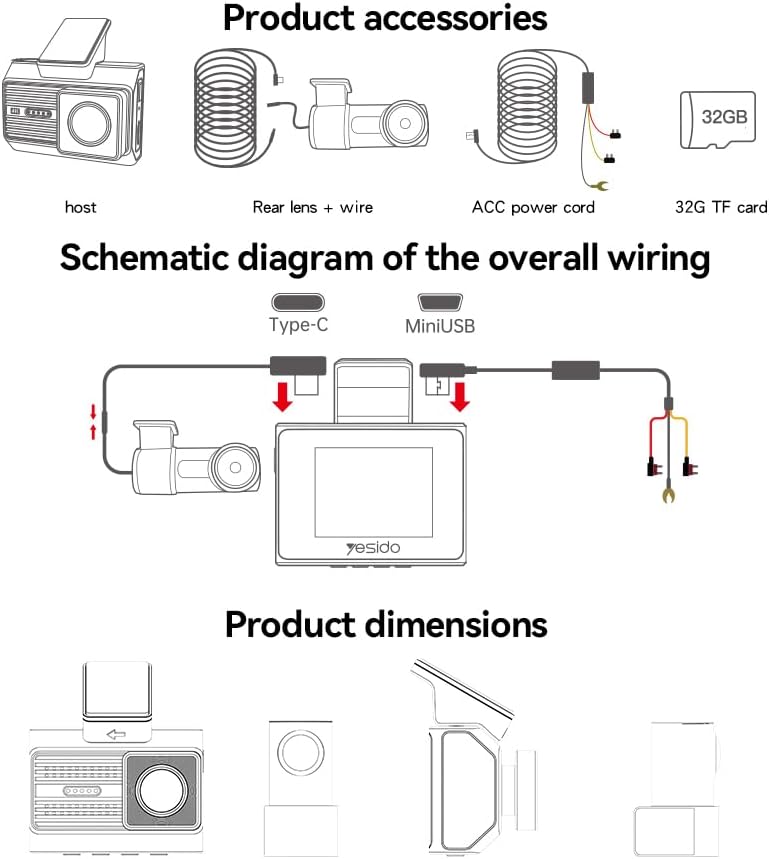

Figure 2.1: Product Accessories and Wiring Diagram

Si falta algun article o està danyat, poseu-vos en contacte amb el servei d'atenció al client immediatament.

3. Especificacions del producte

The Yesido KM15 Dual Dash Camera features advanced components for optimal performance:

Figure 3.1: Internal Components and Key Features

4. Configuració i instal·lació

Una instal·lació correcta és crucial per a un rendiment òptim. Seguiu aquests passos amb atenció:

4.1 Instal·lació de la càmera frontal

1. Netegeu la zona del parabrisa on voleu muntar la càmera del salpicader. Assegureu-vos que no tingui pols ni greix.
2. Attach the static sticker to the cleaned area on the windshield. This helps in easy removal and prevents residue.
3. Mount the front camera unit onto the static sticker, ensuring it is securely attached and does not obstruct your view. Position it centrally, ideally behind the rearview mirall.
4. Adjust the lens angle to capture the road ahead clearly.

Figure 4.1: Front Camera Mounted on Windshield

4.2 Instal·lació de la càmera posterior

1. Identify a suitable location on your rear windshield for the rear camera. It should have a clear view and not be obstructed by the defroster lines or wiper blades.
2. Clean the chosen area thoroughly.
3. Attach the rear camera using the provided adhesive or mounting bracket.
4. Route the rear camera cable neatly along the car's headliner and A-pillars to the front camera unit. Use cable clips if necessary to secure the cable.

Figure 4.2: Rear Camera Mounted on Rear Windshield

4.3 Power Connection and Wiring

1. Connect the ACC power cord to the front camera unit.
2. For continuous power and parking monitoring, connect the ACC power cord to your car's fuse box. Consult a professional if you are unsure about this step. A voltage reduction line is required for low voltage detection during parking monitoring.
3. Ensure all cables are tucked away neatly to avoid obstructing the driver's view o interferint amb els controls del vehicle.

Figure 4.3: Overall Wiring Schematic

4.4 Inserció de la targeta TF

Insert the provided 32GB TF card (Class 10 or higher) into the designated slot on the side of the front camera unit. Ensure it clicks into place. The device supports up to 256GB TF cards.

5. Instruccions de funcionament

Familiarize yourself with the key functions of your dash camera:

5.1 Encès/Apagat

The dash camera will automatically power on and begin recording when your vehicle's ignition is turned on. It will power off automatically when the ignition is turned off.

5.2 Enregistrament en bucle

The KM15 features automatic loop recording. When the TF card is full, the oldest unlocked files will be automatically overwritten by new recordings. This ensures continuous recording without manual intervention. It is recommended to format the TF card periodically to maintain optimal performance.

5.3 Monitorització d'aparcament les 24 hores

With the ACC power cord properly installed and connected to a constant power source, the dash camera can monitor your vehicle 24 hours a day. If a vibration or collision is detected while the car is parked, the G-sensor will trigger the camera to immediately start recording. This feature requires a voltage reduction line for low voltage detection to protect your car battery.

Figura 5.1: Monitorització d'aparcament les 24 hores

5.4 Wi-Fi Connectivity and App (FinalCamX1)

The KM15 supports 2.4G Wi-Fi connectivity, allowing you to connect your smartphone to the dash camera via the FinalCamX1 app. Through the app, you can:

• View viu footage from both front and rear cameras.
• Playback recorded videos directly on your phone.
• Download recorded videos to your phone's storage.
• Ajusteu la configuració de la càmera.

Download the FinalCamX1 app from your smartphone's app store. Follow the in-app instructions to connect to your dash camera's Wi-Fi network.

6. Manteniment

To ensure the longevity and optimal performance of your Yesido KM15 Dash Camera, follow these maintenance guidelines:

• Neteja: Regularly wipe the camera lenses with a soft, lint-free cloth to ensure clear recordings. Do not use abrasive cleaners or solvents.
• Temperatura: Avoid exposing the dash camera to extreme temperatures for prolonged periods. While designed for automotive environments, excessive heat or cold can affect performance and lifespan.
• Targeta TF: Format the TF card once a month to prevent data corruption and ensure smooth loop recording. Back up any important footage abans de formatar.
• Actualitzacions de firmware: Check the official Yesido website or the FinalCamX1 app periodically for any available firmware updates. Keeping your device updated can improve performance and add new features.
• Muntatge segur: Periodically check that the camera units are securely mounted and that cables are not loose or interfering with driving.

7. Solució De Problemes

If you encounter any issues with your dash camera, please refer to the following common problems and solutions:

• La càmera no s'encén:
  – Ensure the power cable is securely connected to both the camera and the car's power source.
  – Check the car's ignition and fuse box for any issues.
• La gravació s'atura o footage està corrupte:
  – Ensure you are using a Class 10 or higher TF card.
  – Format the TF card regularly (monthly is recommended).
  – The TF card might be faulty; try replacing it with a new, high-quality card.
• Poca qualitat de vídeo:
  – Clean the camera lenses. Dust or smudges can significantly affect video clarity.
  – Ensure the protective film has been removed from the lens.
  – Check the resolution settings in the app; ensure it's set to 4K for the front camera and 1080P for the rear.
• Problemes de connexió Wi-Fi:
  – Ensure the camera's Wi-Fi is enabled.
  – Restart both the camera and your smartphone.
  – Make sure you are within close proximity to the camera.
  – Reinstall the FinalCamX1 app if necessary.
• La monitorització d'aparcament no funciona:
  – Ensure the ACC power cord is correctly installed and connected to a constant power source.
  – Verificar que el voltage reduction line is properly connected for low voltage detecció.
  – Check the G-sensor sensitivity settings in the app.

If the problem persists after trying these solutions, please contact Yesido customer support for further assistance.

8. Garantia i Suport

Yesido products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Yesido weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

For technical support, product inquiries, or warranty service, please contact Yesido customer support through the contact information provided on their official website or within the FinalCamX1 app.
