1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your HiOazo Smart Irrigation System Controller. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.
2. Informació de seguretat
Observeu les següents precaucions de seguretat per evitar lesions o danys al producte:
- Seguretat elèctrica: Ensure power is disconnected before performing any wiring. All electrical work should be performed by a qualified electrician if you are unsure.
- Exposició a l'aigua: The controller is designed for outdoor use but should be protected from direct heavy rain and extreme weather conditions.
- Nens: Mantingueu el dispositiu fora de l'abast dels nens.
- Temperatura de funcionament: Operate the device within the specified temperature range to prevent malfunction.
- Desmuntatge: No intenteu desmuntar ni reparar la unitat vosaltres mateixos. Poseu-vos en contacte amb el servei d'atenció al client per obtenir ajuda.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- HiOazo Smart Irrigation System Controller (1)
- Adaptador de corrent (1)
- Mounting Screws and Anchors (2 sets)
- Guia d'inici ràpid (1)
- Manual d'usuari (aquest document)
4. Producte acabatview
The HiOazo Smart Irrigation System Controller allows you to manage your lawn's watering schedule efficiently through a connected application. It features multiple zones and smart weather adjustments.
4.1 Components del controlador
Familiarize yourself with the main components of the controller:
- Tauler de visualització: LCD or LED display for status and basic information.
- Botons de control: For manual operation and navigation.
- Terminals de cablejat: Connections for zone valves, master valve, and sensor inputs.
- Entrada d'alimentació: Port for the power adapter.
- Antena Wi-Fi: Per a la connectivitat de xarxa sense fil.

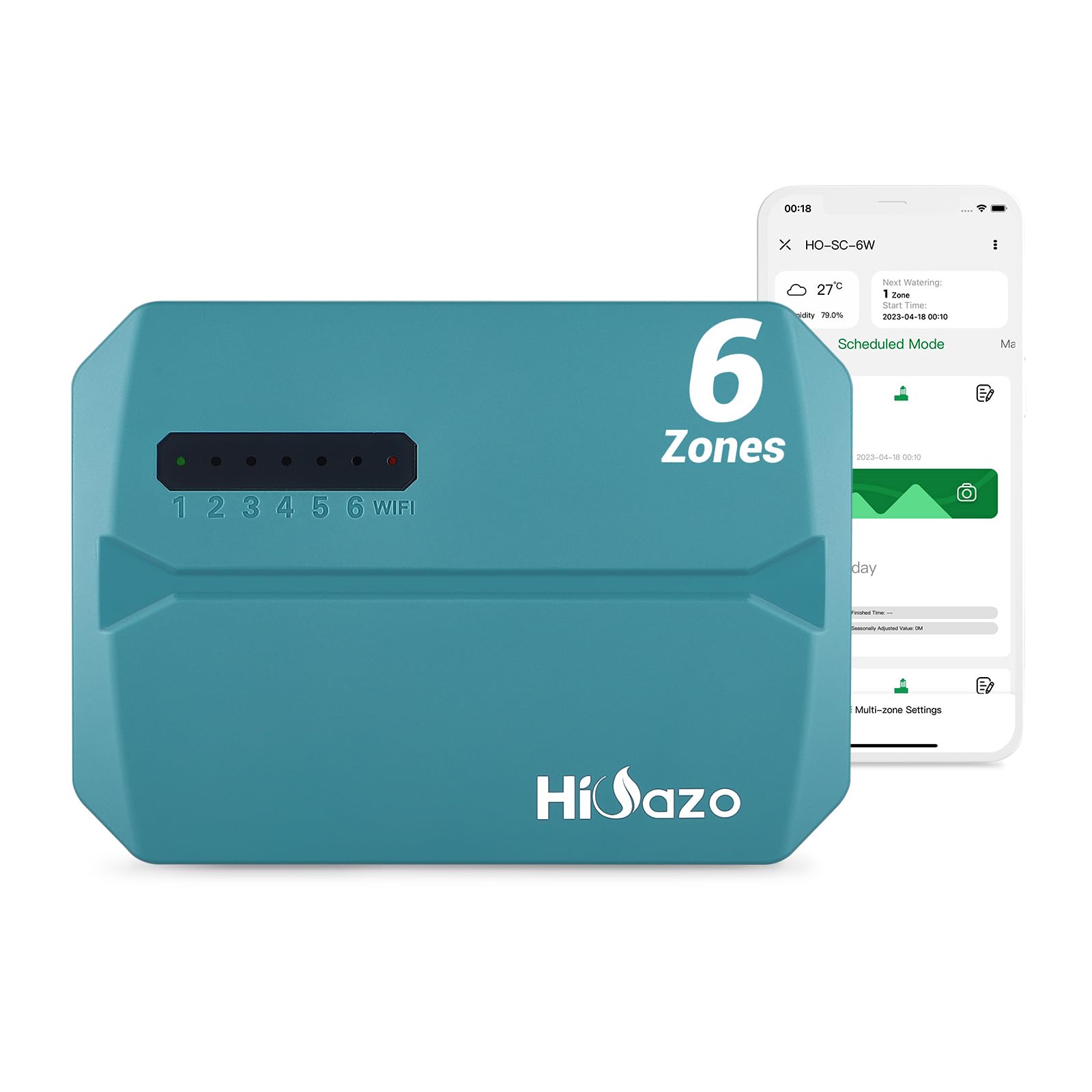

Figura 4.1: Frontal view of the HiOazo Smart Irrigation System Controller. This image shows the main unit with its display and control buttons.
5. Instruccions de configuració
5.1 Muntatge del controlador
- Choose a suitable indoor or sheltered outdoor location near a power outlet and your irrigation valves. Avoid direct sunlight and extreme temperatures.
- Use the provided mounting screws and anchors to secure the controller to a wall. Ensure it is level and securely fastened.
5.2 Wiring the Valves
Before wiring, ensure the main power to your irrigation system is turned OFF.
- Connect the common wire from your irrigation valves to the terminal labeled "COMMON" or "C".
- Connect each zone valve wire to its corresponding zone terminal (e.g., Zone 1 to Z1, Zone 2 to Z2).
- If you have a master valve, connect its wire to the terminal labeled "MV" or "P".
- If using a rain sensor or flow sensor, connect it to the designated sensor terminals according to the sensor's instructions.
5.3 Powering On and App Connection
- Plug the power adapter into the controller's power input and then into a standard electrical outlet.
- The controller display should illuminate.
- Download the "HiOazo Smart" app from your mobile device's app store (iOS or Android).
- Open the app and follow the on-screen instructions to create an account and add your new HiOazo controller. This typically involves connecting the controller to your home Wi-Fi network.
6. Instruccions de funcionament
6.1 Reg manual
To manually water a zone or all zones:
- Mitjançant el controlador: Use the control buttons to navigate to the "Manual Watering" option. Select the desired zone(s) and set the watering duration.
- Mitjançant l'aplicació: Open the HiOazo Smart app, select your controller, and choose the "Manual Watering" option. Select zones and set durations, then start watering.
6.2 Creating Watering Schedules
Schedules are best managed through the HiOazo Smart app for advanced customization.
- In the app, navigate to the "Schedules" section.
- Tap "Add New Schedule".
- Select the zones to include in this schedule.
- Set the start time, watering duration for each zone, and the watering days (e.g., specific days of the week, odd/even days, or cycle and soak).
- Enable smart watering features like weather-based adjustments if desired.
- Guarda l'horari.
6.3 Smart Watering Features
The controller can automatically adjust watering based on local weather data:
- Rain Skip: Automatically skips watering if rain is detected or forecasted.
- Freeze Skip: Prevents watering when temperatures drop below freezing.
- Ajust estacional: Adjusts watering duration based on seasonal changes in plant water requirements.
These features can be enabled and configured within the HiOazo Smart app settings for each schedule.
7. Manteniment
7.1 Neteja
Wipe the exterior of the controller with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no moisture enters the internal components.
7.2 Actualitzacions de programari
The controller's firmware may receive updates to improve performance and add features. The HiOazo Smart app will notify you of available updates and guide you through the process. Ensure the controller remains powered during updates.
7.3 Hivernització
In regions with freezing temperatures, it is recommended to winterize your irrigation system and controller:
- Turn off the main water supply to the irrigation system.
- Drain all water from the pipes and valves to prevent freezing and damage.
- Disconnect the controller's power adapter.
- While the controller is designed to withstand some outdoor conditions, consider bringing it indoors during extreme cold to prolong its lifespan.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El controlador no s'encén. | No hi ha corrent a la presa de corrent; adaptador de corrent defectuós; connexió fluixa. | Check outlet with another device. Ensure power adapter is securely connected. Try a different outlet. |
| No es pot connectar a la Wi-Fi. | Incorrect Wi-Fi password; controller too far from router; router issues; 2.4GHz vs 5GHz network. | Verify Wi-Fi password. Move controller closer to router. Restart router. Ensure you are connecting to a 2.4GHz network. |
| Zones que no reguen. | Water supply off; faulty valve; wiring issue; rain sensor activated. | Check main water supply. Inspect valve wiring. Bypass rain sensor in app settings to test. Manually test valves if possible. |
| App not responding. | App glitch; internet connectivity issue; controller offline. | Close and reopen the app. Check your phone's internet connection. Verify controller's Wi-Fi status. |
If problems persist, please contact HiOazo customer support.
9. Especificacions
| Característica | Detall |
|---|---|
| Model | B0D41H8KTN |
| Marca | HiOazo |
| Dimensions del paquet | 5 x 4 x 2 polzades |
| Pes de l'article | 8 unces |
| Piles necessàries | No |
| Components inclosos | CONTROLADOR |
| Color | Turquesa |
| Tipus de visualització | LCD o LED |
10. Garantia i Suport
10.1 Informació de la garantia
HiOazo products are covered by a limited warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official HiOazo weblloc web per obtenir informació detallada sobre els termes i condicions de la garantia. Conserveu el rebut de compra com a comprovant de compra.
10.2 Atenció al client
For technical assistance, troubleshooting, or warranty claims, please contact HiOazo customer support:
- Weblloc: Visit the HiOazo Store on Amazon
- Correu electrònic: Consulteu l'embalatge del producte o la fitxa oficial website for email contact.
- Telèfon: Consulteu l'embalatge del producte o la fitxa oficial website for phone contact.
When contacting support, please have your product model (B0D41H8KTN) and purchase date available.
