PRORUN 4-in-1 Combo Unit (PPCK2) Instruction Manual

1. Informació important de seguretat

Always wear appropriate safety gear, including eye protection and gloves, when using this product. Be cautious of the pull cord when starting the product to avoid injury. Keep a safe distance from the cutting area to prevent injury from flying debris. Always follow the instructions provided in the user manual for safe operation.

Before operating, ensure all guards and safety devices are properly installed and functioning. Never operate the unit without proper ventilation. Store fuel in an approved container in a well-ventilated area away from ignition sources.

2. Producte acabatview

The PRORUN PPCK2 is a versatile 4-in-1 gas-powered multi-tool designed to handle a variety of lawn and garden tasks. This unit features a 25.4cc 2-cycle engine powerhead and interchangeable attachments for trimming, edging, brush cutting, and hedge trimming.

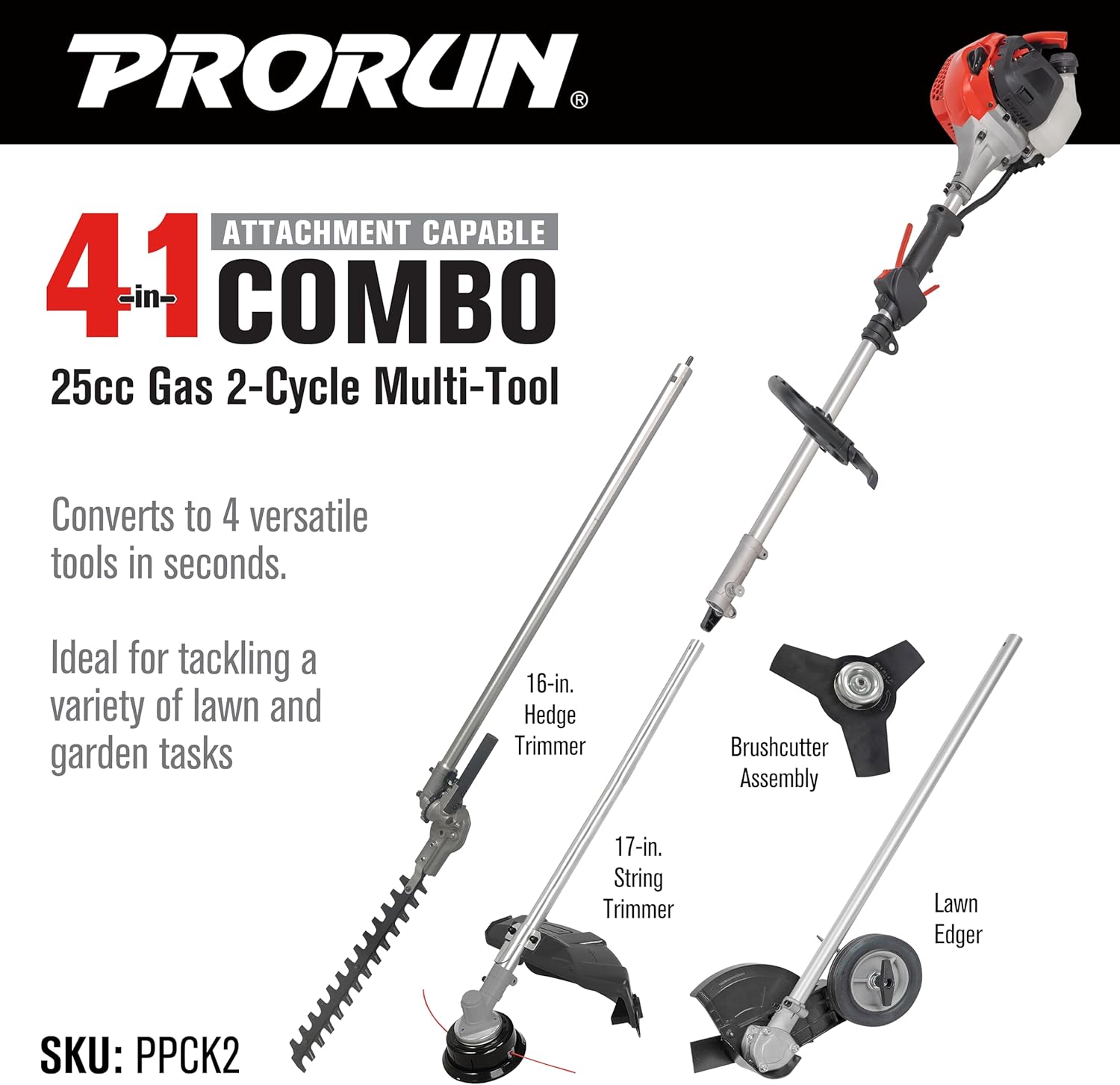

Figure 2.1: The PRORUN 4-in-1 Combo Unit showcasing its main components: the powerhead, 16-inch hedge trimmer, 17-inch string trimmer, brushcutter assembly, and lawn edger. This illustration highlights the versatility of the system.

Característiques principals:

• VERSATILITAT 4 EN 1: Seamlessly switch between edger, trimmer, brush cutter, and hedge trimmer to conquer a variety of yard tasks.
• RENDIMENT POTENT: Equipped with a robust 25.4cc engine that delivers consistent cutting power, helping you tackle tough brush, overgrown weeds, and neatly trim edges.
• QUICK & EASY ATTACHMENT SWAPS: User-friendly, quick-connect system allows switching attachments in seconds without the need for extra tools.
• ADJUSTABLE & ERGONOMIC DESIGN: Features an adjustable pole and ergonomic handles for comfortable operation and reduced fatigue during extended use.
• COMPACT & DURABLE: Heavy-duty construction designed for regular use, with a space-saving design for organized storage.

3. Identificació de components i peces

Familiarize yourself with the main components of your PRORUN 4-in-1 Combo Unit:

Figure 3.1: The 25.4cc Gas-Powered Powerhead, the core unit that drives all attachments. It includes the engine, fuel tank, and control handles.

Figure 3.2: The String Trimmer Attachment, used for cutting grass and light weeds with a nylon line.

Figure 3.3: The Brush Cutter Blade, a heavy-duty metal blade for clearing dense brush and thick vegetation.

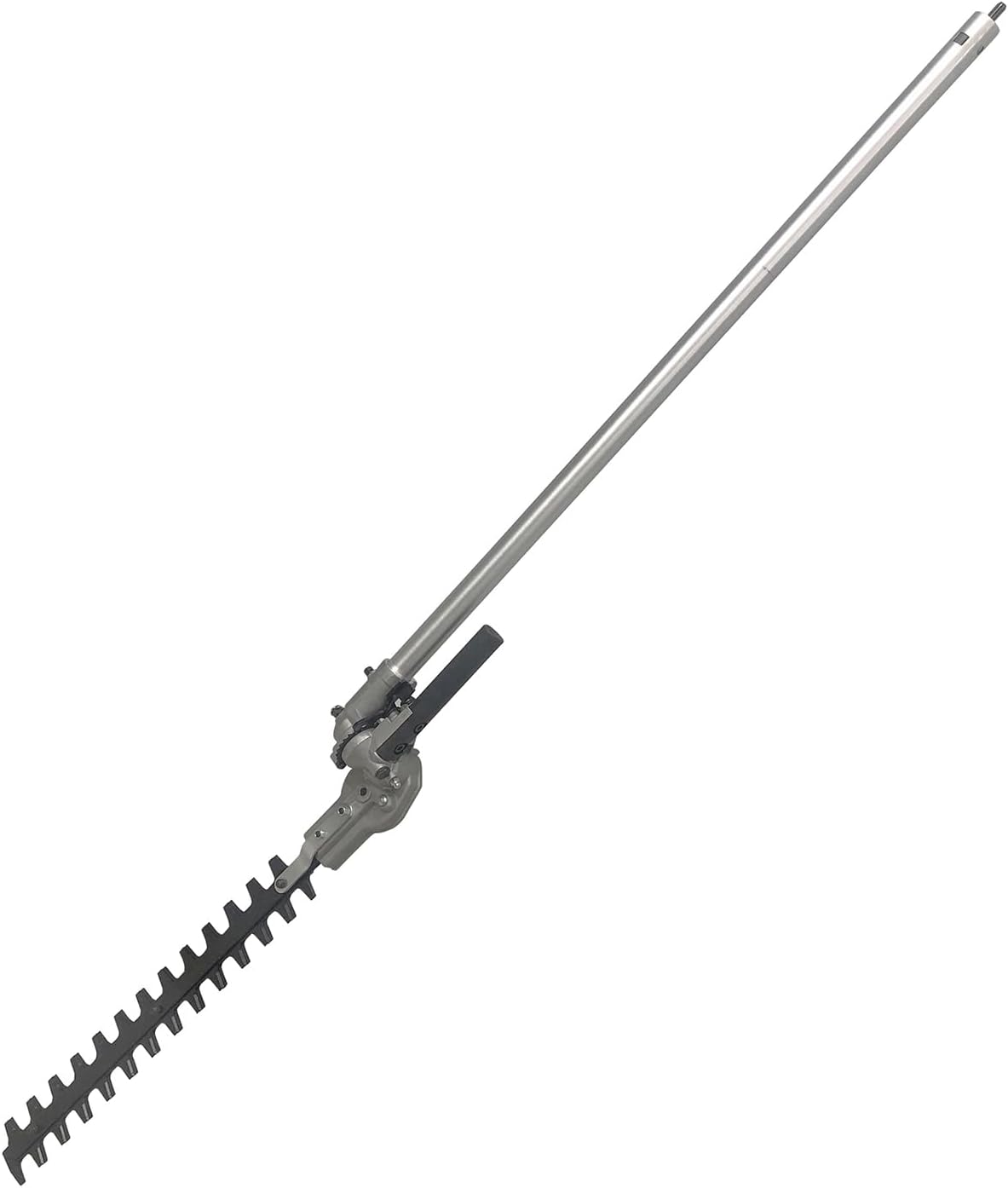

Figure 3.4: The Hedge Trimmer Attachment, featuring a long blade for shaping and trimming hedges and shrubs.

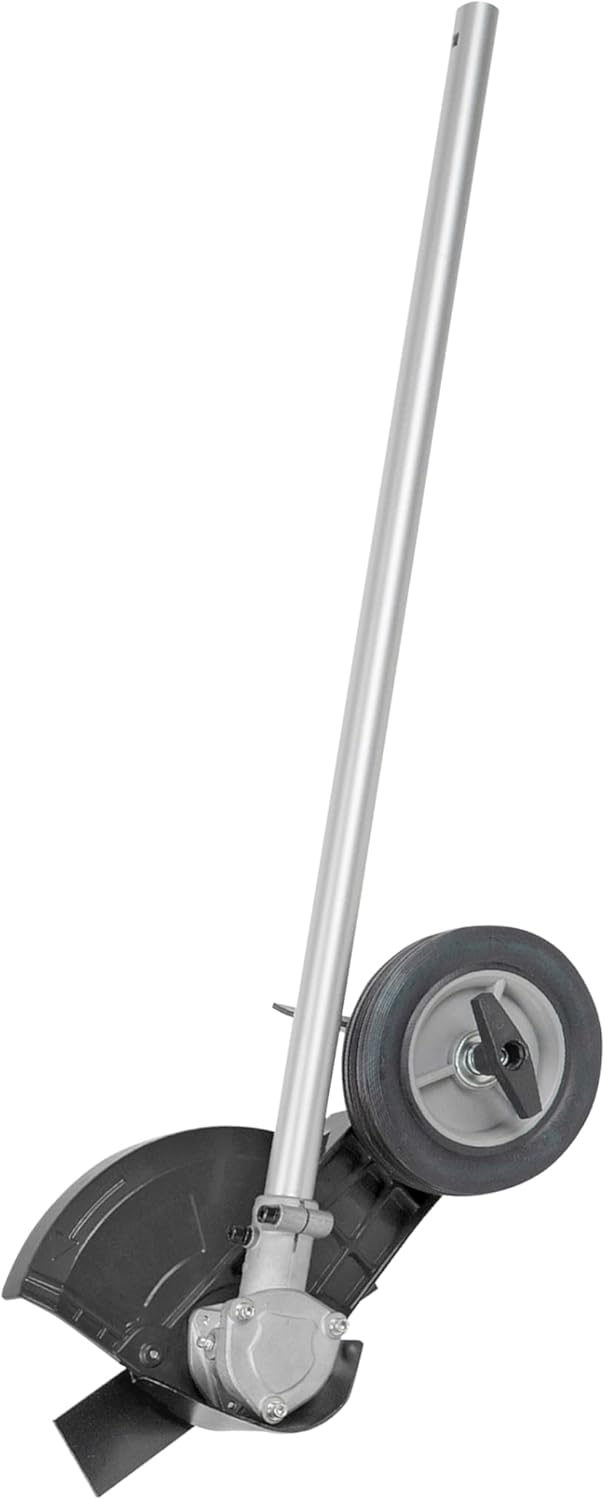

Figure 3.5: The Lawn Edger Attachment, equipped with a wheel and blade for creating clean, precise edges along sidewalks and driveways.

4. Muntatge i muntatge

The PRORUN PPCK2 is designed for quick and easy assembly. Follow these steps to prepare your unit for operation:

1. Desembalatge: Traieu amb cura tots els components de l'embalatge. Verifiqueu que hi hagi totes les peces que figuren a la llista d'embalatge.
2. Muntatge del mànec: Attach the auxiliary handle to the powerhead shaft. Ensure it is securely tightened for safe operation.
3. Mescla de combustible: This unit uses a 2-cycle engine. Mix unleaded gasoline with high-quality 2-cycle engine oil at the ratio specified in the engine manual (typically 50:1 or 40:1). Always use fresh fuel mixture.
4. Components de connexió:
   • Align the male end of the desired attachment shaft with the female receiver on the powerhead.
   • Push the attachment firmly into the powerhead until the locking pin engages.
   • Tighten the coupling knob securely to prevent rotation during operation.

Figure 4.1: Illustration of the quick-connect system for attaching different tools to the powerhead. Ensure the shafts are aligned and the locking mechanism engages fully.

Note: For specific assembly instructions for each attachment (e.g., installing the brush cutter blade or string trimmer line), refer to the individual attachment manuals or diagrams provided.

5. Instruccions de funcionament

Arrencada del motor:

1. Col·loqueu la unitat sobre una superfície plana i estable.
2. Assegureu-vos que l'interruptor d'encesa estigui a la posició "ON".
3. Encebeu el carburador prement la pera d'encebament diverses vegades fins que es vegi el combustible.
4. Set the choke lever to the "FULL CHOKE" position (cold start).
5. Estireu la corda d'arrencada amb fermesa i suaument fins que el motor intenti arrencar (normalment d'1 a 3 estirades).
6. Once the engine "pops" or briefly starts, move the choke lever to the "HALF CHOKE" or "RUN" position.
7. Estireu de nou la corda d'arrencada fins que el motor arrenqui i funcioni suaument.
8. Deixeu que el motor s'escalfi durant 30-60 segons abans d'aplicar l'accelerador.
9. For warm starts, the choke may not be necessary.

Consells generals d'operació:

• Always maintain a firm grip on the handles.
• Keep bystanders and pets at a safe distance (at least 50 feet/15 meters).
• Operate the unit at a comfortable and controlled pace.
• Avoid hitting hard objects (rocks, metal) with cutting attachments.
• Turn off the engine before making any adjustments or clearing debris.

6. Manteniment

Regular maintenance ensures optimal performance and extends the life of your PRORUN unit. Always disconnect the spark plug wire before performing any maintenance.

• Filtre d'aire: Clean the air filter regularly (daily or after every 5 hours of use) or replace if heavily soiled. A dirty air filter can reduce engine performance.
• Bujía: Inspect the spark plug periodically. Clean or replace if fouled or worn. Ensure the gap is set correctly.
• Filtre de combustible: Check and replace the fuel filter annually or if fuel flow is restricted.
• Lubricació de la caixa de canvis: For attachments with gearboxes (e.g., hedge trimmer, edger), check and replenish grease as recommended in the specific attachment manual.
• Accessoris de tall:
  • Tallador de corda: Replace trimmer line as needed.
  • Fulla de talladora de desbrossadores: Sharpen or replace the blade when it becomes dull or damaged.
  • Fulles per a retalladores de bardisses: Keep blades sharp and lubricated. Remove sap and debris after each use.
• Neteja general: Mantingueu el motor i les aletes de refrigeració nets de brutícia i deixalles per evitar el sobreescalfament.
• Emmagatzematge: For long-term storage, drain the fuel tank and run the engine until it stops to clear the carburetor. Store in a dry, well-ventilated area.

7. Solució De Problemes

8. Especificacions

9. Informació de la garantia

The PRORUN 4-in-1 Combo Unit (PPCK2) is backed by a PRORUN limited warranty:

• Ús residencial: Garantia limitada d'3 any.
• Ús comercial: Garantia limitada d'1 any.

Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your product or visit the official PRORUN weblloc.

10. Atenció al client

For technical assistance, replacement parts, or any questions regarding your PRORUN 4-in-1 Combo Unit, please contact PRORUN customer support. Have your model number (PPCK2) and serial number ready when contacting support.

Sovint podeu trobar informació de contacte d'assistència a la pàgina web del fabricant weblloc o a l'embalatge del producte.
