Manual d'usuari del terminal TPV Alacrity NB80 4G i WiFi

1. Introducció

This manual provides comprehensive instructions for the Alacrity NB80 4G & WiFi POS Terminal. It covers device setup, operational procedures, maintenance guidelines, and troubleshooting steps to ensure optimal performance and longevity of your device. Please read this manual thoroughly before using the terminal.

2. Informació de seguretat

• Use only the provided charging adapter to prevent damage to the device and battery.
• No exposeu el dispositiu a temperatures extremes, llum solar directa ni ambients humits.
• Eviteu deixar caure el dispositiu ni sotmetre'l a impactes forts.
• Mantingueu el dispositiu allunyat de l'aigua i altres líquids.
• No intenteu desmuntar o reparar el dispositiu vosaltres mateixos. Contacteu amb l'assistència al client per obtenir assistència.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• Alacrity NB80 POS Terminal (1 unit)
• Thermal Paper Roll (1 unit)
• Charge Adaptor (1 unit)
• Manual d'usuari (1 unitat)
• USB-Type C Cable (1 unit)

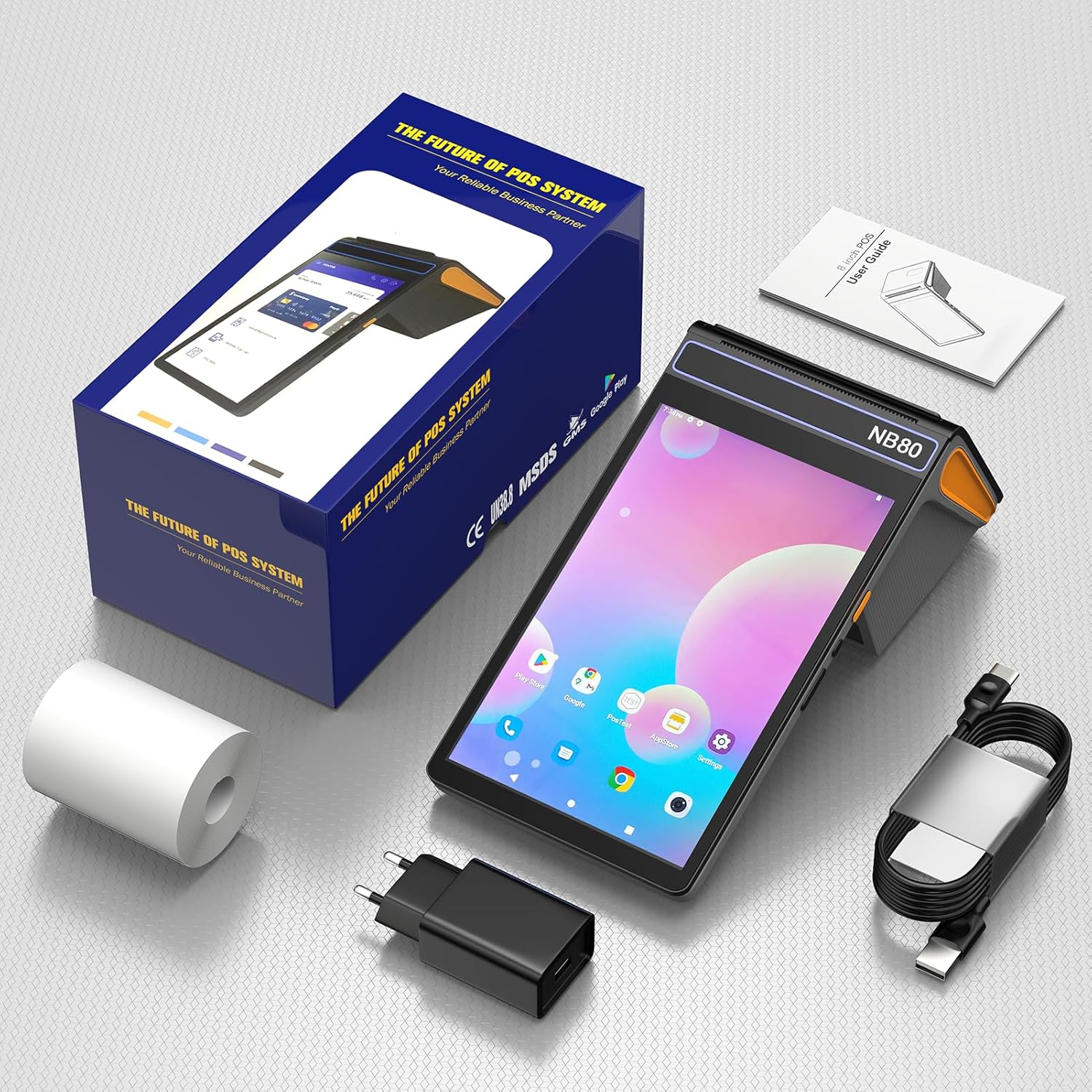

Image: Contents of the Alacrity NB80 POS Terminal package, including the terminal, paper roll, charger, USB-C cable, and user manual.

4. Producte acabatview

The Alacrity NB80 is an Android-based POS terminal featuring an 8-inch touch screen, integrated thermal printer, 2D barcode scanner, and NFC reader. It supports various connectivity options including 4G and WiFi.

Imatge: Frontal view of the Alacrity NB80 POS Terminal, showcasing its 8-inch display and integrated printer, alongside a separate QR code scanning and NFC module.

Característiques principals:

• Sistema operatiu: OS Android 12
• Memòria: 3 GB de RAM, 16 GB de ROM
• Visualització: 8-inch 1280*800 IPS Capacitive Touch Screen
• Impressora: 58mm Direct Thermal Printer (90mm/s speed)
• Escàner: Integrated 2D Barcode Scanner
• NFC: Lector de targetes sense contacte
• Bateria: 6400mAh Rechargeable Li-Battery
• Connectivitat: WiFi, 4G/3G/2G, Bluetooth

Image: Diagram illustrating the internal components and performance specifications of the Alacrity NB80, highlighting its Android OS, Octa-Core processor, memory, and printer.

5. Configuració

5.1. Instal·lació i càrrega de la bateria

1. Locate the battery compartment on the back of the terminal.
2. Insert the 6400mAh rechargeable Li-battery, ensuring correct polarity.
3. Tanqueu bé la tapa del compartiment de la bateria.
4. Connect the provided USB-Type C cable to the terminal and the charge adaptor.
5. Plug the charge adaptor into a power outlet. The device will indicate charging status. A full charge typically takes approximately 6 hours.

Image: The Alacrity NB80 POS Terminal connected to a charger, displaying battery capacity (6400mAh), scanning time (25-30 hours), and charging time (8-10 hours).

5.2. Instal·lació del rotlle de paper

1. Locate the printer cover release latch, usually on the top or side of the terminal.
2. Obriu la coberta de la impressora.
3. Insert the 58mm thermal paper roll into the compartment. Ensure the paper feeds out from the top and is aligned correctly. The maximum paper roll diameter supported is 40mm.
4. Close the printer cover firmly until it clicks into place, leaving a small amount of paper extending from the slot.

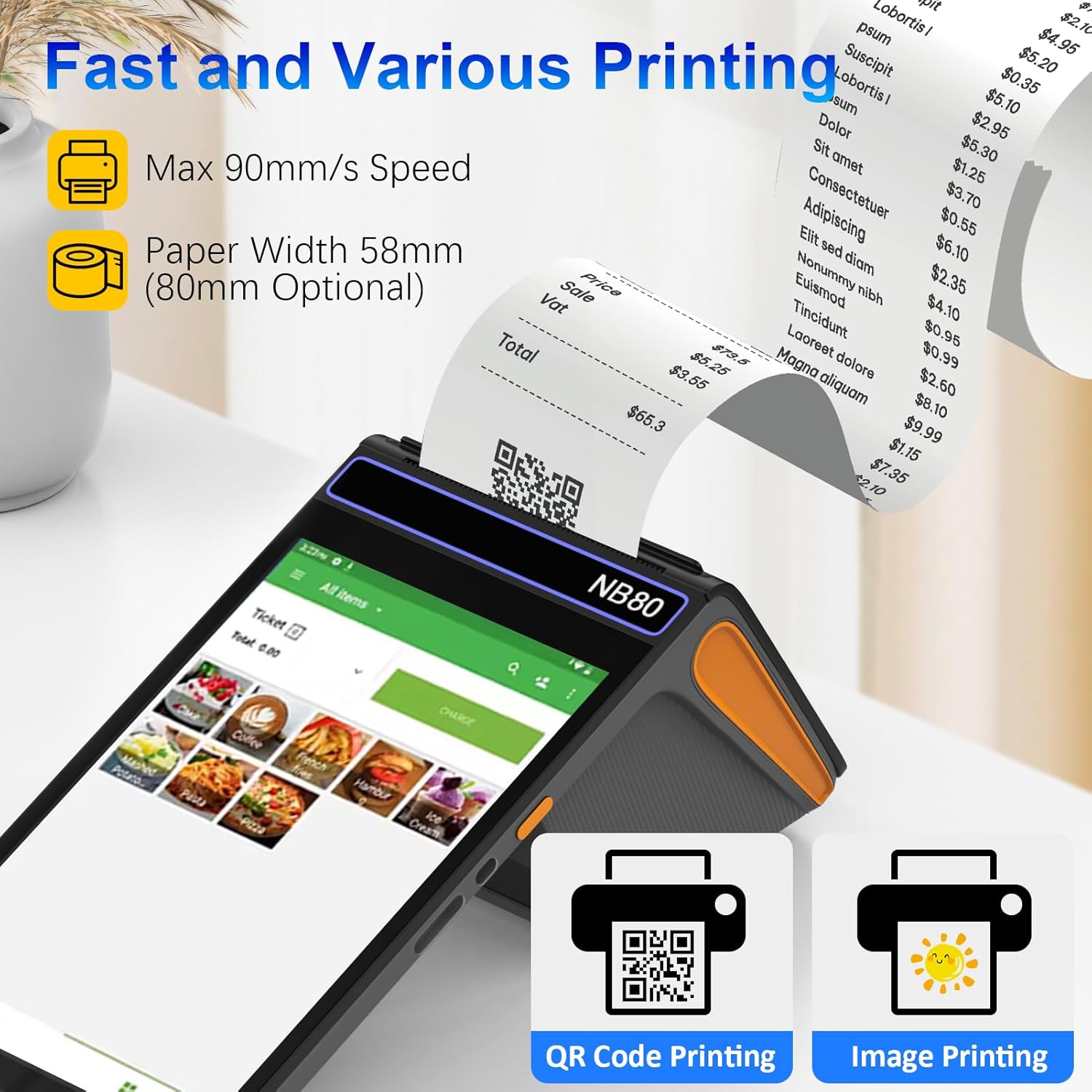

Image: The Alacrity NB80 POS Terminal actively printing a receipt, highlighting its 58mm paper width and 90mm/s printing speed.

5.3. Engegada inicial i connexió de xarxa

1. Premeu i manteniu premut el botó d'engegada situat al lateral del dispositiu fins que la pantalla s'il·lumini.
2. Follow the on-screen prompts to complete the initial Android setup.
3. To connect to Wi-Fi: Navigate to Configuració > Xarxa i Internet > Wi-Fi, select your network, and enter the password.
4. For 4G/3G/2G connectivity: Insert a compatible SIM card into the designated slot (refer to device diagram for slot location). Ensure mobile data is enabled in Configuració > Xarxa i Internet > Xarxa mòbil.

6. Instruccions de funcionament

6.1. Touch Screen Usage

The Alacrity NB80 features an 8-inch 1280*800 IPS capacitive touch screen. Interact with the device using standard Android touch gestures such as tap, swipe, pinch-to-zoom, and long-press.

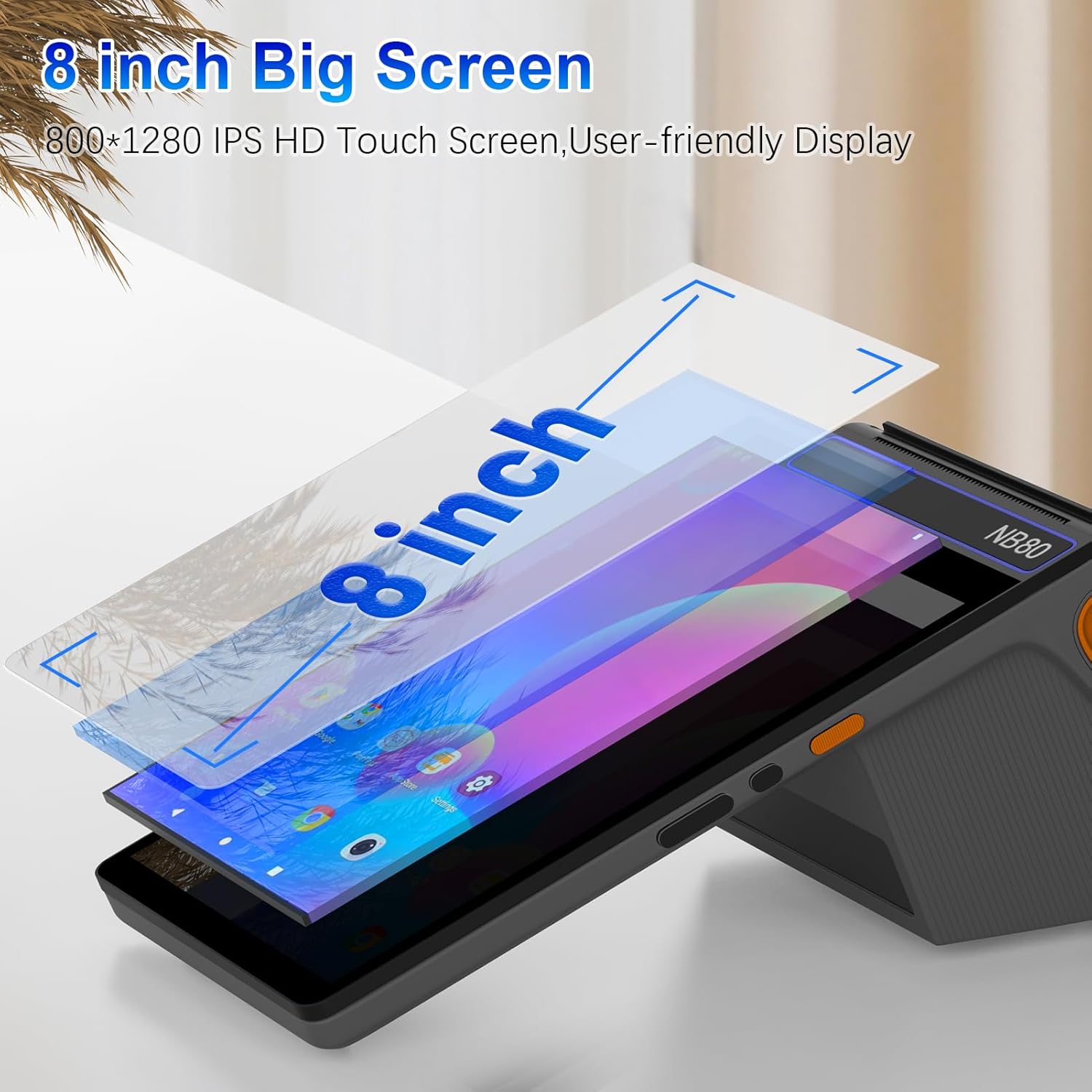

Image: A visual representation emphasizing the 8-inch size and IPS HD touch screen capabilities of the Alacrity NB80 POS Terminal.

6.2. Printing Receipts and Labels

The integrated 58mm direct thermal printer supports both receipt and label printing at a speed of up to 90mm/s. Printing functions are typically initiated through your installed POS application.

• Ensure a thermal paper roll is correctly installed.
• Within your POS software, select the print option for transactions or labels.
• The printer will automatically generate the output.

6.3. Scanning Barcodes (1D/2D)

The terminal includes an embedded 2D scan engine capable of reading barcodes from both physical packages and digital screens. It supports a wide range of 1D and 2D barcode types.

• 1D Barcodes Supported: Codabar, Code 11, Code93, MSI, Code 128, UCC/EAN-128, Code 39, EAN-8, EAN-13, UPC-A, ISBN, Industrial 25, Interleaved 25, Standard25, Matrix.
• 2D Barcodes Supported: QR, DataMatrix, PDF417, Aztec, Hanxin, Micro PDF417.

1. Open the scanning function within your POS application.
2. Point the scanner window at the barcode, ensuring the entire code is within the scanning area.
3. The device will typically emit a beep or provide on-screen confirmation upon successful scan.

Image: The Alacrity NB80 POS Terminal demonstrating its ability to quickly identify and scan QR codes and other barcode types.

6.4. NFC Payments

The Alacrity NB80 is equipped with NFC functionality, supporting contactless payments and card reading for various card types.

• Tipus de targetes compatibles: ISO/IEC 14443 Type A/B, Mifare 1.
• Distància inductiva: 0-5 mm.

1. Initiate an NFC payment or card reading process through your POS application.
2. Instruct the customer to tap their contactless card or NFC-enabled device near the NFC reader area on the terminal.
3. Hold the card steady within the inductive distance until the transaction is confirmed.

Image: A user performing a contactless payment using an NFC card on the Alacrity NB80 POS Terminal.

6.5. Ús de programari

The terminal runs on Android 12 OS, allowing for flexible application development and usage. It comes with pre-installed software such as e-Boleta, POS Steward, JPOS, and Loyverse POS. For specific instructions on using these applications, please refer to the respective software documentation.

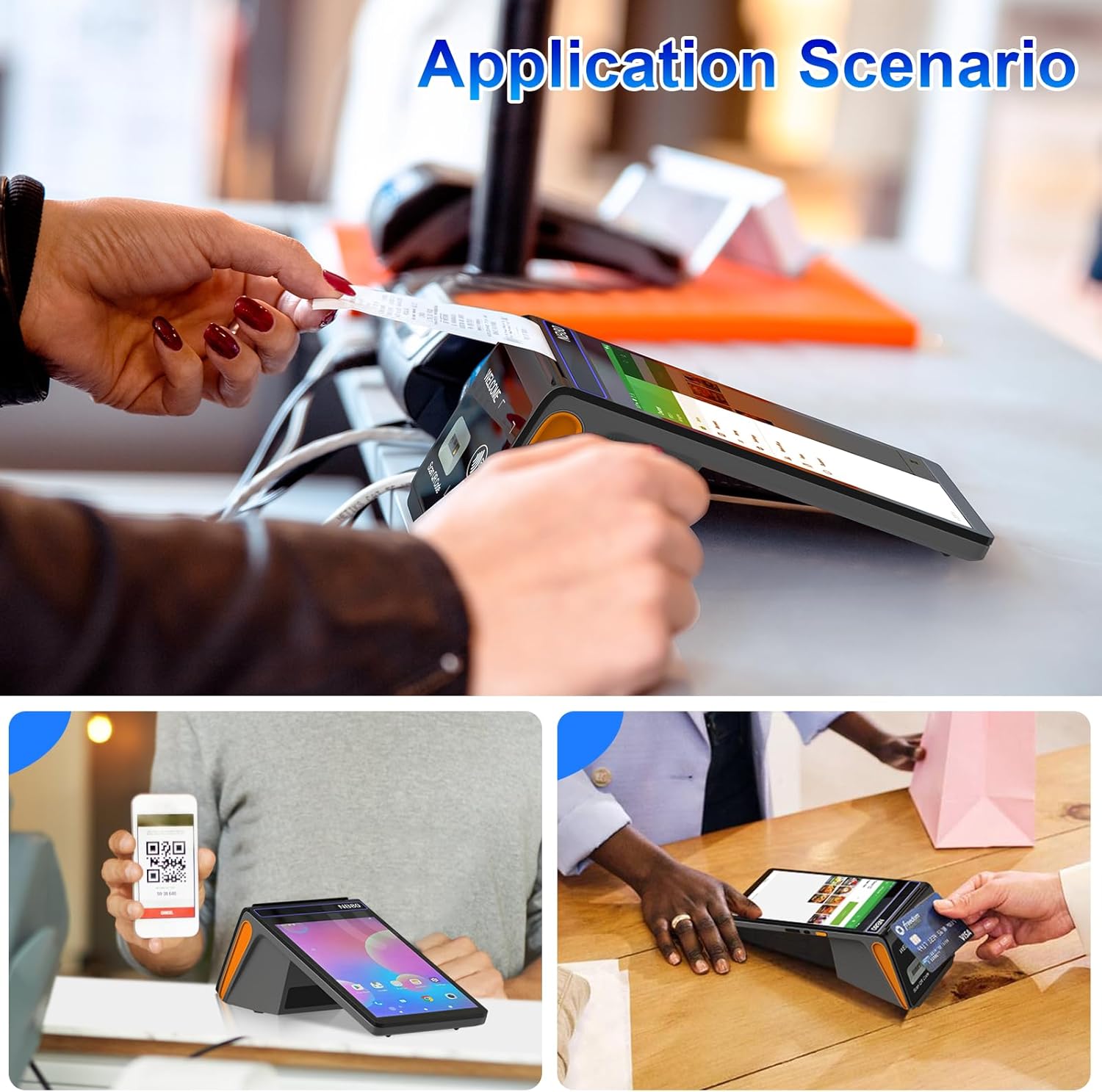

Image: Depiction of the Alacrity NB80 POS Terminal being used in different retail and service environments, demonstrating its versatility.

7. Manteniment

7.1. Neteja

• Use a soft, dry, lint-free cloth to clean the screen and exterior of the device.
• Per a marques difícils, esbandiu lleugeramentampNetegeu el drap amb aigua o un netejador de pantalles. Eviteu productes químics agressius.
• Regularly clean the printer paper exit slot and scanner window to ensure optimal performance.

7.2. Cura de la bateria

• Carregueu la bateria regularment, fins i tot si el dispositiu no s'utilitza amb freqüència, per mantenir-ne l'estat.
• Eviteu esgotar completament la bateria abans de tornar-la a carregar.
• Si no feu servir el dispositiu durant un període prolongat, carregueu-lo al 50% aproximadament i guardeu-lo en un lloc fresc i sec.

7.3. Printer Head Care

• The thermal printer head should be cleaned periodically to prevent print quality issues.
• Use a cotton swab lightly moistened with isopropyl alcohol to gently wipe the thermal print head.
• Deixeu que el capçal d'impressió s'assequi completament abans de tancar la coberta i reprendre el funcionament.

8. Solució De Problemes

This section addresses common issues you might encounter with your Alacrity NB80 POS Terminal.

9. Especificacions

10. Garantia i Suport

For any questions or issues encountered while using your Alacrity NB80 POS Terminal, please contact our customer support. We are committed to providing assistance and will reply to your inquiries within 24 hours.

Si us plau, conserveu el rebut de compra per motius de garantia.
