1. Introducció
This manual provides essential information for the safe and efficient operation of your FORNO Leonardo 30-Inch Electric Induction Range. Please read all instructions carefully before using the appliance to ensure proper function and to prevent injury or damage. Keep this manual for future reference.

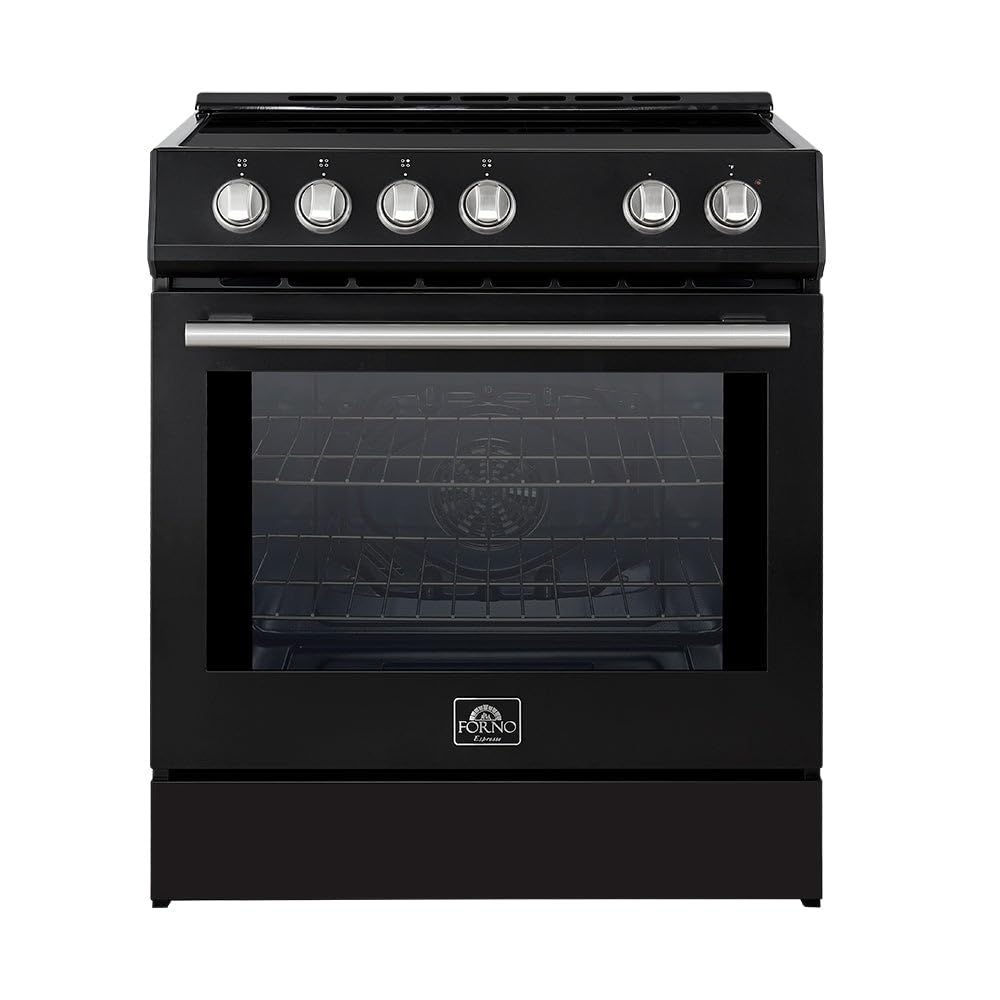

Figure 1: FORNO Leonardo 30-Inch Electric Induction Range (Model FEISR30B)
The FORNO Leonardo Espresso 30-Inch Induction Range features a modern stainless steel finish with customizable antique brass or stainless steel handles and knobs. This slide-in design integrates seamlessly into kitchen cabinetry. The cooktop provides 8,100 watts of total output across four cooking zones, offering precise temperature control. The 5 cubic foot convection oven includes two adjustable racks and a speckled blue enamel interior for even heat distribution and easy cleaning.
2. Informació important de seguretat
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, burns, or injury.
- Llegiu totes les instruccions abans d'utilitzar l'aparell.
- Ensure proper installation by a qualified technician in accordance with local codes.
- Do not touch hot surfaces. Use oven mitts or potholders.
- No utilitzeu mai l'aparell per escalfar o escalfar l'habitació.
- No emmagatzemeu materials inflamables dins o prop del forn.
- Mantenir els nens allunyats de l'aparell durant el funcionament.
- Utilitzeu només agafadors secs. Humit o damp les aixetes a les superfícies calentes poden provocar cremades pel vapor.
- Never cover slots or openings in the oven bottom or cover an entire rack with materials like aluminum foil.
- Do not use water on grease fires. Smother fire or flame or use a dry chemical or foam-type extinguisher.
3. Configuració i instal·lació
Proper installation is crucial for the safe and efficient operation of your induction range. It is recommended that installation be performed by a qualified professional.
3.1 Desembalatge
- Traieu tots els materials d'embalatge, la cinta adhesiva i la pel·lícula protectora de la cuina.
- Inspect the appliance for any shipping damage. Report any damage immediately to the retailer.
- Retain packaging materials until the appliance has been inspected.
3.2 Requisits elèctrics
The range requires a dedicated, properly grounded electrical circuit. Refer to the electrical specifications in Section 6 for voltage i amperage requirements. Ensure the electrical supply matches the appliance's rating.
3.3 Col·locació i anivellament
- Position the range in the designated cabinet opening, ensuring adequate clearance from adjacent surfaces.
- Adjust the leveling legs at the bottom of the range to ensure the appliance is stable and level. This prevents spills and ensures even cooking.
Figure 2: Product Dimensions (30" W x 26.25" D x 37.125" H)
4. Instruccions de funcionament
4.1 Funcionament de la placa de cocció
The induction cooktop features four cooking zones with a total output of 8,100 watts. Use induction-compatible cookware for optimal performance. The cooktop is controlled by front-mounted knobs.
Figure 3: Induction Cooktop Surface
- Activació/desactivació: Rotate the corresponding knob to the desired heat setting to activate a cooking zone. Turn the knob to 'OFF' to deactivate.
- Configuració de calor: Adjust the knob to select heat levels from low to high. Induction technology provides rapid heating and precise temperature control.
- Compatibilitat amb estris de cuina: Only magnetic cookware (cast iron, magnetic stainless steel, enamel-on-steel) will work on induction cooktops.
4.2 Funcionament del forn
The 5.0 cubic foot convection oven offers various cooking modes, controlled by the front panel knobs and digital display.
Figure 4: Oven Interior with Blue Enamel and Racks
- Modes de forn: The oven supports Bake, Roast, Broil, Air Fry, Bread Proof, and Dehydrate functions. Select the desired mode using the control panel.
- Configuració de la temperatura: Use the digital controls to set the desired oven temperature. The oven will preheat to the set temperature.
- Cocció per convecció: The convection fan circulates hot air for even cooking and faster results. This is ideal for baking multiple dishes simultaneously.
- Bastidors de forn: The oven includes two chrome-plated adjustable racks. Position them according to your cooking needs.
- Element de forn amagat: The bake element is concealed beneath the oven floor, simplifying cleaning and preventing food particles from burning onto it.
- Llums del forn: Two interior lights illuminate the oven cavity for clear visibility of your food.
Vídeo 1: Acabatview of FORNO Leonardo 30-inch Slide-In Electric Induction Range features, including cooktop, oven interior, and controls.
5. Cura i Manteniment
Una neteja i un manteniment regulars allargaran la vida útil del vostre electrodomèstic i garantiran un rendiment òptim.
5.1 Neteja de la placa de cuina
- Deixeu que la placa de cuina es refredi completament abans de netejar-la.
- Feu servir un netejador de plaques de cuina de ceràmica i un coixinet no abrasiu per eliminar vessaments i taques.
- Netegeu amb una neteja, damp drap i assecar-lo bé per evitar ratlles.
5.2 Neteja de l'interior del forn
- The speckled blue enamel interior is designed for easy cleaning.
- Per a vessaments lleugers, netegeu amb un anunci.amp drap i detergent suau un cop el forn s'hagi refredat.
- For heavier soil, use the oven's self-clean or steam clean function as per the control panel instructions.
- Remove oven racks before initiating a self-clean cycle.
5.3 Neteja exterior
- Clean stainless steel surfaces with a soft cloth and a stainless steel cleaner.
- Eviteu netejadors abrasius o fregalls que puguin ratllar l'acabat.
- The antique brass or stainless steel handles can be cleaned with a soft, damp tela.
Figure 5: Customizable Handles and Knobs
6. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| Range does not turn on | No hi ha subministrament elèctric; s'ha saltat l'interruptor. | Check power cord connection. Reset circuit breaker. |
| Induction cooktop not heating | Els estris de cuina no són compatibles amb inducció; la paella no està centrada. | Use magnetic cookware. Ensure pan is centered on the cooking zone. |
| El forn no escalfa correctament | Temperatura incorrecta; la porta del forn no està completament tancada. | Verify temperature setting. Ensure oven door is fully closed. |
| Cocció desigual | Improper rack position; excessive food in oven. | Adjust rack position. Avoid overcrowding the oven. Utilize convection mode. |
7. Especificacions
| Característica | Detall |
|---|---|
| Tipus de producte | Slide-In Electric Induction Range |
| Número de model | FFSIN0982-30BLK |
| Color/Acabat | Negre / Acer inoxidable |
| Tipus de combustible de la placa de cuina | Elèctric (Inducció) |
| Nombre de cremadors | 4 |
| Total Cooktop Wattage | 8,100 watts |
| Cooktop Surface Material | Ceramic Glass (Smoothtop) |
| Oven Fuel Type | Elèctric |
| Capacitat del forn | 5.0 peus cúbics |
| Oven Interior Finish | Speckled Blue Enamel |
| Forn de convecció | Sí |
| Broiler Element Wattage | 2,000 watts |
| Tipus de control | Poms |
| Pes de l'article | 145.5 lliures |
| Dimensions del producte (W x D x H) | 29.88 x 27.63 x 37.125 polzades |
| País d'origen | Xina |
8. Garantia i Suport
Your FORNO Leonardo 30-Inch Electric Induction Range comes with a limited warranty to ensure your peace of mind.
- Tipus de garantia: Limitat
- Durada de la garantia: 2 Anys
- Garantia de peces: 2 Anys
For warranty claims, technical assistance, or to purchase replacement parts, please contact FORNO customer support. Ensure you have your model number and proof of purchase available.
