Introducció
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Powerbass PB-ZXN20MP Deckless Media Player. Please read this manual thoroughly before using the product to ensure proper operation and to prevent damage.
Producte acabatview
The Powerbass PB-ZXN20MP is a deckless media player designed for in-vehicle audio entertainment. It features multiple connectivity options including Bluetooth, USB, and Auxiliary input, along with an integrated FM radio tuner. The unit delivers 60 watts x 4 output for clear and powerful sound.

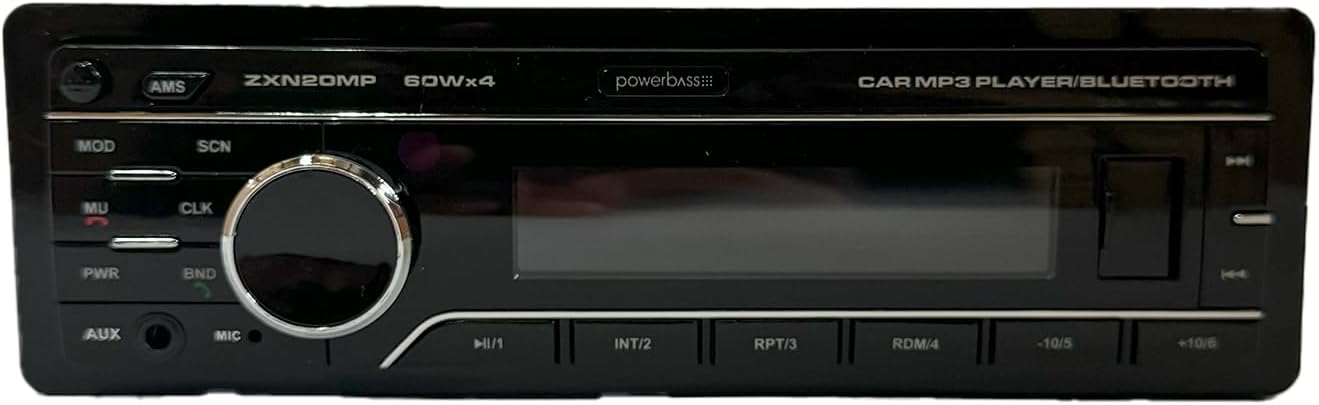

Figura 1: Front panel of the Powerbass PB-ZXN20MP media player. This image displays the main controls including the volume knob, display screen, and various function buttons for mode selection, track control, and radio tuning.
Configuració i instal·lació
1. Connexions de cablejat
Before installation, ensure the vehicle's battery is disconnected to prevent electrical shorts. Refer to your vehicle's wiring diagram for specific connections.
- Cable groc (12V constants): Connect to a constant 12V power source. This maintains memory settings.
- Red Wire (Accessory 12V): Connect to a switched 12V power source (e.g., ignition switch).
- Cable negre (terra): Connect securely to the vehicle's chassis.
- Cables de l’altaveu: Connect to your vehicle's speakers. Ensure correct polarity (+/-) for each speaker. Typically, four pairs of wires are provided for front left, front right, rear left, and rear right speakers.
- Cable d'antena: Connect the vehicle's FM antenna to the player's antenna input.
2. Muntatge de la unitat
Install the media player into the vehicle's dashboard opening using the provided mounting sleeve and hardware. Ensure the unit is securely fastened and does not obstruct any vehicle controls.
3. Engegada inicial
After all connections are made and the unit is mounted, reconnect the vehicle's battery. Press the PWR button on the unit to power it on. The display should illuminate.
Instruccions de funcionament
1. Controls del tauler frontal
- PWR (Power/Mute): Press to turn the unit on/off. Short press to mute/unmute audio.
- MOD (Mode): Press to cycle through available audio sources: FM, Bluetooth, USB, AUX.
- SCN (Scan): In FM mode, press to scan and store radio stations.
- CLK (Clock): Press to display the clock. Press and hold to enter clock setting mode.
- BND (Band): In FM mode, press to switch between FM1, FM2, and FM3 bands.
- AMS (Automatic Memory Store): In FM mode, press and hold to automatically scan and store the strongest stations.
- Pom de volum: Rotate to adjust the volume level. Press to access audio settings (Bass, Treble, Balance, Fader).
- |< (Previous Track/Rewind): Short press to skip to the previous track (USB/Bluetooth) or tune down radio stations (FM). Long press for fast rewind (USB).
- >>| (Next Track/Fast Forward): Short press to skip to the next track (USB/Bluetooth) or tune up radio stations (FM). Long press for fast forward (USB).
- >>|| (Play/Pause): Play or pause media playback (USB/Bluetooth).
- Entrada AUX: Jack de 3.5 mm per connectar dispositius d'àudio externs.
- Port USB: Per connectar dispositius d'emmagatzematge USB.
- MIC: Built-in microphone for Bluetooth hands-free calling.
2. Funcionament de la ràdio FM
- Premeu MOD until "FM" is displayed.
- Premeu BND to select FM1, FM2, or FM3.
- Utilitza el |< or >>| buttons to manually tune to stations.
- Premeu SCN to automatically scan for stations.
- Mantén premut AMS to automatically store strong stations into presets.
3. Funcionament Bluetooth
- Premeu MOD until "BT" or "Bluetooth" is displayed.
- Al dispositiu mòbil, activeu el Bluetooth i cerqueu els dispositius disponibles.
- Select "PB-ZXN20MP" from the list. If prompted for a password, enter "0000".
- Once paired, you can stream audio from your device or make/receive calls.
- Utilitza el >>||, |< i >>| botons per controlar la reproducció.
4. Reproducció USB
- Inseriu un dispositiu d'emmagatzematge USB al port USB.
- The unit will automatically switch to USB mode and begin playback. If not, press MOD per seleccionar USB.
- Utilitza el >>||, |< i >>| botons per controlar la reproducció.
5. Entrada AUX
- Connect an external audio device (e.g., MP3 player) to the 3.5mm AUX input jack using an audio cable.
- Premeu MOD fins que es mostri "AUX".
- Controla la reproducció des del dispositiu extern connectat.
6. Configuració d'àudio
Premeu el botó Pom de volum repeatedly to cycle through audio settings:
- BAIX: Ajusteu el nivell dels baixos.
- TREB (Aguts): Ajusteu el nivell dels aguts.
- BAL (Saldo): Adjust left/right speaker balance.
- FAD (fader): Adjust front/rear speaker balance.
- EQ (equalitzador): Select preset equalizer modes (e.g., POP, ROCK, CLASSIC).
Gira el Pom de volum to change the value for the selected setting.
Manteniment
1. Neteja de la unitat
Use a soft, dry cloth to wipe the front panel. Do not use abrasive cleaners or solvents, as they may damage the finish or display. For stubborn dirt, a slightly damp es pot fer servir un drap, seguit d'un drap sec.
2. Detachable Faceplate Care
The faceplate is detachable for security. When removing, handle it carefully to avoid scratching the display or damaging the connectors. Store the faceplate in a protective case or bag when not in use.
Resolució de problemes
If you encounter issues with your media player, refer to the following table for common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| Sense poder | Cablejat incorrecte; Fusible fundit; Bateria del vehicle desconnectada. | Check power and ground connections; Replace fuse if necessary; Reconnect battery. |
| Sense so | Volume too low; Mute function active; Incorrect speaker wiring; Faulty speakers. | Increase volume; Press PWR button to unmute; Check speaker connections; Test with known good speakers. |
| Bluetooth no connectat | Bluetooth no habilitat al dispositiu; La unitat no està en mode d'emparellament; Interferències. | Ensure Bluetooth is on and discoverable on your device; Select "BT" mode on the unit; Move closer to the unit; Restart both devices. |
| Dispositiu USB no reconegut | Sense suport file format; USB device corrupted; USB device capacity too large. | Assegureu-vos files are in supported formats (e.g., MP3); Try a different USB device; Format USB device (FAT32); Use a smaller capacity USB. |
| Mala recepció FM | Antena no connectada; Senyal feble; Interferències. | Check antenna connection; Try tuning to a stronger station; Avoid areas with high interference. |
Especificacions
- Model: PB-ZXN20MP
- Potència de sortida: 60 watts x 4 canals
- Connectivitat: Bluetooth, USB, Auxiliary Input
- Sintonitzador de ràdio: FM (18 Presets)
- Visualització: LCD digital
- Característiques: Detachable Faceplate, Remote Control, Built-in Microphone
- Supported Audio Formats (USB): MP3
- Font d'alimentació: DC 12V (vehicle battery)
Garantia i Suport
Informació de la garantia
This product is covered by a limited warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
Atenció al client
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact the retailer where you purchased the product or refer to the contact information provided in your product packaging.
