SEHNLICH LED Rechargeable Flashlight (FLASH-V1-BLACK) User Manual

Introducció

The SEHNLICH LED Rechargeable Flashlight is designed to provide powerful and reliable illumination for various applications, from outdoor adventures to emergency situations. With its robust construction, high brightness, and convenient features, this flashlight is an essential tool for everyday carry.

Característiques principals:

Superior Brightness and Distance: Delivers 1250 lumens with a beam distance of up to 270 yards (246 meters).
Rugged and Waterproof Design: Constructed from A6063-T6 aluminum with a HAIII hard-anodized anti-abrasive coating and an IP68 waterproof rating.
Compact, Lightweight, and Durable: Features an anti-slip, anti-roll housing and a removable pocket clip for easy portability.
Rechargeable for Efficiency and Convenience: Equipped with a waterproof USB Type-C charging port and an LED battery level indicator.
5 Brightness Levels with Smart Memory Feature: Automatically recalls your last brightness setting for quick access.

SEHNLICH Premium Flashlight highlighting 1250 lumens, 30 hours run time, 270 yards throw, and 5 dimmable levels.

Image: SEHNLICH Premium Flashlight showcasing its main features.

Configuració

1. Instal·lació de la bateria

Desenrosqueu la tapa de la cua de la llanterna.
Insert the included 18650 Lithium Ion battery with the positive (+) end facing towards the flashlight head.
Torneu a cargolar fermament la tapa de la cua.

2. Càrrega inicial

Abans del primer ús, carregueu completament la llanterna per garantir un rendiment òptim.

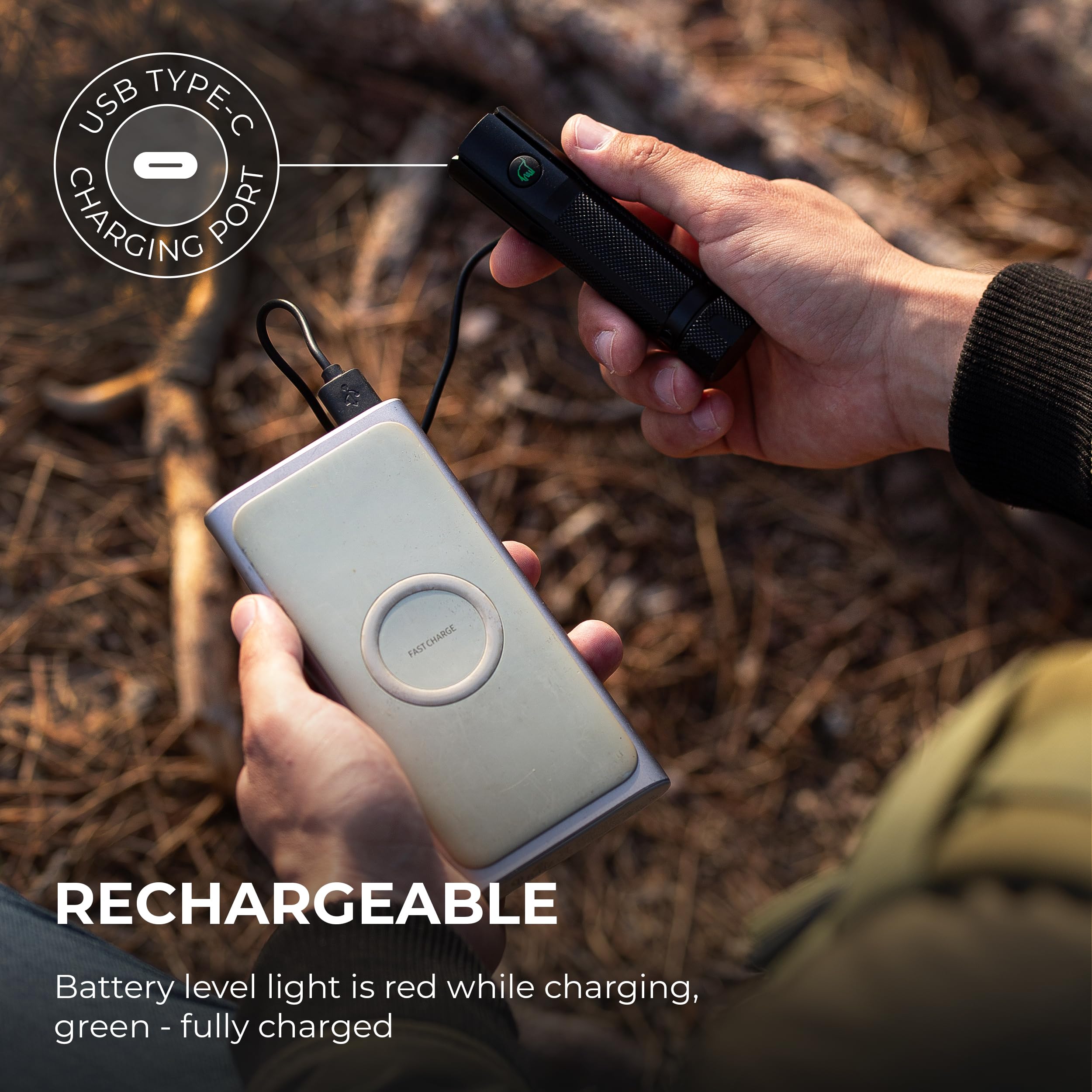

Hands plugging a USB Type-C cable into the flashlight for charging, with a power bank in the background.

Image: The flashlight being recharged via its waterproof USB Type-C port.

Instruccions de funcionament

Encès/Apagat

Premeu el botó d'engegada situat al costat de la llanterna per encendre-la o apagar-la.

Modes de brillantor

The flashlight features 5 brightness levels. While the flashlight is on, short press the power button to cycle through the modes: Low → Medium → High → Turbo → Strobe. The smart memory function will recall the last used brightness setting when the flashlight is turned on again.

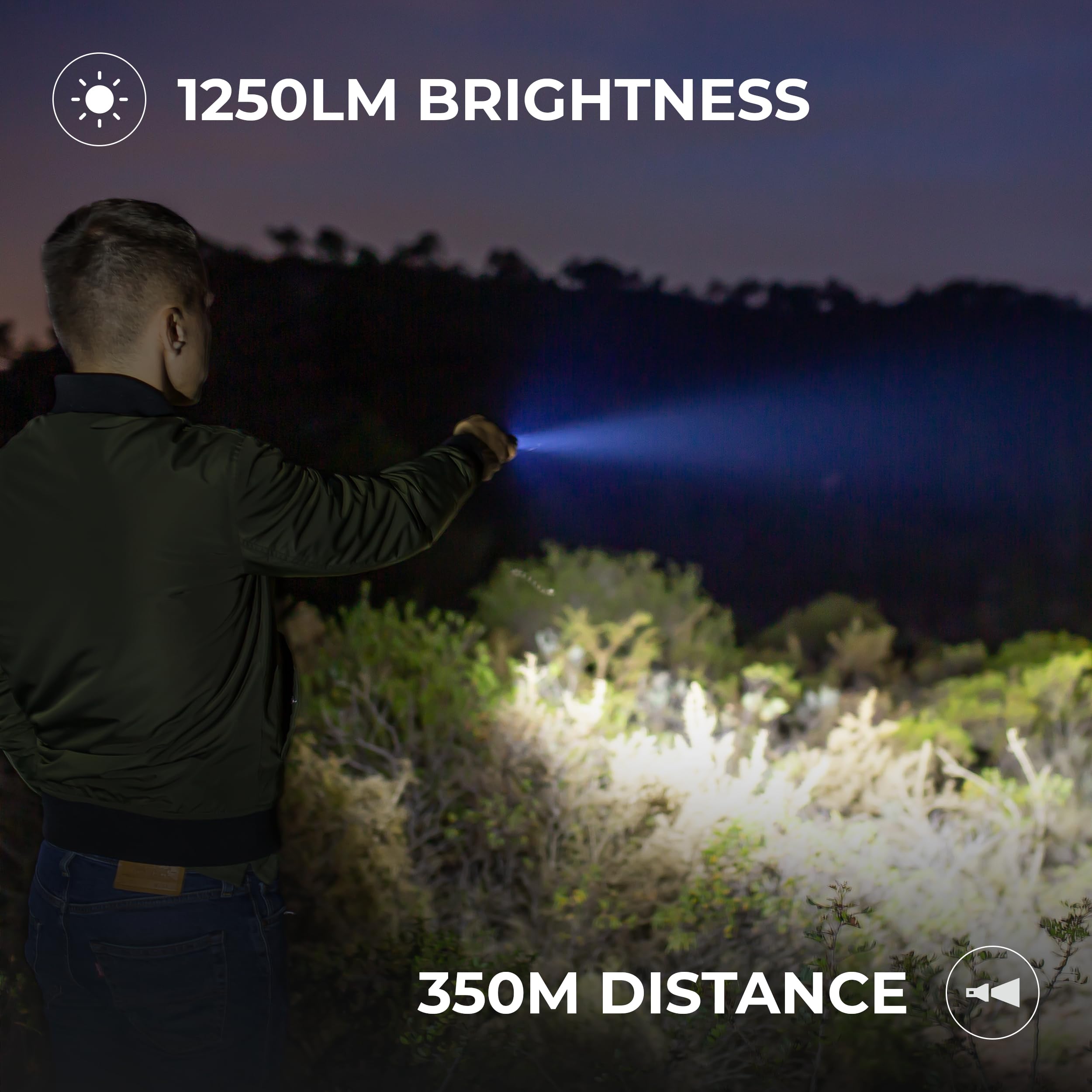

A person using the flashlight outdoors at night, illuminating a wide area with a bright beam.

Image: Flashlight illuminating a wide area at night, demonstrating its powerful beam.

Indicador de nivell de bateria

The LED indicator near the charging port shows the battery level:

Green: Fully charged or high battery.
Red: Charging or low battery.

Manteniment

Carregant

To charge the flashlight, open the waterproof cover of the USB Type-C port and connect it to any compatible USB power source (e.g., phone adapter, power bank). The LED indicator will show red during charging and turn green when fully charged. Charging typically takes 2-3 hours.

Neteja

Netegeu el cos de la llanterna amb un drap suauamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the USB Type-C port cover is securely closed to maintain its IP68 waterproof rating.

Emmagatzematge

Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, it is recommended to charge the battery periodically to maintain its health.

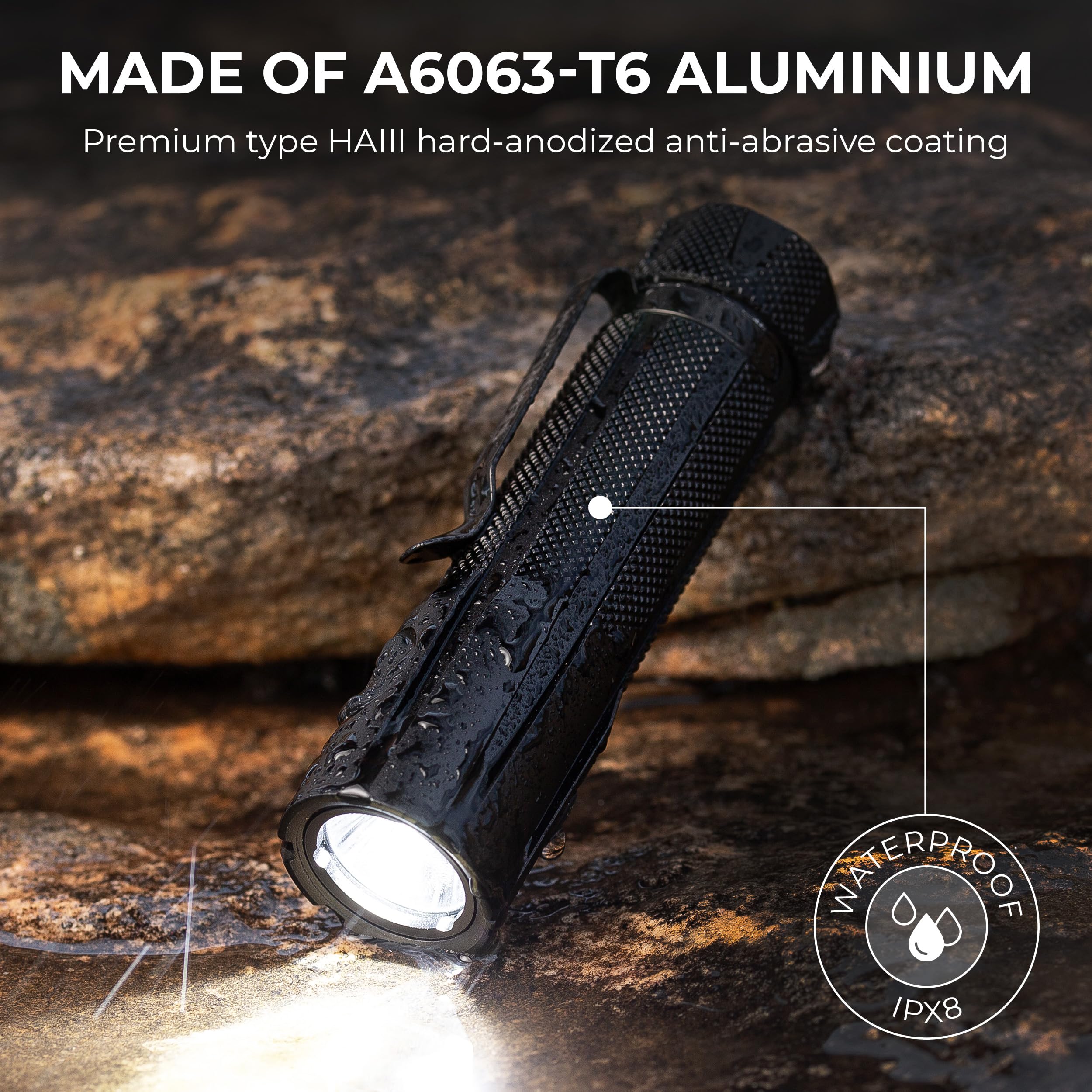

The SEHNLICH flashlight lying on a wet rock, demonstrating its IP68 waterproof rating.

Image: The flashlight's durable A6063-T6 aluminum body and IP68 waterproof rating.

Resolució de problemes

Problema	Causa possible	Solució
La llanterna no s'encén.	Bateria baixa o esgotada.	Carregueu la bateria completament.
	La bateria s'ha inserit incorrectament.	Ensure the battery's positive (+) end faces the head.
	Caputxó de cua solt.	Estrenyeu bé la tapa de la cua.
La llum és tènue o parpelleja.	Bateria baixa.	Recarregueu la bateria.
	Contactes bruts.	Clean battery and flashlight contacts with a cotton swab.
La llanterna no es carrega.	Problema amb el cable USB o la font d'alimentació.	Proveu un cable USB o un adaptador d'alimentació diferent.
	Obstrucció del port de càrrega.	Check the USB-C port for debris and clear if necessary.

Especificacions

Fabricant: SEHNLICH
Número de model de l'article: FLASH-V1-BLACK
Dimensions del producte: 10.44 x 2.79 x 2.79 cm; 145.15 g
Bateries: Necessita 1 bateria de ions de liti (inclosa)
Característica especial: Adjustable Light Modes, Durable, High Lumens, Portable, Rechargeable
Color: Negre
Font d'alimentació: Funciona amb bateria
Tipus de font de llum: LED
Material: Alumini anoditzat
Brillantor blanc: 1250 lúmens
Components inclosos: Battery, Belt Clip, Charging Cable, Manual

Garantia i Suport

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official SEHNLICH weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
