Hobbywing XERUN Axe R3 Combo (4274-1700KV FOC) Instruction Manual

Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Hobbywing XERUN Axe R3 Combo, which includes the Axe R3 Electronic Speed Controller (ESC) and the 4274-1700KV Field Oriented Control (FOC) motor. Please read this manual thoroughly before using the product to ensure correct setup and safe operation.

Informació de seguretat

Adhering to the following safety guidelines is crucial for preventing damage to the product and ensuring user safety:

• Ensure all wires and connections are properly insulated before connecting the ESC to related devices. Short circuits can cause severe damage to your ESC.
• Verify that all devices within the system are connected correctly to prevent any system damage.
• Review the manuals for all power devices and the chassis to confirm the power configuration is correct prior to using this unit.
• Use a soldering iron with a power rating of at least 60W for soldering all input/output wires and connectors.
• Do not allow the external temperatures of the ESC and motor to exceed 90°C (194°F), as high temperatures can damage both components.
• The battery must be disconnected after use. A small current draw exists even when the system is off, which can fully drain the battery over time. This may damage the ESC and will not be covered under warranty.

Producte acabatview i Components

The Hobbywing XERUN Axe R3 Combo includes the following main components:

• (1) AXE R3 Electronic Speed Controller (ESC)
• (1) AXE Motor (specifically the 4274-1700KV FOC motor for this combo)

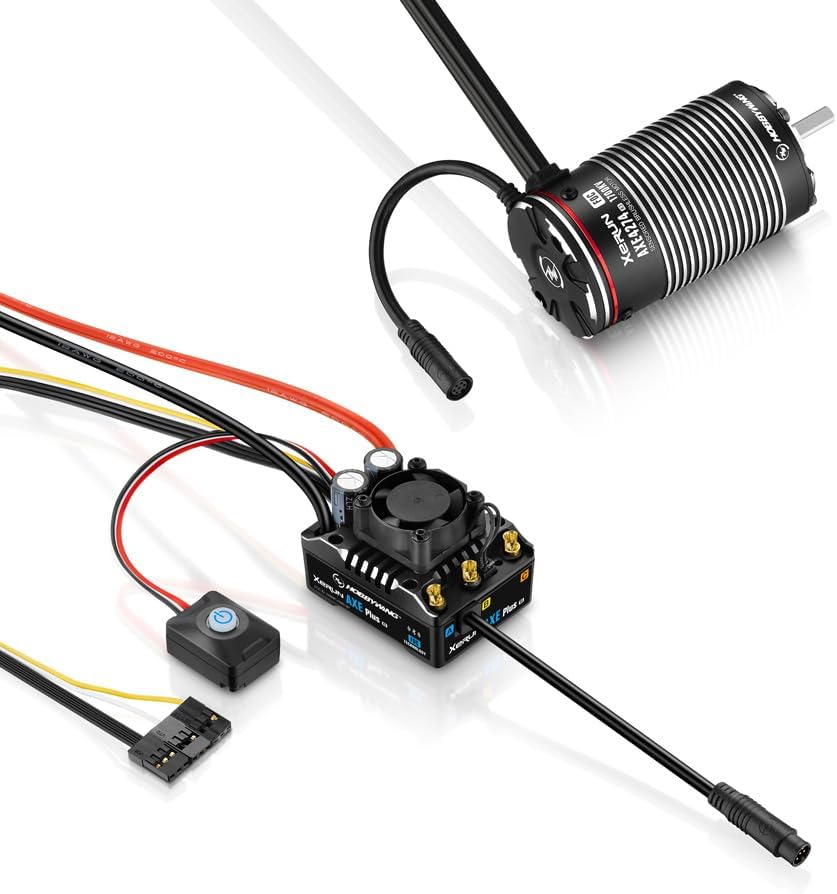

Figura 1: The Hobbywing XERUN Axe R3 Electronic Speed Controller (ESC) with its cooling fan and various connection ports, alongside the XERUN AXE4274 1700KV FOC brushless motor. Wires for power, signal, and programming are visible, illustrating the complete combo.

Característiques principals:

• Field Oriented Control (FOC) Technology: Provides strong low-speed torque and precise control, enhancing performance over standard brushless and brushed systems.
• Magnetic Encoder: Ensures accurate rotor position feedback for consistent control and reliability.
• IP67 impermeable i a prova de pols: Designed for durability in various environmental conditions. Regular monitoring is recommended in wet or muddy conditions.
• Intelligent Torque Output: Automatically adjusts torque for consistent motor RPM under varying loads, aiding in smooth hill climbing and descent.
• Fre de fre ajustable: Offers up to 200% drag brake power for superior holding capability on inclines.
• Bluetooth integrat: Allows for ESC setup, data monitoring, and firmware updates via the HW LINK app on a smartphone.
• Funcions de seguretat completes: Inclou volum baixtage cutoff, thermal protection, fail-safe (throttle signal loss), motor lock-up protection, and battery reversal protection.
• Dual External Control Channels: Connect white and yellow signal cables to open receiver channels for real-time parameter adjustments.
• Flysky i-BUS2 Protocol Support: Enables real-time ESC parameter adjustments and data return (battery voltage, motor RPM, current, temperatures) on compatible Flysky Noble controllers.
• Real-time Data Function: Monitor throttle, voltage, current, temperature, and speed via the HW Link app (effective distance approximately 5m due to Bluetooth transmission).

Configuració i instal·lació

1. Inspecció de components: Unpack all components and inspect for any visible damage.
2. Soldering Connections: Using a 60W or higher soldering iron, securely solder all necessary input/output wires and connectors. Ensure all connections are insulated.
3. Instal·lació del motor: Mount the 4274-1700KV FOC motor securely into your vehicle's chassis.
4. Muntatge ESC: Mount the AXE R3 ESC in a suitable location, ensuring adequate airflow for cooling.
5. Cablejat:
   • Connect the motor to the ESC according to the motor's phase wires.
   • Connect the ESC's power input wires to your LiPo battery connector.
   • Connect the ESC's signal cable to the throttle channel of your receiver.
   • For real-time parameter adjustment, connect the white and yellow signal cables from the ESC to open channels (e.g., Channel 3/4) on your receiver.
6. Receiver and Radio Setup: Ensure your receiver is properly bound to your radio transmitter. Calibrate the ESC with your radio system as per the ESC's specific instructions (usually involving throttle stick positions).
7. Connexió a l'aplicació (opcional però recomanada): Download the HW LINK app on your iOS or Android smartphone. Power on the ESC and connect via Bluetooth to access settings and firmware updates.

Instruccions de funcionament

Once installed and configured, the XERUN Axe R3 Combo offers advanced control features:

• Encès: Connect the battery to the ESC. The ESC will initialize.
• Control de l'accelerador: Use your radio transmitter's throttle stick to control the motor speed. The FOC technology provides smooth, precise low-speed control.
• Drag Brake Function: The adjustable drag brake provides significant holding power on slopes. Adjust the drag brake rate via the HW LINK app or external control channels for optimal performance on different terrains.
• Intelligent Torque Management: The ESC automatically manages torque output to maintain consistent speed and control, particularly beneficial when ascending or descending hills.
• Monitorització en temps real: Use the HW LINK app to monitor critical parameters such as throttle position, battery voltage, current draw, motor RPM, and ESC/motor temperatures during operation. This helps in understanding performance and preventing overheating.
• Ajust de paràmetres: Utilize the HW LINK app for detailed parameter adjustments. If configured, use the external control channels on your radio for on-the-fly adjustments of selected parameters.
• Apagar: Always disconnect the battery from the ESC after use to prevent battery drain and potential damage.

Manteniment

Regular maintenance ensures the longevity and optimal performance of your XERUN Axe R3 Combo:

• Neteja: After each use, especially in dusty or wet conditions, clean the ESC and motor to remove dirt, debris, and moisture. Use a soft brush or compressed air.
• Comprovacions de connexió: Periodically inspect all wiring and connectors for signs of wear, corrosion, or loose connections. Re-solder or replace as necessary.
• Monitorització de la temperatura: Regularly monitor ESC and motor temperatures during operation, especially during demanding use. If temperatures consistently exceed 90°C (194°F), investigate potential causes such as gearing, vehicle weight, or environmental factors.
• Actualitzacions de firmware: Check for and apply firmware updates via the HW LINK app to ensure your ESC has the latest features and performance enhancements.
• Emmagatzematge: Store the combo in a dry, cool place away from direct sunlight and extreme temperatures. Always disconnect batteries during storage.

Resolució de problemes

Si teniu problemes, tingueu en compte els passos generals següents per resoldre problemes:

• Sense energia: Check battery connections, ensure the battery is charged, and verify all power wires are securely soldered.
• El motor no respon: Check signal cable connection to the receiver, ensure ESC is calibrated with the radio, and verify motor phase wire connections.
• Sobreescalfament: Monitor temperatures via the HW LINK app. Reduce gearing, lighten vehicle load, or improve airflow to the ESC and motor.
• Comportament erràtic: Check for radio interference, loose connections, or damaged wires. Recalibrate the ESC.
• Problemes de connectivitat de l'aplicació: Ensure Bluetooth is enabled on your smartphone and the ESC is powered on. Try restarting both the app and the ESC.

For more specific diagnostic information, refer to the HW LINK app's real-time data and diagnostic features.

Especificacions

Garantia i Suport

For warranty information, technical support, or service inquiries, please contact Hobbywing customer support directly. Details regarding warranty coverage and terms are typically provided with the product packaging or available on the official Hobbywing weblloc.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.
