Manual d'usuari de la pantalla de bicicleta elèctrica Bafang C010

1. Producte acabatview

The Bafang C010 Display is an advanced eBike computer designed to provide essential riding data and control for compatible Bafang mid-drive motors. Featuring a clear 4.0-inch HD screen and intuitive controls, it enhances your eBike experience with real-time information and customizable settings.

Figure 1: Bafang C010 Display on an eBike handlebar.

2. Compatibilitat

This display is specifically designed for Bafang M620, M600, M560, M510, and M420 mid-drive motors. It operates using the CAN protocol and requires a 5-pin male triangular connector. It is no compatible with other motor types, including Bafang hub motors, Bafang BBS series motors, or any other brand's motors. It is also not compatible with the UART protocol or 5-pin female round connectors.

Figure 2: Bafang C010 Display compatibility overview.

3. Característiques clau

• 4.0-inch HD LCD Display: Proporciona dades clares i fàcils de llegir durant la conducció.
• Retroil·luminació automàtica: Adjusts brightness automatically based on ambient light conditions.
• Sortida USB: Features a USB port for convenient phone charging.
• Classificació impermeable IPX7: Ensures reliable operation in light to moderate rain.
• Multiple UI Themes: Choose from Sporty, Technology, or Fashion display themes.
• Suport multi-idioma: Admet 6 idiomes diferents.
• Vidre temperat: Durable screen for enhanced protection.
• 480x800 Pixel Resolution: High-resolution display for crisp visuals.
• Walk Assist Function: Aids in pushing the eBike at low speeds.
• Auto Headlamp: Automatically controls the eBike's headlamp.

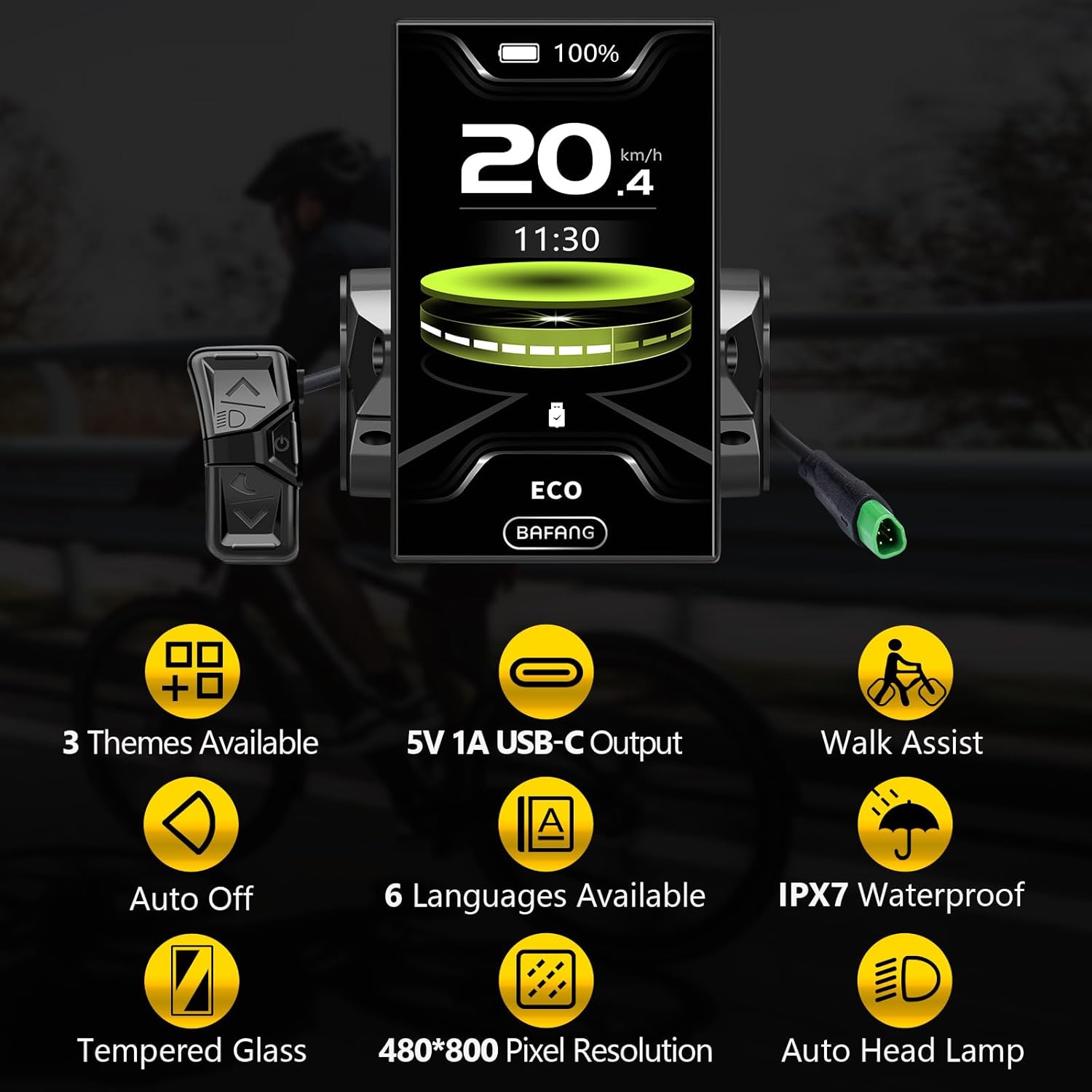

Figure 3: Key features of the C010 Display.

4. Configuració i funcionament

4.1 Encès/Apagat

To power on or off the display, press and hold the power button located on the control pad. The display will show a startup animation and then the main riding interface.

4.2 Switching Assistance Modes

Use the "+" or "-" buttons on the control pad to switch between different pedal assistance modes. The display supports various levels, including OFF, ECO, TOUR, SPORT, SPORT+, and BOOST, or a simplified 4-level system (OFF, COMFORT, TOUR+, BOOST) depending on your configuration.

4.3 Activar/desactivar els paràmetres de visualització

Briefly press the power button to cycle through different display parameters such as Odometer (ODO), Maximum Speed (MAX), Average Speed (AVG), Range, Calories (CAL), Cadence, Cycling Time, and Trip Distance.

4.4 Accessing Main Menu and Advanced Settings

To access the main menu and advanced settings, press the "+" and "-" buttons simultaneously. From this menu, you can adjust various settings:

• Brillantor: Adjust screen brightness (e.g., 100%, 80%, 60%, 95%).
• Apagat automàtic: Set the time after which the display automatically turns off due to inactivity (e.g., 8 min, 7 min, 5 min).
• Configuració del rellotge: Set the current time and choose between 12h or 24h format.
• Temes: Select from Sporty, Technology, or Fashion display themes.
• PAS màxim: Configure the maximum pedal assist levels (e.g., 4 or 6 levels).
• Restableix el viatge: Reset trip data (Yes/No).
• Unitat: Change measurement units between kilometers (km) and miles (mile).
• Consell de servei: Toggle service tip display (ON/OFF).
• Sensibilitat AL: Adjust alarm sensitivity (e.g., 3).
• Boot Password: Set or disable a boot password (OFF).
• Restableix la contrasenya: Reset the boot password.
• Idioma: Select display language (English, Deutsch, Nederlands, Français, Italiano, Čeština).

5. Manteniment

To ensure the longevity and optimal performance of your Bafang C010 Display, follow these maintenance guidelines:

• Neteja: Netegeu la pantalla i el cos amb un drap suau iamp drap. Eviteu utilitzar productes de neteja abrasius o dissolvents que puguin danyar la pantalla o la casing.
• Protecció: Despite its IPX7 waterproof rating, avoid submerging the display in water. Protect it from extreme temperatures and direct prolonged sunlight when not in use.
• Connexions: Comproveu periòdicament totes les connexions dels cables per assegurar-vos que estiguin ben fixades i que no presentin corrosió.

Figure 4: The C010 Display's IPX7 waterproof feature.

6. Solució De Problemes

If you encounter issues with your Bafang C010 Display, consider the following common troubleshooting steps:

• La pantalla no s'encén: Ensure the eBike battery is charged and properly connected. Check the display's power cable connection.
• Sense lectura de velocitat/cadència: Verify that the speed sensor and cadence sensor (if applicable) are correctly installed and aligned. Check their connections to the motor.
• Lectures incorrectes: Ensure the wheel circumference setting in the display's advanced settings is accurate for your eBike.
• Botons que no responen: Check for any physical obstructions or damage to the control pad.
• Codis d'error: If an error code appears on the display, consult the Bafang motor manual or contact customer support for specific interpretations and solutions.

7. Especificacions

8. Garantia i Suport

The Bafang C010 Display comes with a 1-year warranty. For technical support, warranty claims, or further assistance, please contact the seller, Brose Free Direct, through the Amazon platform or their official support channels.

For additional information and resources, you may visit the official BAFANG Store on Amazon: BAFANG Store.
