VEVOR 18 Inch Industrial Wall Mount Fan

1. Introducció i finalview

This manual provides essential information for the safe and efficient operation of your VEVOR 18 Inch Industrial Wall Mount Fan. This fan is designed for high-velocity air circulation in large indoor spaces such as warehouses, workshops, basements, and commercial areas. It features a robust metal construction, aluminum blades, and a powerful motor to deliver significant airflow.

A set of two wall-mounted fans is included, providing wide-range indoor cooling. The fan offers 3-speed manual control and 360° tilt adjustment for optimal airflow direction.

Image: Two VEVOR 18 Inch Industrial Wall Mount Fans providing wide-range cooling in a large space.

2. Instruccions de seguretat

AVÍS: Llegiu tots els avisos i les instruccions de seguretat abans d'utilitzar aquest producte. Si no seguiu els avisos i les instruccions, podeu patir descàrregues elèctriques, incendis o lesions greus.

• Desendolleu sempre el ventilador de la presa de corrent abans de netejar-lo, fer-ne el manteniment o moure'l.
• No feu funcionar el ventilador amb un cable o endoll danyat. Si el cable o l'endoll estan danyats, poseu-vos en contacte amb personal de servei qualificat.
• No passeu el cable d'alimentació sota la catifa. No cobriu el cable amb catifes, corredors o revestiments similars. Col·loqueu el cable lluny de les zones de trànsit on no s'ensopegui.
• No introduïu els dits ni cap altre objecte a través de la reixeta quan el ventilador estigui en funcionament.
• Ensure the fan is mounted securely to a solid structure (concrete or metal structures are recommended; not suitable for wooden walls).
• Aquest ventilador és només per a ús interior.
• Mantingueu els nens i les mascotes allunyats del ventilador durant el funcionament.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents i en bon estat en desembalar-los:

• Industrial Wall Fan (2 units)
• Manual d'usuari
• Mounting Hardware (bolts, washers, nuts, expansion bolts)

4. Configuració i instal·lació

The VEVOR Industrial Wall Mount Fan is designed for easy installation on solid surfaces. Follow these steps for secure mounting:

1. Trieu una ubicació adequada: Select a concrete or metal structure for mounting. Avoid wooden walls. Ensure the location allows for optimal air circulation and access to a power outlet.
2. Marqueu els forats de perforació: Use the mounting bracket as a template to mark the positions for drilling on the wall.
3. Forats: Drill pilot holes according to the marked positions. For concrete or masonry, use appropriate masonry drill bits and expansion bolts.
4. Instal·leu el suport de muntatge: Securely attach the mounting bracket to the wall using the provided hardware. Ensure it is firmly tightened.
5. Fixeu el ventilador al suport: Connect the fan unit to the installed mounting bracket. Use the provided bolts, rubber spacers, washers, and nuts to secure the fan. Ensure all connections are tight.
6. Ajusta l'angle del ventilador: The fan can be tilted vertically for optimum airflow. Use the side knobs to adjust and lock the fan in your desired position.

Image: Wall-mount fan installation examples in various indoor and outdoor settings.

5. Instruccions de funcionament

Your VEVOR Industrial Wall Mount Fan features a simple pull-string control for speed adjustment.

• Encès/apagat: Pull the chain once to turn the fan on to the lowest speed setting. Continue pulling the chain to cycle through the speed settings.
• Control de velocitat: El ventilador té tres ajustos de velocitat:
• Baix: Gentle air circulation.
• Mitjà: Refreshing, natural airflow.
• Alt: Strong cool breeze, rapid cooling (up to 4150 CFM).
• Ajust d'inclinació: Manually adjust the fan head vertically to direct airflow precisely where needed. Loosen the side knobs, position the fan, and then tighten the knobs to secure.

Image: Fan speed settings and airflow capabilities.

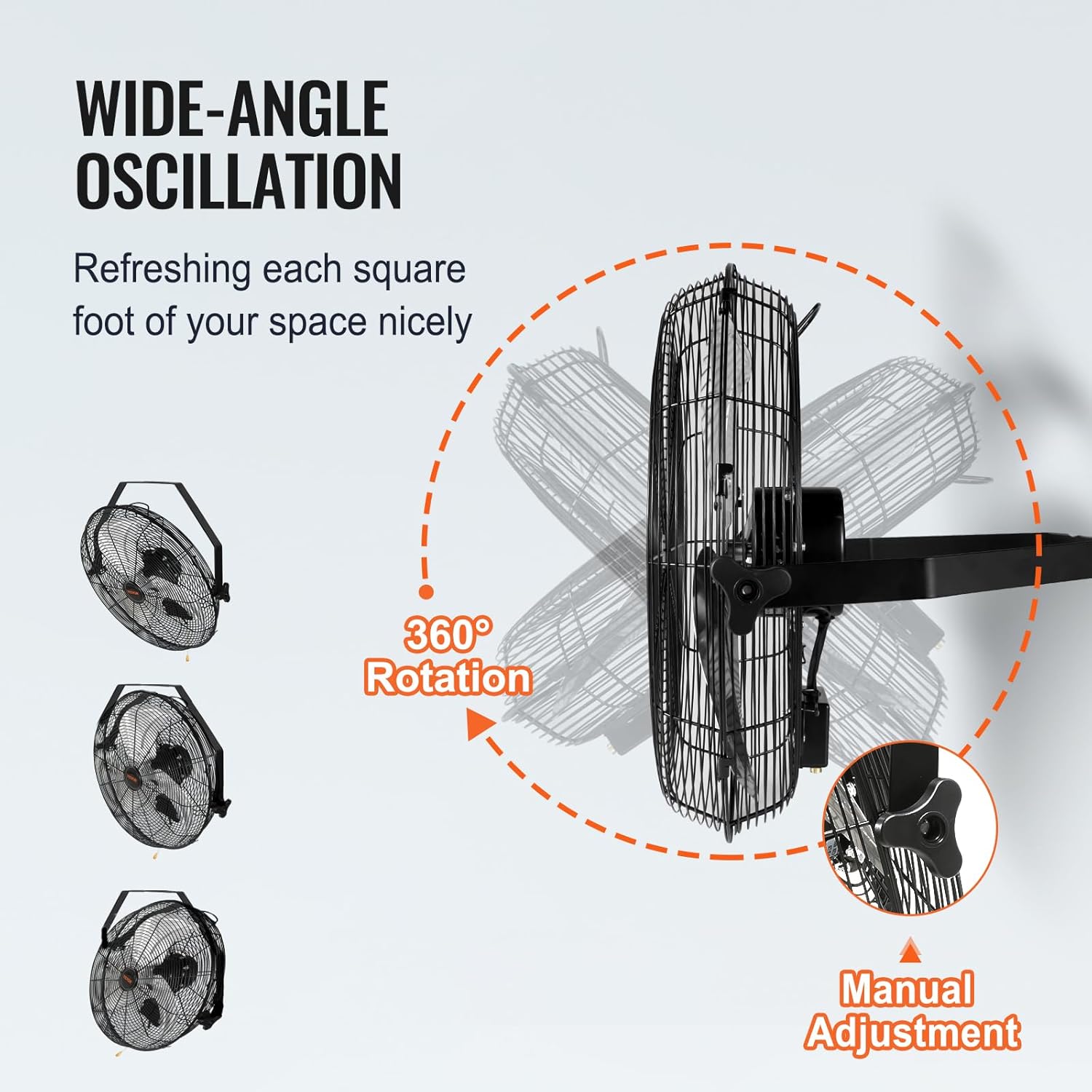

Image: Fan tilt adjustment and rotation capabilities.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim del ventilador.

• Neteja: Disconnect the fan from the power supply before cleaning. Use a soft, damp cloth to wipe down the exterior surfaces. For thorough cleaning, the aluminum blades can be easily disassembled.
• Neteja de fulles: Carefully remove the front grille and fan blades. Wipe the blades with a damp cloth to remove dust and debris. Ensure blades are completely dry before reassembling.
• Emmagatzematge: If storing the fan for an extended period, clean it thoroughly and store it in a dry, cool place away from direct sunlight and moisture.

7. Solució De Problemes

Si teniu problemes amb el ventilador, consulteu els passos habituals següents per resoldre problemes:

• El ventilador no s'encén:
  • Assegureu-vos que el cable d'alimentació estigui ben connectat a una presa de corrent.
  • Comproveu l'interruptor o la caixa de fusibles.
  • Verify the pull-string control is correctly operated to select a speed setting.
• Flux d'aire reduït:
  • Check for any obstructions around the fan grille.
  • Clean the fan blades and grille if dust or debris has accumulated.
  • Assegureu-vos que el ventilador estigui configurat a una velocitat més alta.
• Soroll inusual:
  • Ensure the fan is securely mounted and all screws/bolts are tightened.
  • Check for any loose parts or foreign objects within the fan grille.
  • Clean the blades and motor housing to remove any debris that might be causing imbalance.

If problems persist after attempting these steps, please contact VEVOR customer support.

8. Especificacions

Imatge: Especificacions i dimensions detallades del producte.

Image: Internal components highlighting the motor and construction for quiet and powerful operation.

9. Garantia i Suport

VEVOR products are built to last and come with a standard warranty. For specific warranty details, product registration, or technical support, please refer to the warranty card included in your package or visit the official VEVOR weblloc.

For any inquiries or assistance, please contact VEVOR customer service.
