Edifier STAX Spirit S5 Wireless Planar Magnetic Headphones User Manual

Introducció

Thank you for choosing the Edifier STAX Spirit S5 Wireless Planar Magnetic Headphones. These headphones are engineered to deliver an exceptional audio experience, featuring advanced planar magnetic drivers with EqualMass diaphragms for precise sound reproduction and minimal distortion. With Qualcomm Snapdragon Sound technology, LDAC, and LHDC codec support, the S5 provides high-resolution wireless audio. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure you get the most out of your new headphones.

Contingut del paquet

Si us plau, verifiqueu que tots els elements que s'enumeren a continuació estiguin inclosos al vostre paquet:

• 1 x Edifier STAX Spirit S5 Headset
• 2 x Cooling Mesh Earpads (pre-installed or spare)
• 1 x cable de càrrega USB tipus C
• 1 x Earpad Pick Tool
• 1 x 3.5mm AUX Audio Cable
• 1 adaptador de 3.5 mm a 6.35 mm
• 1 x Headphone Carrying Case
• 2 x Earpad Pouches
• 1 x Manual d'usuari

Producte acabatview

Familiarize yourself with the components and controls of your Edifier STAX Spirit S5 headphones.

Davant view of the Edifier STAX Spirit S5 headphones, showcasing their sleek black design and over-ear cups.

A user wearing the Edifier STAX Spirit S5 headphones, demonstrating their comfortable fit and profile durant l'ús.

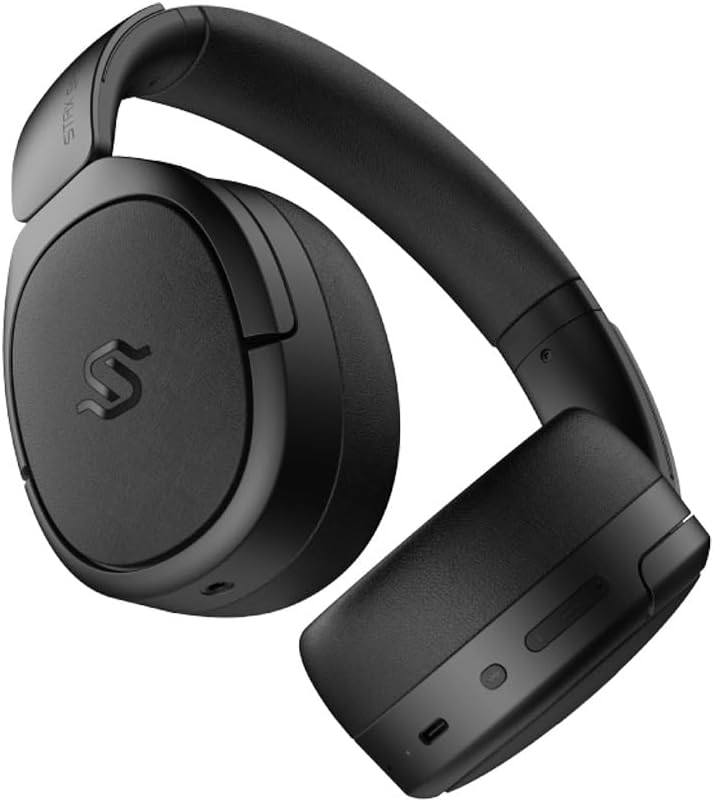

lateral view of the headphones, highlighting the control buttons and ports located on the right earcup, including the USB-C port.

A detailed close-up of the control buttons on the earcup, showing the power button, volume controls, and the USB-C charging port.

The Edifier STAX Spirit S5 headphones folded compactly, illustrating their portability and ease of storage in the included carrying case.

Configuració

Carregant els auriculars

Before first use, fully charge your Edifier STAX Spirit S5 headphones.

• Connect the supplied USB Type-C cable to the charging port on the headphones and the other end to a USB power adapter (not included) or a computer's USB port.
• The LED indicator will show charging status. It typically takes approximately 10 minutes for a quick charge, providing extended playback. A full charge can provide up to 80 hours of battery life.
• Once fully charged, the LED indicator will change (refer to the specific indicator behavior in your quick start guide, if available).

Encès/Apagat

• Encès: Premeu i manteniu premut el botó d'engegada durant aproximadament 3 segons fins que l'indicador lluminós s'il·lumini.
• Apagar: Premeu i manteniu premut el botó d'engegada durant aproximadament 5 segons fins que l'indicador lluminós s'apagui.

Emparellament Bluetooth

The STAX Spirit S5 uses Bluetooth V5.4 for stable and fast transmission.

1. Assegureu-vos que els auriculars estiguin apagats.
2. Premeu i manteniu premut el botó d'engegada durant aproximadament 5-7 segons fins que l'indicador lluminós parpellegi ràpidament, cosa que indica el mode d'emparellament.
3. On your device (smartphone, tablet, computer), enable Bluetooth and search for "Edifier STAX Spirit S5" in the list of available devices.
4. Select the headphones to connect. Once successfully paired, the indicator light will stop flashing and remain solid or turn off, depending on the model's specific behavior.
5. Google Fast Pair: For Android devices, the headphones support Google Fast Pair for quick and seamless connection. Simply power on the headphones near your Android device, and a pairing prompt will appear.
6. Connexió multidispositiu: The S5 can connect to two audio devices simultaneously. After pairing with the first device, put the headphones back into pairing mode and connect to the second device. The headphones will intelligently switch between the two.

Connexió per cable

The headphones support both USB-C and 3.5mm AUX wired connections.

• Àudio USB-C: Connect the USB Type-C cable from the headphones to a compatible USB-C port on your device for digital audio playback and charging.
• 3.5mm AUX Audio: Connect the 3.5mm AUX cable to the audio input port on the headphones and the other end to your audio source's 3.5mm output. Use the included 3.5mm to 6.35mm adapter for devices with a 6.35mm jack. Note that the headphones must be powered on for passive wired mode.

Instruccions de funcionament

Controls bàsics

The main controls are located on the earcup:

• Botó d'encesa:
  • Press and hold for 3 seconds to Power On.
  • Press and hold for 5 seconds to Power Off.
  • Press and hold for 5-7 seconds (from off) to enter Bluetooth pairing mode.
• Puja el volum (+): Premeu breument per augmentar el volum.
• Baixar el volum (-): Premeu breument per reduir el volum.
• Multi-function Button (often between volume buttons):
  • Pressió curta: Reprodueix/Pausa la música.
  • Short press: Answer/End call.
  • Premda llarga: Rebutja la trucada.
  • Doble pulsació: Pista següent.
  • Triple pulsació: Pista anterior.

Tecnologies d'àudio

The STAX Spirit S5 supports various high-fidelity audio codecs for an optimal listening experience:

• Qualcomm Snapdragon Sound: Ensures stable RF connection and efficient power consumption for extended listening.
• LDAC & LHDC: Compatible with Hi-Res Audio and Wireless Hi-Res Audio, delivering exceptional detail and clarity.
• aptX HD, aptX Adaptive, aptX Lossless: Part of the Snapdragon Audio technology, providing high-resolution audio with ultra-low latency (as low as 89ms with aptX Adaptive).

Funcionalitat de trucada

The headphones are equipped with dual microphones and Qualcomm cVc technology for clear calls.

• Cancel·lació de soroll: Integrated Qualcomm cVc actively suppresses ambient noise, enhancing voice clarity during calls.
• Privadesa: The closed-back design helps ensure conversation privacy.

Manteniment

Un manteniment adequat garanteix la longevitat i el rendiment dels teus auriculars.

• Neteja:
  • Netegeu els auriculars amb un drap suau i sec.
  • For earpads, use a slightly damp cloth if necessary, but avoid excessive moisture.
  • No utilitzeu productes químics aggressivs, dissolvents de neteja o detergents forts.
• Substitució de les coixinetes de les orelles:
  • The STAX Spirit S5 comes with two sets of earpads (mesh and leather).
  • To replace, gently pull off the existing earpad. Use the included earpad pick tool if needed to carefully detach it from the earcup.
  • Align the new earpad with the earcup and press firmly around the edges until it clicks securely into place.
• Emmagatzematge:
  • When not in use, store the headphones in the provided carrying case to protect them from dust, scratches, and impacts.
  • Eviteu l'emmagatzematge a temperatures extremes o humitat elevada.
• Cura de la bateria:
  • To preserve battery life, avoid fully discharging the headphones frequently.
  • Si l'emmagatzemeu durant un període prolongat, carregueu la bateria al 50% aproximadament abans de guardar-la.

Resolució de problemes

Si teniu problemes amb els auriculars, consulteu els problemes i solucions més comuns següents:

If the problem persists, please contact Edifier customer support.

Especificacions

Key technical specifications for the Edifier STAX Spirit S5 headphones:

Garantia i Suport

The Edifier STAX Spirit S5 headphones come with a two-year warranty, ensuring reliable performance and support.

For technical assistance, warranty claims, or further inquiries, please contact Edifier customer support through their official weblloc web o el distribuïdor on vau comprar el producte. Conserveu el comprovant de compra per validar la garantia.
