1. Introducció
Thank you for choosing the Hiwill Ultrasonic Retainer Cleaner Machine. This device utilizes advanced 45000Hz ultrasonic technology combined with UV light sterilization to provide a thorough and hygienic cleaning solution for various dental appliances and small items. Designed for ease of use and portability, it helps maintain optimal oral hygiene by effectively removing dirt and particles from hard-to-reach areas.
2. Informació de seguretat
Llegiu atentament totes les instruccions de seguretat abans d'utilitzar el dispositiu. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o lesions greus.
- No submergiu la unitat principal en aigua o altres líquids.
- Mantingueu el dispositiu lluny dels nens.
- Utilitzeu només l'adaptador d'alimentació subministrat.
- No feu servir el dispositiu si el cable d'alimentació o l'endoll està danyat.
- Desendolleu el dispositiu de la presa de corrent quan no l'utilitzeu o abans de netejar-lo.
- No desmunteu ni intenteu reparar el dispositiu vosaltres mateixos. Contacteu amb l'assistència al client per obtenir assistència.
- Ensure the water level does not exceed the MAX mark inside the tank.
- This device is intended for cleaning dental appliances and small non-porous items only. Do not use it for other purposes.
3. Característiques del producte
- 45000Hz High-Frequency Ultrasonic Cleaning: Generates powerful ultrasonic waves for deep cleaning.
- Esterilització per llum UV: Integrated UV light helps dislodge 99% of harmful dirt and provides additional hygiene.
- Dual Auto-Cleaning Modes: Offers two cleaning cycles for daily or deep cleaning.
- Operació d'un sol toc: Simple and intuitive control with a single button.
- 304 Stainless Steel Inner Tank: Durable and corrosion-resistant cleaning tank.
- Disseny portàtil i compacte: Easy to carry and store, ideal for travel.
- Multi-Functional Cleaning: Suitable for retainers, dentures, mouth guards, aligners, braces, jewelry, and electric toothbrush heads.

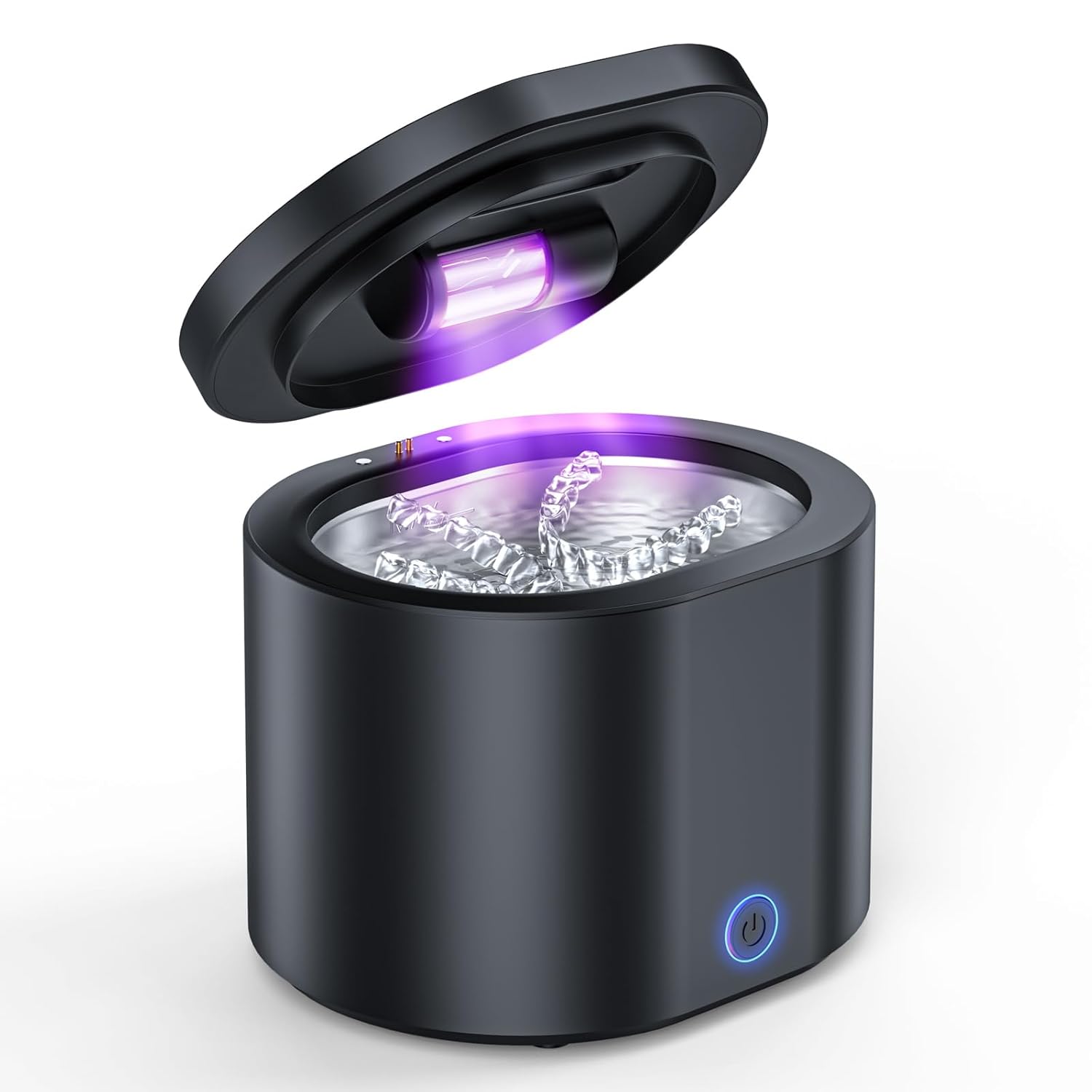

Image: The Hiwill Ultrasonic Retainer Cleaner Machine with its lid open, showing a retainer inside the cleaning tank.
Image: Visual representation of the 45000Hz ultrasonic cleaning process, showing high-frequency vibrations and the removal of dirt from dental appliances.
Image: An illustration demonstrating the multi-functional cleaning capabilities of the device, showing various dental equipment it can clean.
4. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- Hiwill Ultrasonic Retainer Cleaner Machine
- Adaptador d'alimentació
- Raspall de neteja
- Cistella de colador
- Manual d'usuari (aquest document)
Image: The complete package contents of the Hiwill Ultrasonic Retainer Cleaner, laid out for inspection.
5. Configuració
Seguiu aquests passos per a la configuració inicial:
- Place the cleaner on a stable, flat, and dry surface.
- Open the lid and fill the stainless steel tank with clean water. Do not exceed the "MAX" fill line. For enhanced cleaning, a small amount of denture cleaning solution or mild soap can be added (refer to the solution's instructions).
- Carefully place the item(s) to be cleaned into the strainer basket, then lower the basket into the water. Ensure items are fully submerged.
- Tanqueu la tapa amb seguretat.
- Connect the power adapter to the cleaner's power port, then plug the adapter into a standard electrical outlet.
Image: A visual guide illustrating the simple four-step process for setting up and using the cleaner.
6. Instruccions de funcionament
The Hiwill Ultrasonic Retainer Cleaner features a simple one-touch operation with two cleaning modes:
- Daily Clean (5 Minutes): Press the power button once. The indicator light will illuminate, and the cleaning cycle will begin. This mode is ideal for routine daily cleaning.
- Deep Clean (10 Minutes): Press the power button twice quickly. The indicator light will illuminate, and the deep cleaning cycle will begin. This mode is recommended for more thorough cleaning or for items with stubborn dirt.
The device will automatically shut off once the cleaning cycle is complete. The UV light will operate during the cleaning cycle.
After cleaning, unplug the device, open the lid, and carefully remove your cleaned items. Rinse the items under clean water if necessary. Pour out the dirty water from the tank and wipe the tank clean.
Image: A close-up of the cleaner's power button, illustrating the one-touch operation for selecting cleaning modes.
Image: The cleaner in operation, highlighting the UV light and high-frequency cleaning action within the tank.
7. Manteniment i cura
Proper maintenance ensures the longevity and optimal performance of your cleaner:
- After each use, unplug the device and empty the water from the tank.
- Wipe the inside of the stainless steel tank with a soft cloth to remove any residue.
- Netegeu l'exterior de la unitat amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Guardeu el netejador en un lloc fresc i sec, allunyat de la llum solar directa quan no l'utilitzeu.
- Do not store water in the tank for extended periods.
8. Solució De Problemes
If you encounter any issues, please refer to the following table:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | Not plugged in correctly; Power outlet malfunction; Damaged power adapter. | Ensure the power adapter is securely plugged into both the unit and a working electrical outlet. Try a different outlet. If the adapter is damaged, contact customer support. |
| La neteja no és efectiva. | Insufficient water; Items not fully submerged; Excessive dirt; Incorrect cleaning mode. | Ensure water level is adequate and items are fully submerged. For heavily soiled items, use the 10-minute deep clean mode or pre-rinse items. Consider adding a suitable cleaning solution. |
| UV light is not visible. | Lid not closed properly; UV lamp funcionament defectuós. | Ensure the lid is fully closed. The UV light is designed to operate only when the lid is closed for safety. If the issue persists, contact customer support. |
| Soroll inusual durant el funcionament. | Unit not on a flat surface; Foreign object in tank. | Ensure the unit is on a stable, flat surface. Check the tank for any foreign objects and remove them. |
9. Especificacions
| Característica | Detall |
|---|---|
| Model | 45000Hz Portable Sonic Dental Pod |
| Freqüència ultrasònica | 45000 Hz |
| Modes de neteja | 5-minute (Daily Clean), 10-minute (Deep Clean) |
| Material del dipòsit | Acer inoxidable 304 |
| Dimensions (L x A x A) | 5.75 x 4.92 x 4.69 polzades |
| Pes | 1.34 lliures |
| Font d'alimentació | Adaptador de CA (inclòs) |
10. Garantia i Suport
Hiwill products are manufactured to the highest quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official Hiwill weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
Per obtenir més ajuda, també podeu contactar directament amb el venedor a través de la plataforma on vau comprar el producte.
