Introducció
The Progress Lighting Standby 7.75 inch Surface Mount LED Motion Sensor Light with Photocell is an advanced lighting solution designed for efficiency and convenience. This fixture integrates motion-sensing technology with energy-saving features, making it suitable for various residential and commercial applications. It activates upon motion detection and includes a photocell to ensure operation only when ambient light is insufficient, optimizing energy use.
Característiques principals:
- Dual technology motion detection for reliable activation.
- Integrated PIR motion sensor turns light on within a 12-15 ft radius.
- Photocell sensor prevents activation during daylight hours (triggers below 12 lux).
- Automatic shut-off after 30 seconds of no motion.
- Energy-efficient LED technology with 3000K warm light and 90 CRI.
- Dimmable when used with a compatible wall dimmer.

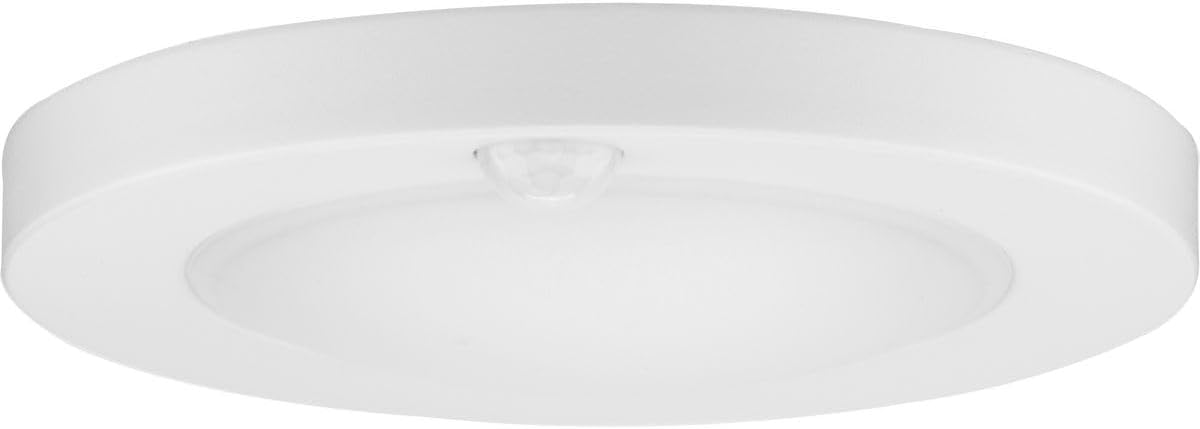

Figura 1: Frontal view of the Progress Lighting Standby LED Motion Sensor Light.
Figure 2: The light fixture installed in a laundry room, demonstrating its application.
Informació de seguretat
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be hazardous or even fatal. Installation should be performed by a qualified electrician in accordance with all local electrical codes.
- ADVERTIMENT: Risc de descàrrega elèctrica. Desconnecteu l'alimentació a l'interruptor o a la caixa de fusibles abans de la instal·lació o el manteniment.
- Ensure all electrical connections are made according to local codes, ordinances, and the National Electric Code (NEC).
- Comproveu que el volum de subministramenttage és correcta comparant-ho amb la informació de la lluminària.
- No intenteu alterar l'aparell de cap manera.
- This fixture is designed for indoor use. While it has some resistance, it is not fully water resistant.
Contingut del paquet
Carefully unpack your fixture and check that all parts are included. If any parts are missing or damaged, do not attempt to assemble or install the product. Contact customer service for assistance.
- LED Motion Sensor Light Fixture
- Mounting Hardware (bracket, screws, wire nuts)
- Manual d'instruccions
Figura 3: Explotat view of the light fixture with included mounting hardware.
Especificacions
| Característica | Especificació |
|---|---|
| Número de model | P810041-028-30 |
| Dimensions (L x A x A) | 7.72" x 7.72" x 1.38" |
| Material | Alloy Steel, Polycarbonate (Shade) |
| Color | Blanc setinat |
| Font de llum | LED integrat |
| Wattage | 14 watts |
| Voltage | 120 Volts |
| Brillantor | 950 lúmens |
| Temperatura de color | 3000K (blanc càlid) |
| Índex de reproducció del color (CRI) | 90 |
| Mètode de control | Motion Sensor, Photocell |
| Tipus d'instal·lació | Muntatge en superfície |
| Ús interior/exterior | Interior |
| Nivell de resistència a l'aigua | No resistent a l'aigua |
| Certificació | Llistat UL |
Figure 4: The fixture features integrated LED technology and is dimmable with compatible wall dimmers.
Configuració i instal·lació
Follow these steps to properly install your LED motion sensor light. Ensure power is disconnected at the circuit breaker before starting.
- Prepareu l'àrea d'instal·lació: Turn off power at the main circuit breaker. Ensure the mounting surface is clean and dry.
- Col·loqueu el suport de muntatge: Secure the mounting bracket to the junction box using the provided screws. Ensure the bracket is firmly attached.
- Fer connexions elèctriques: Connect the fixture's wires to the corresponding house wires. Typically, black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground). Use the provided wire nuts and ensure connections are secure.
- Muntar l'aparell: Align the fixture with the mounting bracket and secure it in place. Refer to the installation sequence diagram for visual guidance.
- Restaura l'alimentació: Once the fixture is securely mounted and all connections are made, restore power at the circuit breaker.
Figura 5: Esquena view of the light fixture, showing the wiring for installation.
Figure 6: Installation sequence diagram, showing how the light attaches to the junction box.
Instruccions de funcionament
The Standby LED Motion Sensor Light is designed for automatic operation based on motion and ambient light levels.
- Sensor de moviment: The built-in Passive Infrared (PIR) sensor detects movement within its range. When motion is detected, the light will activate. The detection radius is approximately 12 feet when mounted at 8 feet height, and 15 feet when mounted at 10 feet height.
- Sensor de fotocèl·lula: The integrated photocell ensures that the light only turns on when the ambient light level is below 12 lux (i.e., when it's dark enough). This prevents unnecessary activation during daylight hours, conserving energy.
- Apagat automàtic: After motion is no longer detected, the light will remain on for approximately 30 seconds before automatically turning off.
Figure 7: Close-up of the integrated motion sensor on the light fixture.
Figure 8: Diagram illustrating the motion detection angle and radius of the light fixture in a room.
Manteniment
Regular maintenance helps ensure the longevity and optimal performance of your light fixture.
- Neteja: Per netejar l'aparell, assegureu-vos que l'alimentació estigui apagada. Netegeu amb un drap suau, sec o lleugerament sec.amp drap. No utilitzeu productes de neteja abrasius ni dissolvents, ja que poden danyar l'acabat o els components elèctrics.
- LED: La font de llum LED integrada està dissenyada per a una llarga vida útil i no és substituïble per l'usuari.
- Inspecció: Periodically check for any loose wiring or damage. If any issues are found, disconnect power and consult a qualified electrician.
Resolució de problemes
Si teniu problemes amb la vostra làmpada, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No power, incorrect wiring, photocell detecting too much ambient light, motion sensor not triggered. | Check circuit breaker. Verify wiring connections. Ensure ambient light is below 12 lux. Test motion sensor by moving within its range. |
| La llum es manté encesa contínuament. | Constant motion detected, wiring issue. | Ensure no continuous motion is within the sensor's range. Check wiring for proper connections. |
| La llum parpelleja. | Loose wiring, incompatible dimmer switch. | Check all wiring connections. Ensure a compatible LED dimmer switch is used if dimming functionality is desired. |
| L'abast del sensor de moviment és deficient. | Obstructions, incorrect mounting height. | Elimineu qualsevol obstrucció del sensor view. Verify mounting height is within recommended range (8-10 ft). |
Si aquests passos no resolen el problema, poseu-vos en contacte amb l'atenció al client.
Garantia i Suport
Informació de la garantia: All products purchased have a 30-day replacement parts policy to ensure a fully working item. All products are covered under a 1-year warranty when purchased on Amazon. The warranty period begins on the day the product is originally shipped. The warranty covers all items and conditions identified in the original manufacturer's warranty. Items specifically not covered by the warranty include loss and theft, water damage, customer abuse, and finish deterioration due to UV or coastal exposure.
Atenció al client: For technical assistance, replacement parts, or warranty claims, please contact Progress Lighting customer service. You can find contact information on the official Progress Lighting website or through your Amazon purchase history.
Recursos en línia: For additional information, product updates, and FAQs, visit the Progress Lighting Store on Amazon.
