1. Introducció
The M5Stack ATOM Lite is a compact and versatile ESP32 IoT development board designed for embedded smart home devices and smart toy creation. Measuring only 24x24mm, it offers extensive GPIOs for customization. Powered by the ESP32-PICO chip, it integrates Wi-Fi technology and includes 4MB SPI flash memory for seamless connectivity and sufficient storage. The board features an Infra-Red LED, RGB LED, built-in buttons, and a HY2.0 interface, providing diverse interaction and connectivity options. Its 6 GPIOs allow easy connection to external sensors and actuators, expanding project capabilities. The on-board Type-C USB interface facilitates fast program upload and execution, streamlining the development process.
Figura 1: Frontal view of the M5Stack ATOM Lite development kit.

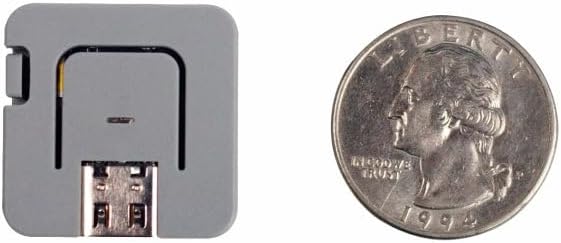

Figure 2: Size comparison of the ATOM Lite with a US quarter, illustrating its compact design.
2. Contingut del paquet
The M5Stack ATOM Lite package includes the following items:
- 1 x ATOM Lite ESP32 IoT Development Kit
Figure 3: The M5Stack ATOM Lite development kit as packaged for retail.
3. Maquinari acabatview
The ATOM Lite features several integrated components and interfaces for diverse applications.
Figure 4: Diagram illustrating the key components and interfaces of the ATOM Lite, including the IR-LED, RGB LED, internal button (G39), Reset button, external pins, USB-C port, and HY2.0-4P connector.
Components clau:
- ESP32-PICO Microcontroller: Integrates Wi-Fi and Bluetooth capabilities.
- Port USB-C: For power supply and data communication (programming).
- Connector HY2.0-4P: A 4-pin connector for external modules and sensors.
- Pins GPIO: Six general-purpose input/output pins for connecting peripherals.
- RGB LED (G27): A programmable full-color LED.
- Infra-Red (IR) LED: Per a la comunicació per infrarojos.
- Built-in Button (G39): A user-programmable button.
- Botó de restabliment: To restart the device.
- M2 Screw Hole: Per a finalitats de muntatge.

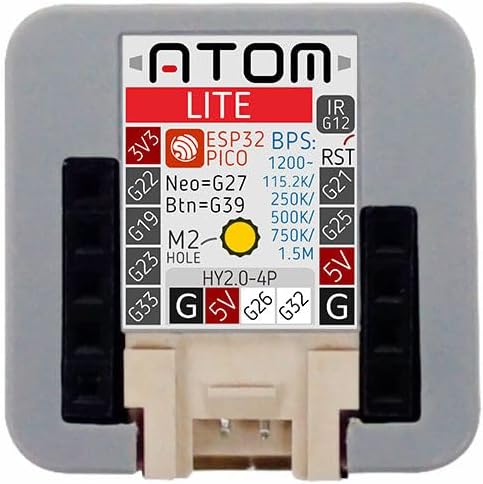

Figura 5: superior view of the ATOM Lite, detailing the pinout for the HY2.0-4P connector and external GPIOs, including voltage (3V3, 5V) and ground (G) connections.
4. Introducció (Configuració)
To begin using your M5Stack ATOM Lite, follow these steps:
4.1. Engegada i connexió inicial
- Connect the ATOM Lite to your computer using a USB-C cable. The device will power on automatically.
- Upon connection, the RGB LED may illuminate, indicating power.

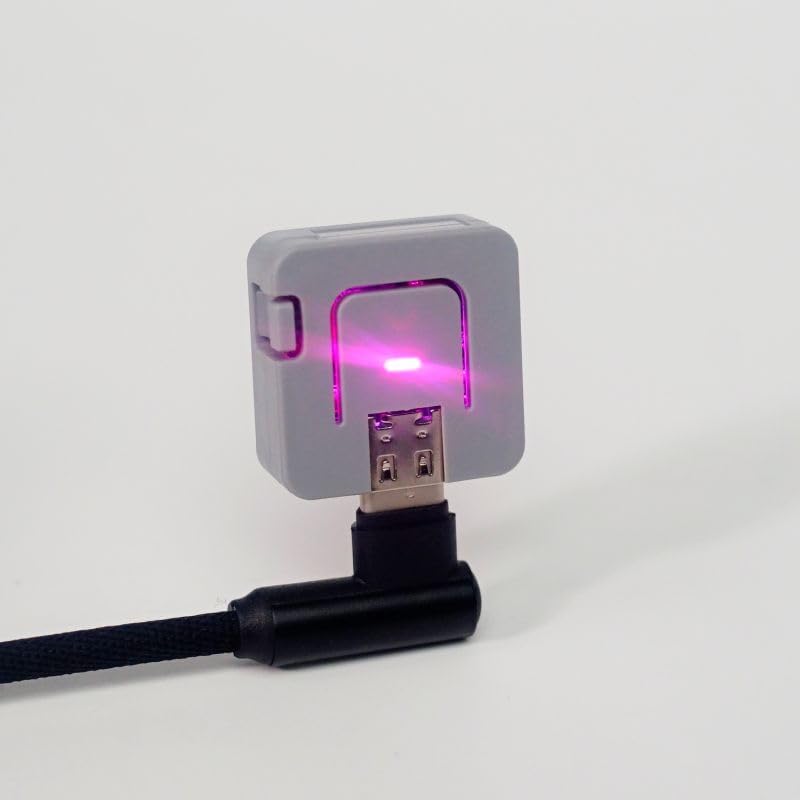

Figure 6: The ATOM Lite connected to a power source via a USB-C cable, with its RGB LED active.
4.2. Instal·lació del controlador
The ATOM Lite uses a standard USB-to-Serial chip (typically CP2104 or CH9102F). Most modern operating systems will automatically install the necessary drivers. If the device is not recognized, you may need to manually install drivers:
- For Windows/macOS/Linux, search for 'CP2104 driver' or 'CH9102F driver' online and download from the official Silicon Labs or WCH weblloc.
4.3. Configuració de l'entorn de desenvolupament
The ATOM Lite supports various development platforms:
- IDE d'Arduino: Install the ESP32 board package in the Arduino IDE. Refer to the official ESP32 Arduino documentation for detailed instructions.
- MicroPython: Flash MicroPython firmware onto the device. Tools like `esptool.py` can be used for this.
- UI-FLOW: M5Stack's block-based programming platform. Download the UI-FLOW desktop IDE or use the web versió.
- ESPHome: For Home Assistant integration, visit esphome.io for pre-built projects and flashing instructions.
5. Funcionament bàsic
5.1. Using the Built-in Button
The ATOM Lite includes a programmable button (GPIO39). This button can be used for various user inputs, such as triggering events, changing modes, or confirming actions within your programmed application.
5.2. Controlling the RGB LED
The integrated RGB LED (connected to GPIO27) is a versatile indicator. It can be programmed to display different colors and patterns to convey status, alerts, or other visual feedback.
5.3. Infra-Red (IR) Communication
The IR LED allows the ATOM Lite to send infrared signals, enabling control of IR-compatible devices such as televisions, air conditioners, or other consumer electronics. Programming libraries are available for encoding and decoding IR protocols.
6. Connexió de perifèrics
6.1. HY2.0-4P Interface
The HY2.0-4P connector provides a convenient interface for connecting M5Stack's Grove-compatible modules and other peripherals. This connector typically includes power (5V), ground, and two data lines (e.g., I2C, UART, or digital I/O).
6.2. External GPIOs
The ATOM Lite exposes additional GPIO pins (G19, G22, G23, G26, G32, G33) for direct connection to custom circuits, sensors, and actuators. Refer to the pinout diagram (Figure 5) for specific pin assignments and capabilities.
7. Manteniment i cura
- Mantingueu el dispositiu sec i allunyat de la humitat.
- Eviteu exposar el dispositiu a temperatures extremes.
- Handle with care to prevent physical damage to the board and connectors.
- Clean the device with a soft, dry cloth if necessary. Do not use liquid cleaners.
8. Solució De Problemes
- Dispositiu no reconegut per l'ordinador: Ensure USB-C cable is functional. Install appropriate USB-to-Serial drivers (CP2104/CH9102F) if not automatically detected.
- Program upload failure: Verify correct board and port selection in your IDE. Ensure drivers are installed. Try pressing the Reset button before uploading.
- Problemes de connectivitat Wi-Fi: Check Wi-Fi credentials in your code. Ensure the device is within range of the Wi-Fi network.
- Comportament inesperat: Review your code for logical errors. Ensure all external connections are correct and secure.
9. Especificacions
| Característica | Especificació |
|---|
| Nom del model | ATOM Lite |
| Número de model de l'article | C008 |
| Processador | ESP32-PICO |
| Memòria Flash | Memòria flaix SPI de 4 MB |
| Tipus sense fil | 802.11bgn (Wi-Fi) |
| RAM | SRAM |
| Sistema operatiu | FreeRTOS (default, supports others) |
| Tecnologia de connectivitat | USB tipus C |
| Pes de l'article | 0.423 unces |
| Dimensions del producte (LxWxH) | 0.94 x 0.94 x 0.94 polzades |
| Color | Gris |
| Components inclosos | 1 x ATOM Lite ESP32 IoT Development Kit |
Figura 7: A baix view of the ATOM Lite, showing regulatory markings including the FCC ID.
10. Informació de la garantia
Per obtenir informació detallada sobre la garantia, consulteu la pàgina oficial de M5Stack. website or contact their customer support directly. Warranty terms and conditions may vary based on region and point of purchase.
11. Suport i Recursos
For further assistance, technical documentation, and community support, please visit the official M5Stack website. You can find tutorials, examples, and forums to help with your development projects.
- M5Stack oficial Weblloc: https://m5stack.com/
- M5Stack Documentation: Refer to the product-specific documentation available on the M5Stack weblloc.
