Introducció
Thank you for choosing the Nobleza LED Aquarium Light. This manual provides detailed instructions for the safe and efficient use of your 10W LED aquarium light, designed for tanks measuring 42-62cm. It features 3 color modes, 10 brightness levels, and an adjustable timer to create an optimal environment for your aquatic life.
Instruccions de configuració
- Desempaquetar la llum: Carefully remove all components from the packaging. Ensure all parts are present: LED light unit, extendable brackets, and power adapter.

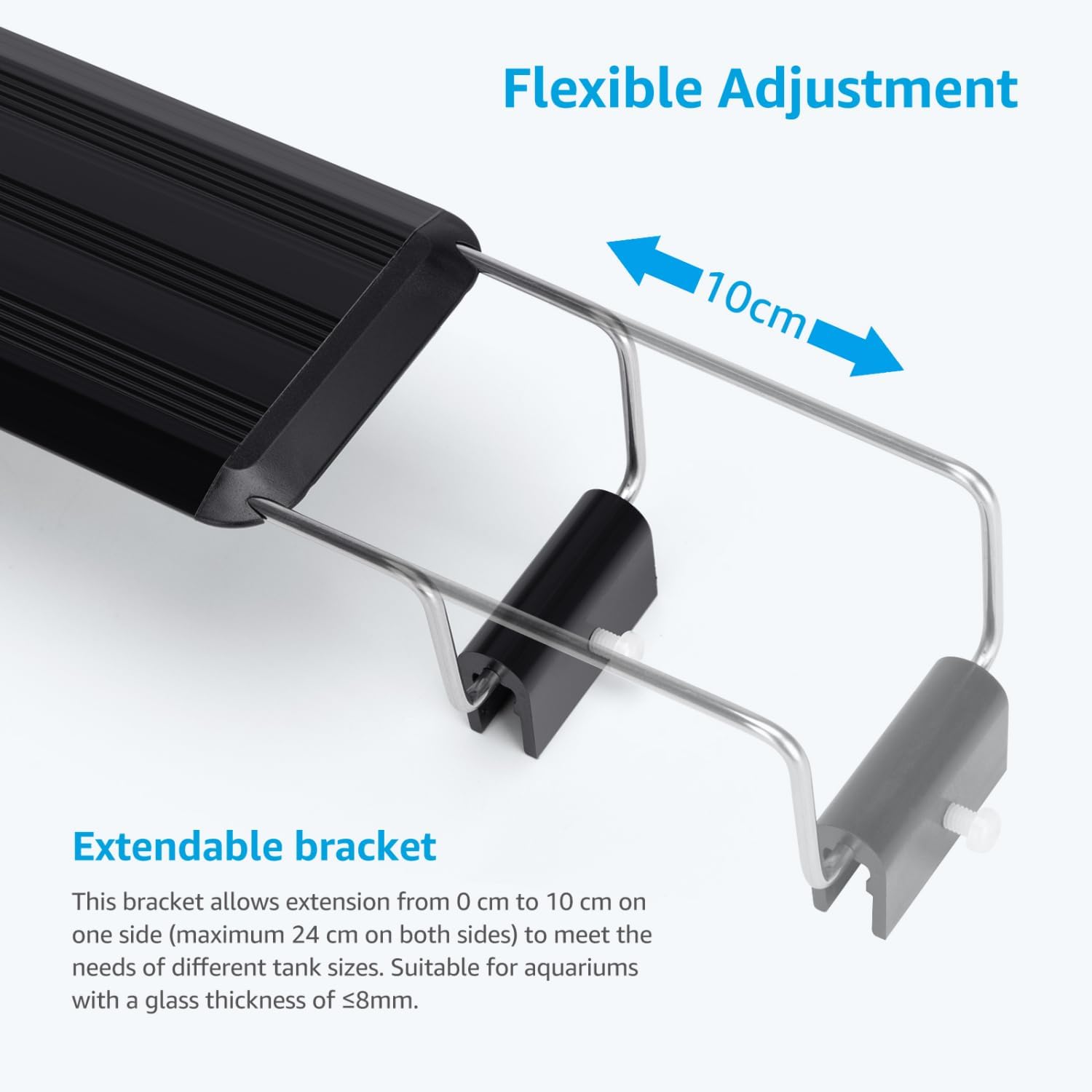

- Col·loca els suports: Insert the extendable brackets into the slots on both ends of the LED light unit.
- Adjust to Tank Size: Place the light unit on top of your aquarium. Adjust the extendable brackets to fit the width of your tank. The brackets allow for extension from 0 cm to 10 cm on one side, accommodating tank widths between approximately 40.5 cm and 60 cm. Ensure the light is securely seated on the tank edges. The brackets are suitable for glass thickness up to 8mm.
- Posicionament: Ensure the light unit is positioned at least 15mm above the water surface. The design of the brackets typically maintains a distance of 35mm above the tank edge.
- Connectar l'alimentació: Connect the power adapter to the light unit's cable, then plug the adapter into a suitable power outlet.
Instruccions de funcionament

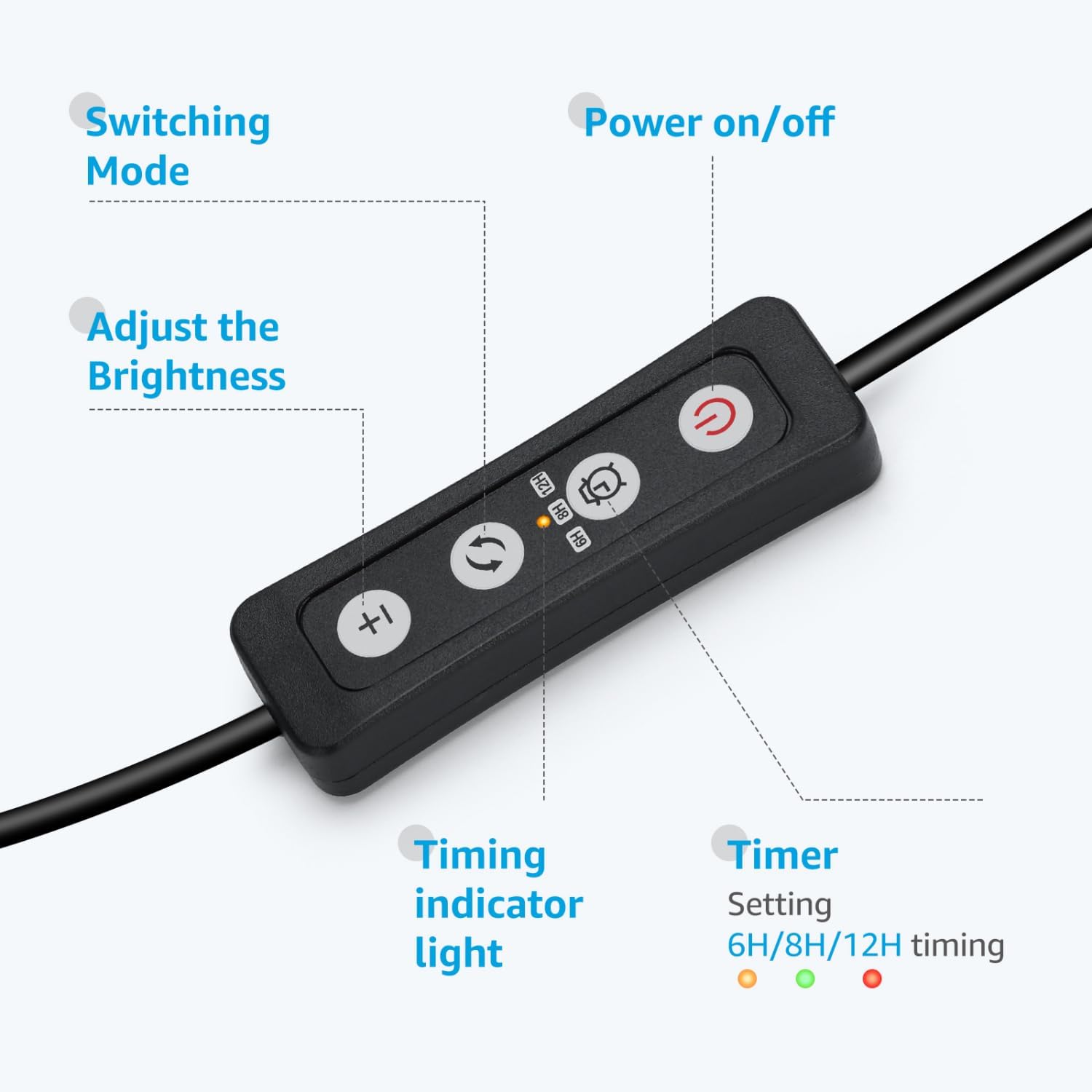

The Nobleza LED Aquarium Light is controlled via an inline remote on the power cable. Familiarize yourself with the buttons:
- Botó d'encesa/apagada (⏻): Premeu per encendre o apagar el llum.
- Switching Mode Button (↻): Cycles through the three available lighting modes:
- All LEDs (White, Blue, Red)
- White LEDs only
- Blue and Red LEDs only
- Adjust Brightness Buttons (+ / -): Adjusts the light intensity. There are 10 levels of brightness.
- Timer Setting Button (⏱): Activates the built-in timer. Press this button to cycle through timer options: 6 hours (yellow indicator), 8 hours (green indicator), or 12 hours (red indicator). The timer starts from the moment you press the button and will repeat daily at that time. To deactivate the timer, cycle through the options until no indicator light is on.
Manteniment
- Neteja: Regularly wipe the light unit with a soft, dry cloth to remove dust and water spots. Ensure the light is unplugged before cleaning. Do not use abrasive cleaners or immerse the unit in water.
- Seguretat: Always ensure the light is securely mounted and not at risk of falling into the water. This product is rated IP44, meaning it is protected against splashing water, but it is not waterproof and should not be submerged.
- Inspecció del cable: Periodically check the power cable and adapter for any signs of damage. If damaged, discontinue use and contact customer support.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No power supply; faulty connection; light unit failure. | Check if the power adapter is securely plugged into both the light and the outlet. Try a different outlet. Ensure the power button on the inline controller is pressed. |
| Timer settings are lost after power outage. | The light does not have memory for timer settings after power interruption. | Re-set the timer after any power interruption. The timer will then resume its daily cycle from the new set time. |
| Light intensity is too low or too high. | Cal ajustar el nivell de brillantor. | Use the '+' and '-' buttons on the inline controller to adjust the brightness to your desired level. |
| Light coverage is uneven or creates shadows. | Light positioning; tank size/shape; dense planting. | Ensure the light is centered over the tank. For very wide or heavily planted tanks, consider additional lighting or adjusting plant placement. |
Especificacions
| Característica | Detall |
|---|---|
| Model | Nobleza LED Aquarium Light |
| Poder | 10W |
| Longitud ajustable | 42-62cm (for tanks 40.5-60cm wide) |
| LEDs | 77 LEDs (63 White, 7 Blue, 7 Red) |
| Sortida de lumens | 800 lm |
| Nivells de brillantor | 10 |
| Modes de color | 3 (All, White, Blue+Red) |
| Configuració del temporitzador | 6H, 8H, 12H (daily cycle) |
| Material | Plastic (shade) |
| Font d'alimentació | Adaptador de CA |
| Classificació IP | IP44 (a prova d'esquitxades) |
| Dimensions (paquet) | 43.2 x 7.4 x 6 cm |
| Pes (paquet) | 420 g |
Informació de la garantia
Nobleza products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or contact Nobleza customer support. Keep your purchase receipt as proof of purchase for any warranty claims.
Atenció al client
If you encounter any issues or have questions regarding your Nobleza LED Aquarium Light, please contact our customer support team. You can typically find contact information on the product packaging, the Nobleza official website, or through your retailer's support channels. Please have your product model and purchase date ready when contacting support.
