Manual d'usuari del punt d'accés mòbil WiFi6 4G del ZTE U10S PRO

Introducció

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your ZTE U10S PRO 4G Mobile WiFi6 Hotspot. Please read this manual carefully before using the device to ensure proper functionality and to maximize its performance.

Figura 1: Frontal view of the ZTE U10S PRO 4G Mobile WiFi6 Hotspot, displaying its screen and compact design.

Figure 2: The ZTE U10S PRO hotspot held in a hand, illustrating its compact size and portability for on-the-go use.

Guia de configuració

Follow these steps to set up your ZTE U10S PRO hotspot for the first time.

1. Inserció de la targeta SIM i la bateria

1. Traieu amb cura la coberta posterior del dispositiu.
2. Locate the SIM card slot. Ensure the SIM card is of the correct size (usually Nano-SIM) and insert it with the gold contacts facing down, following the diagram near the slot.
3. Insert the provided Lithium-ion battery into its compartment, ensuring the contacts align correctly.
4. Torneu a col·locar la coberta posterior fins que encaixi al seu lloc.

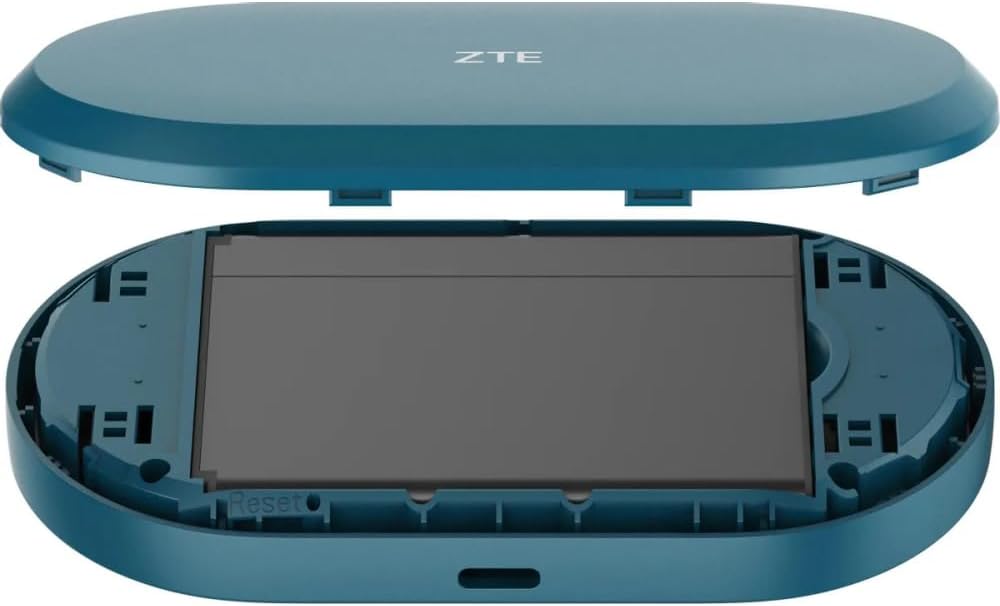

Figura 3: View of the ZTE U10S PRO with the back cover removed, illustrating the battery compartment and SIM card slot for easy installation.

2. Engegada i configuració inicials

1. Press and hold the power button (located on the side/top) until the screen illuminates.
2. The device will boot up and attempt to connect to the 4G network. The screen will display network status, signal strength, and battery level.
3. Note the default Wi-Fi network name (SSID) and password displayed on the device's screen or on a sticker inside the battery compartment.
4. Important: If your SIM card has a PIN lock enabled, the device may not connect to the network. You will need to disable the PIN lock using a mobile phone or by accessing the hotspot's web management interface (refer to the Operating section for details).

Instruccions de funcionament

Learn how to use your ZTE U10S PRO hotspot effectively.

1. Connexió de dispositius al punt d'accés

1. Ensure the ZTE U10S PRO is powered on.
2. On your Wi-Fi enabled device (smartphone, tablet, laptop, game console), search for available Wi-Fi networks.
3. Select the network name (SSID) that matches your hotspot's default or customized name.
4. Introduïu la contrasenya de Wi-Fi quan se us demani.
5. Once connected, your device will have internet access via the hotspot's 4G connection. The hotspot supports connection for up to 32 Wi-Fi devices simultaneously.

Figure 4: The ZTE U10S PRO Mobile Broadband Hotspot in use, demonstrating its ability to connect multiple Wi-Fi devices such as tablets, mobile phones, and laptops.

2. Comprensió de la pantalla i els indicadors

The device's screen provides real-time information:

• Intensitat del senyal: Bars indicating the strength of the 4G network signal.
• Nivell de bateria: Icona que mostra la càrrega restant de la bateria.
• Estat de la Wi-Fi: Indica si el Wi-Fi està actiu i si els dispositius estan connectats.
• Messages/Notifications: Icons for new messages or system alerts.
• Ús de dades: May display current data usage (check settings for configuration).

3. Càrrega del dispositiu

To charge the ZTE U10S PRO, connect the provided USB cable to the device's charging port and plug the other end into a USB power adapter or a computer's USB port. The battery indicator on the screen will show charging status. Ensure the device is fully charged before first use for optimal battery life.

Figure 5: The ZTE U10S PRO hotspot connected to a power source via a USB cable, indicating its charging capability.

Manteniment

Proper maintenance ensures the longevity and optimal performance of your hotspot.

• Neteja: Feu servir un drap suau i sec per netejar el dispositiu. Eviteu utilitzar netejadors líquids o aerosols.
• Cura de la bateria:
  • Eviteu exposar la bateria a temperatures extremes.
  • No deixeu el dispositiu sense carregar durant períodes prolongats.
  • If storing the device for a long time, charge the battery to about 50% before storage.
• Actualitzacions de programari: Reviseu periòdicament el fabricant weblloc o del dispositiu web management interface for available firmware updates to ensure the best performance and security.

Resolució de problemes

Aquí teniu solucions a problemes comuns que podeu trobar.

Sense connexió a Internet

• Comproveu la targeta SIM: Assegureu-vos que la targeta SIM estigui correctament inserida i activada amb un pla de dades.
• Bloqueig PIN: If your SIM card has a PIN lock, you must disable it. This can often be done by inserting the SIM into a smartphone and disabling the PIN via phone settings, or by accessing the hotspot's web management interface (usually 192.168.0.1 or 192.168.1.1 in a web browser while connected to the hotspot's Wi-Fi).
• Intensitat del senyal: Check the signal indicator on the hotspot's screen. Move to an area with better 4G coverage if the signal is weak.
• Data Limit: Verify if your data plan has been exhausted.
• Reinicieu: Turn off the hotspot, wait a few seconds, and then turn it back on.

Velocitat de connexió lenta

• Congestió de la xarxa: Speed can vary based on network traffic in your area.
• Distance from Hotspot: Ensure your connected devices are within optimal Wi-Fi range.
• Nombre de dispositius connectats: Too many devices connected simultaneously can reduce speed.
• Interferència: Other electronic devices might cause Wi-Fi interference.

El dispositiu no s'encén

• Càrrega de la bateria: Ensure the battery is charged. Connect the device to a power source and try again.
• Inserció de la bateria: Verifiqueu que la bateria estigui inserida correctament.

Restabliment de fàbrica

If issues persist, you may need to perform a factory reset. This will erase all custom settings and restore the device to its original factory defaults. Locate the small reset button (often recessed) near the SIM card slot or battery compartment. Use a paperclip to press and hold the button for about 5-10 seconds until the device restarts.

Figure 6: The internal view of the ZTE U10S PRO, highlighting the location of the reset button, typically found near the SIM card slot or battery.

Especificacions

Garantia i Suport

Per obtenir informació sobre la garantia i assistència tècnica, consulteu la documentació inclosa amb la compra o visiteu el lloc web oficial de ZTE. weblloc web. Els termes específics de la garantia i les dades de contacte d'assistència poden variar segons la regió.
