1. Introducció
This manual provides essential information for the installation, operation, and maintenance of your XPG Core Reactor II VE 650W 80 Plus Gold Fully Modular Power Supply. Please read this manual thoroughly before installation and keep it for future reference.
The XPG Core Reactor II VE 650W is a high-efficiency power supply designed for gaming PCs, compliant with Intel's latest ATX 3.1 design guide specifications. It supports next-generation graphics cards with a 12V-2x6 cable and features 80 PLUS GOLD and CYBENETICS GOLD certified efficiency. An FDB fan with intelligent fan control ensures quiet operation, and a wide range of protection mechanisms are integrated for safety and stability.
Figura 1: De dalt a baix view of the XPG Core Reactor II VE 650W Power Supply, showcasing its fan grille and compact design.
2. Configuració i instal·lació
Before beginning installation, ensure your computer is powered off and unplugged from the wall outlet. Refer to your PC case and motherboard manuals for specific installation instructions.
2.1 Desembalatge i inspecció
Carefully remove the power supply and all accessories from the packaging. Verify that all components listed in the package contents are present and undamaged.
Figure 2: The XPG Core Reactor II VE 650W Power Supply and its modular cables, neatly organized within the product packaging.
2.2 Muntatge de la font d'alimentació
- Position the power supply in the designated PSU bay of your PC case. Ensure the fan is oriented correctly for optimal airflow (typically facing downwards if your case has a bottom vent, or upwards if not).
- Fixeu la font d'alimentació a la carcassa amb els cargols de muntatge proporcionats.

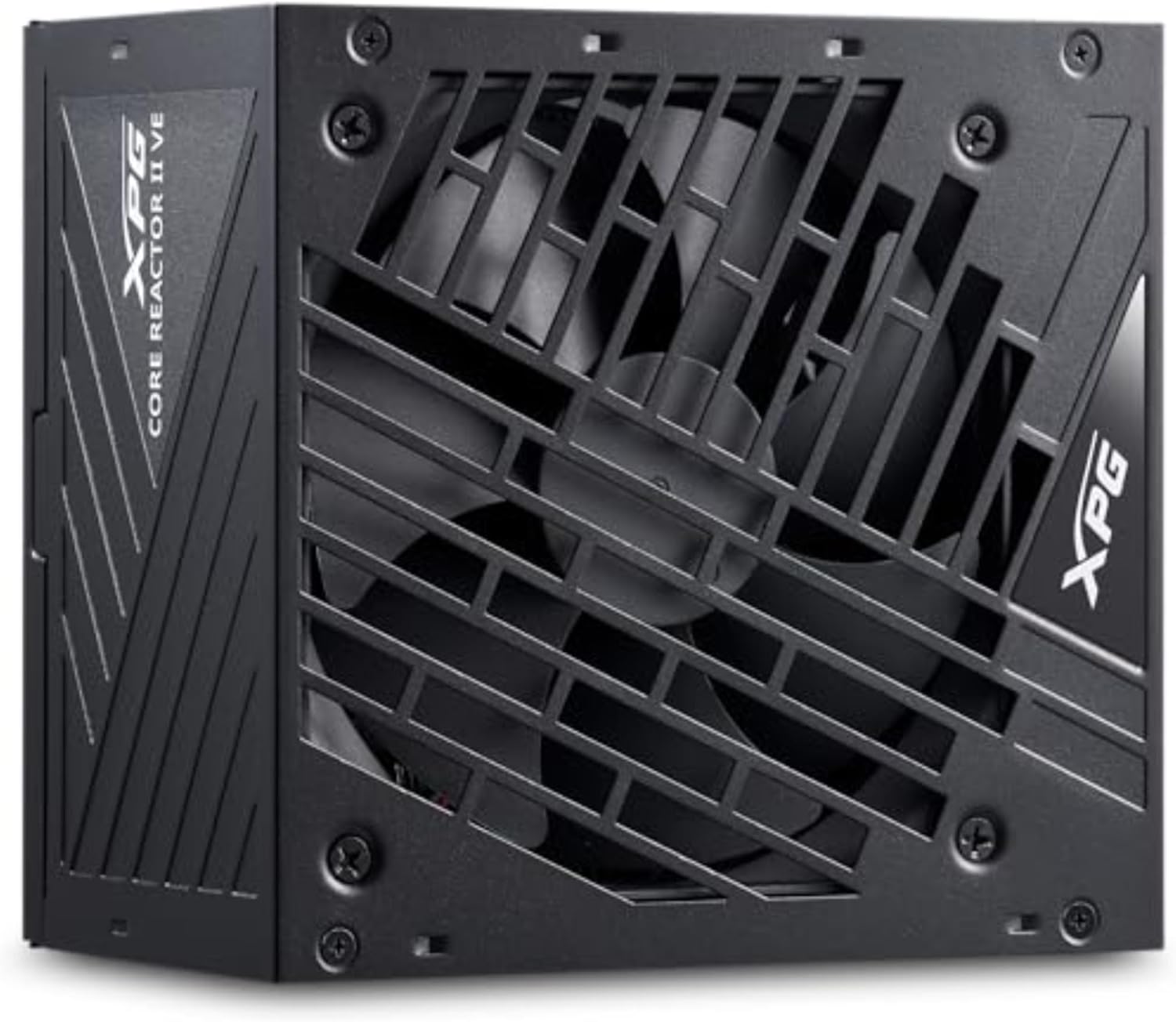

Figura 3: lateral view of the XPG Core Reactor II VE 650W Power Supply, showing its compact form factor suitable for various PC cases.
2.3 Connexió de cables modulars
The XPG Core Reactor II VE is a fully modular power supply, allowing you to connect only the cables necessary for your components. This helps improve airflow and cable management within your PC case.
Figure 4: Clearly labeled modular ports on the XPG Core Reactor II VE 650W Power Supply for CPU, VGA, Motherboard, 12VHPWR, SATA, and Molex connections.
- Alimentació de la placa base: Connecteu el cable ATX de 24 pins a la placa base.
- Potència de la CPU: Connect the 4+4-pin or 8-pin EPS12V cable(s) to your motherboard's CPU power connector(s).
- GPU Power: For modern graphics cards, use the dedicated 12V-2x6 cable. For older or less power-intensive GPUs, use the appropriate 6+2-pin PCIe cables. Ensure all GPU power connectors are fully seated.
- SATA/Molex Power: Connect SATA power cables to SSDs, HDDs, and other SATA-powered devices. Use Molex cables for compatible peripherals if needed.
Figure 5: A 12VHPWR cable securely connected to the XPG Core Reactor II VE 650W Power Supply, ready to power a high-performance graphics card.
3. Instruccions de funcionament
Once all connections are secure, plug the main power cord into the power supply and a wall outlet. Flip the power switch on the back of the PSU to the 'ON' position.
3.1 Funcionament del ventilador
The XPG Core Reactor II VE features an FDB (Fluid Dynamic Bearing) fan with intelligent fan control. This system is designed to optimize cooling performance while minimizing noise. The fan may operate in a semi-passive mode, meaning it will not spin at low loads to ensure silent operation. It will automatically activate and adjust its speed as the system load and temperature increase.
Figure 6: The compact 140mm length of the XPG Core Reactor II VE 650W Power Supply, indicating its compatibility with various PC case sizes.
4. Manteniment
Un manteniment regular ajuda a garantir la longevitat i el rendiment òptim de la vostra font d'alimentació.
- Neteja de pols: Periodically clean dust from the power supply's fan grille and internal components using compressed air. Ensure the PC is powered off and unplugged before cleaning.
- Gestió de cables: Assegureu-vos que els cables estiguin ben encaminats i que no obstrueixin el flux d'aire dins de la carcassa de l'ordinador.
- Ventilació: Maintain adequate ventilation around your PC to prevent overheating of the power supply and other components.
5. Solució De Problemes
Si teniu problemes amb la font d'alimentació, consulteu els passos habituals següents per a la resolució de problemes:
- Sense energia:
- Ensure the main power cable is securely plugged into both the PSU and the wall outlet.
- Verifiqueu que l'interruptor d'alimentació de la part posterior de la font d'alimentació estigui en la posició "ON".
- Check all modular cable connections to the PSU and components (motherboard, CPU, GPU, etc.) are fully seated.
- Proveu la presa de corrent amb un altre dispositiu per confirmar que tingui corrent.
- System Instability/Random Reboots:
- This can sometimes indicate an issue with power delivery. Ensure all power connections are firm.
- Check for any "Event ID 41" errors in your operating system's event viewer, which can point to unexpected shutdowns related to power.
- Verifiqueu que la vostra font d'alimentaciótage is sufficient for all your system components, especially high-power GPUs and CPUs.
- Soroll excessiu:
- The FDB fan is designed for quiet operation. If you notice unusual noise, ensure no cables are obstructing the fan.
- Dust buildup can cause fan noise; clean the fan and grille as described in the Maintenance section.
If problems persist after following these steps, contact XPG customer support for further assistance.
6. Especificacions
| Característica | Detall |
|---|---|
| Nom del model | XPG CORE Reactor II VE |
| Número de model de l'article | COREREACTORIIVE650G-BKCUS |
| Potència de sortidatage | 650 watts |
| Certificació d'eficiència | 80 PLUS GOLD, CYBENETICS GOLD |
| Compliment ATX | ATX 3.0/3.1 Compliant |
| GPU Cable | 12VHPWR Cable Included |
| Factor de forma | ATX |
| Mètode de refrigeració | Air (FDB fan with intelligent control) |
| Dimensions del producte (L x A x A) | 5.86 x 5.9 x 3.38 polzades |
| Pes de l'article | 5.07 lliures |
| Mecanismes de protecció | OPP, OVP, SIP, SCP, UVP, OCP, OTP, NLO |
Figure 7: Detailed specifications of the XPG Core Reactor II VE 650W Power Supply.
Figure 8: Ripple voltage comparison for +12V, +5V, and +3.3V rails, showing the XPG Core Reactor II VE's performance below Intel specifications.
Figure 9: Visual representation of the comprehensive protection mechanisms integrated into the power supply, including Over Power Protection (OPP), Over Voltage Protection (OVP), Surge & Inrush Protection (SIP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Temperature Protection (OTP), and No Load Operation (NLO).
7. Garantia i Suport
The XPG Core Reactor II VE 650W Power Supply comes with a 10-year warranty, ensuring long-term reliability and peace of mind. For technical support, warranty claims, or any product-related inquiries, please visit the official XPG weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
Recursos en línia: www.xpg.com
