Manual d'usuari de la rentadora de càrrega frontal Hisense WFQP9012VMT de 9 kg

1. Introducció

This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hisense WFQP9012VMT 9kg Front Loader Washing Machine. Please read this manual thoroughly before using the appliance and retain it for future reference.

2. Instruccions de seguretat importants

To reduce the risk of fire, electric shock, or injury when using your washing machine, follow these basic precautions:

• Seguretat general: Ensure the appliance is used only for its intended purpose. Keep children and pets away from the machine during operation. Do not allow children to play on or in the appliance.
• Seguretat elèctrica: Connect the machine to a properly grounded outlet. Do not use extension cords or adapters. Disconnect the power supply before cleaning or performing any maintenance.
• Seguretat de l'aigua: Ensure water inlet and drain hoses are securely connected to prevent leaks. Do not operate the machine if there is any visible damage to the water supply or drainage system.
• Seguretat de la instal·lació: The machine must be installed on a firm, level surface. Remove all transport bolts before operation to prevent damage.

3. Producte acabatview

The Hisense WFQP9012VMT is a 9kg front-loading washing machine designed for efficient laundry care. It features an Inverter Motor, LED display, and a variety of wash programs.

3.1 Components i controls

Imatge 3.1: Davant view of the Hisense WFQP9012VMT washing machine, showing the main control dial, LED display, push buttons, and the front-loading drum. The display shows '1:38', indicating a remaining cycle time.

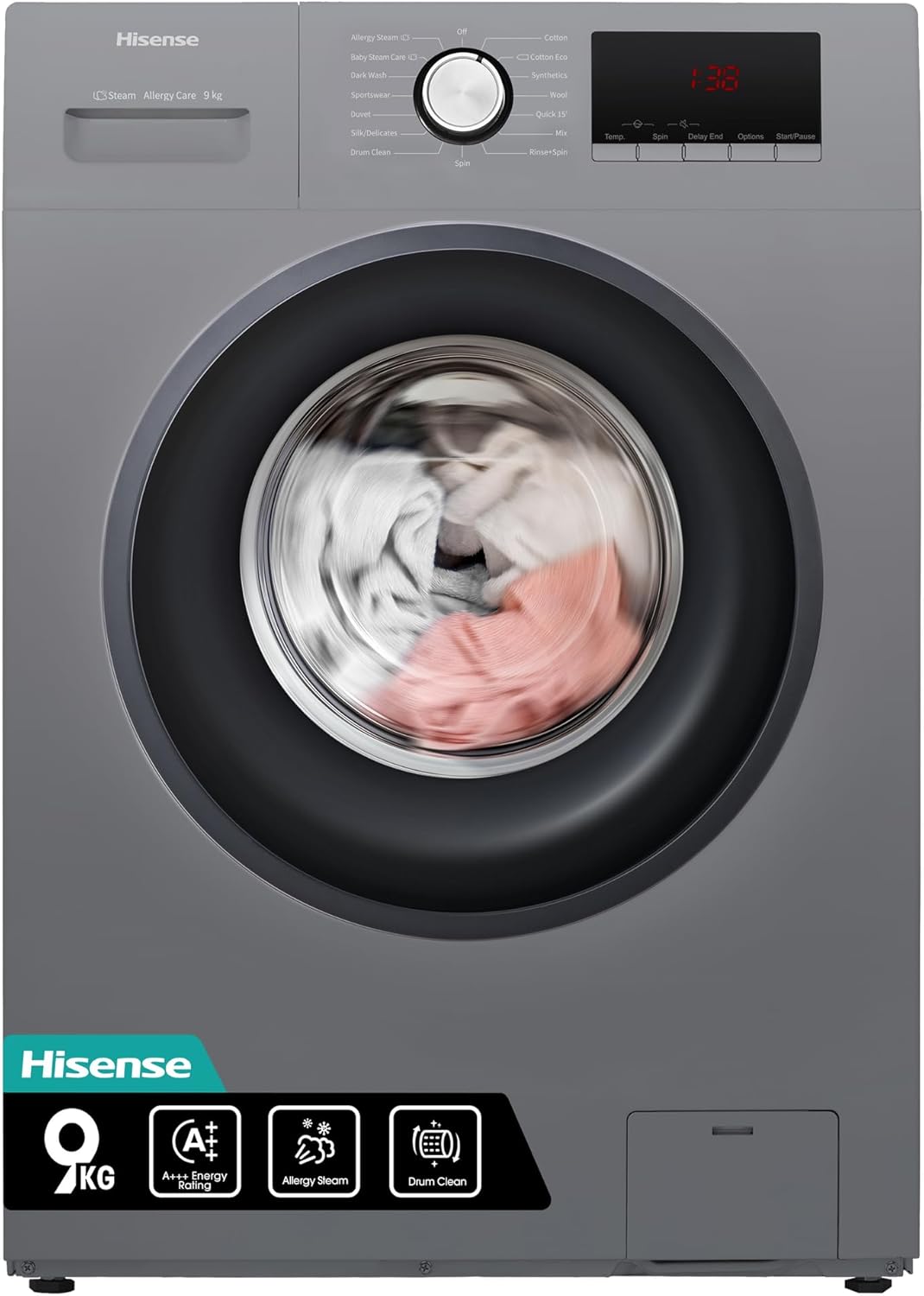

Imatge 3.2: Un front clar view of the Hisense WFQP9012VMT washing machine, highlighting its sleek design and the central position of the drum and control panel.

3.2 Tauler de control

The control panel consists of a program selection dial, an LED display, and various function buttons. The dial is used to select the desired wash program, while the display shows cycle information such as time remaining, temperature, and spin speed. Buttons allow for additional options like temperature adjustment, spin speed selection, and delay start.

4. Configuració i instal·lació

4.1 Desembalatge

• Traieu amb cura tots els materials d'embalatge.
• Locate and remove the transport bolts from the rear of the machine. These bolts secure the drum during transit and must be removed before operation. Keep them for future transport.

4.2 Requisits d'ubicació

• Place the washing machine on a solid, level floor to minimize vibration and noise.
• Assegureu-vos una ventilació adequada al voltant de l'aparell.
• The machine should be positioned near a water tap, a drain, and a grounded electrical outlet.

4.3 Connexió de subministrament d'aigua

Connect the inlet hose to the cold water tap and the corresponding inlet valve on the back of the washing machine. Ensure connections are tight to prevent leaks.

4.4 Connexió de la mànega de drenatge

Securely attach the drain hose to a suitable drain pipe or place it over the edge of a sink, ensuring it is properly secured to prevent displacement during drainage.

4.5 Connexió elèctrica

Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Verifiqueu que el volumtage and frequency match the specifications listed on the appliance's rating label.

Imatge 4.1: lateral view of the Hisense WFQP9012VMT washing machine with key dimensions indicated: 595mm width, 600mm depth, and 850mm height. These measurements are crucial for proper installation planning.

5. Instruccions de funcionament

5.1 Ús diari

5.1.1 Càrrega de la roba

• Obriu la porta i carregueu la roba al tambor. No sobrecarregueu la màquina; assegureu-vos que hi hagi prou espai perquè la roba pugui girar lliurement.
• Classifica la roba per tipus de teixit, color i grau de brutícia.

5.1.2 Afegir detergent i suavitzant

Pull out the detergent dispenser drawer and add the appropriate amount of detergent to the main wash compartment and fabric softener to its designated compartment. Refer to detergent packaging for dosage recommendations.

5.1.3 Selecció d'un programa de rentat

Turn the program selection dial to choose one of the 15 available automatic programs:

• Cotó
• Color de cotó
• Sintètics
• Barrejar
• Llana
• Ràpid
• Esbandida i centrifuga
• Vapor d'al·lèrgia
• Cura de vapor del nadó
• Rentat fosc
• Roba esportiva
• Avall
• Silk/Delicates
• Neteja del tambor
• Girar

Imatge 5.1: The Hisense WFQP9012VMT washing machine illustrating its quick wash feature, capable of completing a wash cycle in 15 minutes. This program is ideal for lightly soiled items or when time is limited.

5.1.4 Ajustar la configuració

After selecting a program, you can adjust specific settings using the control panel buttons:

• Temperatura: Select the desired wash water temperature (e.g., cold, 30°C, 40°C, 60°C, 95°C).
• Velocitat de centrifugat: Adjust the spin speed up to 1200 RPM.
• Inici retardat: Set a delay for the wash cycle to begin at a later time.

5.1.5 Inici d'un cicle de rentat

Press the Start/Pause button to begin the selected wash program.

5.1.6 Funció de bloqueig infantil

Activate the Child Lock to prevent accidental changes to settings or interruption of a cycle by children. Refer to the control panel for specific button combinations to activate/deactivate.

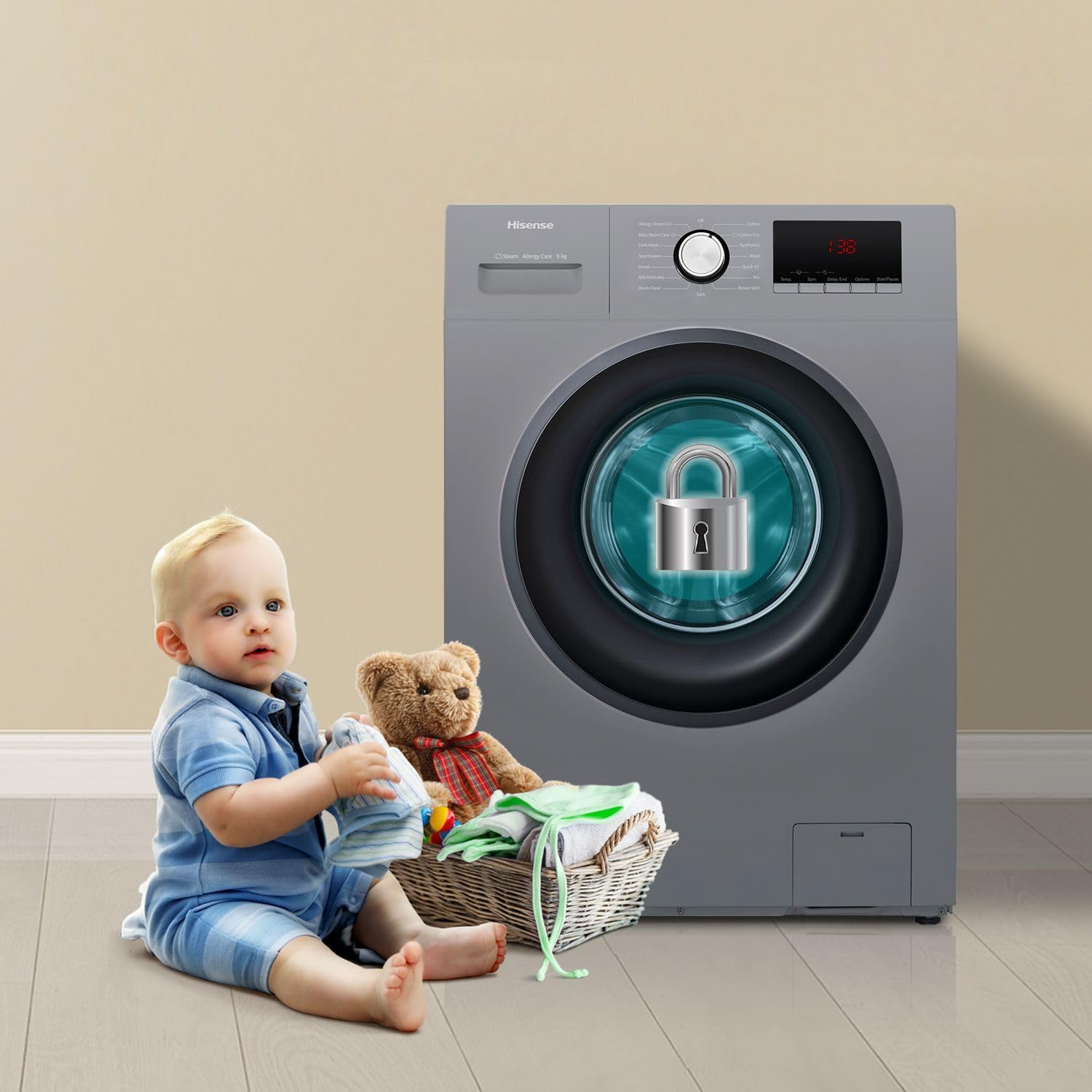

Imatge 5.2: The Hisense WFQP9012VMT washing machine demonstrating its Child Lock feature, which prevents unintended operation or program changes, ensuring safety in households with young children.

5.1.7 Finalitzar un cicle de rentat

Un cop finalitzat el cicle, la màquina emetrà un senyal i la porta es desbloquejarà. Traieu la roba immediatament.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim de la teva rentadora.

6.1 Neteja del dispensador de detergent

Traieu i netegeu periòdicament el calaix del dispensador de detergent per evitar l'acumulació de residus. Esbandiu-lo amb aigua corrent i assequeu-lo abans de tornar-lo a introduir.

6.2 Neteja del tambor

Use the dedicated 'Drum Clean' program regularly to remove detergent residues and bacteria from the drum. This helps prevent odors and maintains hygiene.

6.3 Neteja del filtre de la bomba

The pump filter should be cleaned periodically to remove lint, coins, or other small objects that may have accumulated. Refer to the appliance's specific instructions for accessing and cleaning the filter.

6.4 Neteja de l'exterior

Netegeu les superfícies exteriors de la rentadora amb un drap suau i sec.amp drap. Eviteu productes de neteja o dissolvents abrasius.

6.5 Emmagatzematge d'hivern

If the machine is to be stored in an area subject to freezing temperatures, ensure all water is drained from the hoses and pump to prevent damage.

7. Solució De Problemes

Before contacting customer service, consult the following table for common issues and their solutions. The machine also features a self-diagnosis system to assist in identifying problems.

8. Especificacions

Key technical data for the Hisense WFQP9012VMT washing machine:

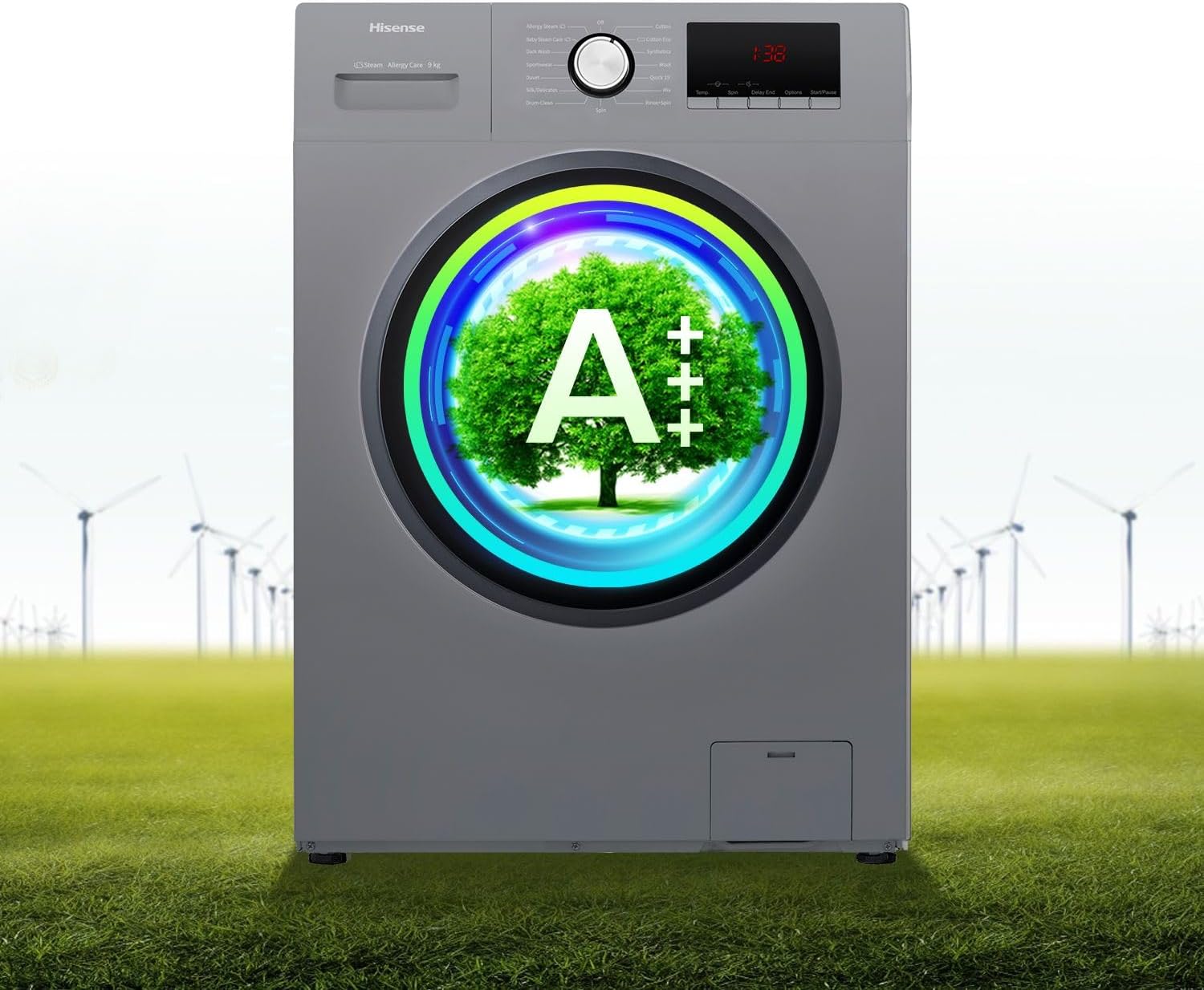

Imatge 8.1: The Hisense WFQP9012VMT washing machine highlighting its A+++ energy efficiency rating, indicating low power consumption and environmental benefits.

9. Garantia i Suport

9.1 Informació de la garantia

This Hisense WFQP9012VMT washing machine comes with a limited 48-month warranty. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal household use. For full terms and conditions, refer to the warranty card included with your product or contact Hisense customer service.

9.2 Atenció al client

For technical assistance, spare parts, or warranty service, please contact Hisense customer support. Contact details can typically be found on the Hisense official weblloc web o a la documentació que s'inclou amb l'aparell.
