Manual d'instruccions de la màquina de cafè SOWTECH

1. Producte acabatview

The SOWTECH 3.5 Bar Espresso Cappuccino Machine is designed for ease of use and efficient coffee preparation, allowing you to enjoy fresh espresso, latte, and cappuccino quickly. Its compact design makes it suitable for various kitchen spaces.

Característiques clau

• Fast Brewing Technology: Equipped with an 800W heating system, it brews 1-4 cups of coffee in 2-3 minutes.
• Powerful Steam Wand: Features an adjustable 270-degree steam wand with an anti-burn tube for silky, dense milk froth.
• Operació fàcil d'utilitzar: Simple one-button management for brewing and frothing.
• Durable Tritan Cup: Comes with a high-quality, BPA-free, shatterproof Tritan carafe with clear graduation markings.
• Disseny compacte i que estalvia espai: Ideal for kitchens with limited counter space.

Components inclosos

• Coffee Machine Unit
• Manual d'usuari (aquest document)
• Portafiltre
• Cistella de filtre
• Cafè Scoop/Tamper
• Tritan Carafe
• Red Pin for Cleaning Steam Wand

Figure 1.1: SOWTECH 3.5 Bar Espresso Cappuccino Machine.

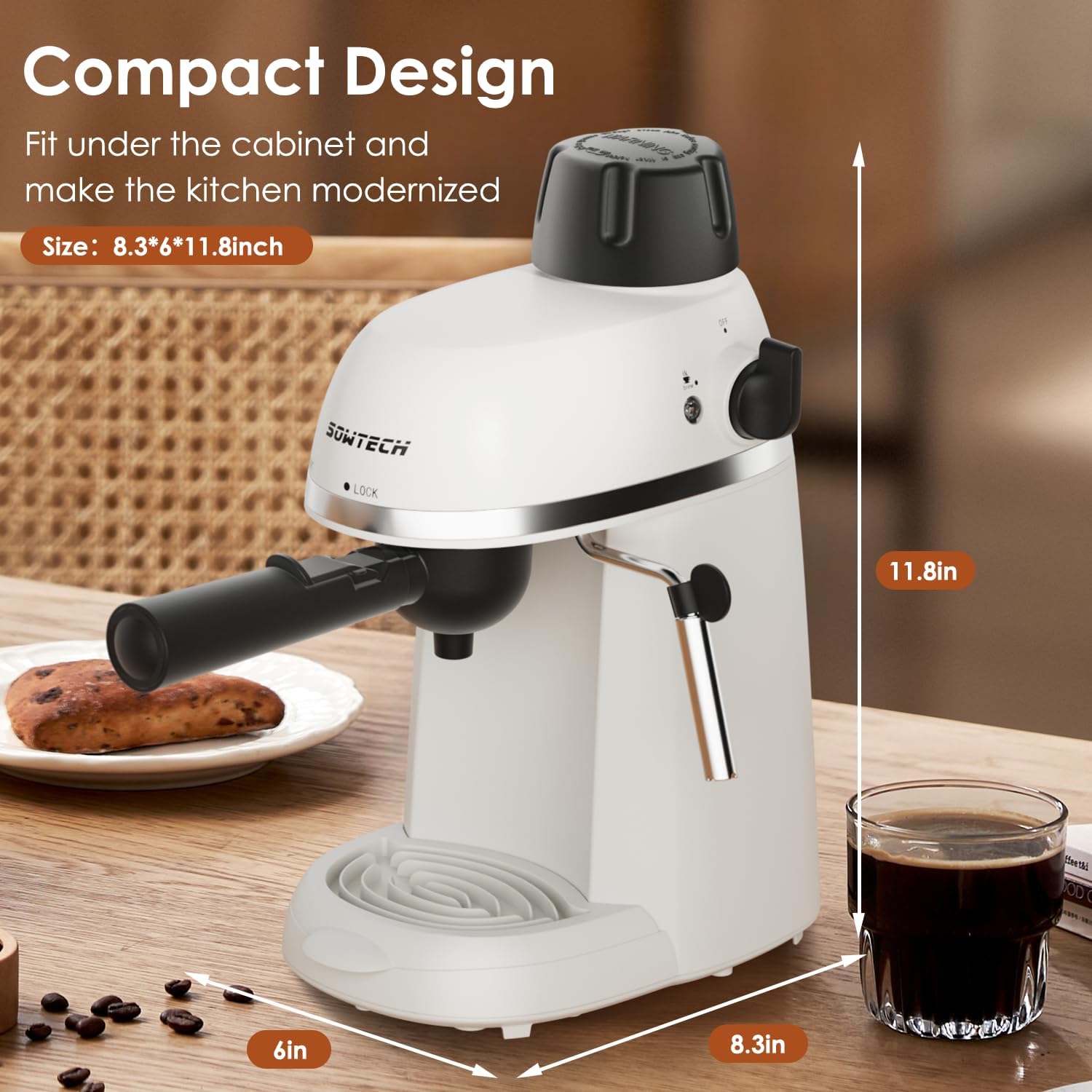

Figure 1.2: Compact design with dimensions (8.3"D x 6"W x 11.8"H).

2. Configuració

2.1 Desembalatge i neteja inicial

1. Traieu amb cura tots els components de l'embalatge.
2. Wash the Tritan carafe, filter holder, and filter basket with warm, soapy water. Rinse thoroughly and dry.
3. Netegeu l'exterior de la cafetera amb anunciamp tela.

2.2 Preparació de la màquina (primer ús)

Before first use, or if the machine has not been used for a long time, it is recommended to prime the unit to ensure proper function and clean the internal system.

1. Fill the Tritan carafe with water up to the 4-cup mark.
2. Unscrew the tank cover on top of the machine and pour the water into the reservoir. Securely tighten the tank cover to prevent vapor leakage.
3. Place the empty Tritan carafe on the drip tray.
4. Plug the machine into a 120V power outlet.
5. Turn the control knob to the "Brew" position. The indicator light will illuminate.
6. Allow all the water to pass through the machine into the carafe.
7. Turn the control knob to "Off" and unplug the machine. Discard the water.

Figure 2.1: The durable Tritan carafe is designed for safety and longevity.

Figure 2.2: Ensure water level does not exceed the 4-cup mark.

3. Instruccions de funcionament

3.1 Preparant el teu cafè

1. Fill the filter basket with medium ground coffee. Do not use fine ground coffee (suggested >0.5mm) as it can cause clogging or machine malfunction.
2. Utilitzeu la tamper end of the coffee scoop to gently press the coffee grounds. Do not over-pack the coffee grounds, as this can lead to excessive pressure buildup.
3. Clean any excess coffee grounds from the edge of the filter basket.
4. Insert the filter holder into the machine and turn it clockwise until it aligns with the "LOCK" symbol. Ensure it is securely tightened to prevent leaks.

Figure 3.1: Use medium ground coffee for optimal brewing.

Figure 3.2: Ensure the filter holder is securely locked into place.

3.2 Elaboració d'espresso

1. Place the Tritan carafe on the drip tray directly under the filter holder.
2. Turn the control knob to the "Brew" position. The indicator light will illuminate, signifying the machine is heating and brewing.
3. Coffee will begin to dispense into the carafe. The machine can make 1-4 cups (240 ml) of coffee in approximately 2-3 minutes.
4. Once the desired amount of coffee is brewed, turn the control knob to "Off".

Figure 3.3: Control knob for selecting brewing or steaming functions.

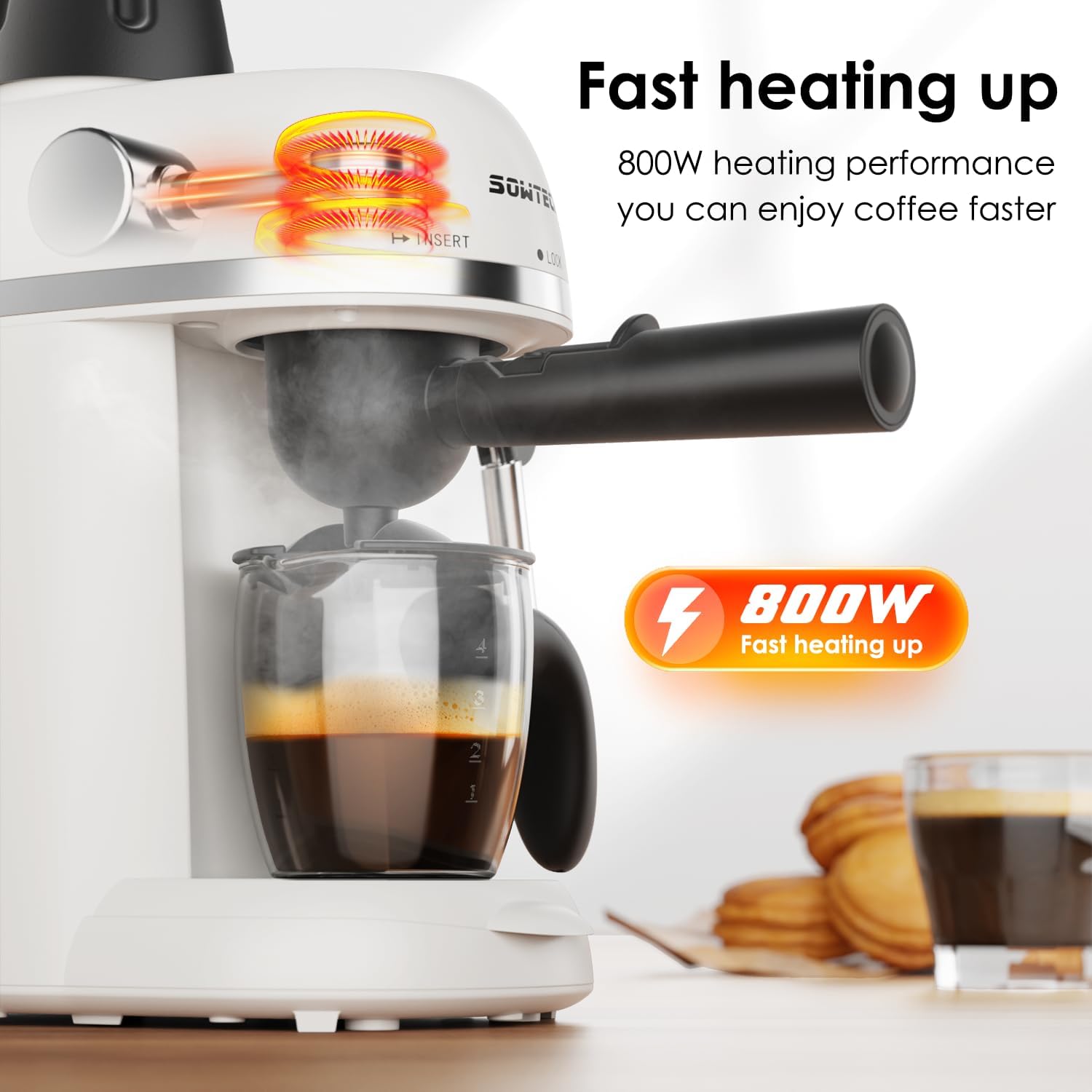

Figure 3.4: The 800W heating system ensures fast brewing.

3.3 Escumar llet per a cappuccino/cafè amb llet

For best results, use whole milk to create dense milk froth.

1. Fill a pitcher with cold whole milk.
2. Turn the control knob to the "Steam" position. The indicator light will illuminate, indicating the machine is preheating for steam.
3. Once the steam is ready (the light may change or a steady steam sound is heard), immerse the steam wand into the milk, about 1 inch below the surface.
4. Move the pitcher slowly up and down to create froth. Continue for about 30 seconds or until desired froth consistency is achieved.
5. Turn the control knob to "Off" and remove the pitcher.

Figure 3.5: Use whole milk for optimal frothing results.

Figure 3.6: The powerful steam wand features 270-degree adjustment and an anti-scalding design.

3.4 Vídeos oficials de productes

4. Manteniment i Neteja

4.1 Neteja diària

1. Vareta de vapor: Immediately after frothing milk, clean the steam wand. Wipe it with a damp cloth. If clogged, use the included red pin to clear the opening.
2. Filter Holder and Carafe: Remove the filter holder and filter basket. Discard used coffee grounds. Wash both parts and the Tritan carafe with warm, soapy water. Rinse thoroughly and dry.
3. Safata de degoteig: Buidar i netejar la safata de goteig regularment.
4. Exterior: Netegeu l'exterior de la màquina amb un damp drap. No submergiu la màquina en aigua.

Figure 4.1: Ensure coffee grounds are cleaned from the filter edge.

Figure 4.2: Use whole milk for optimal frothing results.

4.2 Descalcificació

Over time, mineral deposits can build up inside the machine, affecting performance. Descale your machine every 2-3 months, or more frequently if you have hard water.

1. Prepareu una solució descalcificadora segons les instruccions del fabricant del descalcificador (o utilitzeu una barreja de vinagre blanc i aigua).
2. Aboqueu la solució al dipòsit d'aigua.
3. Col·loqueu una garrafa buida a la safata de degoteig.
4. Run the machine through a brewing cycle without coffee.
5. After the cycle, turn the knob to "Steam" and let some solution pass through the steam wand to clean it.
6. Repeat the process with clean water 2-3 times to rinse out any descaling solution residue.

5. Solució De Problemes

If you encounter any issues with your SOWTECH Coffee Machine, please refer to the table below for common problems and their solutions.

6. Especificacions

7. Garantia i Suport

SOWTECH is committed to providing high-quality products and excellent customer service.

7.1 Informació de la garantia

• Garantia de devolució de 30 dies: Si no esteu satisfets amb la vostra compra, podeu retornar-la en un termini de 30 dies per obtenir un reemborsament complet.
• Substitució gratuïta durant 1 any: The product is covered by a 1-year free replacement warranty for manufacturing defects.

7.2 Atenció al client

For any questions, concerns, or assistance with your SOWTECH Coffee Machine, please contact our customer support team. We offer lifetime after-sales service to ensure a smooth and satisfying experience.

Please refer to the product packaging or the official SOWTECH weblloc web per obtenir la informació de contacte més actualitzada.
