Moni i-Size i-Safe Child Car Seat Instruction Manual

1. Introducció

This instruction manual provides essential information for the safe and correct installation, use, and maintenance of your Moni i-Size i-Safe Child Car Seat. Please read this manual thoroughly before using the car seat and keep it in a safe place for future reference.

The Moni i-Size i-Safe child car seat is designed for children with a body height of 76 to 150 centimeters, belonging to Group 1/2/3. It is suitable for children from approximately 15 months up to 12 years of age, with a maximum weight of 36 kilograms.

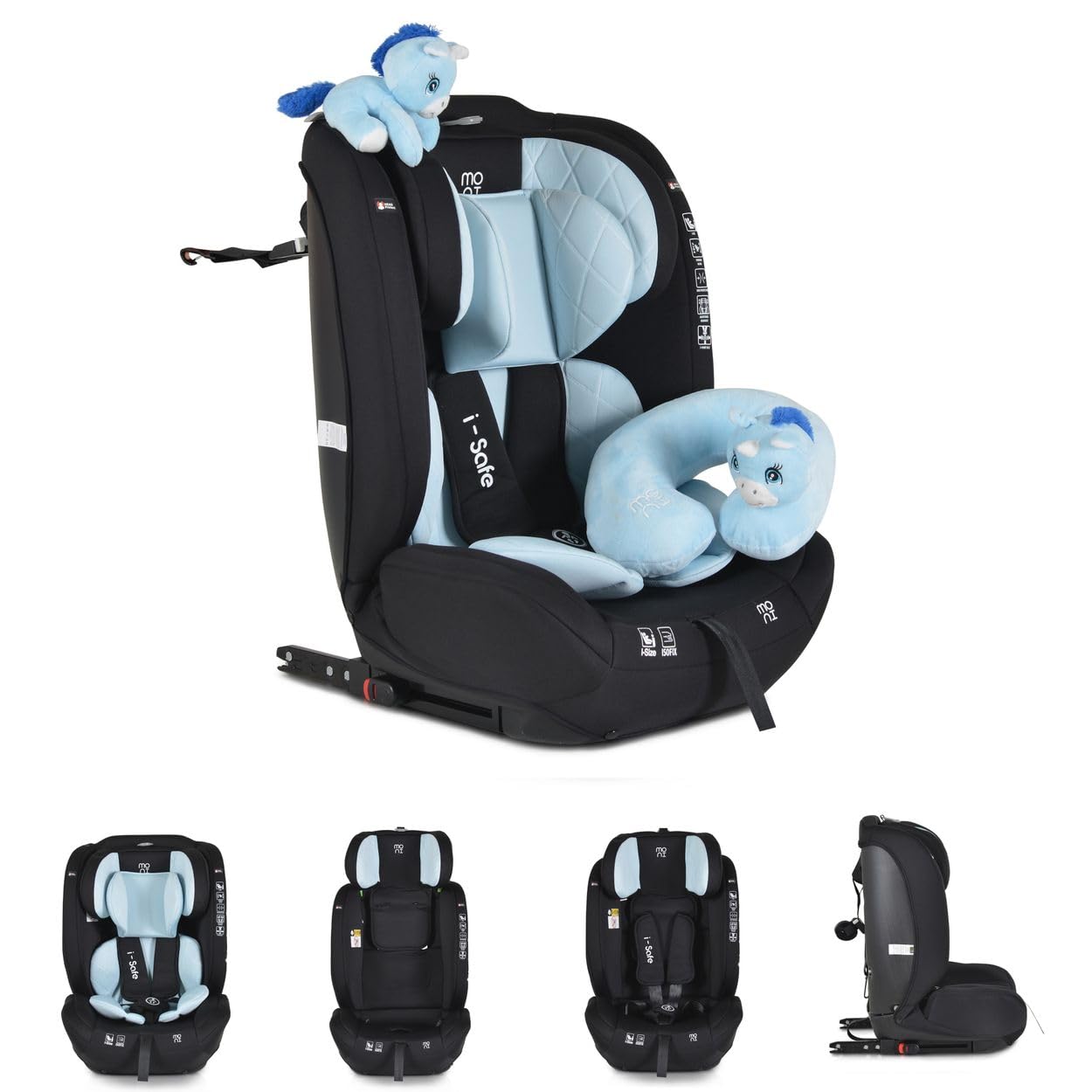

Figure 1: Moni i-Size i-Safe Child Car Seat (Blue) with included head and body cushion, travel pillow, and plush toy.

2. Informació de seguretat

ADVERTIMENT: L'incompliment d'aquestes instruccions de seguretat podria provocar lesions greus o la mort.

• Always ensure the car seat is correctly installed using the ISOFIX system and Top Tether (where applicable) as per the instructions.
• Secure your child with the 5-point safety harness. Ensure the harness is snug and not twisted.
• Never leave a child unattended in the car seat.
• No utilitzeu la cadireta de cotxe si ha tingut un accident, fins i tot si no hi ha danys visibles. Els danys interns poden comprometre la seva seguretat.
• Regularly check all parts of the car seat for wear and tear. Replace damaged parts immediately.
• Ensure the headrest is adjusted to the correct height for your child, providing adequate head and neck support.
• Do not modify the car seat in any way. Only use original replacement parts.
• Keep this manual accessible for future reference.

3. Característiques del producte

• i-Size certified child car seat (ECE R129 standard).
• Suitable for children from 76 cm to 150 cm in height (approx. 15 months to 12 years).
• Capacitat màxima de pes: 36 kg.
• Secure installation via ISOFIX system and Top Tether.
• Integrated 5-point safety harness with soft padding for optimal child restraint.
• 13-position height-adjustable headrest to accommodate growing children.
• Includes soft head and body cushions for enhanced comfort.
• Comes with a travel pillow and a plush toy for added comfort and companionship.
• Removable and washable fabric cover for easy cleaning.

4. Configuració i instal·lació

The Moni i-Size i-Safe car seat offers a secure installation method using the ISOFIX system and Top Tether.

4.1. ISOFIX Installation

1. Locate the ISOFIX anchor points in your vehicle's rear seat. These are typically marked with an ISOFIX symbol.
2. Extend the ISOFIX connectors from the car seat base by pressing the release buttons (refer to Figure 2).
3. Align the ISOFIX connectors with the vehicle's anchor points and push firmly until you hear an audible "click" and the indicators turn green. Pull on the car seat to ensure it is securely attached.
4. Push the car seat firmly against the vehicle's seat back to remove any slack.

Figura 2: Frontal view of the car seat showing the harness and the base where ISOFIX connectors are located.

4.2. Top Tether Connection

1. Locate the Top Tether anchor point in your vehicle. This is usually on the back of the vehicle seat or on the parcel shelf/boot floor.
2. Attach the Top Tether hook from the car seat to the vehicle's Top Tether anchor point.
3. Tighten the Top Tether strap until the indicator (if present) shows it is correctly tensioned and the strap is taut. This prevents forward rotation of the car seat in a collision.

Figura 3: lateral view of the car seat, illustrating the Top Tether strap extending from the top rear.

5. Instruccions de funcionament

5.1. Securing Your Child (5-Point Harness)

1. Col·loqueu el vostre fill al seient del cotxe.
2. Bring the two buckle tongues together and insert them into the buckle until you hear a "click".
3. Pull the harness adjustment strap to tighten the harness. Ensure it is snug against your child's body, with no slack. You should not be able to pinch any excess webbing a l'espatlla del nen.
4. To release the harness, press the red button on the buckle.

Figure 4: The 5-point safety harness system of the car seat.

5.2. Ajust del reposacaps

The headrest can be adjusted to 13 different height positions to ensure optimal comfort and safety for your growing child.

1. Locate the headrest adjustment lever, typically at the top or back of the headrest.
2. Squeeze the lever and simultaneously pull the headrest upwards or push it downwards to the desired height.
3. Release the lever to lock the headrest in place. Ensure the headrest is positioned so that the shoulder straps are at or just above your child's shoulders.

Figure 5: The adjustable headrest mechanism of the car seat.

6. Manteniment i Neteja

Un manteniment regular garanteix la longevitat i la higiene de la cadireta del cotxe.

6.1. Cleaning the Fabric Cover

• The fabric cover of the Moni i-Size i-Safe car seat is removable and washable.
• Carefully remove the cover from the car seat frame.
• Wash the cover according to the care label instructions, typically a gentle cycle with cold water. Do not bleach or tumble dry.
• Deixeu que la funda s'assequi completament a l'aire abans de tornar-la a fixar al seient del cotxe.

6.2. Cleaning the Frame and Harness

• Netegeu les parts de plàstic i metall de l'estructura del seient del cotxe amb anuncisamp drap i sabó suau.
• No utilitzeu netejadors abrasius ni dissolvents.
• Netegeu les corretges de l'arnès amb anunciamp cloth. Do not immerse the harness in water or use harsh detergents, as this can weaken the webbing.

7. Solució De Problemes

• El seient del cotxe sembla fluix després de la instal·lació: Ensure ISOFIX connectors are fully engaged (green indicators visible) and the Top Tether is taut. Push the car seat firmly into the vehicle seat back.
• Harness is difficult to tighten/loosen: Check for any twists in the harness straps. Ensure no fabric is obstructing the harness adjustment mechanism.
• Headrest not adjusting: Ensure the adjustment lever is fully squeezed. Check for any obstructions.
• La sivella no fa clic: Ensure both buckle tongues are fully inserted into the buckle. Check for any debris in the buckle mechanism.

If you encounter issues not covered here, please refer to the manufacturer's weblloc o contacteu amb el servei d'atenció al client.

8. Especificacions

9. Garantia i Suport

For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Moni weblloc.

Should you require technical support, have questions about installation, or need replacement parts, please contact Moni customer service. Contact details can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.
