1. Introducció
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Gisam 16.8V Cordless Drill Driver, model MT01. Please read these instructions carefully before using the tool to ensure proper function and to prevent injury or damage.
2. Instruccions de seguretat
WARNING: This product is not designed for heavy-duty masonry or concrete drilling and lacks a percussion function. Do not use it on ceilings or concrete walls to prevent damage to the tool and potential injury.
- Always wear appropriate personal protective equipment, including safety glasses, when operating the drill.
- Assegureu-vos que la peça de treball estigui ben ferma clamppremut o subjectat per evitar el moviment durant el funcionament.
- Mantingueu les mans i la roba solta allunyades de les peces giratòries.
- Do not operate the drill in damp o condicions humides.
- Before changing accessories or performing maintenance, always remove the battery pack.
- Store the tool and batteries in a dry, secure location out of reach of children.
- Use only Gisam-approved batteries and chargers.
3. Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:
- 1 x Gisam 16.8V Cordless Drill Driver
- 2 bateries de ions de liti de 2 Ah
- 1 x carregador de bateria
- 6 broques de fusta
- 6 x tornavís
- 9 x Socket Wrenches
- 1 x vareta d'extensió
- 1 x Socket Wrench Adapter
- 1 x Flexible Rod
- 1 x Manual d'usuari (aquest document)
Figure 3.1: Complete Gisam 16.8V Cordless Drill Driver kit, including the drill, two batteries, charger, and various accessories.

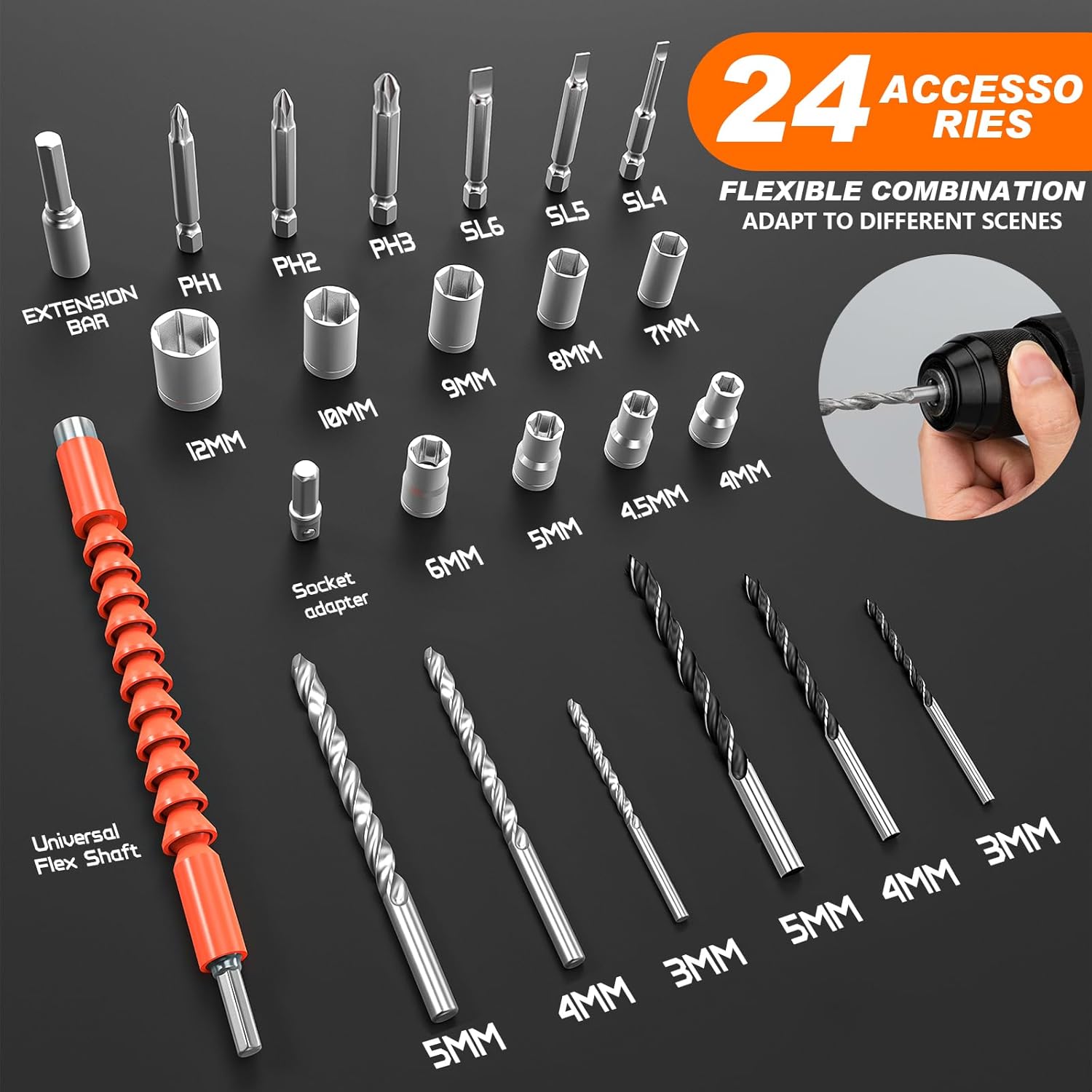

Figura 3.2: Detall view of the 24 accessories provided, including drill bits, screwdriver bits, socket wrenches, and a flexible shaft.
4. Producte acabatview
Familiarize yourself with the components of your Gisam Cordless Drill Driver:
Figure 4.1: Labeled diagram illustrating the key components of the Gisam 16.8V Cordless Drill Driver: 1. 10mm Metal Keyless Chuck, 2. Torque Adjustment Ring, 3. LED Light, 4. Variable Speed Trigger, 5. Remaining Battery Display, 6. Battery Pack, 7. H/L 2-Speed Gear Selector, 8. Heat Dissipation Vent, 9. Forward & Reverse Button.
5. Configuració
5.1. Càrrega de la bateria
- Connecteu el carregador a una presa de corrent estàndard.
- Introduïu la bateria al carregador.
- Allow the battery to charge fully before first use. The charging indicator on the charger will show the charging status.
5.2. Instal·lació i extracció de la bateria
- Instal·lació: Alineeu el paquet de bateries amb la base del mànec del trepant i feu-lo lliscar fins que encaixi fermament al seu lloc.
- Eliminació: Press the battery release buttons (if present) on the sides of the battery pack and slide the battery out.
5.3. Instal·lació d'accessoris
- Assegureu-vos que el trepant estigui apagat i que l'interruptor d'avançament/revers estigui a la posició central (bloquejat).
- Gireu el mandril en sentit antihorari per obrir les mordasses.
- Insert the desired drill bit, screwdriver bit, or socket adapter into the chuck.
- Rotate the chuck clockwise to tighten the jaws securely around the accessory. Ensure the accessory is centered and firmly gripped.
6. Funcionament
6.1. Power On/Off (Variable Speed Trigger)
To start the drill, press the variable speed trigger. The speed of rotation is controlled by the amount of pressure applied to the trigger. Release the trigger to stop the drill.
6.2. Interruptor endavant/marrere
The forward/reverse switch (position 9 in Figure 4.1) controls the direction of rotation and acts as a lock-off button.
- Forward (Tighten): Push the switch to the right for clockwise rotation (for driving screws).
- Reverse (Loosen): Push the switch to the left for counter-clockwise rotation (for removing screws).
- Bloquejat: When the switch is in the center position, the trigger is locked, preventing accidental startup.
Figure 6.1: The forward/reverse switch allows for tightening (right), locking (center), and loosening (left).
6.3. Speed Selection (L/H 2-Speed Gear Selector)
The drill features a two-speed gearbox (position 7 in Figure 4.1) to match the application requirements.
- Baixa velocitat (L): Select 'L' for applications requiring higher torque, such as driving screws or drilling larger holes (0-450 RPM).
- Alta velocitat (H): Select 'H' for faster drilling in softer materials or smaller holes (0-1500 RPM).
Figure 6.2: The L/H 2-speed gear selector. 'L' (0-450 RPM) is recommended for screwing, and 'H' (0-1500 RPM) is recommended for drilling. Note: Not suitable for concrete walls.
6.4. Ajust de parell
The torque adjustment ring (position 2 in Figure 4.1) allows you to set the amount of rotational force before the clutch disengages, preventing overtightening or stripping screws.
- Rotate the ring to select one of the 23 torque settings for screwdriving.
- Select the drill symbol for maximum torque when drilling.
- Start with a lower torque setting and increase as needed for the material and screw size.
Figure 6.3: The 23+1 torque setting provides precision control for different materials such as plastic, plasterboard, wood, and metal.
6.5. Drilling and Screwdriving Guidelines
- This cordless drill is suitable for drilling into wood and plastic, and for screw tightening and removal.
- It is not suitable for masonry or concrete.
- Apliqueu una pressió constant i uniforme en perforar o conduir.
- Do not touch freshly used drill bits immediately as they may be hot.
Figure 6.4: The Gisam cordless drill driver in use, demonstrating its application for tasks such as repairing furniture, installing accessories, and various DIY crafts.
6.6. Llum LED
The integrated LED light (position 3 in Figure 4.1) illuminates the work area for improved visibility.
6.7. Remaining Battery Display
The remaining battery display (position 5 in Figure 4.1) indicates the current charge level of the battery pack.
7. Manteniment
- Keep the tool clean and free of dust and debris. Use a soft, dry cloth for cleaning.
- Regularly inspect the chuck for wear and ensure it operates smoothly.
- Check the battery contacts for cleanliness and ensure they are free of corrosion.
- Store the drill and batteries in a cool, dry place.
- Do not attempt to open the tool housing or battery pack for repairs. Refer to qualified service personnel.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El trepant no arrenca | La bateria no està carregada La bateria no està ben instal·lada Forward/reverse switch in locked position | Carregueu la bateria Torneu a instal·lar la bateria de manera segura Moure l'interruptor a la posició endavant o enrere |
| Pèrdua de potència durant el funcionament | Bateria baixa o esgotada | Recarregueu o substituïu la bateria |
| El mandril no subjecta la broca de manera segura | Mandril no prou apretat La tija de la broca està bruta o danyada | Estrenyeu fermament el mandril Netegeu o substituïu la broca |
| Vibracions o sorolls excessius | Bent or damaged accessory Mandril solt | Substitueix l'accessori Tighten chuck |
9. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | MT01 |
| Voltage | 16.8 Volts |
| Tipus de bateria | Ió de liti |
| Capacitat de la bateria | 2 Ah (2000mAh) |
| Parell màxim | 50 Nm |
| Configuració del parell | 23 + 1 (Mode de perforació) |
| Velocitat sense càrrega (baixa) | 0-450 RPM |
| Velocitat sense càrrega (alta) | 0-1500 RPM |
| Mida del mandril | 10 mm (3/8-inch) Keyless Metal Chuck |
| Tipus de motor | Motor sense escombretes |
| Pes de l'article | 2.13 quilos |
| Dimensions del producte | 10 x 10 x 6 cm |
| Material | Metall |

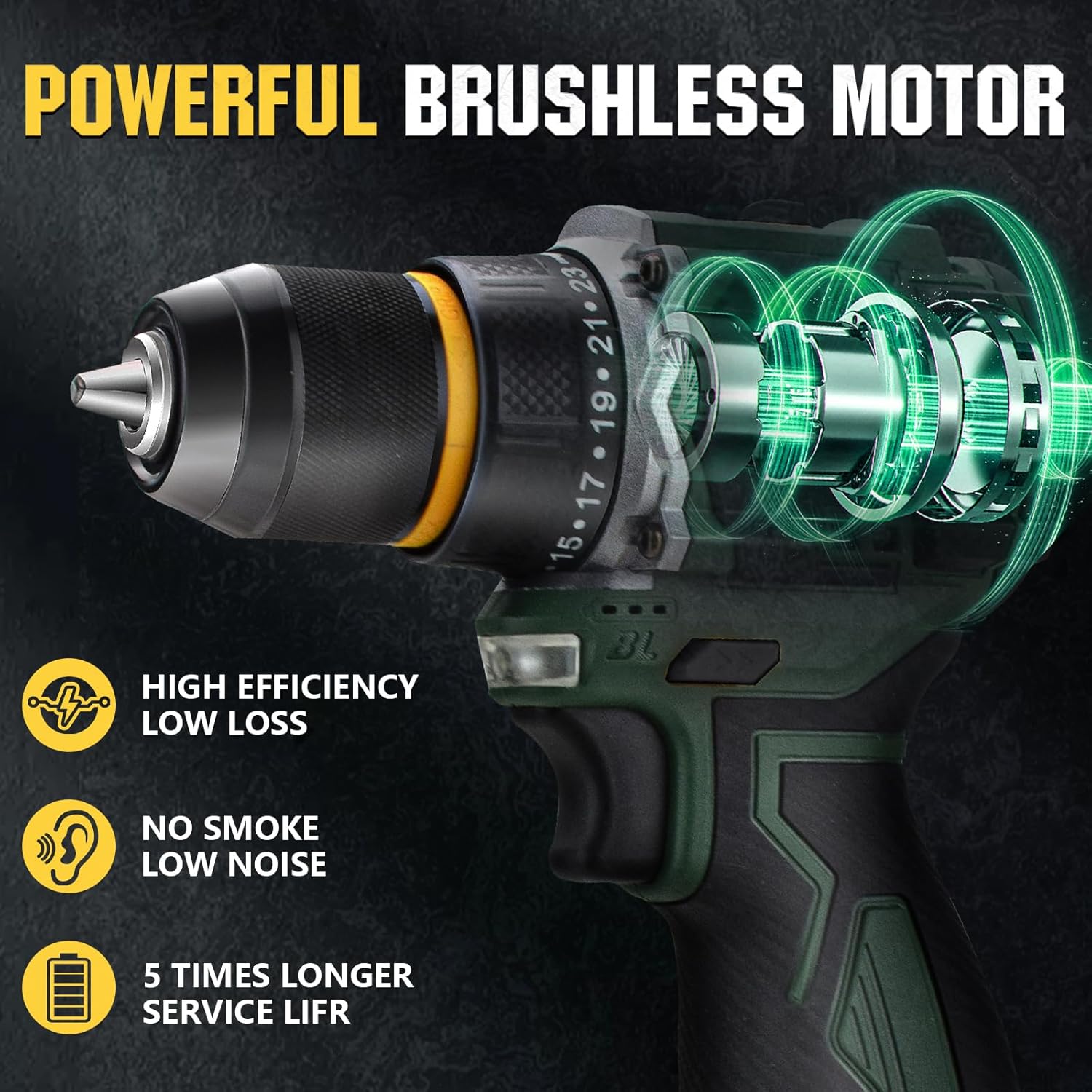

Figure 9.1: The brushless motor design contributes to high efficiency, low power loss, reduced noise, and extended service life.
10. Garantia i Suport
Gisam provides a 2-year after-sales warranty for this product. If you encounter any issues or have questions regarding your Gisam 16.8V Cordless Drill Driver, please contact customer support through the 'Contact Seller' option on your order page. We aim to respond within 12 hours on working days.
