1. Introducció
Gràcies per la compraasing the AceGamer RGB Charging Dock for PlayStation Portal. This portable charging station is designed to provide a stable and efficient charging solution for your PlayStation Portal console, featuring customizable RGB lighting and essential protection features. Please read this manual carefully before use to ensure proper operation and maintenance.
2. Contingut del paquet
- AceGamer RGB Charging Dock (1 unit)
- Cable de càrrega tipus C (1 unitat)
- Manual d'usuari (Aquest document)
3. Característiques del producte
- Càrrega dedicada: Specifically designed for the PlayStation Portal console.
- Il·luminació RGB: Features 7 distinct lighting modes for personalized aesthetics.
- Càrrega ràpida: Efficient power delivery for fast charging.
- Proteccions de seguretat: Sobreintensitat integrada, sobrevoltage, i sota-voltagprotecció.
- Disseny ergonòmic: 30-degree comfortable viewing angle for the PlayStation Portal.
- Base estable: Equipped with anti-slip mats for secure placement.
- Connectivitat: USB Type-C input for power.
4. Instruccions de configuració
- Connectar l'alimentació: Insert the provided Type-C charging cable into the charging dock's input port and connect the other end to a suitable USB power adapter (not included).
Figure 4.1: Connecting the Type-C power cable to the charging dock.
- Place PlayStation Portal: Carefully align your PlayStation Portal console with the charging connector on the dock and gently place it into position. Ensure a secure connection for charging. The dock is designed to hold the Portal at a 30-degree angle for optimal viewing.
Figure 4.2: PlayStation Portal placed on the charging dock at a 30-degree angle.
- Anti-slip Stability: The base of the charging dock is equipped with anti-slip mats to prevent accidental movement. Ensure the dock is placed on a flat, stable surface.

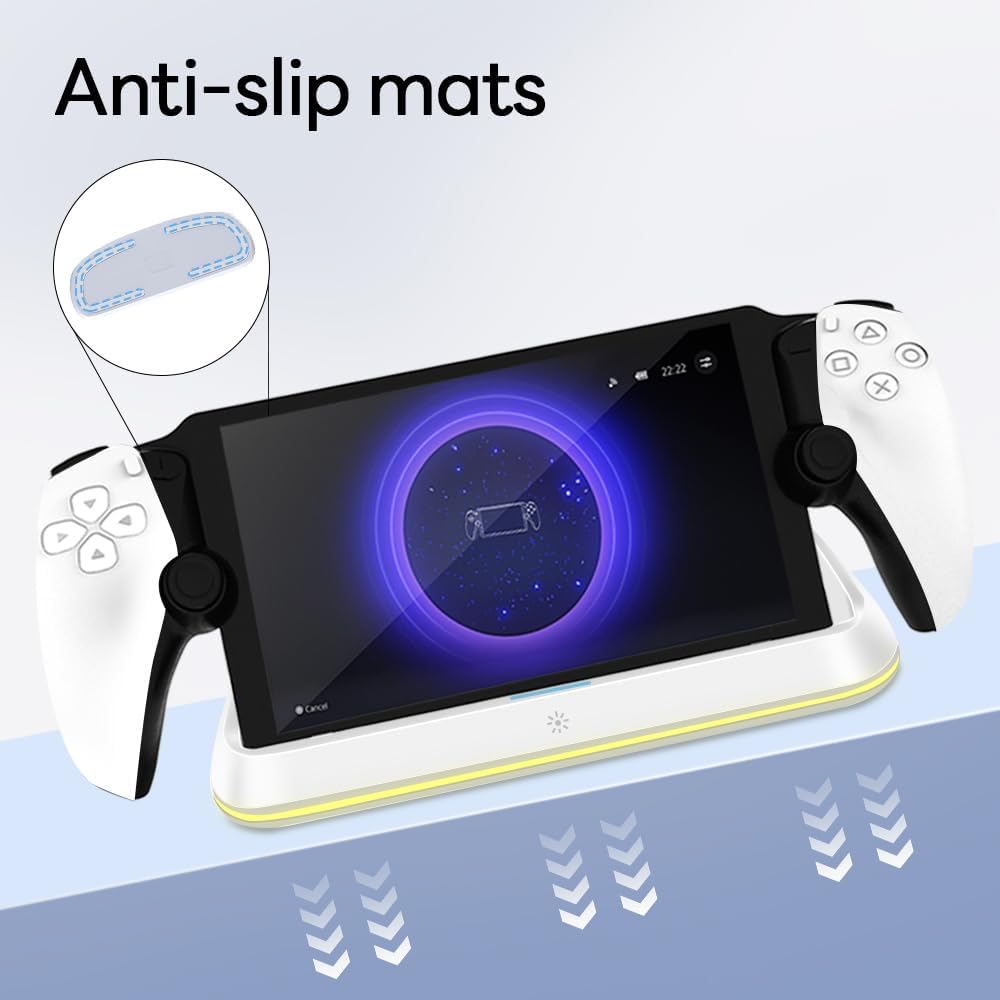

Figure 4.3: Anti-slip mats on the charging dock for enhanced stability.
- Guia visual: For a visual demonstration of the setup process, please refer to the video below.
Video 4.1: Demonstration of connecting the power supply and placing the PlayStation Portal onto the charging dock.
5. Instruccions de funcionament
- Charging the PlayStation Portal: Once the PlayStation Portal is correctly seated on the dock and the dock is powered, charging will begin automatically. A full charge typically takes approximately 3.5 hours. The dock includes protection against over-current, over-voltage, i sota-voltage to safeguard your device.
Figure 5.1: Charging indicators and safety protection features.
- Control d'il·luminació RGB: The charging dock features a touch-sensitive button to control the RGB lighting. Press the button to cycle through 7 different lighting modes or to turn the lights off.
Figure 5.2: RGB lighting modes and touch control button.
6. Manteniment
- Keep the charging dock clean and free from dust. Use a soft, dry cloth for cleaning.
- Eviteu exposar el dispositiu a temperatures extremes, humitat o llum solar directa.
- Do not use abrasive cleaners or solvents, as these may damage the surface.
- Ensure the charging port and connector are free of debris before placing the PlayStation Portal.
7. Solució De Problemes
- El dispositiu no es carrega:
- Ensure the Type-C cable is securely connected to both the dock and the power adapter.
- Verify that the power adapter is functioning correctly and plugged into a live outlet.
- Check if the PlayStation Portal is properly seated on the charging connector.
- Try using a different Type-C cable or power adapter.
- Les llums RGB no funcionen:
- Ensure the charging dock is powered on.
- Press the touch light button to cycle through modes or turn the lights on.
- Unstable placement:
- Ensure the dock is placed on a flat, level surface.
- Check if the anti-slip mats are clean and intact.
8. Especificacions
| Marca | AceGamer |
| Número de model | PS-P-White |
| Dispositius compatibles | Portal de PlayStation |
| Entrada Voltage | 5 Volts |
| Wattage | 7 watts |
| Tipus de connector | USB Type-C (for power input) |
| Característiques especials | RGB Lighting, Fast Charging, Over-current Protection, Over-voltage Protection, Under-voltage Protecció |
| Dimensions | Aproximadament 22.5 x 8.9 x 8.4 cm |
| Pes | Aproximadament 290 g |
9. Garantia i Suport
AceGamer products are designed and manufactured to the highest quality standards. For warranty information or technical support, please contact the retailer where you purchased the product or visit the official AceGamer website for customer service contact details. Please retain your proof of purchase for warranty claims.
