Vente-unique RAPILI Wall Bed Instruction Manual

Producte acabatview

The Vente-unique RAPILI wall bed is designed to optimize space in modern living environments, offering a comfortable sleeping solution that can be discreetly stored when not in use. This manual provides essential information for the safe installation, operation, and maintenance of your RAPILI wall bed.

When closed, the RAPILI bed appears as a sleek cabinet. With a simple manual vertical opening mechanism, it transforms into a fully functional bed, providing the comfort of a traditional bed. It features integrated LED lighting and shelves above the bed, offering convenient storage and a relaxing ambiance.

Informació i advertències de seguretat

Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in injury or damage to the product.

• Instal·lació professional recomanada: Installation and any subsequent adjustments must only be performed by competent personnel.
• Assemblea de dues persones: A minimum of two people are required for the assembly and anchoring of this bed.
• Secure Wall Anchoring is Mandatory: To prevent instability and tipping, this furniture must be securely fastened to a fixed support (wall) using the provided brackets.
• Appropriate Fasteners: Fastening elements (screws and wall plugs) are NOT supplied. You must purchase screws and wall plugs suitable for your specific installation surface (e.g., solid wall, cavity wall, plasterboard). Ensure the chosen fasteners are appropriate for the weight and forces involved.
• Regular Fastener Checks: Fastening elements must be checked regularly to ensure they remain secure.
• Superfície de nivell: The floor where the bed is installed must be flat, smooth, and horizontal.
• Seguiu les instruccions: The assembly and maintenance instructions provided with the product are essential for its safety and must be followed meticulously.
• Anti-Tipping Safety: The bed is equipped with an anti-tipping safety mechanism. Ensure it is correctly engaged after installation.

Especificacions del producte

Configuració i instal·lació

The RAPILI wall bed requires careful assembly and secure wall mounting. It is crucial to follow the detailed assembly instructions provided with the product packaging. This section highlights key steps and considerations.

1. Desempaquetar components: Carefully unpack all components and verify against the parts list in the separate assembly manual. Ensure no parts are missing or damaged.
2. Preparació de la zona d'instal·lació: Choose a location with a flat, level floor. Ensure the wall where the bed will be anchored is structurally sound and capable of supporting the bed's weight.
3. Muntatge del marc: Follow the step-by-step instructions in the assembly manual to construct the main frame of the wall bed. This typically involves assembling the side panels, back panel, and top/bottom sections.
4. Install Wall Anchoring Brackets: Position the bed frame against the chosen wall. Mark the drilling points for the wall anchoring brackets. Drill holes using an appropriate drill bit for your wall type. Insert suitable wall plugs (not supplied) and secure the brackets firmly to the wall.
5. Attach Bed Frame to Wall: Securely attach the assembled bed frame to the wall brackets using the provided hardware. This step is critical for safety and stability.
6. Instal·leu els components interns: Assemble and install the internal bed mechanism, including the bed base, mattress support, and any shelving units.
7. Connecteu la il·luminació LED: Follow the instructions to connect the integrated LED lighting system. Ensure all wiring is secure and properly routed.
8. Matràs individual: Carefully place your 160 x 200 cm mattress onto the bed base. The bed is designed to accommodate the mattress, sheets, and duvet without needing to remove them when closing.
9. Comprovacions finals: Before first use, perform a thorough check of all connections, screws, and wall anchors to ensure everything is tight and secure. Test the opening and closing mechanism several times.

Image: The RAPILI wall bed in its closed, cabinet configuration, blending seamlessly into the room.

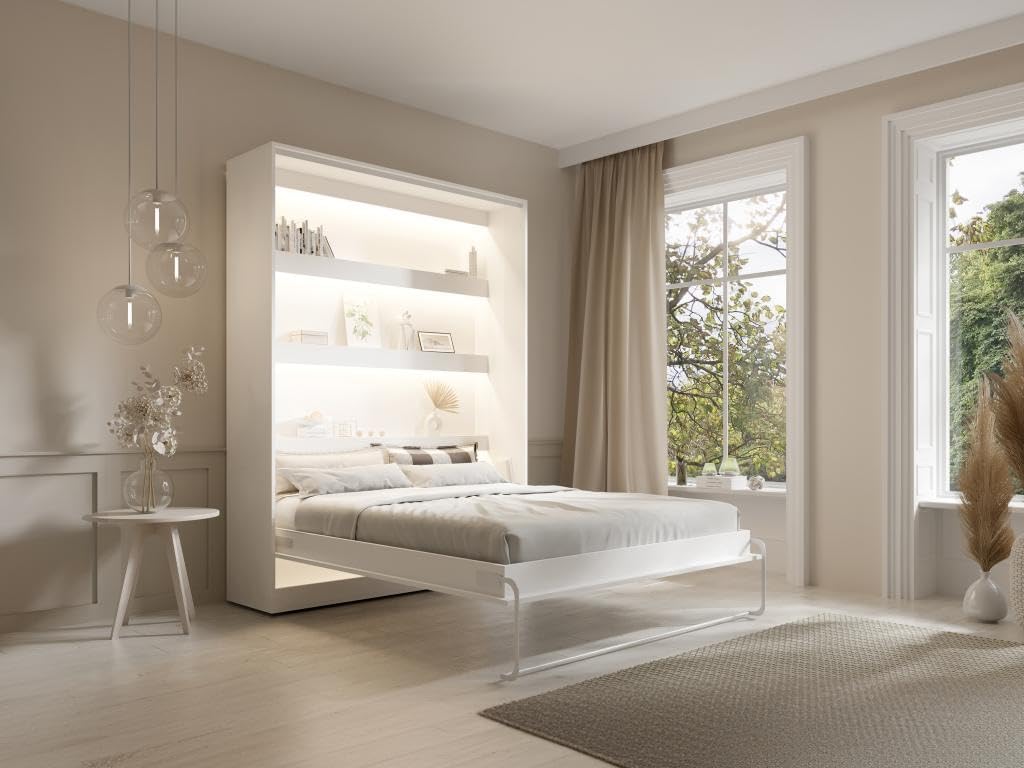

Image: The RAPILI wall bed fully open, showcasing the bed ready for use and the integrated LED-lit shelving.

Instruccions de funcionament

The RAPILI wall bed features a manual vertical opening system designed for ease of use and silent operation.

Opening the Bed:

1. Ensure the area in front of the wall bed is clear of any obstructions.
2. Grasp the handle located on the upper part of the cabinet.
3. Gently pull the bed downwards. The vertical opening mechanism will smoothly guide the bed into its horizontal sleeping position. The bed legs will automatically extend as the bed lowers.
4. The integrated LED lights will illuminate the shelving area when the bed is open, providing ambient light.

Closing the Bed:

1. Ensure no items are left on the bed that could obstruct its closing. The elastic strap system is designed to keep the mattress, sheets, and duvet in place during closing, eliminating the need to remove them.
2. Grasp the handle and gently lift the bed upwards. The mechanism will assist in smoothly raising the bed back into its vertical cabinet position. The bed legs will retract automatically.
3. Push the bed firmly until it clicks into its fully closed and secured position. The bed legs will be invisible when fully closed.

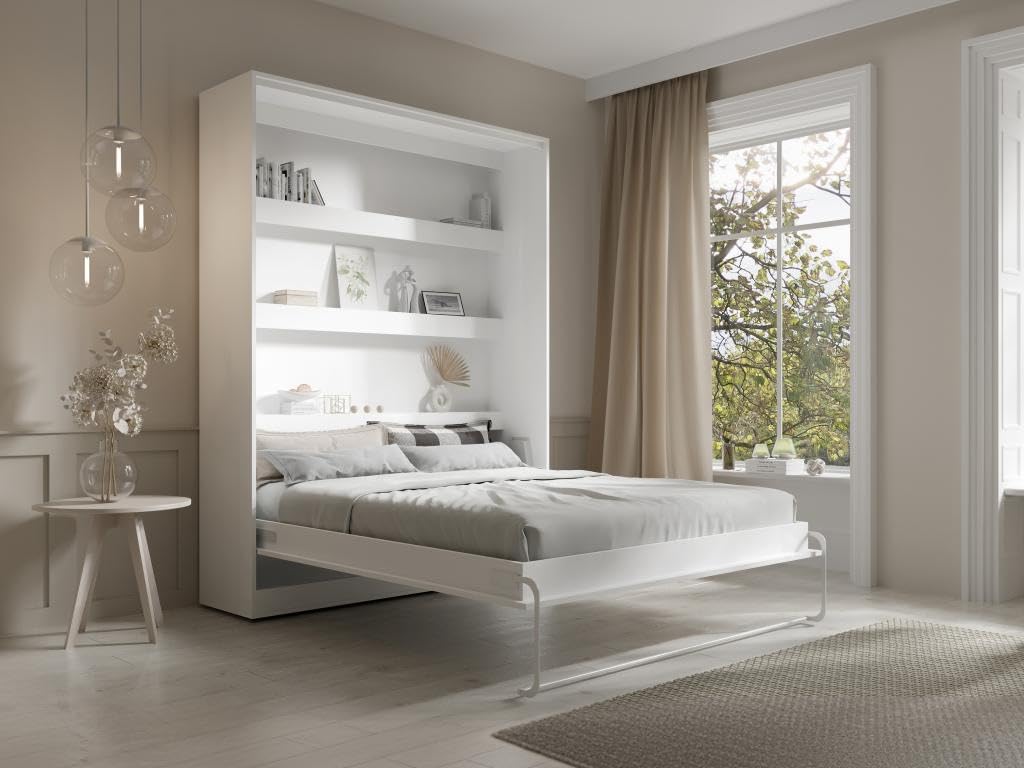

Image: The RAPILI wall bed in an open position, illustrating the bed frame and shelving.

Image: The RAPILI wall bed in its fully closed state, appearing as a compact cabinet.

Manteniment

Regular maintenance will ensure the longevity and safe operation of your RAPILI wall bed.

• Neteja: Netegeu les superfícies amb un suau, damp drap. Eviteu netejadors abrasius o productes químics agressius que puguin danyar l'acabat.
• Comprovació del mecanisme: Periodically inspect the opening and closing mechanism for smooth operation. If you notice any stiffness or unusual noises, do not force the mechanism.
• Inspecció de fixacions: Regularly check all screws and wall anchors to ensure they are tight. Re-tighten if necessary. This is crucial for the bed's stability and safety.
• Llums LED: If an LED light fails, consult the assembly manual for replacement instructions or contact customer support. Do not attempt to repair electrical components unless qualified.
• Atenció general: Avoid placing excessively heavy items on the shelves or bed frame. Do not allow children to play on or around the bed mechanism unsupervised.

Resolució de problemes

This section addresses common issues you might encounter with your RAPILI wall bed. For problems not listed here, please contact Vente-unique customer support.

• Bed is difficult to open/close:
  • Ensure no objects are obstructing the mechanism or the path of the bed.
  • Check if the mattress or bedding is properly aligned and not interfering with the movement.
  • Verify that all assembly screws are properly tightened, especially those related to the opening mechanism.
• El llit sembla inestable o inestable:
  • Immediately cease using the bed.
  • Re-check all wall anchoring points and ensure the fasteners are securely tightened into the wall.
  • Confirm that the floor surface is perfectly level. Use shims if necessary to level the base.
  • Ensure the anti-tipping safety mechanism is correctly engaged.
• LED lights are not working:
  • Check the power connection to the LED system.
  • Assegureu-vos que la presa de corrent funcioni.
  • Inspect the wiring for any visible damage or loose connections.

Suport al client i garantia

For any questions, technical assistance, or to report issues with your Vente-unique RAPILI wall bed, please contact Vente-unique customer support.

Please refer to your purchase documentation for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.
