1. Instruccions de seguretat importants
Si us plau, llegiu i enteneu totes les instruccions abans de començar la instal·lació. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o lesions personals.
- Assegureu-vos que l'alimentació estigui desconnectada a l'interruptor automàtic abans de la instal·lació o el manteniment.
- Tot el cablejat ha de complir amb els codis elèctrics nacionals i locals. Si no esteu familiaritzat amb el cablejat, consulteu un electricista qualificat.
- The fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting a minimum of 35 lbs (15.9 kg).
- Maintain a minimum clearance of 7 feet (2.1 meters) from the floor to the bottom of the fan blades.
- No feu funcionar el ventilador amb les pales danyades o amb cap defecte visible.
- Eviteu col·locar objectes al camí de les pales del ventilador.
2. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de continuar amb la instal·lació. Si falta alguna peça o hi ha alguna peça danyada, poseu-vos en contacte amb el servei d'atenció al client.
- Muntatge de la carcassa del motor
- Pales de ventilador (8)
- Down Rods (4.5" and 12")
- Dosser
- Suport de muntatge
- Kit de llum LED
- Comandament a distància amb suport de paret
- Paquet de maquinari (cargols, volanderes, femelles de cable)

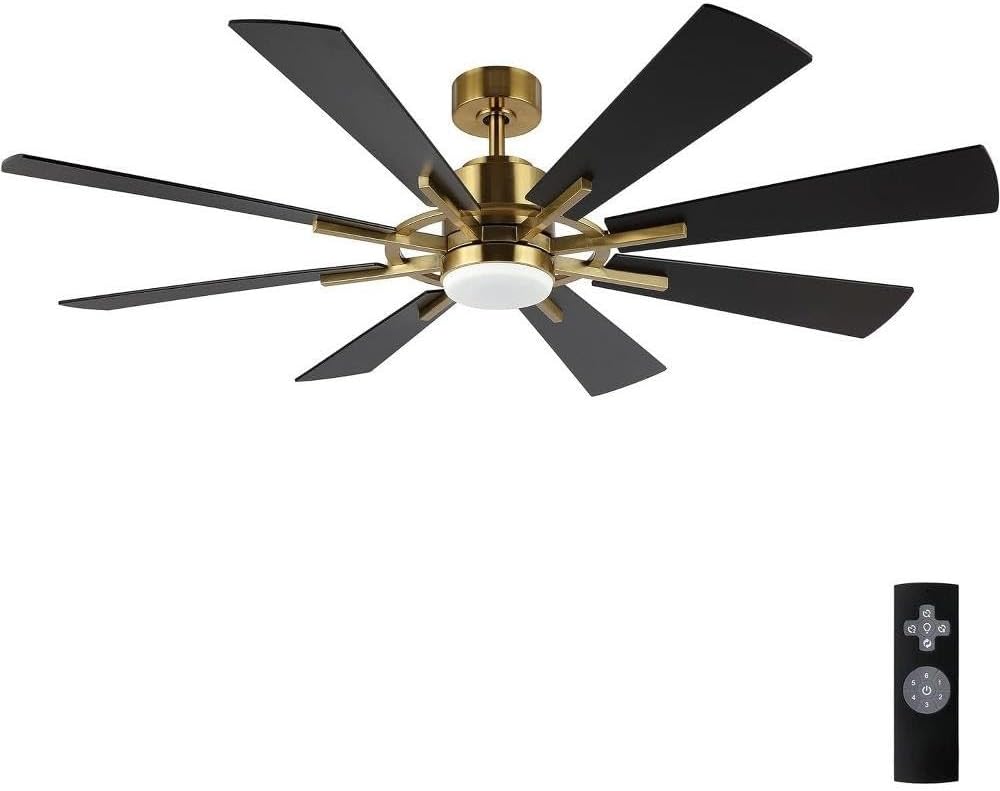

Figure 1: AeroBlade 60-inch 8-blade ceiling fan with integrated LED light and included remote control. The fan features a gold finish motor housing and black blades.
3. Guia d'instal·lació
3.1 Preinstal·lació
- Turn off power at the circuit breaker and wall switch.
- Select the appropriate down rod (4.5" for lower ceilings, 12" for higher ceilings) based on your ceiling height.
- Ensure the mounting location can support the fan's weight and is free from obstructions.
3.2 Muntatge del ventilador
- Attach the mounting bracket to the ceiling outlet box using the provided screws. Ensure it is securely fastened.
- Feu passar els cables elèctrics de la caixa de corrent a través del forat central del suport de muntatge.
- Assemble the down rod to the motor housing, ensuring all screws are tightened.
- Carefully lift the fan assembly and hang it from the mounting bracket using the hanger ball.
3.3 Connexions elèctriques
Connect the fan's electrical wires to the household wiring according to the following:
- Connect the green/bare copper wire (ground) from the fan to the household ground wire.
- Connect the white wire (neutral) from the fan to the household neutral wire.
- Connect the black wire (hot) from the fan to the household hot wire.
- Secure all connections with wire nuts and ensure no loose strands are exposed.
3.4 Fixació de les pales i el kit de llums
- Attach each of the 8 fan blades to the motor housing using the provided screws. Ensure they are firmly secured.
- Connect the LED light kit wires to the corresponding wires from the fan motor.
- Secure the LED light kit to the bottom of the fan motor housing.
- Install the light diffuser by twisting or snapping it into place.
After completing all connections and assembly, carefully raise the canopy to cover the mounting bracket and secure it with the provided screws.
4. Instruccions de funcionament
The AeroBlade ceiling fan is operated using the included remote control.
4.1 Funcions de control remot

Figure 2: Remote control for the AeroBlade ceiling fan. Features include fan speed control (1-6), light on/off, light color temperature adjustment, and fan direction reversal.
- Botó d'encesa: Encén/apaga el ventilador i la llum.
- Botons de velocitat del ventilador (1-6): Ajusta la velocitat del ventilador d'1 (la més baixa) a 6 (la més alta).
- Botó d'encesa/apagada de la llum: Activa o desactiva la llum LED.
- Light Color Temperature Button: Cycles through 3000K (Warm White), 4500K (Natural White), and 6000K (Cool White) color temperatures.
- Reverse Function Button: Canvia la direcció de les aspes del ventilador.
- Mode d'estiu (flux d'aire descendent): Les pales giren en sentit antihorari, creant una brisa refrescant.
- Mode hivern (flux d'aire ascendent): Blades rotate clockwise, circulating warm air near the ceiling.
4.2 Operació inicial
- Resta l'alimentació al disjuntor.
- Press the Power Button on the remote control to turn on the fan and light.
- Adjust fan speed and light settings as desired.
5. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil del ventilador de sostre.
- Neteja: Netegeu periòdicament les aspes del ventilador i la carcassa del motor amb un drap suau i sec.amp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Inspecció de la fulla: Check blade screws annually to ensure they are tight. Loose blades can cause wobbling and noise.
- Kit de llum: The integrated LED light source is designed for long life and typically does not require replacement. If issues arise, contact customer support.
- Comandament a distància: Replace batteries (not included) when the remote's range decreases or it stops responding.
Always turn off power at the circuit breaker before performing any cleaning or maintenance on the fan.
6. Solució De Problemes
Abans d'intentar qualsevol reparació, assegureu-vos que l'alimentació estigui desconnectada al disjuntor.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | No hi ha alimentació al ventilador; Connexions de cables soltes; Pila del comandament a distància baixa. | Check circuit breaker and wall switch; Verify all wire connections are secure; Replace remote control batteries. |
| La llum no funciona | Loose wire connection to light kit; LED light failure. | Check light kit wiring; Contact customer support if LED light is faulty. |
| El ventilador trontolla | Cargols de la fulla solts; Fulles desequilibrades; Suport de muntatge solt. | Tighten all blade screws; Ensure blades are installed correctly; Verify mounting bracket is secure. |
| Funcionament sorollós | Cargols solts; Brunzit del motor; Les pales xoquen contra un obstrucció. | Check all screws on the fan and mounting bracket; Ensure no objects are in the fan's path. |
| El comandament a distància no respon | Low batteries; Remote not paired (if applicable); Obstruction between remote and receiver. | Replace remote batteries; Ensure clear line of sight; Refer to pairing instructions if necessary (not explicitly provided, but a common troubleshooting step). |
7. Especificacions
| Marca | Bany de llit i més enllà |
| Nom del model | AB815-60 |
| Número de part | AB816-60 |
| Dimensions del producte | 60 x 60 x 20 polzades |
| Pes de l'article | 18.9 lliures (8.57 kg) |
| Disseny de ventilador elèctric | Ventilador del sostre |
| Blade Sweep Diameter | 60 polzades |
| Nombre de fulles | 8 |
| Pas de la fulla | 12 graus |
| Velocitats del ventilador | 6 (Forward and Reverse) |
| Font d'alimentació | Elèctric amb cable |
| Motor del ventilador Wattage | 24 watts |
| Llum LED integrada | 18W, Dimmable, 3000K/4500K/6000K (Color Temperature Adjustable) |
| Color | Gold (Motor Housing), Black (Blades) |
| Tipus d'habitació | Sala d'estar (recomanat) |
| UPC | 850051871292, 850051871285 |
8. Garantia i Suport
8.1 Garantia del fabricant
This Bed Bath & Beyond AeroBlade ceiling fan is covered by a 1 anys de garantia del fabricant des de la data de compra. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.
The warranty does not cover damage resulting from improper installation, misuse, abuse, accident, or unauthorized repairs. Proof of purchase is required for all warranty claims.
8.2 Atenció al client
For technical assistance, missing parts, or warranty inquiries, please contact Bed Bath & Beyond customer support. Refer to your purchase documentation for specific contact information.
When contacting support, please have your model number (AB815-60) and proof of purchase readily available.
