SINGER Electronic Heavy Duty Sewing Machine and Carrying Case User Manual

1. Introducció i finalview

This manual provides detailed instructions for the SINGER Electronic Heavy Duty Sewing Machine (Model 6700C) and its accompanying SINGER Machine Carrying Case. The sewing machine is engineered for robust performance, offering 411 stitch applications, a powerful motor, and user-friendly electronic controls. The carrying case is designed to provide secure and dust-free storage and transport for your sewing machine.

Figure 1.1: SINGER Electronic Heavy Duty Sewing Machine and Carrying Case.

2. Característiques del producte

Built-in Needle Threader & Easy Threading: Simplifies the threading process with clear guides and an automatic needle threader.
Pantalla LCD: Provides a clear display of selected stitches, stitch length, and width settings for easy monitoring and adjustment.
Touch Button Stitch Selection: Allows for quick and intuitive selection of stitches, with pre-selected optimal settings that can be customized.
Motor potent: Delivers enhanced needle piercing power and high sewing speed, ideal for heavy-duty fabrics like denim and canvas.
Extensive Stitch Applications: Features 411 stitch applications, including basic, stretch, decorative, and a lettering font for diverse creative projects.
Accessoris inclosos: Comes with ten presser feet (All-Purpose, Zipper, Buttonhole, Blind Hem, Button Sewing, Sew Easy, Satin Stitch, Even Feed / Walking, Open Toe, Cording), 4 transparent bobbins (Class 15), spool holders, spool pin, felt auxiliary, L-screwdriver, brush/seam ripper, pack of needles, and a dust cover.
Top Drop-in Bobbin: Easy to thread and monitor thread supply through the transparent cover.
Funda protectora de transport: The SINGER Machine Carrying Case offers safe, dust-free storage with a fully-padded interior and impact-resistant design.
Spacious Case with Easy Access: Features a large front pocket for accessories and a full zip for convenient machine placement and removal.
Padded Carrying Handles: Ensures a secure and comfortable grip for transport.

SINGER Heavy Duty Sewing Machine front view — Figura 2.1: Frontal view of the SINGER Heavy Duty Sewing Machine.

SINGER Machine Carrying Case front view — Figura 2.2: Frontal view of the SINGER Machine Carrying Case.

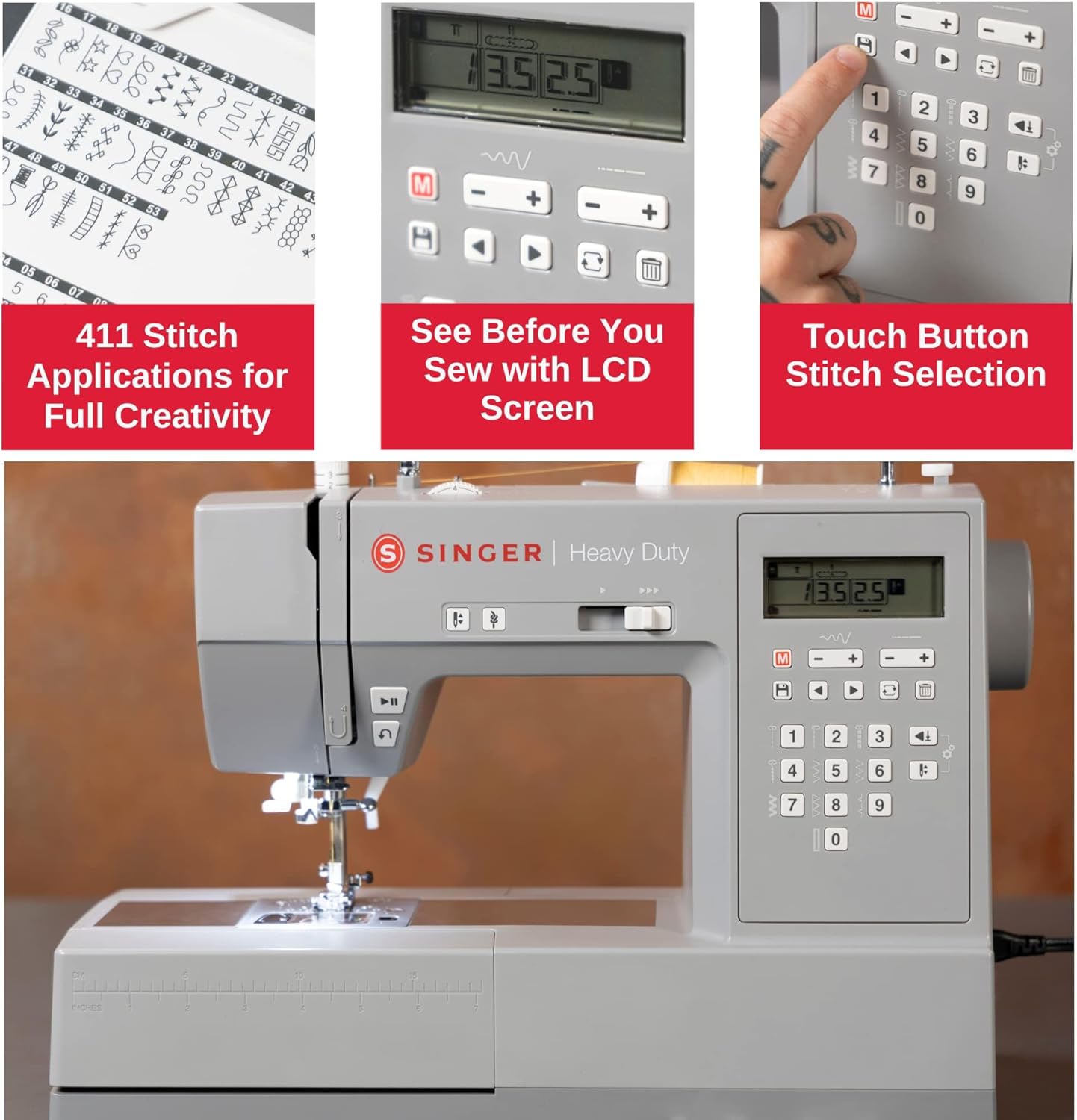

Close-up of SINGER sewing machine LCD screen and stitch selection — Figure 2.3: LCD screen and touch button stitch selection.

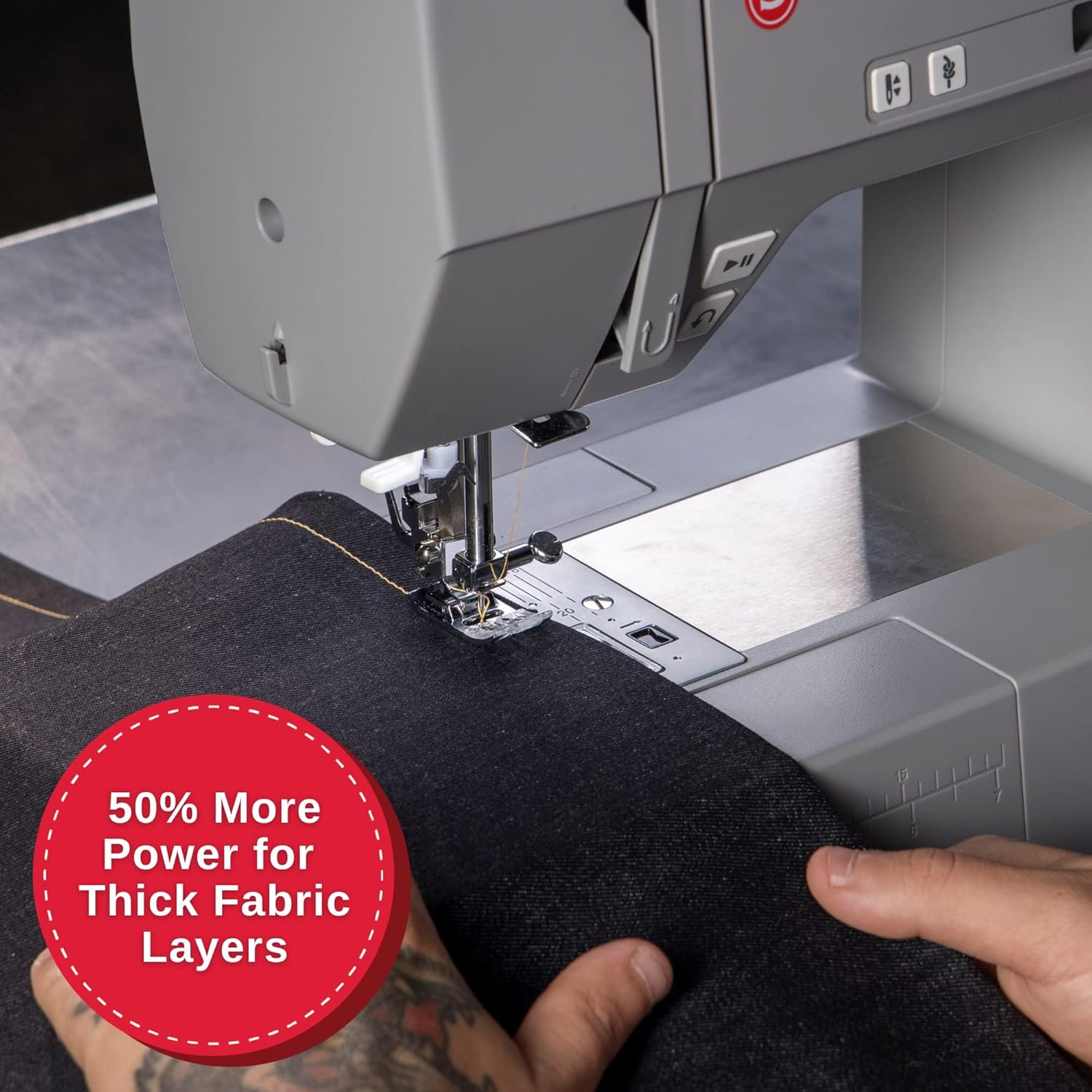

SINGER sewing machine sewing thick fabric — Figure 2.4: Machine demonstrating power for thick fabric layers.

SINGER Machine Carrying Case with dimensions — Figure 2.5: Carrying Case interior dimensions (18" x 10" x 13").

Assortment of SINGER sewing machine accessories — Figure 2.6: Included accessories for the SINGER Heavy Duty Sewing Machine.

3. Configuració

Desembalatge: Traieu amb cura la màquina de cosir i tots els accessoris de l'embalatge. Conserveu l'embalatge per a futurs emmagatzematges o transports.
Connexió d'alimentació: Place the machine on a stable, flat surface. Connect the foot controller and power cord to the machine, then plug the power cord into a suitable electrical outlet.
Enrotllament de la bobina: Refer to the machine's markings for instructions on how to wind the bobbin. The top drop-in bobbin system makes this process straightforward.
Roscat superior: Follow the numbered threading guides on the machine. Utilize the built-in needle threader for quick and easy threading of the needle.
Instal·lació de l'agulla: Ensure the correct needle type and size are installed for your fabric. Loosen the needle clamp screw, insert the new needle with the flat side facing the back, and tighten the screw securely.
Carrying Case Preparation: If using the carrying case, ensure the machine is properly positioned on the inner platform. Utilize the large front pocket for storing the foot controller, cords, and other notions.

4. Instruccions de funcionament

Selecció d'una puntada: Turn on the machine. Use the touch buttons to select your desired stitch. The LCD screen will display the selected stitch and its default settings.
Ajust de la configuració de la puntada: While the machine provides optimal pre-selected settings, you can adjust stitch length and width using the dedicated buttons next to the LCD screen to customize your projects.
Using Presser Feet: Select the appropriate presser foot for your sewing task. For example, use the Zipper Foot for zippers, the Buttonhole Foot for buttonholes, or the Cording Foot for adding decorative cords. Attach the presser foot by aligning it with the presser foot holder and lowering the presser foot lever.
Començant a cosir: Place your fabric under the presser foot. Lower the presser foot lever. Gently press the foot controller to begin sewing. The powerful motor ensures smooth operation even through multiple layers of thick fabric.
Reverse Stitching: Use the reverse stitch button to reinforce seams at the beginning and end of your stitching.
Finishing a Seam: When finished, raise the needle to its highest position, lift the presser foot, and gently pull the fabric away from the machine. Cut the threads using the built-in thread cutter.

User operating SINGER Heavy Duty Sewing Machine

Figure 4.1: User operating the SINGER Heavy Duty Sewing Machine.

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your SINGER sewing machine and carrying case.

Cleaning the Bobbin Area: Periodically remove the needle plate and bobbin case. Use the provided brush to remove lint and dust accumulation from the bobbin area and feed dogs.
Neteja general: Wipe the exterior of the machine with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
Substitució de l'agulla: Replace needles frequently, especially when working with new projects or if you notice skipped stitches or fabric damage. A dull or bent needle can affect stitch quality.
Carrying Case Care: The carrying case is designed for dust-free storage. Keep it clean by wiping with a damp cloth as needed. Ensure the machine is dry before placing it in the case.

6. Solució De Problemes

This section addresses common issues you might encounter. For more complex problems, refer to the official SINGER support resources.

Problema	Causa possible	Solució
Punts saltats	Agulla incorrecta, agulla doblegada, enfilat incorrecte.	Canvieu l'agulla pel tipus/mida correcte i torneu a enfilar la màquina correctament.
Trenca fil	Incorrect tension, poor quality thread, improperly wound bobbin.	Adjust tension, use good quality thread, re-wind bobbin evenly.
Bobbin Jamming	Lint in bobbin case, incorrect bobbin insertion.	Clean bobbin area, ensure bobbin is inserted correctly.
La màquina no arrenca	Power cord not connected, foot controller issue.	Check all power connections, ensure foot controller is properly plugged in.

7. Especificacions

Marca: CANTANT
Número de model: 6700C
ASIN: B0D8W8KYV7
Stitch Applications: 411
Tipus de bobina: Top Drop-in (Class 15 transparent)
Marc: Heavy Duty Metal Frame

8. Garantia i Suport

For warranty information, product registration, or technical support, please visit the official SINGER website or contact SINGER customer service. Keep your purchase receipt as proof of purchase for warranty claims.

Official SINGER Weblloc: www.singer.com
