1. Introducció
Thank you for choosing the Ulecoce H200-B Front Door Handle. This manual provides essential information for the proper installation, operation, and maintenance of your new door handle. Please read these instructions carefully before installation and retain them for future reference.
Figura 1.1: The Ulecoce H200-B Front Door Handle, a matte black round passage handle designed for interior doors.
2. Producte acabatview
2.1 Característiques clau
- Construcció duradora: Made from premium quality zinc alloy and brass components with a matte black electroplated surface for enhanced durability and rust prevention.
- Disseny reversible: Handles are reversible, accommodating both left and right-handed doors.
- Adjustable Latch: Features an adjustable latch for backsets of 2-3/8 inches (60mm) or 2-3/4 inches (70mm).
- Standard Door Compatibility: Fits standard door thicknesses ranging from 1.38 inches (35mm) to 1.78 inches (45mm).
- Funció de pas: Designed for easy entry and exit without locking, suitable for high-traffic areas like hallways, offices, and closets.
- Empunyadura ergonòmica: Spherical shape provides a comfortable grip for both adults and children.

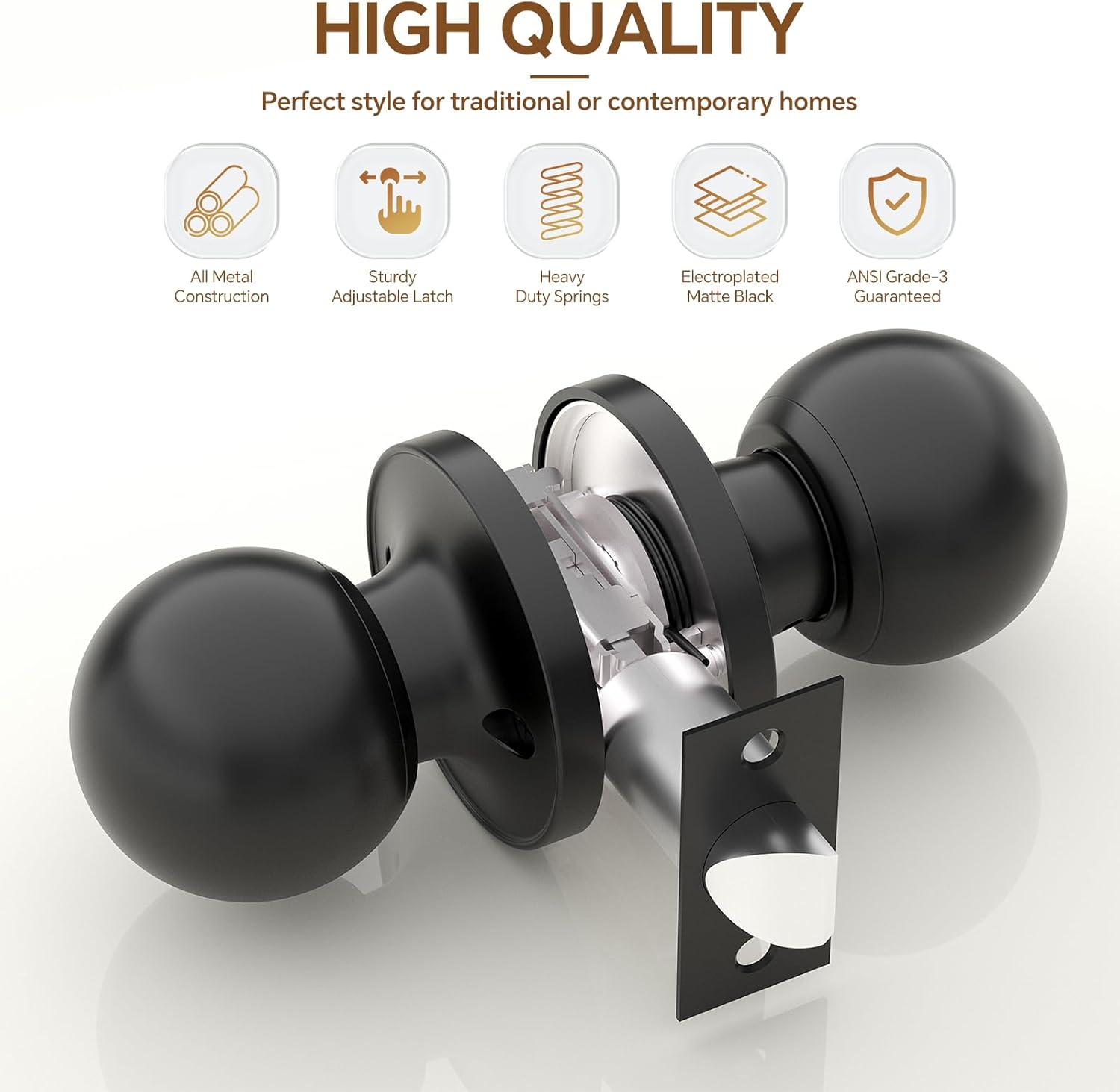

Figura 2.1: Acabatview of the Ulecoce door handle's quality features, including all-metal construction, sturdy adjustable latch, heavy-duty springs, electroplated matte black finish, and ANSI Grade-3 guarantee.
2.2 Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- Door Lever Handle (2 pieces)
- Lock Latch (1 piece)
- Short Screws (4 pieces)
- Strike Plate (1 piece)
- Screwdriver (1 piece)
- Plastic Cover (1 piece)
- Installation Specification (Instruction Sheet)

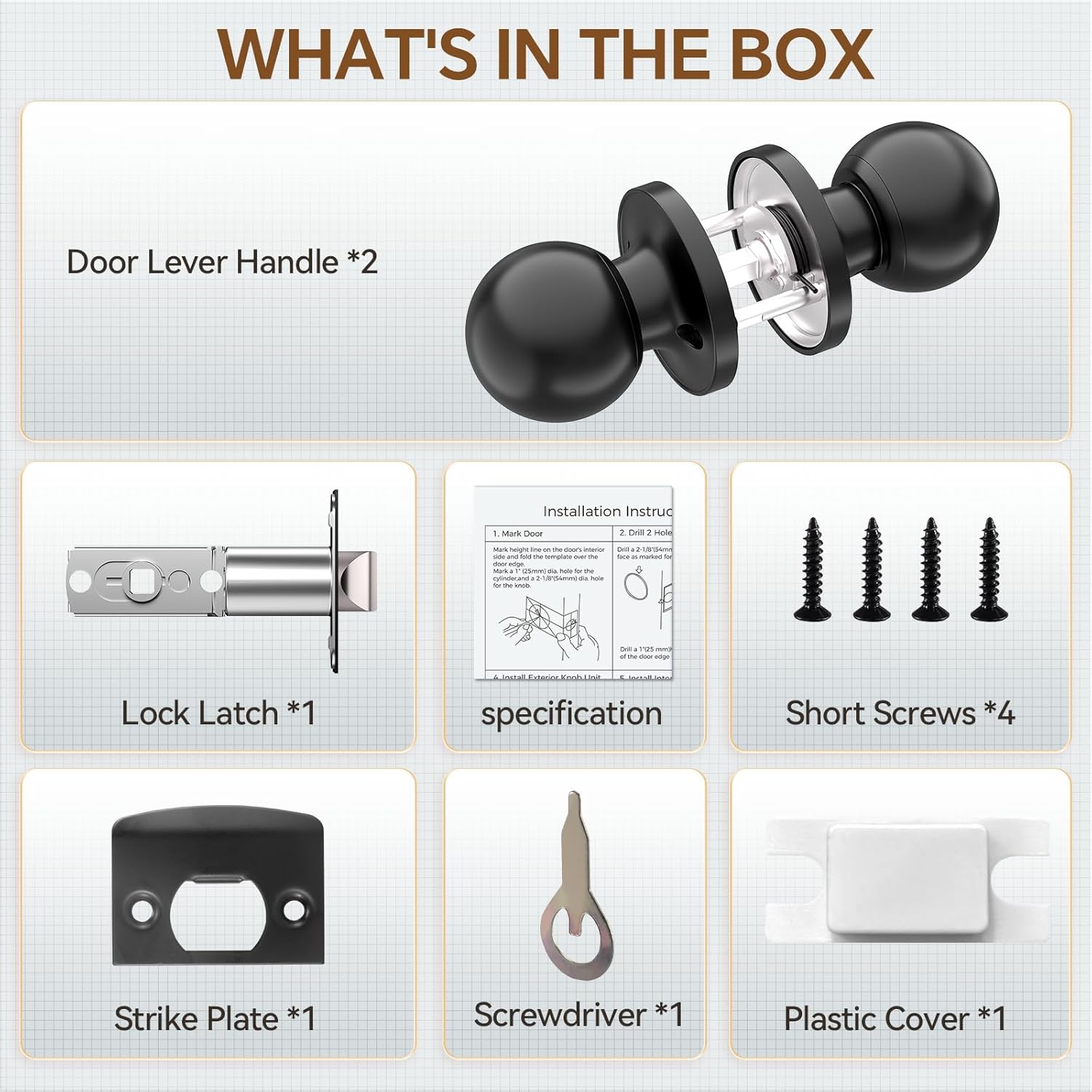

Figura 2.2: Visual representation of all items included in the product package, such as the door handles, latch, screws, strike plate, screwdriver, plastic cover, and installation instructions.
3. Configuració i instal·lació
Installation of the Ulecoce H200-B door handle is designed to be straightforward. A screwdriver is the primary tool required. Refer to the included 'Installation Specification' sheet for detailed diagrams and step-by-step instructions.
3.1 Preparació de la porta
Assegureu-vos que la vostra porta compleixi les especificacions següents:
- Gruix de la porta: 1.38 inches (35mm) to 1.78 inches (45mm).
- Part posterior: Adjustable for 2-3/8 inches (60mm) or 2-3/4 inches (70mm).
- Diàmetre transversal: Typically 2-1/8 inches (54mm).

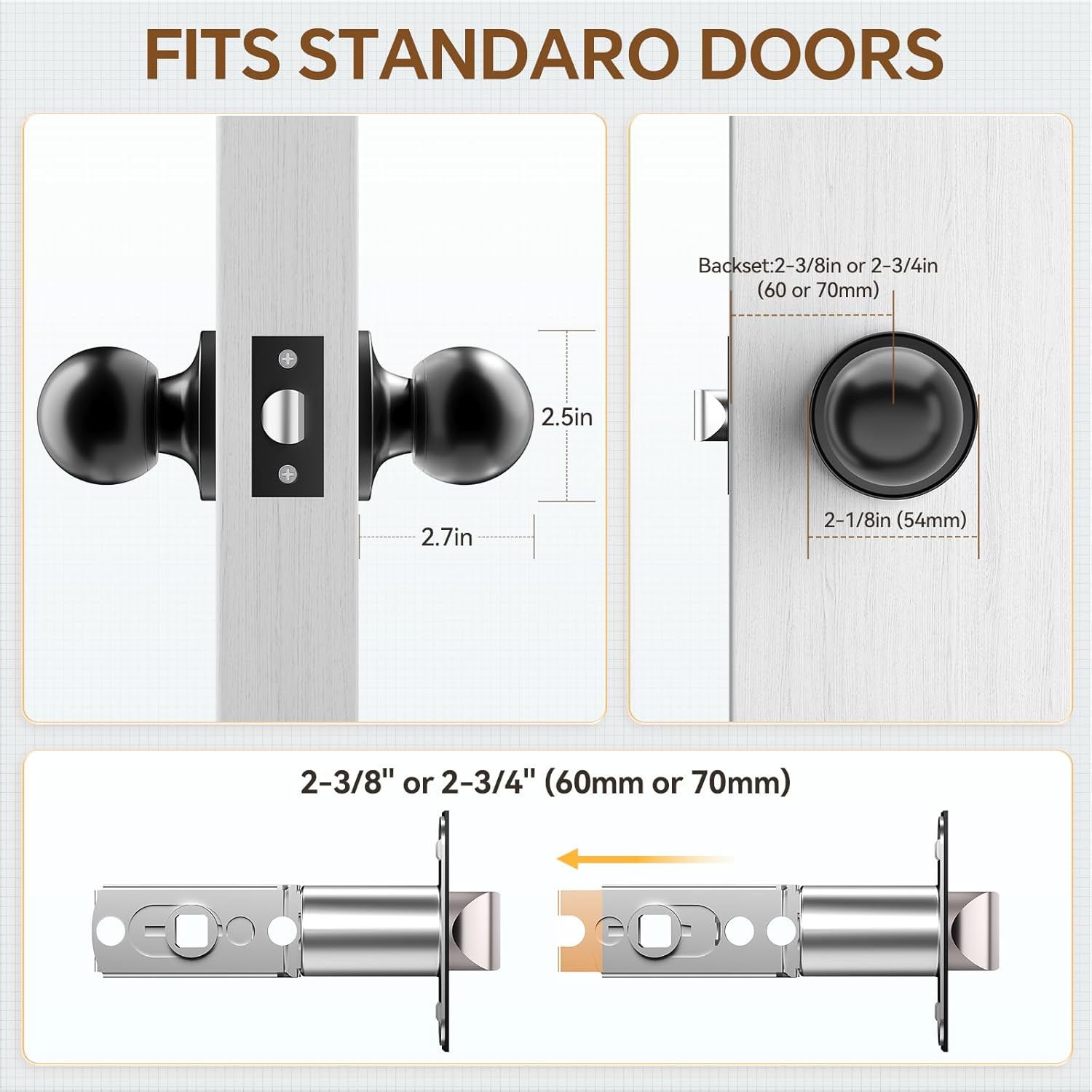

Figura 3.1: Diagram illustrating the standard door dimensions and backset measurements compatible with the Ulecoce door handle.
3.2 Passos d'instal·lació (resum)
- Prepara la porta: If replacing an existing handle, remove the old hardware. Ensure the door's cross bore and edge bore are correctly sized.
- Instal·leu el tancament: Insert the latch into the edge bore of the door. Adjust the backset if necessary by rotating the latch mechanism. Secure with screws.
- Install the Exterior Handle: Place the exterior handle assembly through the cross bore, ensuring the spindle aligns with the latch mechanism.
- Install the Interior Handle: Position the interior handle assembly, aligning it with the exterior handle and latch. Secure the two handle assemblies together using the provided screws.
- Instal·leu la placa de tancament: Attach the strike plate to the door frame, aligning it with the latch bolt. Secure with screws.
- Prova de funcionament: Close the door and test the handle's operation to ensure the latch retracts smoothly and the handle turns freely.
Figura 3.2: An image demonstrating the ease of installation, showing a person using a screwdriver to secure the door handle components.
4. Instruccions de funcionament
The Ulecoce H200-B is a passage door handle, meaning it does not feature a locking mechanism. It is designed for simple entry and exit in areas where privacy or security locking is not required.
- To open the door, simply turn the handle in either direction. The latch bolt will retract, allowing the door to open.
- To close the door, push or pull the door shut. The latch bolt will automatically engage with the strike plate on the door frame, holding the door closed.
Figura 4.1: The Ulecoce door handle installed on doors in a bedroom and a kitchen, illustrating its application in various interior spaces.
Figura 4.2: Un primer pla view showing the exterior and interior sides of the Ulecoce round door handle.
5. Manteniment
Regular maintenance will help preserve the appearance and functionality of your Ulecoce door handle.
- Neteja: Netegeu el mànec regularment amb un drap suauamp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the matte black finish.
- Lubricació: If the latch mechanism becomes stiff over time, apply a small amount of silicone-based lubricant to the moving parts of the latch. Do not use oil-based lubricants, which can attract dust and debris.
- Cargols de tensió: Periodically check and tighten any loose mounting screws to ensure the handle remains securely attached to the door.
6. Solució De Problemes
If you encounter issues with your door handle, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El mànec està solt | Els cargols de muntatge estan solts. | Tighten the mounting screws on both sides of the handle. |
| Latch bolt does not retract smoothly | Acumulació de brutícia o manca de lubricació. | Clean the latch mechanism and apply a silicone-based lubricant. |
| La porta no es tanca correctament | Strike plate misalignment or loose strike plate. | Adjust the strike plate position on the door frame or tighten its screws. |
| El mànec és rígid o difícil de girar | Internal mechanism friction or misalignment. | Ensure all components are correctly aligned during installation. If problem persists, re-check installation steps or contact support. |
7. Especificacions
Detailed specifications for the Ulecoce H200-B Front Door Handle:
- Marca: Ulecoce
- Número de model: H200-B
- Material: Zinc Alloy, Brass
- Color: Negre mat
- Dimensions del producte: 6.26" de llargada x 2.13" d'amplada
- Pes de l'article: 0.43 quilograms (aproximadament 15.2 unces)
- Acabat exterior: Zinc
- Característica especial: Fàcil d'instal·lar
- Tipus de bloqueig: Passage (Keyless)
- Orientació de la mà: Ambidextre (reversible)
- Adjustable Latch: 2-3/8" or 2-3/4" (60mm or 70mm) backset
- Compatibilitat amb el gruix de la porta: 1.38" (35 mm) a 1.78" (45 mm)
- Components inclosos: Door handles, latch, screws, strike plate, screwdriver, plastic cover, installation instructions.
8. Garantia i Suport
Ulecoce is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, Ulecoce products are generally backed by a commitment to quality and customer support.
For technical assistance, troubleshooting beyond this guide, or inquiries regarding warranty claims, please contact Ulecoce customer service through the retailer where the product was purchased or visit the official Ulecoce weblloc per obtenir informació de contacte d'assistència.
