Manual d'usuari del mini controlador de joc Bluetooth ShanWan de la mida d'un clauer

1. Introducció

This manual provides comprehensive instructions for the ShanWan Bluetooth Gamepad Keychain Sized Mini Controller. Please read this manual carefully before use to ensure proper operation and to maximize your gaming experience. This device is designed for use with Android phones and tablets, PS4/Slim/Pro, iPhone, iPad, Nintendo Switch, and Windows PCs.

2. Producte acabatview

The ShanWan Mini Controller is a compact and versatile gamepad designed for portability and multi-platform compatibility. It features 17 buttons and a D-Pad, all within a keychain-sized form factor.

Figure 2.1: ShanWan Mini Bluetooth Gamepad, showcasinel seu disseny compacte i la disposició dels botons.

Figure 2.2: Dimensions of the ShanWan Mini Bluetooth Gamepad, measuring 2.83 inches in length, 1.57 inches in width, and 0.55 inches in thickness.

2.1 Contingut del paquet

• ShanWan Bluetooth Gamepad Keychain Sized Mini Controller
• Cable de càrrega USB
• Manual d'usuari (aquest document)

3. Especificacions

4. Configuració i emparellament

4.1 Càrrega del controlador

Before first use, fully charge the controller. Connect the provided USB charging cable to the controller's charging port and the other end to a USB power source (e.g., computer, USB wall adapter). The charging indicator light will show the charging status and turn off when fully charged. A full charge typically takes about 1 hour.

4.2 Engegada/apagada

• Encès: Press and hold the Home button (usually the button with a house icon) for a few seconds until the indicator lights turn on.
• Apagar: Press and hold the Home button for approximately 5 seconds until the indicator lights turn off. The controller will also automatically power off after a period of inactivity to conserve battery.

4.3 Bluetooth Pairing Instructions

The controller supports multiple platforms. Ensure the mode switch on the controller is set to the correct platform before pairing.

Figure 4.1: The mode switch on the controller, allowing selection between X (Xbox/PC), S (Switch), and P (PlayStation) modes for multi-device compatibility.

4.3.1 Pairing with Nintendo Switch

1. On your Nintendo Switch, navigate to the HOME Menu.
2. Select "Controllers" then "Change Grip/Order".
3. Set the controller's mode switch to "S" (Switch mode).
4. Press and hold the "Pair" button on the controller until the indicator lights begin to blink rapidly.
5. The Switch will detect the controller. Once paired, the LED indicator on the controller will remain solid, and the controller will be displayed on the Switch host screen.

Figure 4.2: Visual guide for connecting the controller to a Nintendo Switch, showing menu navigation and the pairing button location.

4.3.2 Pairing with Android/iOS Devices

1. Set the controller's mode switch to the appropriate mode (e.g., "X" for Android, or a specific iOS mode if available, refer to device-specific instructions).
2. On your Android or iOS device, go to Bluetooth settings.
3. Assegureu-vos que el Bluetooth estigui habilitat.
4. Press and hold the "Pair" button on the controller until the indicator lights blink rapidly.
5. Select "ShanWan Controller" or a similar name from the list of available devices on your phone/tablet.
6. Un cop connectat, l'indicador lluminós del controlador s'il·luminarà fixament.

4.3.3 Pairing with PS4

1. Set the controller's mode switch to "P" (PlayStation mode).
2. On your PS4, go to "Settings" > "Devices" > "Bluetooth Devices".
3. Press and hold the "Pair" button on the controller until the indicator lights blink rapidly.
4. Select "ShanWan Controller" or a similar name from the list of available devices on your PS4.
5. Un cop connectat, l'indicador lluminós del controlador s'il·luminarà fixament.

4.3.4 Pairing with Windows PC

1. Set the controller's mode switch to "X" (Xbox/PC mode).
2. On your Windows PC, go to "Settings" > "Devices" > "Bluetooth & other devices".
3. Ensure Bluetooth is enabled and click "Add Bluetooth or other device".
4. Select "Bluetooth".
5. Press and hold the "Pair" button on the controller until the indicator lights blink rapidly.
6. Select "ShanWan Controller" or a similar name from the list of available devices.
7. Un cop connectat, l'indicador lluminós del controlador s'il·luminarà fixament.

5. Instruccions de funcionament

5.1 Funcions dels botons

The controller features standard gamepad buttons. Their specific function may vary slightly depending on the platform and game.

• D-Pad: Entrada direccional.
• Botons A, B, X, Y: Botons d'acció.
• Botons L1, L2, R1, R2: Botons d'espatlla i de gallet.
• Botó d'inici: Power on/off, return to home screen (platform dependent).
• Botons més (+) / menys (-): Start/Select or menu functions.
• Botó de parella: Inicia l'emparellament Bluetooth.

5.2 Característiques especials

5.2.1 One-Button Wake-Up Function

After initial pairing, you can wake up the controller and reconnect it to the last paired device by simply pressing the Home button. This feature allows for quick resumption of gameplay.

Figure 5.1: Illustration of the one-button wake-up function, highlighting the Home button used to quickly reactivate the controller.

5.2.2 Gyroscope Motion Sensing

The controller is equipped with a gyroscope for motion sensing effects, providing an immersive gaming experience in supported games, particularly on platforms like Nintendo Switch.

Figure 5.2: Visual representation of the gyroscope motion sensing effect, showing the controller being tilted to influence in-game actions.

5.2.3 Firmware Upgrade for Switch 2 and Custom Buttons

For compatibility with Switch 2 and to customize button mappings, it may be necessary to download the official Gamepad software and upgrade the controller's firmware. Refer to the manufacturer's official weblloc web per obtenir el programari i les instruccions més recents.

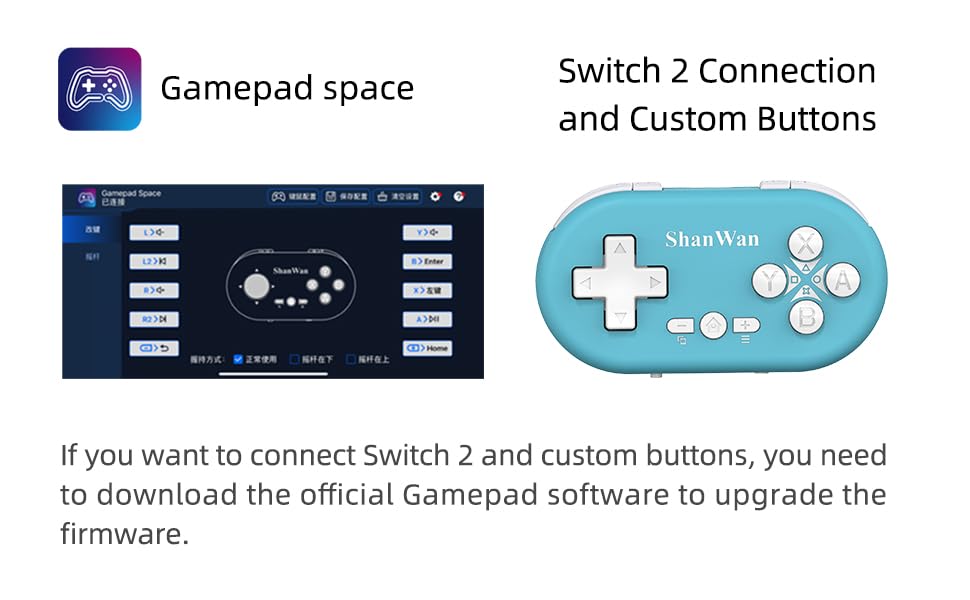

Figure 5.3: Screenshot illustrating the "Gamepad Space" software interface, used for firmware upgrades and custom button configurations, particularly for Switch 2 compatibility.

6. Manteniment

• Neteja: Feu servir un drap suau i sec per netejar el controlador. Eviteu utilitzar productes químics agressius o materials abrasius.
• Emmagatzematge: Guardeu el controlador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el controlador regularment, fins i tot si no l'utilitzeu durant períodes prolongats.
• Evitar l'impacte: Do not drop or subject the controller to strong impacts, as this may damage internal components.

7. Solució De Problemes

7.1 Controller Does Not Power On

• Ensure the controller is fully charged. Connect it to a power source and allow it to charge for at least 15 minutes before attempting to power on again.
• Verify that the charging cable and power source are functioning correctly.

7.2 Unable to Pair Controller

• Ensure the controller is in pairing mode (indicator lights blinking rapidly).
• Check that the mode switch on the controller is set to the correct platform (S for Switch, X for Android/Windows, P for PS4).
• Make sure Bluetooth is enabled on your device (Switch, phone, PC, PS4).
• Move the controller closer to the device you are trying to pair with.
• Remove any previous pairings of the controller from your device's Bluetooth settings and try pairing again.
• Reinicieu tant el controlador com el dispositiu.

7.3 Retard d'entrada o desconnexions

• Ensure the controller is within the 10-meter wireless range of your device.
• Minimitzar les interferències d'altres dispositius sense fil (encaminadors Wi-Fi, altres dispositius Bluetooth).
• Ensure the controller is fully charged. Low battery can affect connection stability.
• Try re-pairing the controller with your device.
• Update the controller's firmware if available (refer to Section 5.2.3).

7.4 Buttons Not Responding Correctly

• Test the controller on a different game or application to determine if the issue is game-specific.
• Assegureu-vos que el firmware del controlador estigui actualitzat.
• Perform a factory reset if possible (refer to manufacturer's support for specific instructions, as this model may not have a dedicated reset button).

8. Garantia i Suport

ShanWan products are designed for reliability and performance. For warranty information, technical support, or further assistance, please visit the official ShanWan weblloc web o poseu-vos en contacte amb el seu servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

Official ShanWan Store: ShanWan Store on Amazon

9. Informació addicional

The ShanWan Mini Controller's compact and lightweight design makes it highly portable, allowing users to carry it easily and enjoy gaming on the go.

Figure 9.1: The ShanWan Mini Bluetooth Gamepad attached to a backpack, illustrating its keychain-sized portability and ease of transport.

Figure 9.2: The ShanWan Mini Bluetooth Gamepad being used outdoors with a portable screen, demonstrating its ease of transport and use anywhere.
