Manual d'usuari del kit d'aerògraf InoKraft amb compressor d'1/6 HP

1. Introducció

This manual provides detailed instructions for the safe and effective use of your InoKraft Airbrush Kit. This kit is designed for various painting applications, offering precision and consistent performance for both beginners and experienced users. Please read this manual thoroughly before operating the device.

2. Contingut del paquet

Your InoKraft Airbrush Kit includes the following components:

• 1/6 HP Quiet Air Compressor (120V 60Hz, 34 PSI output)
• Gravity Feed Dual-Action Airbrush
• Three Replaceable Nozzle Sizes: 0.2 mm, 0.3 mm, 0.5 mm
• Mànega d'aire
• Porta aerògraf
• Separador oli-aigua
• Complete Cleaning Kit (including cleaner, bent nozzle bottle, various brushes)
• Beginner-Friendly Guide with Quick Start-up Instructions and Practice Sheets
• Stable Suction Base
• Mànec portàtil
• 4 Colors Airbrush Paint Set (US only)

Figura 2.1: Mésview of the InoKraft Airbrush Kit components.

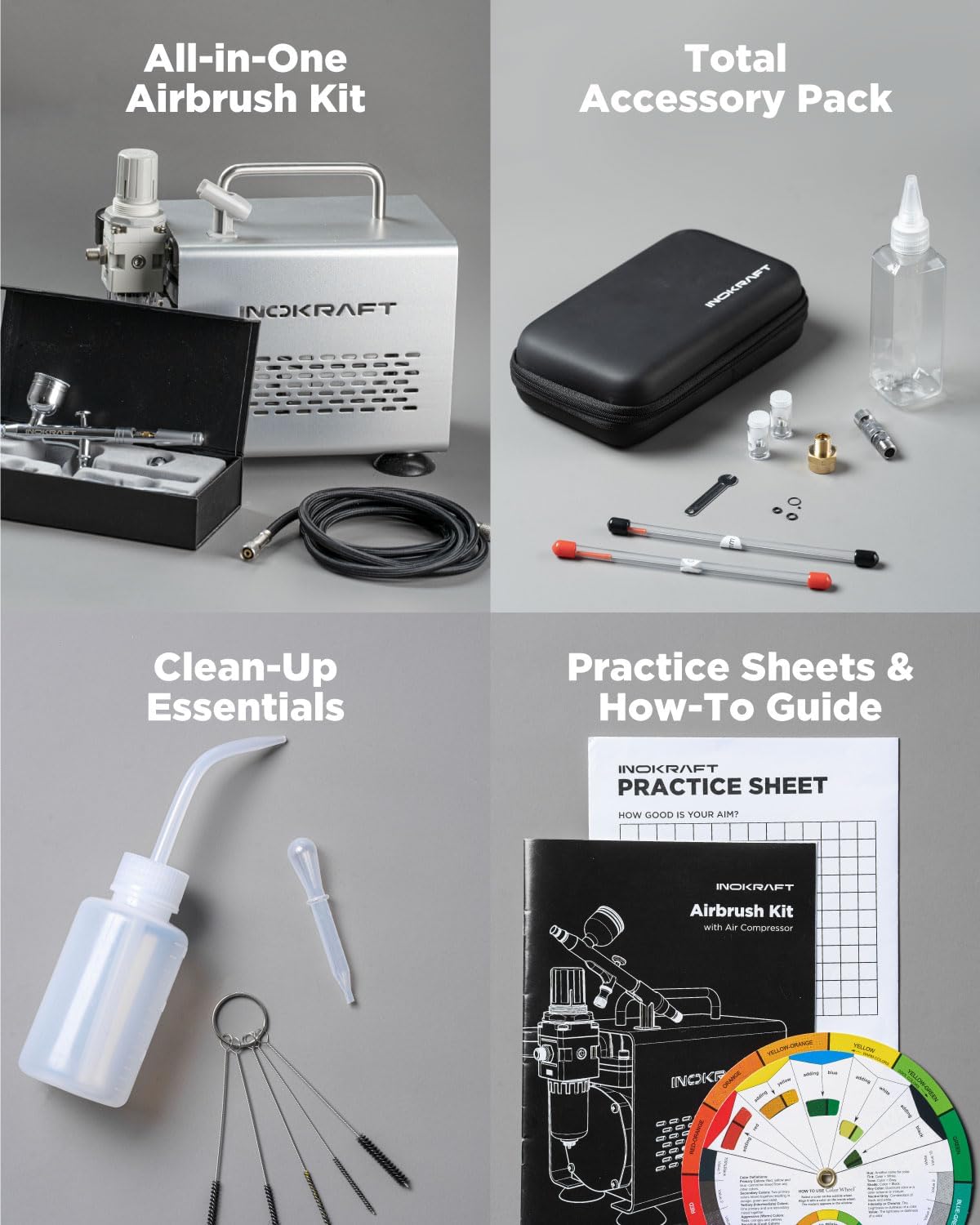

Figura 2.2: Detallada view of the kit's accessories, including the airbrush, compressor, cleaning tools, and instructional materials.

3. Instruccions de configuració

1. Desempaquetar components: Traieu amb cura tots els elements de l'embalatge i verifiqueu-los amb la llista de contingut del paquet.
2. Posicioneu el compressor: Place the air compressor on a stable, flat surface. The stable suction base helps secure the compressor during operation.
3. Attach Oil-Water Separator: Connect the oil-water separator to the air outlet of the compressor. Ensure a secure fit to prevent air leaks.
4. Connectar la mànega d'aire: Attach one end of the air hose to the oil-water separator and the other end to the airbrush. Hand-tighten connections to avoid damage.
5. Install Airbrush Nozzle: Select the desired nozzle size (0.2 mm for fine detail, 0.3 mm for general use, 0.5 mm for larger areas) and install it onto the airbrush. Refer to the beginner-friendly guide for detailed instructions on nozzle replacement.
6. Connexió d'alimentació: Plug the compressor's power cord into a standard 120V 60Hz electrical outlet.

Figure 3.1: Proper connection of the airbrush to the compressor via the air hose.

4. Instruccions de funcionament

4.1. Preparing for Painting

1. Preparació de la pintura: Thin your airbrush paint to the appropriate consistency. The beginner-friendly guide provides recommendations.
2. Fill Paint Cup: Pour the prepared paint into the gravity feed cup of the airbrush.
3. Ajustar la pressió de l'aire: Turn on the compressor. Use the adjustable pressure valve to set the desired air pressure. The compressor provides a steady 34 PSI output.

4.2. Airbrush Operation

The InoKraft airbrush features a dual-action mechanism, allowing independent control of air and paint flow.

• Control d'aire: Press down on the trigger to release air.
• Paint Control: Pull back on the trigger to release paint. The further you pull back, the more paint is released.
• Fine Detail: Use the 0.2 mm nozzle for intricate lines and small details.
• Ús general: The 0.3 mm nozzle is suitable for most common airbrushing tasks.
• Larger Areas: Switch to the 0.5 mm nozzle for broader coverage and faster application.

Figure 4.1: Demonstrating the use of 0.2mm, 0.3mm, and 0.5mm nozzles for various painting tasks.

Figure 4.2: Illustration of the dual-action airbrush mechanism for precise control of air and paint flow.

5. Neteja i Manteniment

Proper cleaning and maintenance are crucial for the longevity and performance of your airbrush kit.

5.1. Quick Cleaning (Between Colors)

To quickly change colors or prevent paint from drying in the airbrush during a session:

1. Buideu la pintura restant del recipient.
2. Add a small amount of appropriate airbrush cleaner or water to the paint cup.
3. Spray the cleaner through the airbrush onto a paper towel or into a cleaning pot until the spray runs clear. The bent nozzle bottle can assist in flushing the cup.

5.2. Deep Cleaning (After Use)

After each painting session, perform a thorough deep clean:

1. Disconnect the airbrush from the air hose.
2. Disassemble the airbrush components (nozzle, needle, paint cup, etc.). Refer to the beginner-friendly guide for detailed disassembly instructions.
3. Use the provided cleaning brushes and cleaner to meticulously clean all paint-contacting parts. Pay special attention to the nozzle and needle.
4. Rinse all components with clean water.
5. Deixeu que totes les peces s'assequin completament abans de tornar a muntar.

Figure 5.1: Steps for quick cleaning between colors and deep cleaning after use, utilizing the provided cleaning tools.

6. Solució De Problemes

If you encounter issues with your InoKraft Airbrush Kit, refer to the following common problems and solutions:

7. Especificacions

• Marca: InoKraft
• Nom del model: Airbrush Kit Premium Kit
• Tipus de compressor: 1/6 HP, Oil-free, Quiet
• Vol. Operatiutage: 120V 60Hz
• Pressió màxima de funcionament: 34 PSI
• Nivell de soroll: Menys de 47 dB
• Tipus d'aerògraf: Gravity Feed, Dual-Action
• Mides de broquet: 0.2 mm, 0.3 mm, 0.5 mm
• Pes de l'article: Aproximadament 10.83 lliures (4.92 quilograms)
• Dimensions del paquet: 12.52 x 12.13 x 7.8 polzades
• Característiques especials: Silent Operation, Adjustable Pressure Valve, Airbrush Holder, Oil-Water Separator

Figure 7.1: The InoKraft air compressor, highlighting its quiet operation (under 47 dB) and steady 34 PSI output.

8. Garantia i Suport

The InoKraft Airbrush Kit comes with a garantia d'un any, garantint la tranquil·litat pel que fa a la qualitat i el rendiment del producte.

Per a qualsevol pregunta, assistència tècnica o reclamació de garantia, poseu-vos en contacte amb el nostre equip d'atenció al client:

• Correu electrònic: support@inokraft.com

Additional resources, including videos and guides, may be available online.

Figure 8.1: Scan this QR code for quick access to InoKraft support and resources.
