1. Introducció
Thank you for choosing the DEEPOWER K100 Foldable Electric Bike. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience.
Informació important de seguretat
Your safety is paramount. Always adhere to local traffic laws and regulations. Failure to follow these instructions may result in serious injury or property damage.
- Always wear a helmet that meets safety standards.
- Feu una inspecció prèvia a la conducció abans de cada ús, comprovant els frens, els pneumàtics i el nivell de la bateria.
- No supereu el pes màxim recomanat de 264 lliures.
- Eviteu conduir en condicions meteorològiques adverses, com ara pluja intensa o neu.
- Sigues conscient del teu entorn i dels altres usuaris de la carretera.
- Do not modify the bike's electrical system or components.
Contingut del paquet
En desempaquetar, comproveu que hi hagi tots els elements:
- DEEPOWER K100 Foldable Electric Bike (K300 10ah model)
- Carregador de bateria
- Kit d'eines
- Manual d'usuari (aquest document)
2. Producte acabatview
Característiques clau
- 400W Powerful Motor & 48V 10Ah Battery: Provides 20-35 miles range (PAS mode) and a top speed of 20MPH.
- Comfortable Shock Absorption Design: Features four shock-absorbing zones for a smooth ride on various terrains.
- Smart Riding Features: 3-speed adjustment, LED headlight, taillight, turn signals, and USB cell phone holder.
- Durable Frame Design: Made of high carbon alloy, with a soft, elastic high-density sponge seat cushion.

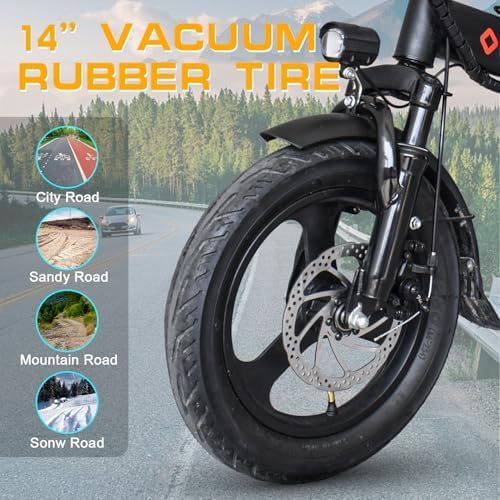

- 14" Vacuum Tires: Thickened, anti-skid, wear-resistant tires for strong grip and improved safety.
- Disseny plegable: Quick folding for easy transport and storage.
Identificació de components
Familiarize yourself with the main components of your DEEPOWER K100 electric bike:
- Manillar: Includes grips, brake levers, display, and speed controls.
- Seient: Adjustable height for rider comfort.
- Rodes: 14-inch vacuum tires for various terrains.
- Motor: 400W rear hub motor.
- Bateria: Removable 48V 10Ah lithium battery.
- Frens: Front and rear mechanical disc brakes.
- Sistema d'il·luminació: LED bright headlight, taillight, and turn signals.
- Mecanisme de plegat: Latches and hinges for compact folding.
3. Configuració
Desembalatge
Carefully remove the electric bike and all components from the packaging. Retain the packaging materials for future storage or transport.
Assemblea
The DEEPOWER K100 is largely pre-assembled. Minor adjustments may be required.
- Desplega la bicicleta: Release the frame latch and unfold the bike until it locks into place. Ensure all safety latches are securely fastened.
- Ajustar l'alçada del manillar: Loosen the quick-release lever on the handlebar stem, adjust to a comfortable height, and secure the lever.
- Ajustar l'alçada del seient: Loosen the quick-release lever on the seat post, adjust the seat to a height where your feet can comfortably touch the ground when stopped, and secure the lever.
- Check Pedals: Ensure pedals are securely tightened.
Càrrega inicial de la bateria
Abans del primer trajecte, carrega completament la bateria. La bateria es pot carregar mentre està instal·lada a la bicicleta o treta.
- Localitza el port de càrrega a la bateria o al quadre de la bicicleta.
- Connecteu el carregador al port de càrrega i, a continuació, endolleu-lo a una presa de corrent estàndard.
- El llum indicador del carregador normalment s'il·luminarà en vermell durant la càrrega i en verd quan estigui completament carregat.
- A full charge takes approximately 5-6 hours. Do not overcharge.
4. Instruccions de funcionament
Encès/Apagat
- Per encendre: Press and hold the power button on the display/controller until the screen illuminates.
- Per apagar: Premeu i manteniu premut el botó d'engegada de nou fins que la pantalla s'apagui.
Modes de conducció
The DEEPOWER K100 offers multiple riding modes:
- Mode d'assistència al pedaleig (PAS): The motor provides assistance as you pedal. Adjust the assist level using the controls on the handlebar.
- Mode elèctric pur: Feu servir l'accelerador per engegar el motor sense pedalar.
- Mode manual: Aneu amb bicicleta com una bicicleta tradicional sense assistència motoritzada.
Ajust de velocitat
The bike features 3 adjustable speed gears. Use the controls on the left handlebar to switch between speed settings.
Using Lights and Turn Signals
Activate the LED headlight and taillight for visibility, especially during low-light conditions. Use the integrated turn signals to indicate your direction to others.
Plegat i desplegament
The K100 is designed for quick folding and unfolding for portability and storage.
- Per plegar: Ensure the bike is powered off. Release the handlebar and seat post quick-release levers and lower them. Locate the main frame folding latch, release it, and carefully fold the frame in half. Secure any safety clips.
- Per desplegar: Reverse the folding process. Ensure all latches and quick-release levers are securely fastened before riding.
5. Manteniment
Un manteniment regular garanteix la longevitat i el funcionament segur de la teva bicicleta elèctrica.
Comprovacions periòdiques
- Frens: Check brake lever tension and pad wear regularly. Adjust or replace as needed.
- Pneumàtics: Maintain proper tire pressure as indicated on the tire sidewall. Inspect for wear, punctures, or damage.
- Cargols i elements de fixació: Periodically check all bolts, nuts, and quick-release levers to ensure they are tight and secure.
- cables: Inspect brake and electrical cables for fraying or damage.
Cura de la bateria
- Carregueu la bateria completament després de cada ús, sobretot si la guardareu durant un període prolongat.
- Eviteu esgotar completament la bateria.
- Guardeu la bateria en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- If storing for a long time, charge the battery to about 50-70% every 1-2 months.
Neteja
Neteja la teva bicicleta regularment amb anuncisamp cloth and mild soap. Avoid using high-pressure water jets directly on electrical components.
Emmagatzematge
When not in use, store the bike in a dry, sheltered area to protect it from the elements. If storing for an extended period, consider removing the battery.
6. Solució De Problemes
This section addresses common issues you might encounter with your DEEPOWER K100 electric bike.
| Problema | Causa possible | Solució |
|---|---|---|
| La bicicleta no s'encén | La bateria no està carregada o no està ben col·locada. | Charge the battery fully. Ensure the battery is securely inserted into its compartment. |
| Motor not engaging/providing assist | Low battery, assist level set to zero, or brake levers engaged. | Check battery level. Increase assist level on the display. Ensure brake levers are fully released. |
| Brakes feel weak or spongy | Brake pads worn or cable tension too loose. | Inspect brake pads for wear and replace if necessary. Adjust brake cable tension. |
| Els pneumàtics perden aire ràpidament | Puncture or valve stem issue. | Inspect tire for punctures and repair/replace tube if needed. Check valve stem for leaks. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact DEEPOWER customer support.

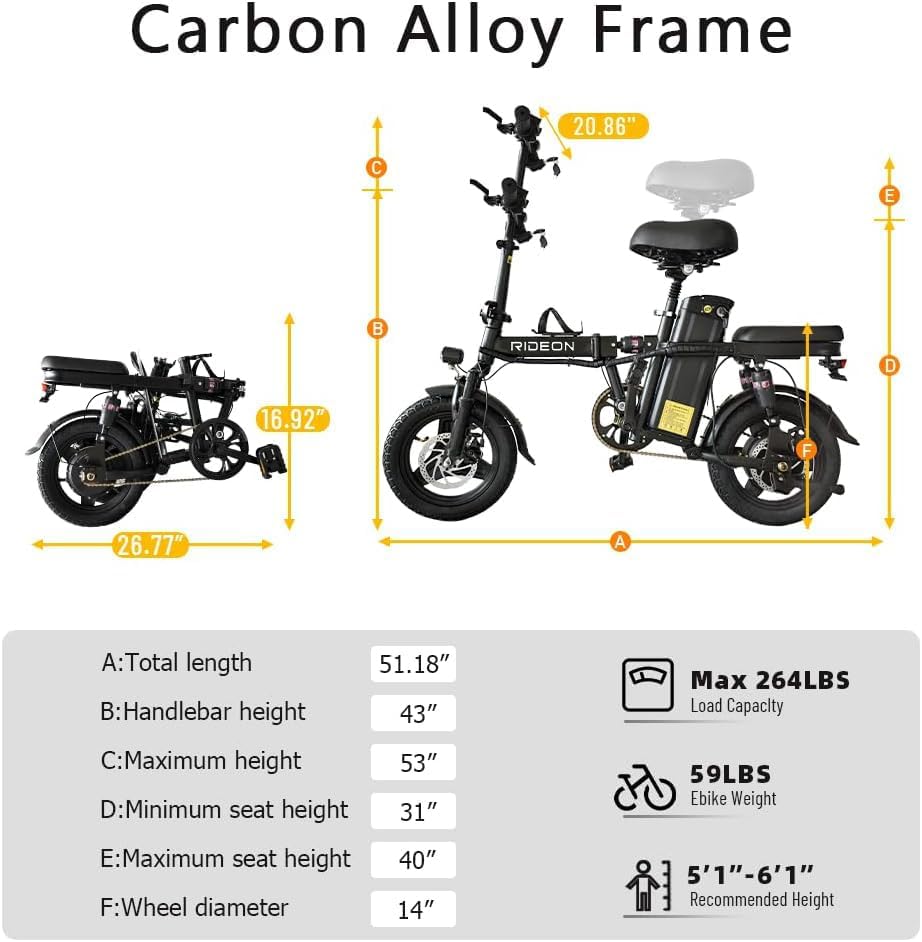

7. Especificacions tècniques
| Especificació | Detall |
|---|---|
| Nom del model | K300 10ah |
| Tipus de bicicleta | Folding Bike, Commuting Bike |
| Motor Wattage | 400W |
| Velocitat màxima | 20 MPH |
| Capacitat de la bateria | 48V 10Ah (840 Watt Hours) |
| Estimated Range (PAS) | 20-35 miles per charge |
| Temps de càrrega | 5-6 hores |
| Mida de la roda | 14 polzades |
| Material del marc | Acer d'alt carboni |
| Tipus de suspensió | Front (and additional shock absorption) |
| Estil de fre | Disc |
| Nombre de velocitats | 3 |
| Recomanació de pes màxim | 264 lliures |
| Alçada recomanada del genet | 1,62 m - 1,93 m |
| Pes de la bicicleta elèctrica | 59 lliures |
8. Garantia i Suport
Informació de la garantia
The DEEPOWER K100 Foldable Electric Bike comes with a limited warranty of 90 days from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear.
Atenció al client
For technical assistance, warranty claims, or any questions regarding your DEEPOWER K100 electric bike, please contact DEEPOWER customer support. Have your purchase details and model information (K300 10ah) ready when contacting support.
DEEPOWER STORE
Please refer to your purchase documentation or the DEEPOWER official weblloc web per obtenir la informació de contacte més actualitzada.
