1. Introducció
Thank you for choosing the WELLFOR 36" x 30" LED Medicine Cabinet. This manual provides essential information for the safe installation, operation, and maintenance of your new medicine cabinet. Please read these instructions thoroughly before installation and retain them for future reference.

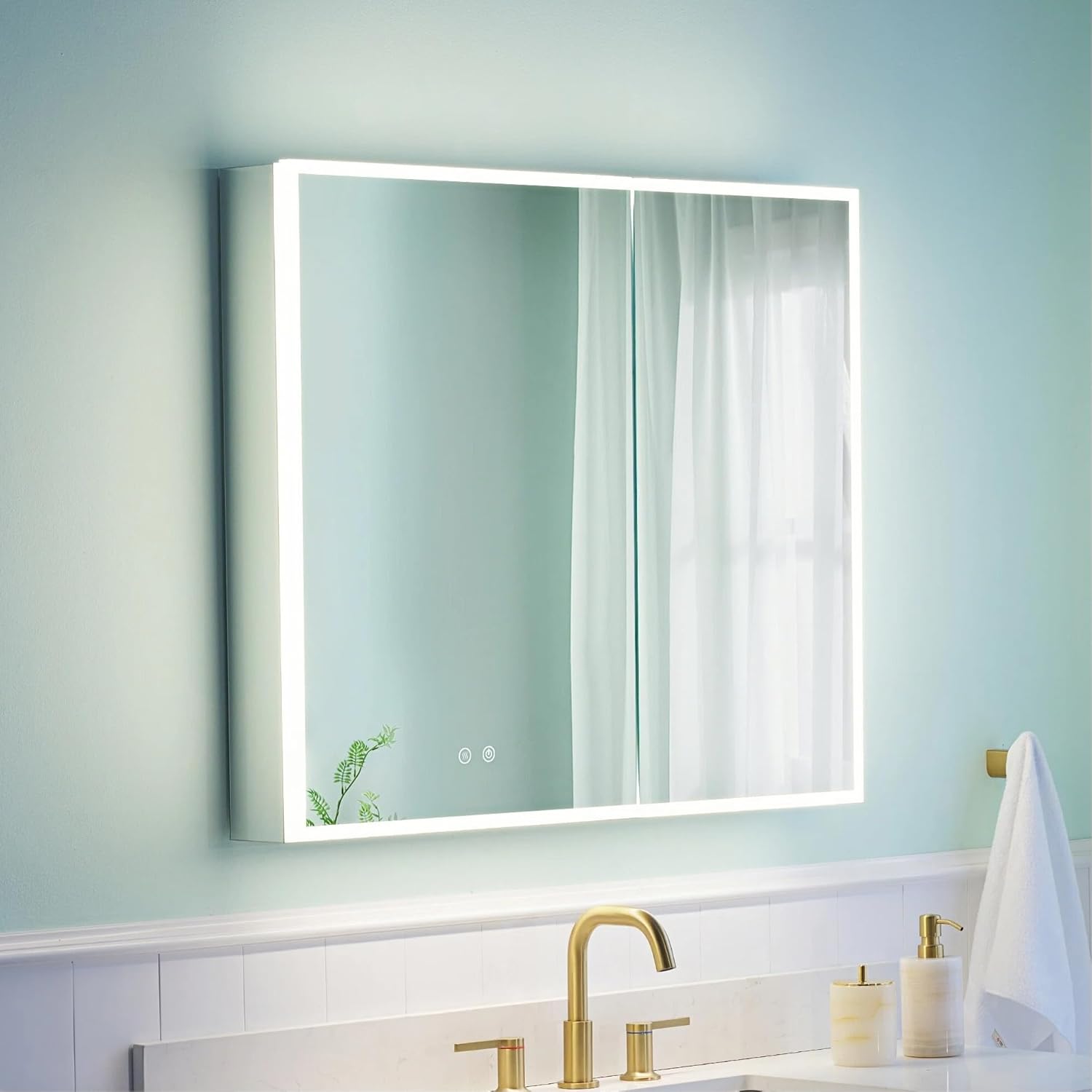

Figure 1: WELLFOR 36" x 30" LED Medicine Cabinet
2. Informació important de seguretat
For safe installation and operation, please observe the following precautions:
- Ensure the wall can support the cabinet's weight. Professional installation is recommended.
- If the product has electrical components, follow all electrical safety guidelines. Disconnect power at the circuit breaker before installation or maintenance.
- During installation, use appropriate safety gear, including eye protection and gloves.
- Always read and follow the manufacturer's instructions for use and maintenance.
- This cabinet is ETL-listed for the US and Canada, conforms to UL Std. 962, certified to CSA Std. C22.2 No. 250.0, and features waterproof IP44 protection.
3. Característiques del producte
The WELLFOR LED Medicine Cabinet is designed with several advanced features for enhanced functionality and convenience:
- 3X Magnifier Glass: Located inside the cabinet for precise tasks.
- 3-Mode Dimmable Lights & Memory Function: Adjustable color temperature (2700K to 6500K) and brightness (10%-100%) with memory recall.
- Soft-Close Door Hinges: Austria BLUM 3-dimension adjustable hinges for smooth, quiet operation and 110-degree opening.
- Adjustable Tempered-Glass Shelves: Three 8mm thick shelves, each supporting up to 11 lbs.
- Funció antiboira: Large anti-fog pad with separate control and 60-minute automatic shut-off for safety and energy efficiency.
- Interior Sensor LED Light: UL-certified interior LED strip lights activate automatically with door motion sensors.
- USB Port & Outlet: Integrat 15Amp AC outlet & 4.2Amp Type-C USB port for convenient charging.
- Long-Lasting LED Lighting: Integrated LED bulbs with 50,000 hours lifespan, 2200 lumens, and CRI 90+.
- Opcions de muntatge: Compatible with both wall-mount and recess mount installations.
Figura 2: Característiques clau del producte
Video 1: Product Introduction and Features (Note: This video may feature a different size variant, but the features are generally applicable.)
4. Configuració i instal·lació
The WELLFOR LED Medicine Cabinet offers versatile installation options: surface mount or recessed mount.
4.1 Opcions de muntatge

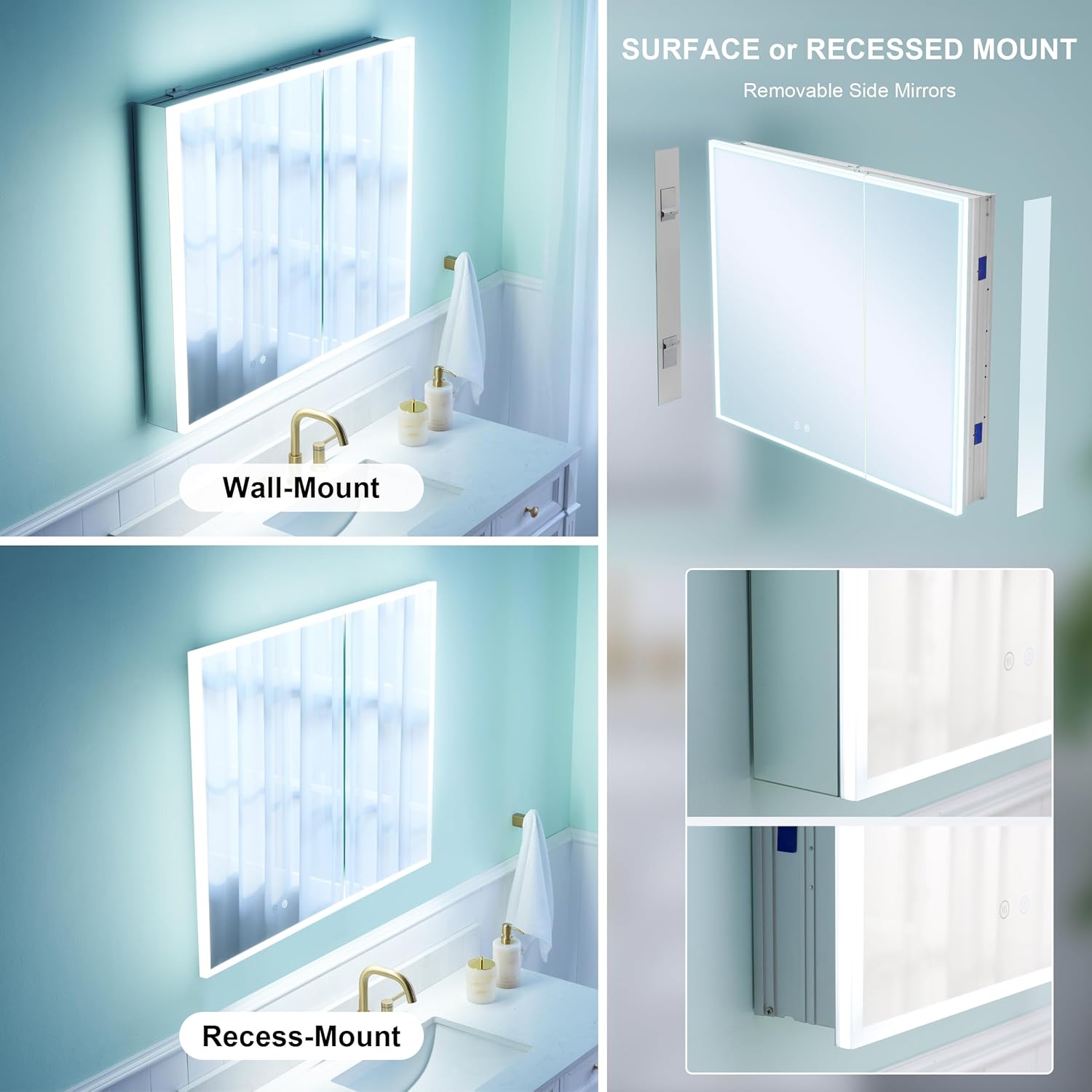

Figure 3: Surface Mount and Recessed Mount Installation
4.2 Installation Dimensions (for 36" x 30" model)
| Tipus de muntatge | Alçada (polzades) | Amplada (polzades) | Profunditat (in) |
|---|---|---|---|
| Surface Mount Size | 36 | 30 | 4-5/8 |
| Recess Rough-In Size | 35-1/4 | 29-1/4 | 3-3/4 |
Note: Please use rough-in size for recess mounting installation (wall cut-out). All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
4.3 Opcions de cablejat
The cabinet can be connected via a standard plug or hardwired directly to your electrical system. Consult a qualified electrician for hardwiring to ensure compliance with local electrical codes.
Video 2: Easy Installation Guide (Note: This video may feature a different size variant, but the installation steps are generally applicable.)
5. Instruccions de funcionament
Your WELLFOR LED Medicine Cabinet features intuitive touch controls for various functions.
Control d'il·luminació LED 5.1
The mirror features a touch button to control the LED lights. Short press to turn on/off. Long press to adjust color temperature (2700K-6500K) and brightness (10%-100%). The memory function will recall your last setting.
Figure 4: LED Light Color and Brightness Adjustment
Video 3: LED Dimmable Function Demonstration (Note: This video may feature a different size variant, but the functionality is the same.)
5.2 Funció antiboira
Activate the anti-fog function via its dedicated touch button. It will automatically shut off after 60 minutes to conserve energy.
Figure 5: Anti-Fog Function
5.3 Interior Sensor Light & Charging Ports
The interior LED lights automatically turn on when the cabinet doors are opened. Utilize the integrated 15Amp AC outlet and 4.2Amp Type-C USB port for charging devices.
Figure 6: Interior Sensor Light and Charging Ports
Figure 7: Charging Port Usage Examples
6. Manteniment
To ensure the longevity and optimal performance of your medicine cabinet, follow these maintenance guidelines:
- Clean the mirror surfaces with a soft, damp cloth and a mild, non-abrasive glass cleaner.
- Avoid using harsh chemicals or abrasive materials that could damage the mirror or frame finish.
- Regularly check all electrical connections and components for any signs of wear or damage. If any issues are found, disconnect power and consult a qualified technician.
- Ensure the cabinet doors operate smoothly. The BLUM soft-close hinges are adjustable if needed.
- The anodized aluminum frame is moisture and rust resistant, requiring minimal maintenance beyond regular cleaning.
Figure 8: Anodized Aluminum Frame for Durability
7. Solució De Problemes
If you encounter any issues with your WELLFOR LED Medicine Cabinet, please refer to the following common troubleshooting steps:
- Els llums no s'encenen: Check the power connection (plug or hardwiring) and ensure the circuit breaker is on. Verify the touch sensor is clean and functioning.
- Anti-fog not working: Ensure the anti-fog function is activated via its touch button. Allow a few minutes for the defogger to heat up.
- Doors not closing smoothly: Inspect the soft-close hinges for any obstructions. The BLUM hinges are adjustable; refer to the hinge manufacturer's guide for adjustment instructions if necessary.
- Outlets/USB ports not working: Check the main power supply to the cabinet. Ensure devices are properly plugged in.
For persistent issues or concerns not covered here, please contact WELLFOR customer support.
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | WELLFOR |
| Nom del model | Botiller il·luminat amb LED |
| Número de model de l'article | W8MCL3630 |
| Dimensions del producte | 4.6 "P x 36" W x 30" H |
| Pes de l'article | 39.3 lliures |
| Tipus de muntatge | Surface or Recessed |
| Nombre de prestatgeries | 3 (vidre temperat ajustable) |
| Límit de pes a la prestatgeria | 11 lliures per prestatge |
| Temperatura de color clar | 2700K to 6500K (Dimmable) |
| Vida útil del LED | 50,000 hores |
| Lluminositat | 2200 lúmens |
| CRI | 90+ |
| Lupa | 3X Magnifier Glass (Interior) |
| Preses de corrent | 15Amp Presa de corrent altern |
| Ports USB | 4.2Amp Port USB tipus C |
| Certificacions | ETL-Listed (US & Canada), UL Std. 962, CSA Std. C22.2 No. 250.0, IP44 |
| Material del marc | Alumini anoditzat |
| Estil de la porta | Mirrored (Double Doors) |
9. Garantia i Suport
For warranty information, product support, or to purchase replacement parts, please visit the official WELLFOR website or contact WELLFOR customer service directly. Please have your model number (W8MCL3630) and date of purchase available when contacting support.
Podeu trobar més informació i dades de contacte a WELLFOR Store on Amazon.
