Moni Rio 2-in-1 Combi Stroller User Manual

Introducció

This manual provides comprehensive instructions for the safe and proper use, assembly, and maintenance of your Moni Rio 2-in-1 Combi Stroller. Please read this manual thoroughly before initial use and retain it for future reference.

Informació important de seguretat

• Feu servir sempre l'arnès de 5 punts per assegurar el vostre fill.
• No deixeu mai el vostre fill sense vigilància al cotxet.
• Assegureu-vos que tots els dispositius de bloqueig estiguin enganxats abans d'utilitzar-los.
• Do not overload the storage basket (maximum 3 kg).
• This stroller is suitable for children from birth up to 22 kg.
• The bassinet mode is for infants 0-6 months. The sports seat mode is for children 6-48 months.
• No utilitzeu accessoris o recanvis diferents dels aprovats pel fabricant.
• Tingueu en compte el risc de llars de foc obertes i altres fonts de calor intensa, com ara llars de foc elèctriques, llars de foc de gas, etc., a prop del cotxet.
• Apliqueu sempre els frens quan aparqueu el cotxet.

Components del producte

Familiarize yourself with the main parts of your Moni Rio 2-in-1 Combi Stroller:

• Lightweight aluminum chassis
• Convertible seat unit (bassinet/sports seat)
• Wheels (front swivel, rear with connection brake)
• Mànec ajustable
• Arnés de 5 punts
• Adjustable sun visor
• Removable faux leather front bar
• Gran cistella de la compra
• Coberta del peu
• Mosquitera
• Bossa de bolquers
• Car seat adapters (for compatible Multi child seat, sold separately)

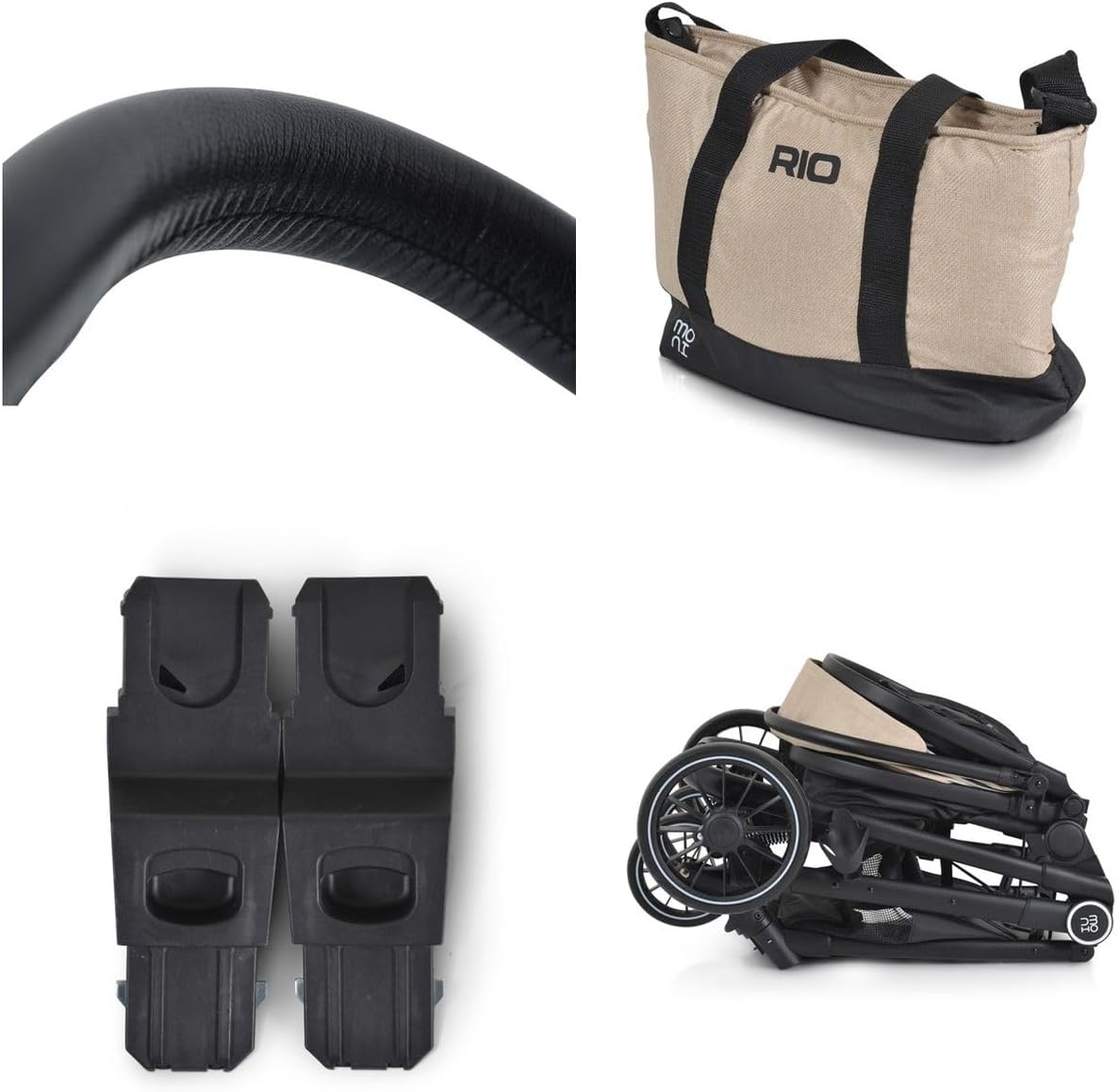

Image: Key components including the diaper bag, car seat adapters, the stroller in its folded configuration, and a close-up of the faux leather handle bar.

Muntatge i muntatge

1. Unfolding the Chassis:

   Release the folding lock. Lift the handle upwards until the chassis locks into place. Ensure both sides are securely locked.
2. Muntatge de les rodes:

   Insert the front wheels into their respective slots until they click. Attach the rear wheels by pressing the release button and sliding them onto the axle until they lock.

3. Mounting the Seat Unit:

   Align the seat unit with the chassis connectors. Press down firmly until it clicks into place. The seat unit can be mounted in either forward-facing or parent-facing directions.

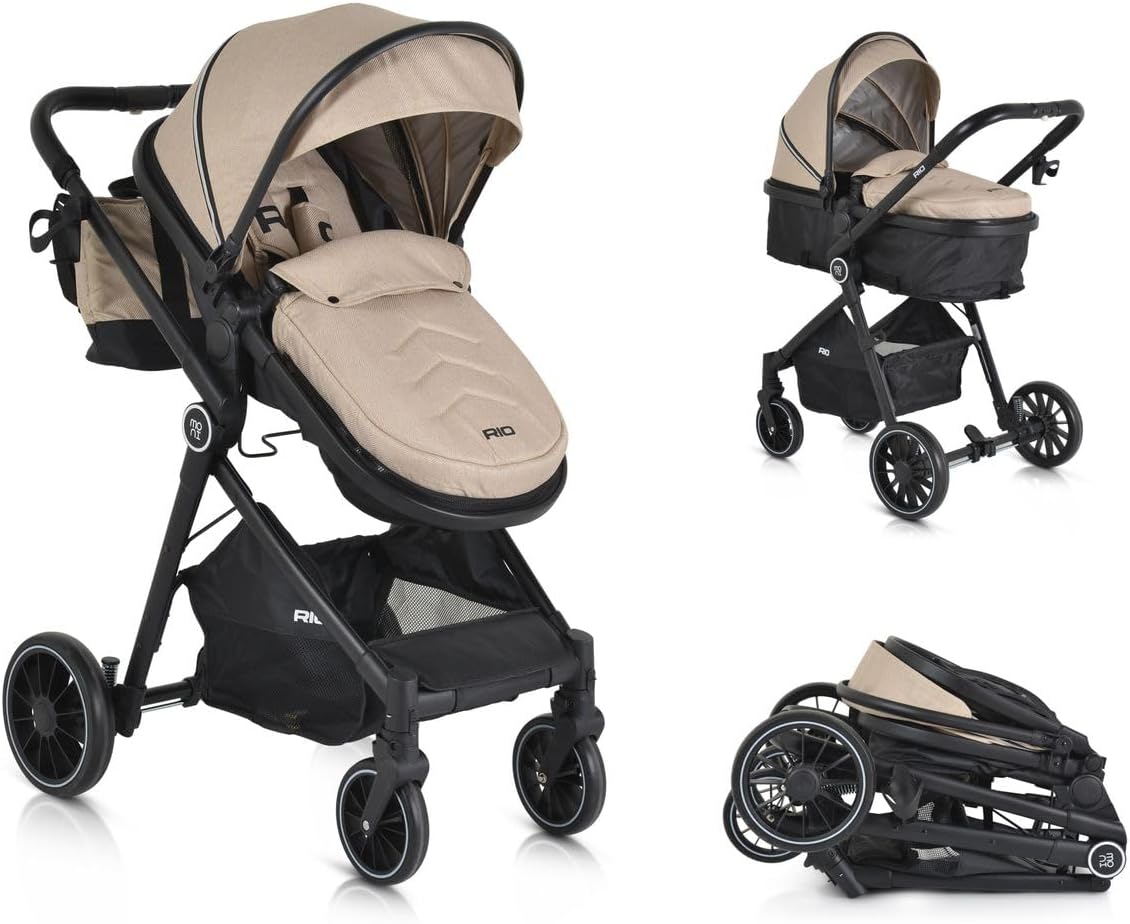

   Image: The Moni Rio stroller configured as a bassinet, ready for use, alongside a view of the stroller in its compact folded state.
4. Converting to Bassinet Mode (if not already):

   If the seat unit is in sports seat mode, adjust the backrest and footrest to a flat position. Secure the side straps to form the bassinet shape. Refer to the operating section for detailed conversion steps.

5. Accessoris de fixació:

   Attach the foot cover, mosquito net, and diaper bag as desired. The cup holder can be clipped onto the handle.

Instruccions de funcionament

1. Converting Between Bassinet and Sports Seat

The Moni Rio features a convertible seat unit that transforms from a bassinet for newborns to a sports seat for older children.

1. From Bassinet to Sports Seat:

   Release the side straps that hold the bassinet shape. Adjust the backrest to an upright or reclined position using the lever at the back of the seat. Adjust the footrest to the desired angle.



   Image: The Moni Rio stroller configured as a sports seat, showcasing its upright position and beige fabric.
2. From Sports Seat to Bassinet:

   Recline the backrest to the fully flat position. Adjust the footrest to be horizontal. Fasten the side straps to create the enclosed bassinet shape.



   Imatge: Múltiple views of the Moni Rio stroller in its bassinet configuration, demonstrating its spacious and enclosed design.

2. Adjusting the Seat Unit

• Ajust del respatller: Locate the lever at the back of the seat unit. Squeeze the lever and adjust the backrest to one of the three available positions.
• Ajust del reposapeus: Press the buttons on either side of the footrest and move it to the desired angle.
• Seient reversible: To reverse the seat direction, press the release buttons on both sides of the seat unit where it connects to the chassis. Lift the seat, turn it 180 degrees, and re-attach until it clicks securely.

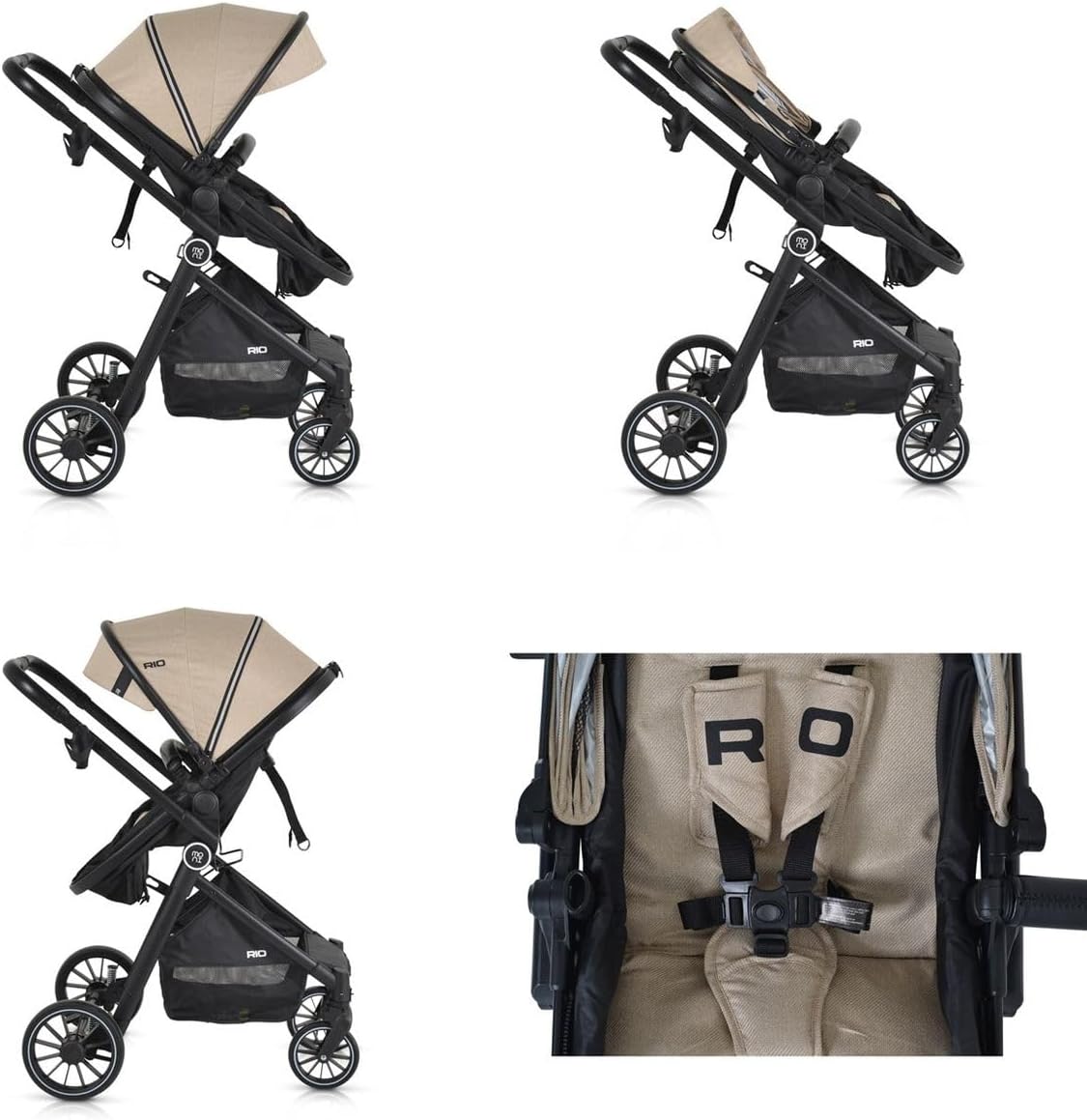

Image: The Moni Rio stroller seat shown in various recline positions, illustrating the adjustable backrest feature.

3. Using the 5-Point Harness

Assegureu sempre el vostre fill amb l'arnès de 5 punts.

1. Col·loca el teu fill al seient.
2. Passeu les corretges de les espatlles per sobre de les espatlles del vostre fill i les corretges de la cintura al voltant dels malucs.
3. Introduïu les dues pues de la sivella a la sivella central fins que facin clic.
4. Adjust the straps for a snug, secure fit, ensuring no more than two fingers can fit between the strap and your child.
5. Per desbloquejar-lo, premeu el botó de la sivella central.


Imatge: Una imatge detallada view of the 5-point safety harness system within the Moni Rio stroller seat, highlighting the buckle mechanism.

4. Plegar el cotxet

The Moni Rio stroller is designed for compact folding.

1. Ensure the seat unit is in the forward-facing position and the backrest is upright or slightly reclined.
2. Enganxeu el fre d'estacionament.
3. Locate the folding mechanisms on the handle or chassis (refer to specific markings on your stroller).
4. Follow the sequence to collapse the chassis and seat unit simultaneously until it locks into its folded position.


Image: The Moni Rio stroller shown in its compact, folded state, ready for storage or transport.

5. Using the Brakes

The stroller features a connection brake on the rear wheels.

• To engage the brake, press down firmly on the brake pedal located between the rear wheels.
• Per deixar anar el fre, aixequeu el pedal cap amunt.
• Always ensure the brake is fully engaged when the stroller is stationary.

6. Swivel Front Wheels

The front wheels can swivel 360 degrees for maneuverability or be locked for straight-line travel.

• To unlock for swivel, lift the lever above each front wheel.
• To lock for straight travel, push the lever down.

Manteniment i cura

• Neteja: Wipe down the fabric parts with a damp cloth. For stubborn stains, use a mild soap solution. Do not machine wash or tumble dry. The material composition is 100% Polyester.
• Xassís: Clean the aluminum chassis with a damp tela. Eviteu els netejadors abrasius.
• Rodes: Regularly check wheels for debris and clean as necessary. Lubricate moving parts with a silicone-based spray if they become stiff.
• Emmagatzematge: Guardeu el cotxet en un lloc sec, allunyat de la llum solar directa i de temperatures extremes.
• Inspeccions: Reviseu periòdicament tots els elements de fixació, reblons i connexions per assegurar-vos que estiguin ben fixats. Substituïu immediatament qualsevol peça desgastada o danyada.

Resolució de problemes

Especificacions del producte

• Model: Moni Rio 2-in-1 Combi Stroller
• Número de model: 110962
• Capacitat de càrrega màxima: 22 kg
• Recommended Age (Bassinet): 0-6 mesos
• Recommended Age (Sports Seat): 6-48 mesos
• Dimensions del producte (desplegat): 86 cm (L) x 59 cm (A) x 108 cm (Al)
• Mides plegades: 70 cm (L) x 65 cm (A) x 43 cm (Al)
• Pes de l'article: 8 kg
• Material del xassís: Alumini lleuger
• Material de la tela: 100% polièster
• Tipus d'arnès: 5 punts
• Material del pneumàtic: Rubber or rubber-like material
• Car Seat Compatibility: Yes (with Multi child seat, sold separately)

Garantia i Suport

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, spare parts, or any inquiries not covered in this manual, please contact Moni customer service through their official weblloc web o el vostre punt de compra.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.
