eRapta Magnetic Wireless Backup Camera (Model A1CT501(T)) - Instruction Manual

1. Introducció

This eRapta Magnetic Wireless Backup Camera (Model A1CT501(T)) is an accessory camera intended to expand the capabilities of your existing eRapta ACT501 wireless backup camera system. It is not a standalone product and requires the ACT501 monitor and receiver for operation. This manual will guide you through the setup, operation, and maintenance of this additional camera.

Nota important: This camera is designed to work exclusively with the eRapta ACT501 system. It is not compatible with other systems or for standalone use.

2. Producte acabatview

2.1. Contingut del paquet

• eRapta Magnetic Wireless Backup Camera (Model A1CT501(T))

Note: The main ACT501 system, including the monitor, is sold separately.

2.2. Característiques clau

• Bateria d'alta capacitat: Built-in 9600mAh rechargeable battery for extended operation without external power.
• Base magnètica: Strong magnetic base allows for quick and portable attachment to any metal surface.
• Senyal digital estable: Upgraded signal chip provides stable transmission up to 320ft in open areas and 40ft on vehicles.
• 1080P HD Image: Features a Sunrest sensor for clear 1080P high-definition video.
• Visió nocturna per infrarojos: Equipped with 16 infrared LED lights for clear color images in low-light conditions.
• IP69K Waterproof: Constructed with high-quality waterproof materials and a sealed charging port for durability in harsh weather.
• Ample 150° View Angle: Ofereix un ampli camp de view per minimitzar els punts cecs.
• Angle ajustable: Features an adjustable screw design for precise camera angle positioning.

2.3. Components de la càmera

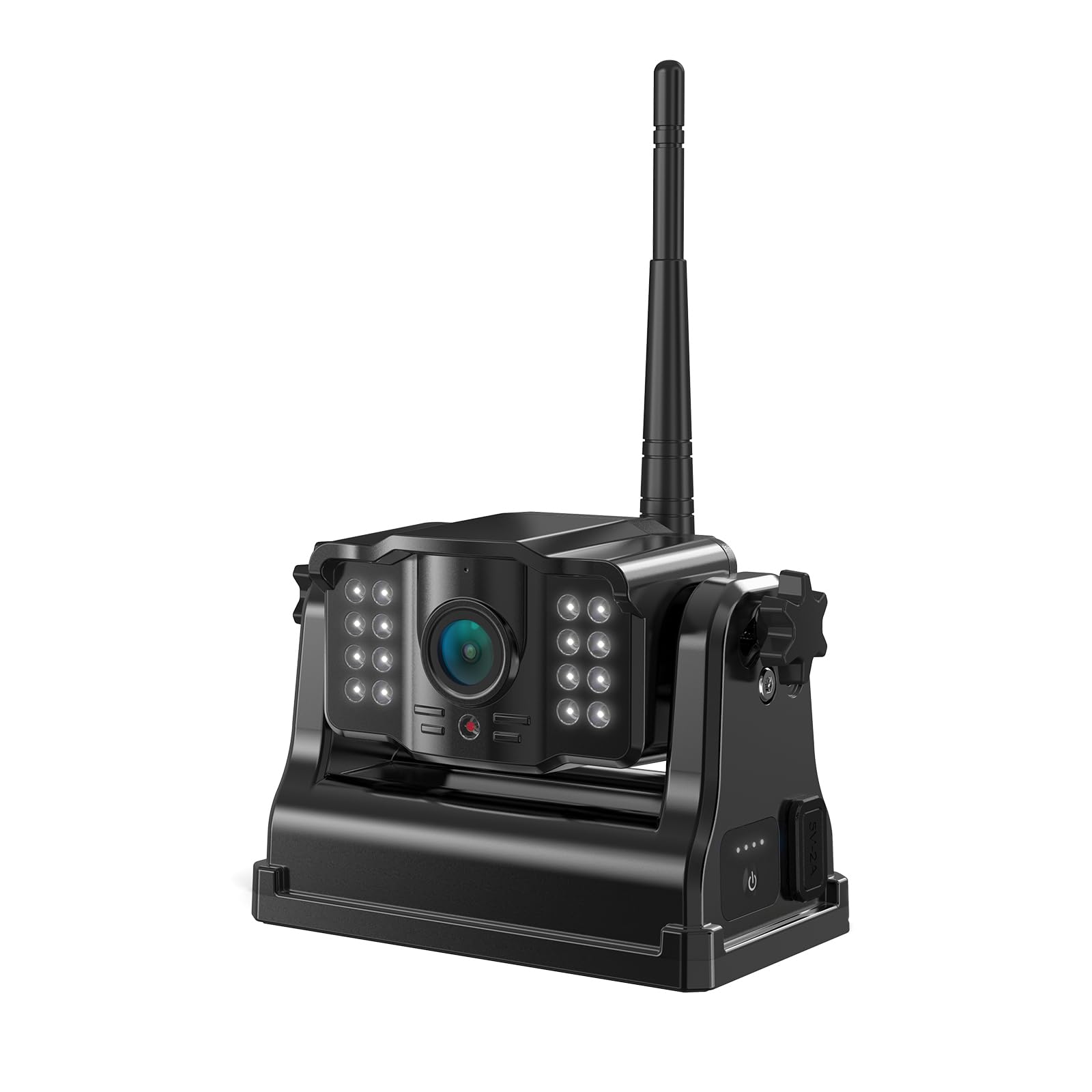

Figura 1: Davant view of the eRapta Magnetic Wireless Backup Camera, showing the lens, infrared LEDs, antenna, and magnetic base.

• Lent de la càmera: Captura el flux de vídeo.
• LED infrarojos: Proporcionar il·luminació per a la visió nocturna.
• Antena: For wireless signal transmission to the ACT501 monitor.
• Base magnètica: Allows for secure attachment to metal surfaces.
• Port de càrrega (tipus C): Per recarregar la bateria interna.
• Llums indicadores d'alimentació: Show battery charge level.
• Botó d'encesa: Per encendre/apagar la càmera.

3. Configuració i instal·lació

3.1. Càrrega de la càmera

1. Localitza el port de càrrega tipus C a la càmera.
2. Connect the camera to a 5V phone charger or a Type-C power cord (not included).
3. The power indicator lights will illuminate to show charging status. Ensure the camera is fully charged before first use.

3.2. Muntatge de la càmera

The camera features a strong magnetic base for easy, wire-free installation on any metal surface of your vehicle (e.g., rear bumper, trailer hitch, side panel). The base is designed with a rubber wrap to prevent scratching vehicle paint.

1. Identify a suitable metal surface on your vehicle where the camera can provide the desired view. Ensure the surface is clean and dry.
2. Place the magnetic base of the camera firmly onto the chosen metal surface. The strong magnet will secure it in place.
3. Adjust the camera's angle using the adjustable screw mechanism to achieve the optimal viewangle de ing.
4. Ensure the camera is securely attached and will not shift during vehicle movement.

Tip: The portable design allows for easy removal and reinstallation on different vehicles or locations as needed.

3.3. Pairing with ACT501 System

This camera is designed to automatically pair with your eRapta ACT501 system. If pairing does not occur automatically, refer to your ACT501 system's instruction manual for specific pairing procedures for additional cameras.

4. Funcionament

4.1. Encès / apagat

• To turn on the camera, press and hold the power button until the indicator lights illuminate.
• To turn off the camera, press and hold the power button until the indicator lights turn off.

4.2. Viewing the Feed

Once powered on and paired, the camera's video feed will be transmitted wirelessly to your ACT501 monitor. Refer to your ACT501 system's manual for instructions on switching between multiple camera views (if applicable) and utilizing features like split-screen or full-screen display.

• 1080P HD Image: The camera provides a clear 1080P resolution image for detailed viewing.
• Visió nocturna per infrarojos: In low-light conditions, the infrared LEDs will automatically activate, providing clear color night vision.
• Gran angular 150°: The wide-angle lens offers an expansive view, helping to eliminate blind spots when reversing or maneuvering.

5. Manteniment

• Neteja: Utilitzeu un suau, damp drap per netejar la lent i el cos de la càmera. Eviteu productes de neteja o dissolvents abrasius.
• Disseny impermeable: The camera is IP69K waterproof. Ensure the charging port cover is securely closed when not charging to maintain water resistance.
• Interval de temperatura: The camera is designed to operate in temperatures ranging from -6°F to 151°F (-21°C to 66°C). Avoid prolonged exposure to temperatures outside this range.
• Cura de la bateria: For optimal battery life, avoid fully discharging the battery frequently. Recharge the camera regularly, especially if stored for extended periods.

6. Solució De Problemes

7. Especificacions

8. Garantia i Suport

For warranty information and customer support, please refer to the documentation included with your original eRapta ACT501 system or visit the official eRapta website. If you encounter any issues not covered in this manual, please contact eRapta customer service for assistance.

Assistència en línia: Visit the eRapta Store on Amazon
