1. Introducció

This manual provides comprehensive instructions for the ECHTPower Wireless Switch Controller (Model: ES03GN). Please read this manual carefully before use to ensure proper operation and to maximize your gaming experience. This controller is designed for multi-platform compatibility, offering advanced features such as Hall Effect joysticks, programmable macro buttons, adjustable vibration, and 6-axis gyro.

Contingut del paquet:

• 1x ECHTPower Wireless Switch Controller
• 1x cable de càrrega USB
• 1 x manual d'usuari

2. Configuració i connexió

Activació inicial:

Before first use, the controller must be charged with the provided USB data cable to activate it. Connect the USB charging cable to the controller and a power source (e.g., a USB port on your console or a USB wall adapter).

Instruccions d'aparellament:

The ECHTPower Wireless Switch Controller supports both wireless (Bluetooth) and wired connections across multiple platforms.

2.1. Nintendo Switch / Switch 2:

To pair wirelessly with your Nintendo Switch:

1. Al menú INICI, seleccioneu Controladors, doncs Canvia d'adherència/ordre.
2. Mentre esteu a la pantalla Canviar agafada/ordre, manteniu premuda la tecla Botó d'inici (unicorn icon) and the Botó Y on the controller simultaneously for 3-5 seconds until the indicator lights flash rapidly.
3. Once paired, the player indicator lights on the bottom of the controller will illuminate solid.

Note: Some users report that connecting the controller directly to the Switch dock via USB cable for the first time can facilitate pairing. After initial wired connection, wireless pairing should be straightforward.

Imatge: Frontal view of the ECHTPower Wireless Switch Controller, showcasinel seu disseny ergonòmic i la disposició dels botons.

Image: The ECHTPower controller positioned among various devices, illustrating its multi-platform compatibility with Switch, PC, Android, and iOS.

2.2. PC (Windows):

For PC connection, the controller can be used wirelessly via Bluetooth or wired via USB cable. When connected via USB, it typically registers as an Xbox controller, offering broad compatibility with PC games.

1. Connexió per cable: Connect the controller to your PC using the USB charging cable. The PC should automatically detect and install the necessary drivers.
2. Connexió sense fil (Bluetooth):
   • Assegureu-vos que el vostre ordinador tingui el Bluetooth habilitat.
   • Al controlador, premeu i manteniu premut Botó d'inici (unicorn icon) and the botó X simultaneously for 3-5 seconds to enter pairing mode.
   • On your PC, go to Bluetooth & other devices settings, click "Add Bluetooth or other device", select "Bluetooth", and choose the controller from the list.

2.3. iOS / Android:

To connect wirelessly with iOS or Android devices:

1. Assegureu-vos que el Bluetooth estigui habilitat al vostre dispositiu mòbil.
2. Al controlador, premeu i manteniu premut Botó d'inici (unicorn icon) and the Un botó (for Android) or Botó B. (for iOS) simultaneously for 3-5 seconds to enter pairing mode.
3. On your mobile device, search for Bluetooth devices and select the ECHTPower controller from the list to pair.

3. Característiques i funcions principals

3.1. Hall Effect Joysticks:

The controller is equipped with advanced Hall Effect joysticks. These joysticks use magnetic fields instead of physical contacts, which eliminates joystick drift, provides precise control, and ensures a longer lifespan. This technology is particularly beneficial for games requiring high accuracy, such as FPS titles.

Imatge: Una explosió view diagram illustrating the internal components and magnetic operation of a Hall Effect joystick, highlighting its no-drift design.

3.2. Programmable Macro Buttons (ML/MR):

The controller features two programmable macro buttons (ML and MR) on the back. These buttons allow you to map single or multiple button functions to a single press, enabling complex actions or skill combinations with ease. This can significantly enhance gameplay in arcade or action games.

Imatge: Part posterior view of the ECHTPower controller, highlighting the ML and MR programmable buttons and their location.

3.3. Turbo Function:

The turbo function allows for rapid, repeated input of a button press. This controller supports both automatic and manual turbo modes with three adjustable speeds.

• To activate/deactivate turbo for a button: Press and hold the Botó T, then press the desired action button (A/B/X/Y/L1/L2/R1/R2/D-pad).
• To adjust turbo speed: While turbo is active, press and hold the Botó T and move the right joystick up or cap avall to cycle through the three speeds.

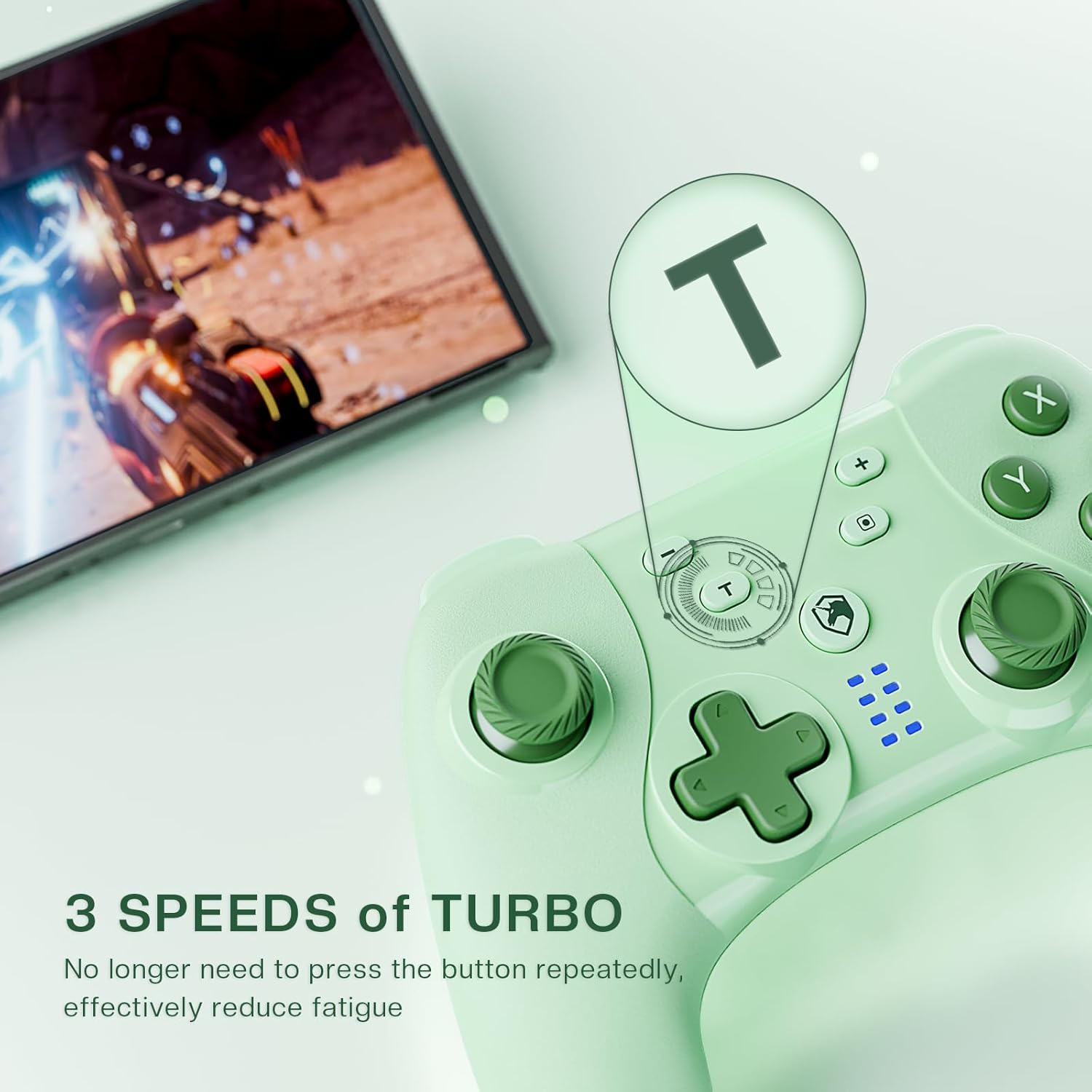

Image: Close-up of the controller's face, emphasizing the 'T' (Turbo) button and its function in reducing repetitive button presses.

3.4. Adjustable Vibration & 6-Axis Gyro:

The controller features built-in 6-axis gyro sensors for precise motion control, enhancing game immersion. It also offers five levels of adjustable vibration feedback (0%, 25%, 50%, 75%, 100%) to provide a realistic gaming experience.

• To adjust vibration intensity: Press and hold the Botó de vibració (usually a small button near the Home button, or a combination with the T button, refer to specific manual for exact button) and move the left joystick up or cap avall to cycle through vibration levels. The controller will vibrate at the selected intensity to confirm the setting.

Image: The controller with a visual representation of adjustable vibration levels, from 0% to 100%, indicating customizable haptic feedback.

3.5. One-Click Wake-Up Function:

The controller supports a convenient one-click wake-up feature for the Nintendo Switch. Simply press the Botó d'inici (unicorn icon) to wake your Switch console from standby mode and immediately resume gameplay.

4. Funcionament del controlador

4.1. Controls bàsics:

Familiarize yourself with the standard button layout:

• Botons A/B/X/Y: Botons d'acció estàndard.
• D-Pad: Entrada direccional.
• Joysticks esquerre/dret: Moviment analògic i control de càmera.
• L1/R1 (Botons de l'espatlla): Principals desencadenants.
• L2/R2 (botons de disparador): Disparadors inferiors.
• Botons +/-: Plus and Minus buttons (Nintendo Switch equivalent).
• Botó de captura de pantalla: Fes captures de pantalla.
• Home Button (Unicorn Icon): System menu access, wake-up function.

Image: The ECHTPower controller resting on a clean desk alongside a keyboard and mouse, illustrating its integration into a gaming setup.

4.2. Joystick Calibration:

Important: Do not move the joysticks while the controller is powering on. This may lead to Hall Effect joystick drift. If drift occurs, connect the controller to your Switch console and perform joystick calibration through the system settings.

1. On your Nintendo Switch, go to Configuració del sistema.
2. Desplaceu-vos cap avall i seleccioneu Controladors i sensors.
3. Seleccioneu Calibrar els pals de control.
4. Follow the on-screen prompts to calibrate the affected joystick.

5. Maintenance and Battery Life

5.1. Charging the Controller:

The controller is equipped with a 400mAh rechargeable battery. A full charge takes approximately 2-3 hours and provides up to 8 hours of playtime.

• Connect the provided USB charging cable to the Type-C charging port on the controller and a USB power source.
• The indicator lights on the controller will show charging status and turn off when fully charged.

Imatge: Un estil de radiografia view of the controller's interior, highlighting the battery and the USB-C charging port, illustrating its power components.

Note: The USB-C charging port is designed to be snug. Ensure the cable is properly seated for effective charging.

5.2. Cura i emmagatzematge:

• Keep the controller away from extreme temperatures, direct sunlight, and moisture.
• Netegeu el controlador amb un drap suau i sec. Eviteu utilitzar productes químics agressius o materials abrasius.
• Guardeu el controlador en un lloc segur quan no l'utilitzeu per evitar danys.

6. Solució De Problemes

7. Especificacions

• Model: ES03GN
• Connectivitat: Sense fil (Bluetooth), amb cable (USB)
• Compatibilitat: Nintendo Switch, Nintendo Switch 2, PC (Windows), iOS, Android
• Capacitat de la bateria: 400 mAh
• Temps de càrrega: Aproximadament 2-3 hores
• Temps de joc: Fins a 8 hores amb una càrrega completa
• Joysticks: Efecte Hall
• Vibració: Adjustable (5 levels)
• Control de moviment: Giroscopi de 6 eixos
• Botons programables: ML, SR
• Funció turbo: 3 adjustable speeds (Automatic/Manual)
• Funció despertador: One-click (for Nintendo Switch)
• Pes de l'article: 8.8 unces (aproximadament 249 grams)
• Dimensions del paquet: 6.46 x 4.49 x 2.64 polzades
• Fabricant: ECHTPOWER

8. Garantia i Suport

ECHTPower is committed to providing quality products and personalized service. For any questions, concerns, or technical support regarding your ECHTPower Wireless Switch Controller, please do not hesitate to contact our customer service team. Refer to the contact information provided in your product packaging or visit the official ECHTPower weblloc per obtenir detalls de suport.

This product comes with a standard manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
