Manual d'usuari de la barra de so Purevox ATV UTV

1. Introducció

Gràcies per la compraasing the purevox ATV UTV Sound Bar. This manual provides essential information for the proper installation, operation, and maintenance of your sound bar. Please read this manual thoroughly before use to ensure optimal performance and safety.

This sound bar is designed for use in various outdoor vehicles, including ATVs, UTVs, golf carts, and marine applications, providing high-quality audio with robust weatherproofing and vibrant RGB illumination.

Image: The purevox sound bar is suitable for various vehicles, including ATVs, UTVs, marine vessels, and touring cars/campconfiguracions d'ingrés.

2. Informació de seguretat

• Ensure the sound bar is securely mounted to prevent detachment during vehicle operation.
• Connect the sound bar to a 12V DC power source only. Incorrect voltagpot fer malbé la unitat.
• Do not disassemble or modify the sound bar. This will void the warranty and may cause damage or injury.
• Keep wiring away from moving parts, sharp edges, and hot surfaces.
• While the unit is weatherproof (IPX5/IP65 rated), avoid submerging it in water.
• Always turn off the vehicle's power before performing any wiring or maintenance.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• purevox UTV Bluetooth Speaker (Sound Bar)
• Mounting Kits (Handlebar Mounts)
• Comandament a distància sense fil
• User Guide (This Manual)

4. Característiques

• Connectivitat Bluetooth: Built-in Bluetooth for wireless audio streaming, automatically reconnects to the last paired device.
• Disseny impermeable: IPX5/IP65 rated for water and dust resistance, ensuring durability in outdoor environments.


  Image: The sound bar is shown mounted on a UTV splashing through water, highlighting its IP65 water and dust resistant rating.

• Sortida d'àudio potent: Features four 4-inch speakers and two 1-inch soft dome tweeters, powered by a high-performance built-in A/B amplifier, delivering 40 Watts (RMS) with 500W Peak Power.


  Imatge: Una imatge interna view of the sound bar showing two 1-inch tweeters, two 4-inch mid-woofers, and two 4-inch full-range speakers, emphasizing its 500W peak power and built-in ampmés viu.

• Il·luminació RGB: Multicolor LED lighting with customizable speed, color, mode, and brightness via the included wireless remote control.


  Image: The sound bar displaying various RGB colors, illustrating how the lights can sync with music beats for a dynamic visual effect.
• Múltiples entrades: USB and Aux-in ports for wired connection to iPods, iPhones, smartphones, MP3 players, laptops, and tablets.


  Image: Close-up of the sound bar's input ports, including 3.5mm Auxiliary, USB Port, and RCA outputs (red and white), demonstrating easy wired connection options.

• Múltiples mètodes de control: Control via onboard buttons, wireless remote control, or a connected smartphone.


  Image: Three icons illustrating the control methods: onboard buttons, the included remote control, and smartphone app control.

5. Instal·lació i configuració

5.1 Muntatge de la barra de so

The sound bar is designed for handlebar mounting and fits roll cages with diameters of 1.75 inches (4.5cm) to 2.25 inches (5.7cm). Ensure the mounting location is secure and does not obstruct your view o controls del vehicle.

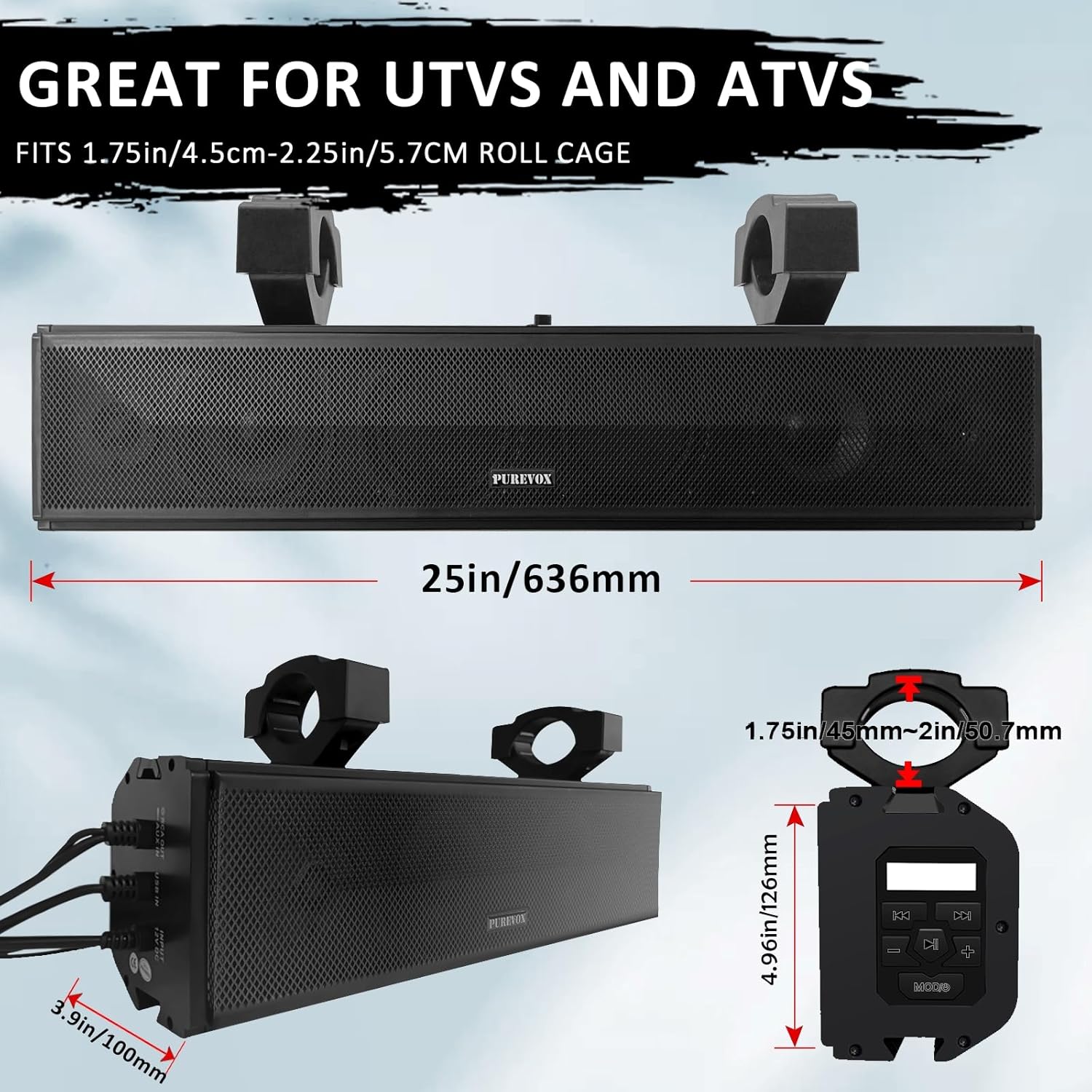

Image: Detailed diagram showing the sound bar's dimensions (25 inches / 636mm length, 4.96 inches / 126mm height, 3.9 inches / 100mm depth) and the adjustable mounting bracket sizes (1.75 inches / 45mm to 2 inches / 50.7mm).

1. Select a suitable mounting location on your vehicle's roll cage or handlebar.
2. Col·loqueu el muntatge clamps to the sound bar.
3. Securely fasten the sound bar to the chosen location using the provided hardware. Ensure all bolts are tightened to prevent movement during operation.

5.2 Connexions de cablejat

The sound bar requires a 12V DC power source. It is recommended to connect the power wires directly to your vehicle's battery or a fused accessory circuit.

• Alimentació (cable vermell): Connect to the positive (+) terminal of your 12V DC power source. It is highly recommended to install an inline fuse (not included) close to the power source for protection.
• Terra (cable negre): Connect to a clean, unpainted metal chassis point on your vehicle or the negative (-) terminal of your 12V DC power source.
• Assegureu-vos que totes les connexions estiguin segures i aïllades per evitar curtcircuits.

6. Funcionament

6.1 Encès/Apagat

Press and hold the power button on the sound bar or remote control to turn the unit on or off.

6.2 Vinculació Bluetooth

1. Ensure the sound bar is powered on and in Bluetooth mode (indicated by a flashing Bluetooth icon or specific LED pattern).
2. Al dispositiu mòbil, activeu el Bluetooth i cerqueu els dispositius disponibles.
3. Select "purevox Sound Bar" (or similar name) from the list to pair.
4. Once paired, the sound bar will confirm the connection, and the Bluetooth indicator will become solid. The sound bar will automatically reconnect to this device when in range and powered on.

Reproducció d'àudio 6.3

• Bluetooth: Play audio directly from your paired smartphone or MP3 player. Use the sound bar's controls or your device to adjust volume, skip tracks, and pause/play.
• USB: Insert a USB drive into the USB port. The sound bar will automatically switch to USB mode and begin playing compatible audio files.
• Entrada auxiliar: Connect an audio device (e.g., MP3 player, laptop) to the 3.5mm Aux-in port using a standard audio cable. The sound bar will switch to Aux mode.
• RCA: Use the RCA output ports to connect to an external amplifier or subwoofer (if desired).

6.4 RGB Illumination Control

Use the included wireless remote control to manage the RGB lighting:

• Selecció de color: Choose from a variety of static colors.
• Selecció del mode: Cycle through different lighting effects (e.g., fading, flashing, music sync).
• Ajust de brillantor: Augmentar o disminuir la intensitat de les llums.
• Ajust de velocitat: Controla la velocitat dels efectes d'il·luminació dinàmica.

7. Manteniment

• Neteja: Utilitzeu un suau, damp drap per netejar l'exterior de la barra de so. No utilitzeu productes químics agressius ni netejadors abrasius.
• Connexions: Reviseu periòdicament totes les connexions del cablejat per assegurar-vos que estiguin ben fixades i que no presentin corrosió.
• Muntatge: Regularly inspect the mounting hardware for tightness, especially after off-road use.
• Emmagatzematge: If storing the vehicle for an extended period, consider disconnecting the sound bar from the power source.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

10.1 Informació de la garantia

This purevox product comes with a Limited Warranty. Please refer to the warranty card included in your package or contact purevox customer support for detailed terms and conditions. The warranty covers manufacturing defects under normal use.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.

10.2 Atenció al client

For technical assistance, troubleshooting, or warranty inquiries, please contact purevox customer support. Visit the official purevox weblloc web per obtenir la informació de contacte més actualitzada.

Weblloc: purevox Official Store on Amazon
