Raddy N80 Smart Wi-Fi Weather Station User Manual

1. Introducció

Thank you for choosing the Raddy N80 Smart Wi-Fi Weather Station. This device provides comprehensive real-time weather data and forecasts, both indoors and outdoors. With its large color display and seamless integration with the Tuya smart home application, you can easily monitor temperature, humidity, wind, pressure, air quality, and more. This manual will guide you through the setup, operation, and maintenance of your new weather station.

2. Informació de seguretat

• Llegiu atentament totes les instruccions abans d'utilitzar el dispositiu.
• No exposeu la unitat principal a temperatures extremes, llum solar directa ni humitat.
• The outdoor sensor is designed for outdoor use but should be protected from direct heavy rain and snow for optimal longevity.
• Use only the provided power adapter for the main unit.
• Mantingueu el dispositiu allunyat de camps electromagnètics forts.
• No intenteu desmuntar ni reparar el dispositiu vosaltres mateixos. Poseu-vos en contacte amb el servei d'atenció al client si sorgeixen problemes.
• Desfeu-vos de les piles de manera responsable d'acord amb la normativa local.

3. Contingut del paquet

• Raddy N80 Main Weather Station Unit
• Sensor exterior sense fils
• Adaptador d'alimentació per a la unitat principal
• Manual d'usuari (aquest document)

4. Producte acabatview

Figure 4.1: Raddy N80 Main Unit and Wireless Sensor

This image shows the Raddy N80 weather station's main display unit on the left and its accompanying wireless outdoor sensor on the right, along with a smartphone displaying the connected app interface.

Figure 4.2: Main Display Features

This image highlights the various sections of the Raddy N80's 8-inch color display, with numbered labels pointing to Moon Phase, Humidity, Network Time, Sunrise/Sunset Time, PM2.5, AQI, UVI, Temperature, Feels Like Temp, Wind Direction/Speed, Barometric Pressure, and 5 Days Weather Forecast.

4.1 Unitat principal

The main unit features an 8-inch color display that shows all relevant weather data. It is powered by the included power adapter and can also use AAA batteries for backup (backlight turns off after 8 seconds on battery power). It connects to your Wi-Fi network to retrieve network time and advanced weather forecasts.

4.2 Sensor exterior sense fil

The wireless outdoor sensor measures outdoor temperature and humidity. It transmits data wirelessly to the main unit. Ensure it is placed in a shaded, well-ventilated area away from direct sunlight and precipitation for accurate readings.

5. Configuració

5.1 Encès

1. Connect the power adapter to the main unit and plug it into a power outlet. The unit will power on and emit a beep.
2. Insert 2 AAA batteries (not included) into the wireless outdoor sensor, observing polarity.
3. The main unit and outdoor sensor will automatically attempt to pair. Once paired, the outdoor temperature and humidity will appear on the main display.

Figure 5.1: Powering the Main Unit and Sensor

This image illustrates the two power options for the Raddy N80: continuous backlight with the power adapter and temporary backlight (8 seconds) with AAA batteries.

5.2 Instal·lació de l'aplicació i connexió Wi-Fi

The Raddy N80 connects to the Tuya Smart app for enhanced features and control. Only compatible with 2.4 GHz Wi-Fi networks.

1. Download the Tuya App: Cerca "Tuya Smart" in the App Store (iOS) or Google Play (Android), install the app, create an account, and log in.
2. Enceneu el dispositiu: Connect the power adapter to the main unit. The device will power on and beep. After 3 seconds, it will enter Wi-Fi pairing mode and display "AP 01". If it does not enter pairing mode automatically, press and hold the button with the "Sun/Down" graphic for 3 seconds to start pairing manually.
3. Afegeix un dispositiu a l'aplicació: Open the Tuya Smart app, tap the "+" icon in the top right corner, and select "Add Device". The app will automatically detect the weather station; select it from the list.
4. Maridatge complet: Follow the prompts to enter your Wi-Fi network name and password. Tap "Done" once pairing is complete.
5. Connexió correcta: The weather station is now connected to the Tuya Smart app.

Figure 5.2: Tuya App Connection Overview

This image provides a visual guide to connecting the Raddy N80 to the Tuya Smart app, showing the main unit, the app interface, and the Wi-Fi connection process.

Figure 5.3: Tuya App Interface

A screenshot of the Tuya Smart app showing the main weather station dashboard with current temperature and humidity readings.

Figure 5.4: Tuya App Device List

Another screenshot of the Tuya Smart app, displaying a list of connected devices, including the Raddy N80 weather station.

6. Instruccions de funcionament

6.1 Comprensió de la pantalla

The 8-inch color display provides a wealth of information at a glance. Refer to Figure 4.2 for a visual guide to the display sections.

6.2 Funcions de control de l'aplicació

Once connected to the Tuya Smart app, you can manage various settings and view dades de forma remota.

• Dades Viewing: Access all temperature and humidity channel data.
• Configuració de la unitat: Easily switch between temperature units (°C/°F) and other measurement units.
• Control de la llum de fons: Adjust backlight levels.
• Gestió d'alarmes: Set and manage up to four customizable alarms.
• Emmagatzematge de dades: The app stores data for up to 1 year.

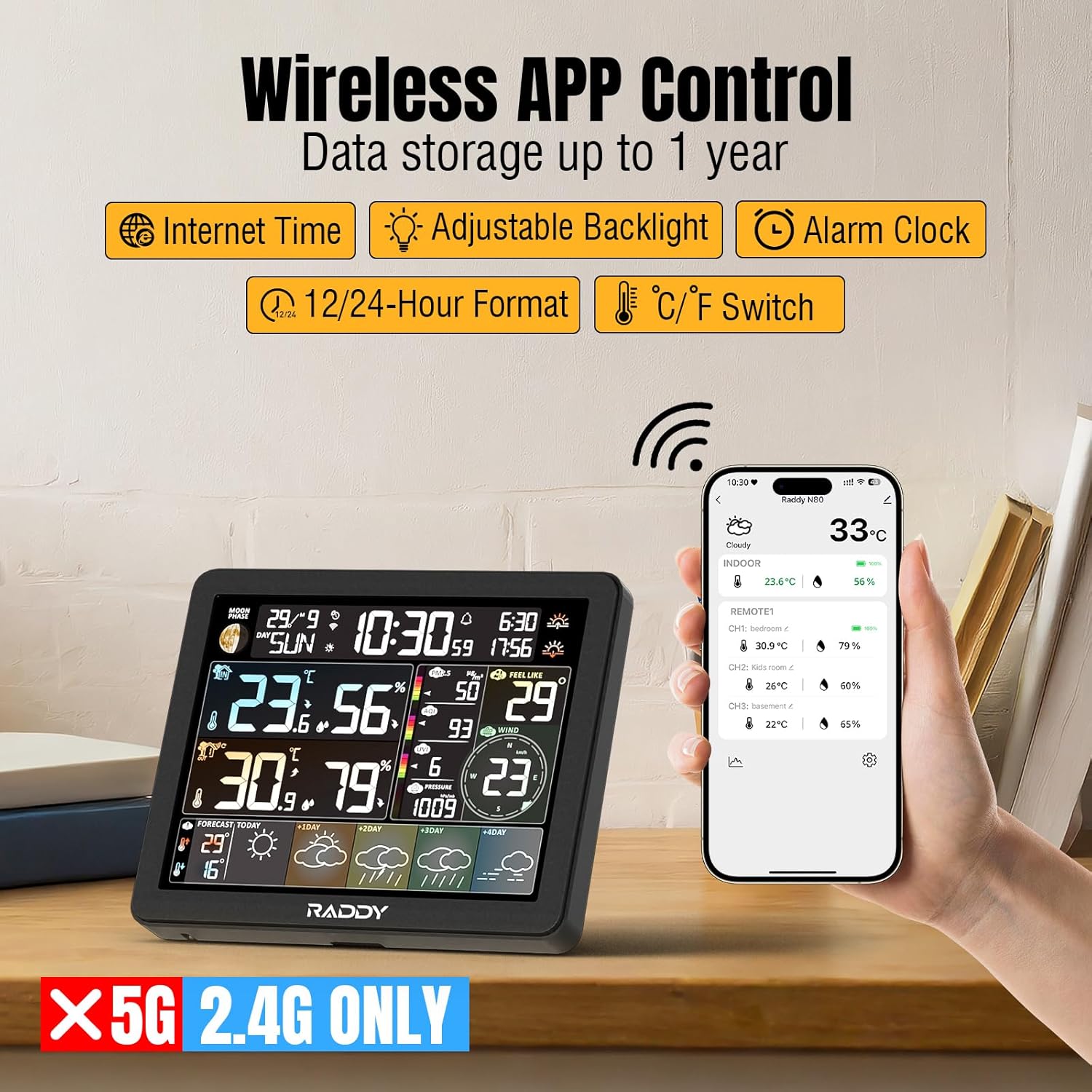

Figure 6.1: Wireless App Control

This image illustrates the Raddy N80's wireless app control capabilities, showing the weather station display alongside a smartphone running the Tuya Smart app, emphasizing features like Internet Time, Adjustable Backlight, Alarm Clock, 12/24-Hour Format, and °C/°F Switch.

6.3 Weather Forecasts

The Raddy N80 provides automatic 5-day weather forecasts once connected to Wi-Fi. It updates the current day's weather and provides forecasts for the next four days, helping you plan your week.

Figure 6.2: Real-Time Weather Updates

This image shows the Raddy N80 display alongside a smartphone app, both displaying real-time weather updates and a 5-day forecast, with various weather icons indicating different conditions.

6.4 Ajust de la llum de fons

The display features five levels of brightness and automatic light detection for optimal readability in various environments.

Figure 6.3: Backlight Levels

This image demonstrates the five adjustable backlight levels (High, Middle, Low, Night, Closed) of the Raddy N80 display, along with an icon indicating automatic light detection.

6.5 Configuració d'alarmes

You can configure up to four customizable alarms directly from the Tuya Smart app. A convenient snooze function is also available.

Figure 6.4: Alarm Settings

This image shows a smartphone displaying the alarm settings within the Tuya Smart app, allowing users to set up to four customized alarms, with a close-up of the snooze function button on the weather station.

7. Manteniment

• Clean the display and unit surfaces with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Ensure the outdoor sensor is free from debris, dust, or spiderwebs per a lectures precises.
• Replace batteries in the outdoor sensor when the low battery indicator appears on the main unit.
• If storing the device for an extended period, remove batteries from both units.

8. Solució De Problemes

9. Especificacions

Figura 9.1: Dimensions del producte

This image provides the physical dimensions of the Raddy N80 main unit (17.3cm x 14cm x 2.8cm) and the wireless sensor (9.5cm x 4.8cm), along with the power adapter.

10. Garantia i Suport

The Raddy N80 Smart Wi-Fi Weather Station comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Raddy weblloc web per obtenir informació detallada sobre els termes i condicions de la garantia.

For technical support, troubleshooting assistance, or any inquiries regarding your product, please contact Raddy customer service through their official weblloc web o la informació de contacte que es proporciona a l'embalatge del producte.

Recursos en línia: For the latest updates, FAQs, and additional support, please visit the Raddy official weblloc.
