1. Producte acabatview
The Ledvion 1-meter 1-phase LED track lighting system provides a modern and flexible lighting solution for various spaces. This system includes a 1-meter track and three black spotlights designed for GU10 bulbs (bulbs not included). Its versatile design allows for easy adjustment and repositioning of spotlights to create the desired ambiance.

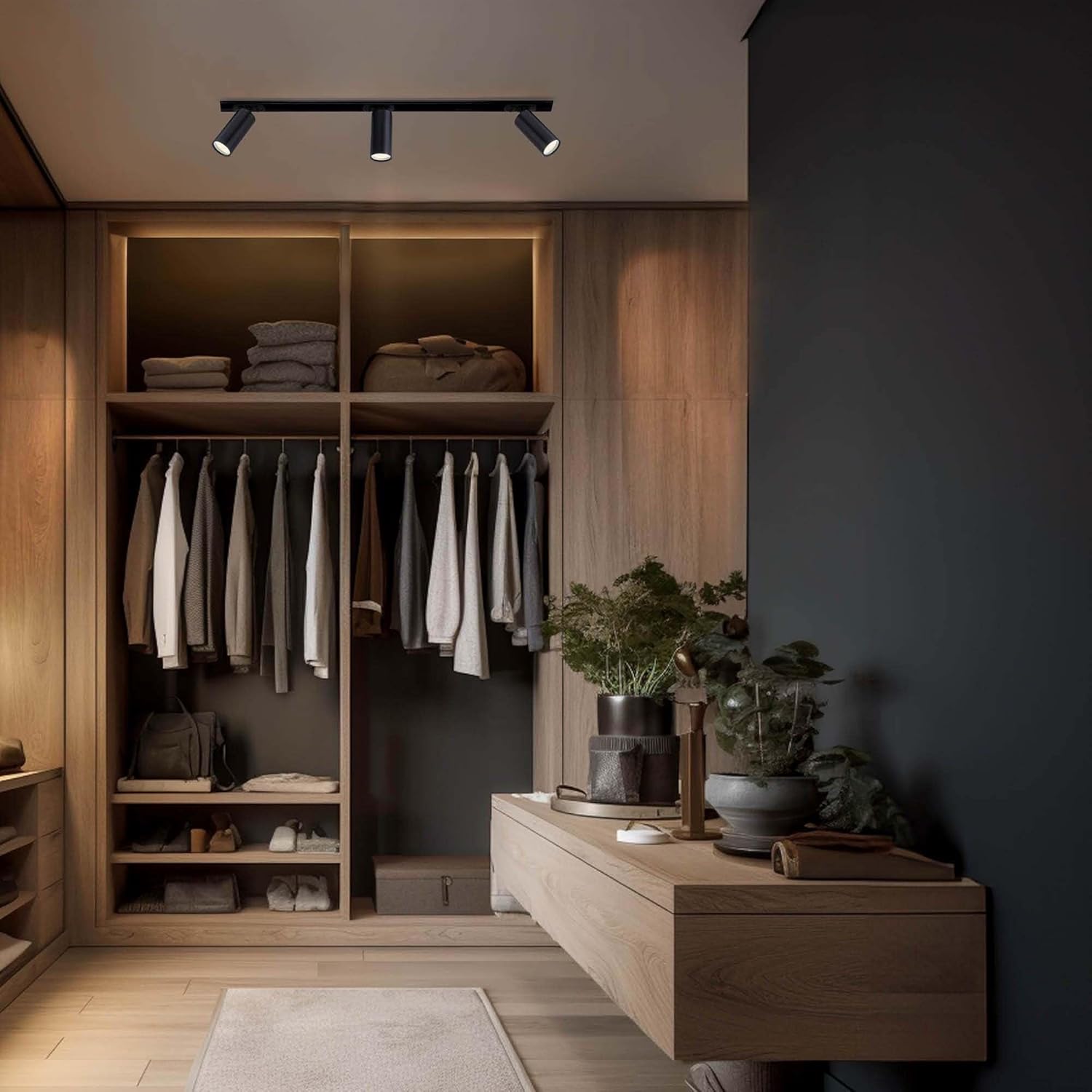

Image 1.1: Ledvion track lighting system in a closet setting.
Característiques principals:
- Modern and Flexible Lighting: Offers a contemporary and versatile way to illuminate any room, allowing for easy creation of the desired atmosphere.
- Freedom in Light Choice: The track lighting allows you to choose your preferred GU10 bulbs (color and light intensity) to fully adapt to your needs.
- Fàcil instal·lació: Simple to mount in kitchens, living rooms, or other areas. Spotlights can be precisely positioned where needed.
- Energy-Efficient and Dimmable: Compatible with energy-efficient LED GU10 bulbs and can be dimmed with an external dimmer (not included) to perfectly match any occasion.
- Apte per a diferents espais: This stylish and energy-efficient lighting solution is ideal for homes, offices, and shops, providing optimal customized lighting in any space.
2. Informació de seguretat
Llegiu atentament totes les instruccions de seguretat abans de la instal·lació i l'ús. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o altres perills.
- Always disconnect power at the main circuit breaker before installing, servicing, or cleaning the fixture.
- La instal·lació l'ha de dur a terme un electricista qualificat o d'acord amb les normes elèctriques locals.
- Assegureu-vos que la superfície de muntatge pugui suportar el pes de l'aparell.
- No supereu la potència màximatage specified for GU10 bulbs.
- Avoid direct contact with hot bulbs. Allow bulbs to cool before handling.
- No feu funcionar l'aparell amb el cablejat o els components danyats.
- Mantenir els materials d'embalatge fora de l'abast dels nens.
3. Configuració i instal·lació
This section guides you through the installation process of your Ledvion track lighting system. Ensure all components are present before beginning.
3.1. Què hi ha a la caixa
Image 3.1: Included components for model LVT10001_1m3s.
Verify that you have received the following components:
- 1x 1-meter Track Rail
- 3x GU10 Spotlights
- Maquinari de muntatge (cargols, tacs de paret)
- 1x connector d'alimentació
Note: GU10 light bulbs are not included and must be purchased separately.
3.2. Passos d'instal·lació
- Prepareu l'àrea d'instal·lació:
- Turn off the power to the circuit at the main breaker.
- Mark the desired mounting location for the track rail on the ceiling or wall. Ensure it is a stable surface.
- Mount the Track Rail:
- Position the track rail and mark the drilling points for the mounting screws.
- Drill pilot holes and insert wall plugs if necessary.
- Securely attach the track rail to the surface using the provided screws.
- Connectar l'alimentació:
- Connect the electrical wires from your power supply to the power connector of the track rail. Ensure correct polarity (Live, Neutral, Ground).
- Carefully tuck all wires into the connector housing and secure it to the track rail.
- Install Spotlights:
- Insert the GU10 bulbs into each spotlight fixture by twisting them into place.
- Attach each spotlight to the track rail. The system features a user-friendly locking mechanism for effortless plug-and-play installation.
Image 3.2: Plug and Play Installation mechanism.
The spotlights can be easily added, removed, or repositioned along the track as needed.
4. Instruccions de funcionament
Once installed, operating your Ledvion track lighting system is straightforward.
4.1. Encès / apagat
Turn on the power at the main circuit breaker. Use your wall switch to turn the track lighting system on or off.
4.2. Adjusting Spotlights
Each spotlight is designed to be highly adjustable. You can tilt and rotate each spotlight to direct light precisely where it is needed.
Image 4.1: Spotlight adjustability.
- Rotació: The spotlight can be rotated 350 degrees horizontally along the track.
- Inclinació: The spotlight can be tilted vertically to direct the light beam.
Gently adjust the spotlights to avoid damaging the mechanism.
4.3. Funcionalitat de regulació de la intensitat
If you have installed dimmable GU10 LED bulbs and connected the system to an external dimmer switch (not included), you can adjust the light intensity to suit your preference. Refer to your dimmer switch's instructions for specific operation.
5. Manteniment
Regular maintenance ensures the longevity and optimal performance of your track lighting system.
5.1. Neteja
- Always turn off the power and allow the fixture to cool before cleaning.
- Wipe the track and spotlights with a soft, dry, or slightly damp tela.
- No utilitzeu netejadors, dissolvents o poliments abrasius, ja que poden danyar l'acabat.
5.2. Substitució de bombetes
- Turn off the power to the fixture at the main circuit breaker.
- Deixeu que la bombeta antiga es refredi completament abans de tocar-la.
- Gently twist and pull out the old GU10 bulb from the spotlight fixture.
- Insert the new GU10 bulb by aligning its pins with the socket and twisting it into place.
- Restableix l'alimentació i prova la bombeta nova.
6. Solució De Problemes
If you encounter issues with your Ledvion track lighting system, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. |
|
|
| Els llums parpellegen o s'atenuen inesperadament. |
|
|
| Spotlight does not stay in position. |
|
|
If the problem persists after trying these solutions, please contact Ledvion customer support.
7. Especificacions del producte
Detailed specifications for the Ledvion 1-meter 1-phase LED track lighting system (Model: LVT10001_1m3s).
| Característica | Detall |
|---|---|
| Marca | Ledvion |
| Número de model | LVT10001_1m3s |
| Dimensions del producte | 105 x 15 x 10 cm (Track length: 1000 mm) |
| Pes | 1.19 kg |
| Number of Spotlights | 3 |
| Tipus de bombeta (no inclosa) | GU10 LED (Max wattage per spot: 50W) |
| Voltage | 230 Volts |
| Material | Alumini |
| Color | Negre |
| Acabar | Pintat |
| Font d'alimentació | Corded Electric (Netstroom) |
| Tipus d'instal·lació | Surface Mounted (Plafondlamp) |
| Ajustabilitat | 350° Rotation, Adjustable Tilt |
Imatge 7.1: Dimensions del producte.
8. Garantia i Suport
8.1. Informació de la garantia
Ledvion products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For specific warranty terms and duration, refer to the documentation provided with your purchase or contact Ledvion customer support.
Note: The product has a 30-day return policy through the retailer.
8.2. Atenció al client
If you have any questions, require technical assistance, or need to report a problem with your Ledvion track lighting system, please contact Ledvion customer support. You can typically find contact information on the Ledvion weblloc web o a través del vostre distribuïdor.
Per obtenir més ajuda, visiteu el Ledvion Store on Amazon.
