Ledvion Single-Phase Track Power Connector (Black)

Introducció

This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of your Ledvion Single-Phase Track Power Connector. This connector is designed to seamlessly integrate with a single-phase track system, ensuring reliable power transfer to your lighting fixtures.

Què inclou:

• 1x Ledvion Single-Phase Track Power Connector (Black)

Image: Packaging of the Ledvion Single-Phase Track Power Connector, showing product information and safety labels.

Informació de seguretat

Llegiu atentament totes les instruccions de seguretat abans de la instal·lació i l'ús. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o altres perills.

• Always turn off the main power supply at the circuit breaker before installing, servicing, or cleaning the product.
• Installation should be performed by a qualified electrician or a person with sufficient knowledge of electrical systems.
• Ensure the product is compatible with your existing track system and power supply (230 Volts).
• No modifiqueu el producte de cap manera.
• Mantenir el producte allunyat de l'aigua i la humitat.
• Aquest producte està dissenyat només per a ús interior.

Configuració i instal·lació

Follow these steps to properly install your Ledvion Single-Phase Track Power Connector:

1. Apagueu l'alimentació: Locate the circuit breaker controlling the track lighting circuit and switch it off. Verify that the power is off using a voltage provador.
2. Prepare the Track: Ensure the end of the single-phase track where the connector will be installed is clean and free from obstructions.
3. Inseriu el connector: Align the connector with the track. The connector is designed for seamless integration. Push the connector firmly into the track end until it clicks into place.

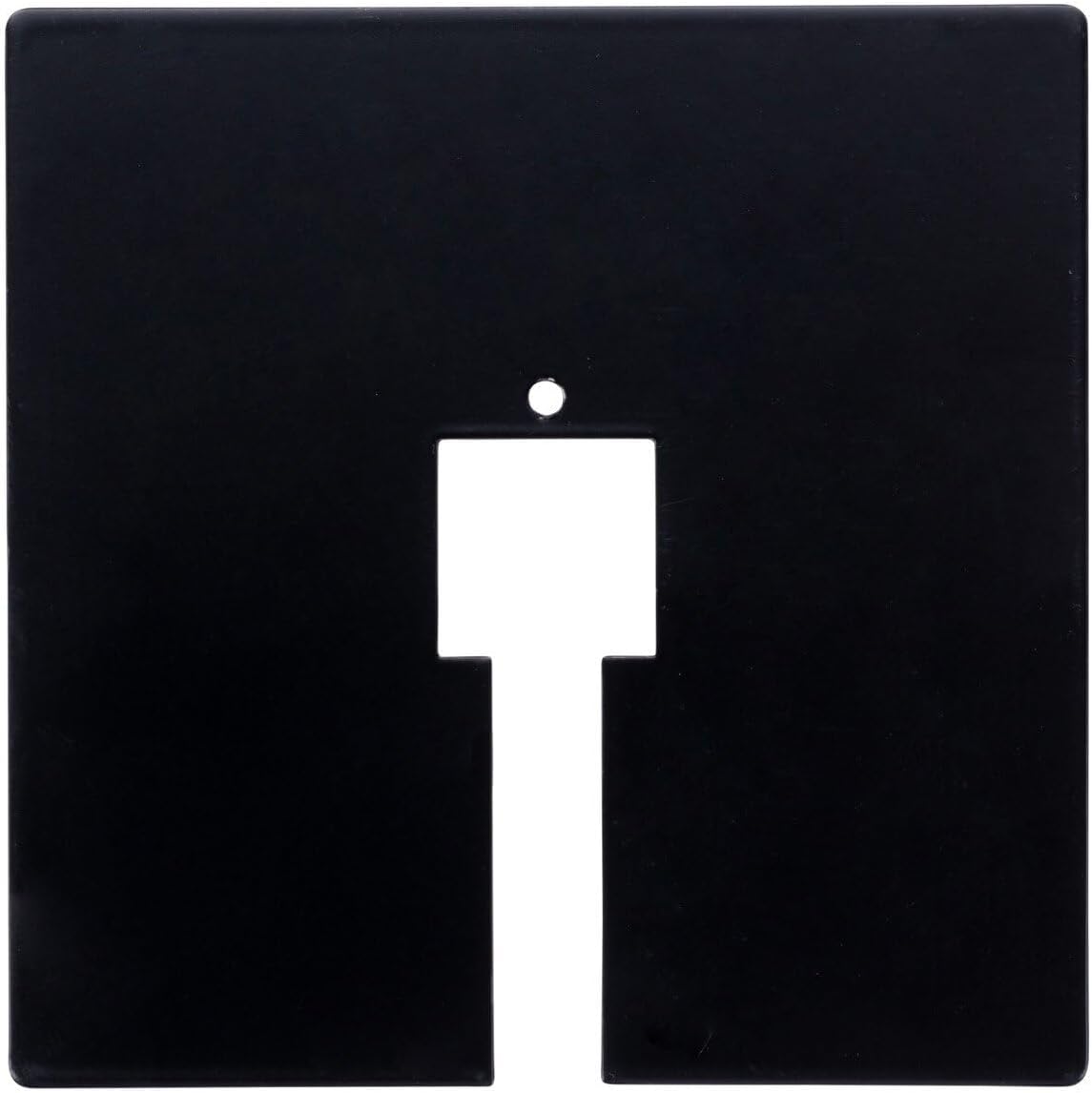

Imatge: Frontal view of the Ledvion Single-Phase Track Power Connector, showing the contact points for the track.

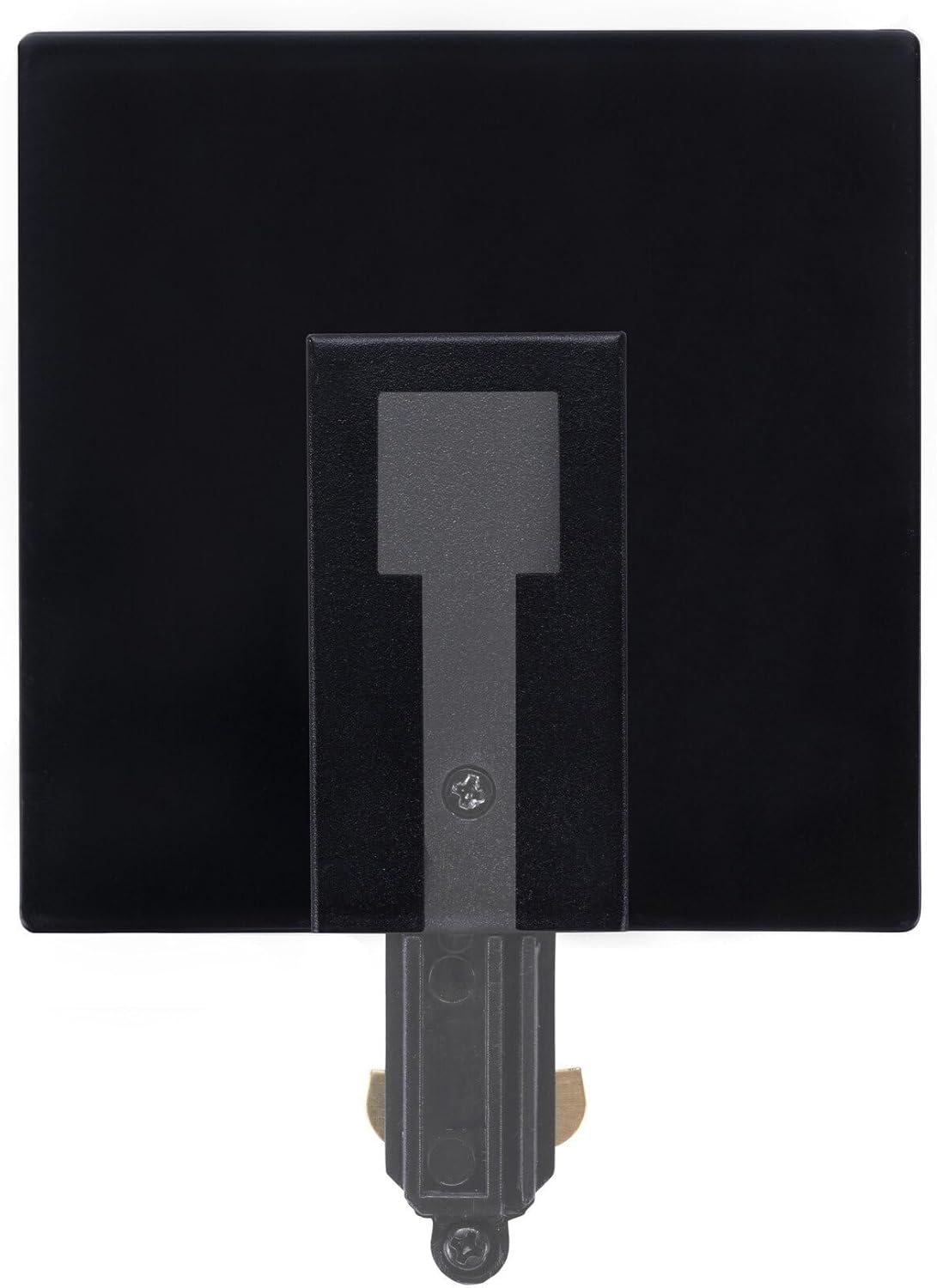

Imatge: Enrere view of the Ledvion Single-Phase Track Power Connector, illustrating the locking mechanism for secure attachment to the track.
4. Assegureu la connexió: Some connectors may have a locking mechanism or screws to further secure them to the track. Ensure any such mechanisms are engaged or tightened according to the track system's requirements.
5. Connecteu la font d'alimentació: Connect the main power supply wires to the designated terminals on the connector, following local electrical codes and wiring diagrams. Ensure all connections are tight and secure.
6. Prova: Once installation is complete, restore power at the circuit breaker and test the track lighting system to ensure proper functionality.

Instruccions de funcionament

The Ledvion Single-Phase Track Power Connector serves as the essential link to supply electrical power to your track lighting system. Once correctly installed, it provides a continuous and stable power source for all compatible track light fixtures.

• Font d'alimentació: The connector is designed to operate with a 230 Volt electrical supply.
• Compatibilitat de l'aparell: This connector is compatible with single-phase track lighting fixtures, including those with GU10 bases.
• Funcionalitat d'atenuació: If your track lighting fixtures and bulbs are dimmable, and an external dimmer is installed in your electrical system, the lighting intensity can be adjusted accordingly.

Manteniment

To ensure the longevity and optimal performance of your track power connector, follow these simple maintenance guidelines:

• Neteja: Disconnect power before cleaning. Use a soft, dry cloth to wipe the surface of the connector. Do not use abrasive cleaners, solvents, or liquids that could damage the finish or electrical components.
• Inspecció: Periodically inspect the connector for any signs of damage, loose connections, or wear. If any issues are observed, turn off the power immediately and consult a qualified electrician.
• Condicions ambientals: Ensure the connector is used in a dry environment, free from excessive dust or humidity.

Resolució de problemes

If you encounter issues with your Ledvion Single-Phase Track Power Connector, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Ledvion customer support or a qualified electrician.

Especificacions

Garantia i Suport

For warranty information, technical support, or inquiries regarding spare parts, please contact Ledvion customer service directly. Information regarding specific warranty periods or spare part availability is not provided in this document.

Please refer to the official Ledvion website or your purchase documentation for the most up-to-date support contact details.
