Shark UV730 Navigator Lift-Away Upright Vacuum Instruction Manual

Producte acabatview

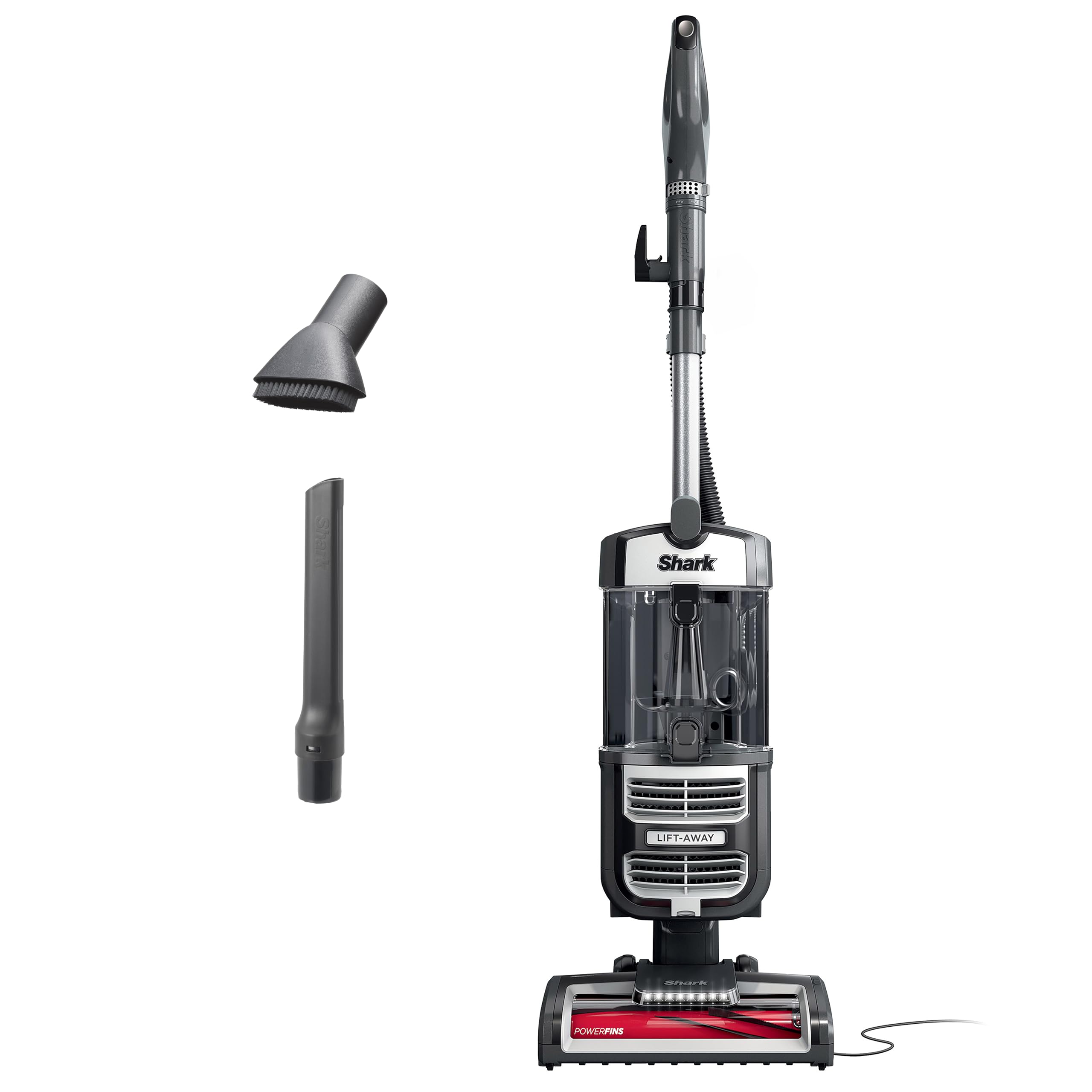

The Shark UV730 Navigator Lift-Away Upright Vacuum is designed for powerful cleaning across various surfaces. It features a self-cleaning brushroll, Lift-Away technology for portable cleaning, and advanced filtration to capture dust and allergens.

Característiques clau

• Rotlle de raspall autonetejador: PowerFins HairPro technology for powerful hair pickup with no hair wrap.
• Lift-Away Technology: Detachable pod for easy above-floor cleaning, stairs, and hard-to-reach areas.
• Anti-Allergen Complete Seal Technology + HEPA Filtration: Captures 99.99% of dust and allergens (based on ASTM F1977 at .3 microns or larger).
• Powerful LED Headlights: Illuminates hidden debris in dimly lit areas.
• Direcció giratòria: For easy maneuverability around furniture and obstacles.

Muntatge i muntatge

Your Shark Navigator Lift-Away vacuum comes partially assembled. Follow these steps to set up your unit:

1. Insert the wand into the floor nozzle until it clicks securely.
2. Place the pod onto the wand, ensuring it slides down and locks into place.
3. Connect the hose to the back of the pod by pushing it firmly into the port.
4. Securely attach desired accessories to the accessory holder on the vacuum for convenient storage.

Instruccions de funcionament

Power and Floor Settings

The power switch is located on the main pod. Select the appropriate setting for your floor type:

• "0" Off: Turns the vacuum off.
• "I" Hard Floor: For bare floors and delicate area rugs. The brushroll will not spin in this mode.
• "II" Carpet: For carpets and area rugs. The brushroll will spin to deep-clean.

Using Lift-Away Mode

To clean above-floor areas, stairs, or under furniture, detach the pod from the nozzle:

1. Press the "Lift-Away" button on the main pod.
2. Lift the pod away from the floor nozzle.
3. Attach desired cleaning tools to the end of the hose or wand for versatile cleaning.

Ús d'arxius adjunts

The vacuum comes with various attachments for specialized cleaning. Connect them to the hose or wand as needed for tasks such as dusting, crevice cleaning, or pet hair removal from upholstery.

Manteniment

Buidant el got de pols

Empty the dust cup after each use or when debris reaches the MAX FILL line to maintain optimal suction.

1. Assegureu-vos que l'aspiradora estigui desconnectada de la presa de corrent.
2. Press the dust cup release latch and lift the dust cup off the pod.
3. Hold the dust cup over a trash bin and press the bottom release latch to empty the contents.
4. Tanqueu la solapa inferior fins que faci clic de manera segura.

Neteja de filtres

Regularly clean the pre-motor and post-motor (HEPA) filters to maintain optimal suction and filtration performance.

Pre-Motor Filters (Foam & Felt)

Rinse these filters every 3 months:

1. Traieu el got de pols.
2. Pull the foam and felt filters out from the top of the motor housing.
3. Rinse thoroughly with water until the water runs clear.
4. Air-dry completely for at least 24 hours before reinstalling. Do not use a hairdryer.

Filtre HEPA post-motor

Rinse this filter once a year:

1. Remove the filter cover located at the front of the pod.
2. Traieu el filtre HEPA.
3. Rinse with water until the water runs clear.
4. Air-dry completely for at least 24 hours before reinstalling. Do not use a hairdryer.

Neteja del pinzell

The PowerFins HairPro Self-Cleaning Brushroll is designed to prevent hair wrap. If any debris remains, carefully remove it:

1. Assegureu-vos que l'aspirador està desconnectat.
2. Use scissors to carefully cut away any hair or debris wrapped around the brushroll.
3. Remove any blockages from the nozzle air path.

Resolució de problemes

• Sense energia: Check the power cord connection, wall outlet, and circuit breaker.
• Pèrdua de succió: Empty the dust cup, clean all filters, and check for blockages in the hose, nozzle, or attachments.
• El raspall rotatiu no gira: Ensure the floor setting is on "II Carpet". Check for blockages in the brushroll or nozzle.

For further assistance, refer to the full user manual or contact Shark customer support.

Especificacions

Garantia i Suport

For warranty information or customer support, please visit the official Shark weblloc web o poseu-vos en contacte amb la línia d'atenció al client. Conserveu el rebut de compra per a reclamacions de garantia.
