1. Introducció
This user manual provides detailed instructions for the safe and efficient operation of your Waykar 80 Pint Energy Star Dehumidifier. Designed for homes, basements, and large rooms up to 5,000 sq. ft., this unit effectively removes excess moisture, improves air quality, and enhances comfort. Please read this manual thoroughly before initial use and retain it for future reference.
Figure 1: Waykar 80 Pint Energy Star Dehumidifier
The Waykar 80 Pint Energy Star Dehumidifier is a compact and efficient appliance designed to reduce humidity levels in various indoor environments.
2. Instruccions de seguretat importants
Per reduir el risc d'incendi, descàrrega elèctrica o lesions quan utilitzeu el deshumidificador, seguiu aquestes precaucions bàsiques:
- Llegiu totes les instruccions abans d'utilitzar l'aparell.
- Use only a properly grounded electrical outlet.
- No utilitzeu la unitat amb les mans mullades o mentre esteu a l'aigua.
- Mantingueu l'entrada i sortida d'aire lliures d'obstruccions.
- Unplug the unit before cleaning, maintenance, or moving.
- No permeteu que els nens facin servir o juguin amb el deshumidificador.
- Assegureu-vos que la unitat estigui col·locada sobre una superfície estable i anivellada per evitar que es bolqui.
- No utilitzeu la unitat a prop de gasos inflamables o materials combustibles.
3. Contingut del paquet
Verifiqueu que tots els elements estiguin inclosos al paquet:
- Waykar 80 Pint Dehumidifier Unit
- Manual d'instruccions
- Repair Card
- Drainage Hose (3.3 ft)
- Suport de filferro
4. Producte acabatview
Familiaritzeu-vos amb els components principals del vostre deshumidificador:
Figura 2: Frontal View - Shows the water tank and overall design.
Figura 3: Esquena View - Features the air inlet and continuous drain port.
Figure 4: Control Panel - Intuitive touch panel for settings adjustment.

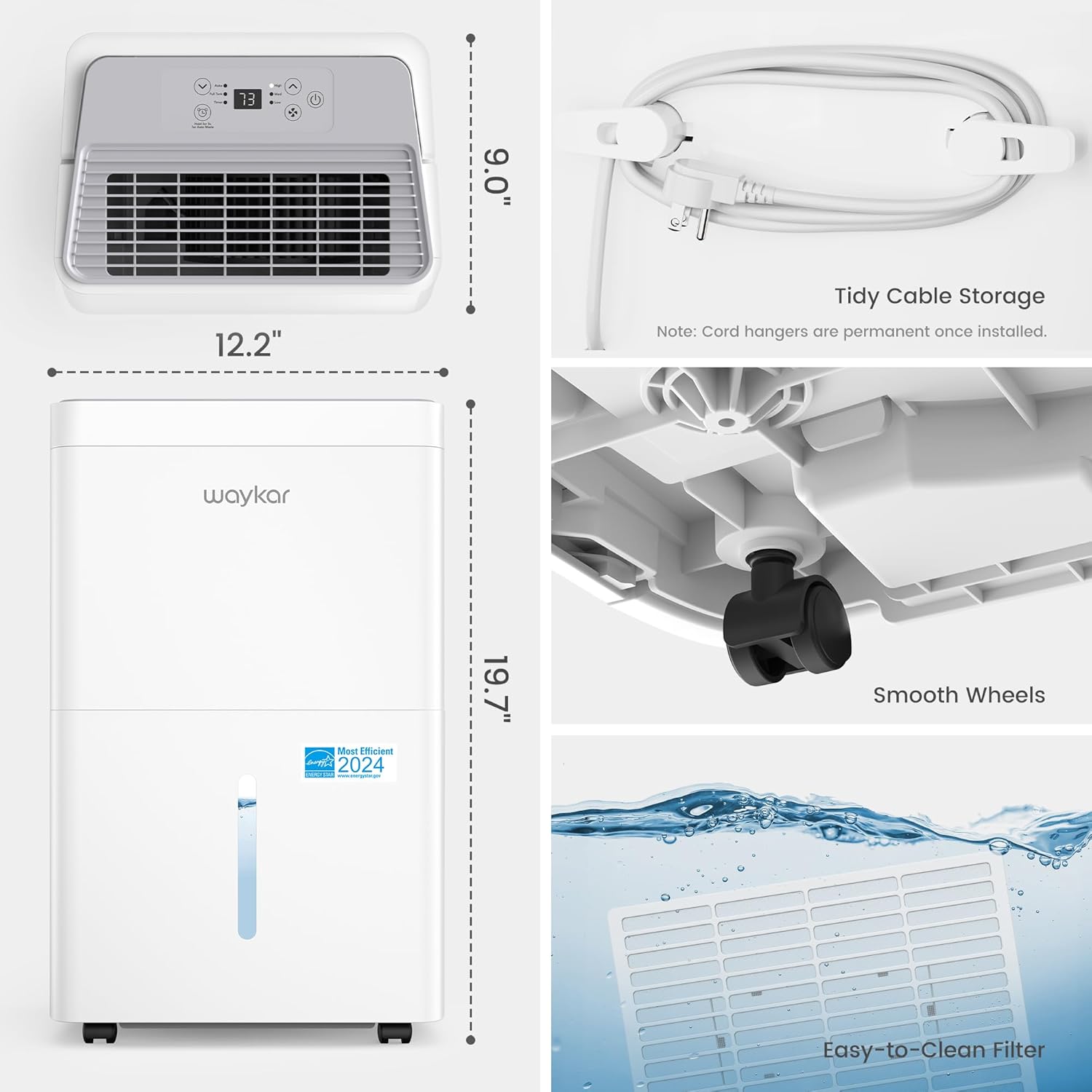

Figure 5: Unit Features - Includes smooth-rolling wheels and tidy cable storage.
5. Instruccions de configuració
5.1 Col·locació
Place the dehumidifier on a flat, stable surface in the desired location. Ensure there is at least 8 inches of space around the unit for proper airflow.
5.2 Connexió d'alimentació
Plug the power cord into a grounded electrical outlet. The unit is ready for operation.
5.3 Opcions de drenatge
Your Waykar dehumidifier offers two methods for water removal:
A. Manual Drainage (Water Tank)
The unit comes with a 1.24-gallon visual water tank. When the tank is full, the unit will automatically shut off and an indicator light will illuminate. Carefully remove the tank from the front of the unit, empty the collected water, and reinsert the tank until it clicks into place.
Figure 6: Water Tank and Drain Hose Connection
The water tank is easily accessible from the front for manual emptying, and the continuous drain port is located at the back.
B. Continuous Drainage (Drain Hose)
For continuous operation without needing to empty the tank, connect the included 3.3-foot drain hose to the continuous drain port on the back of the unit. Ensure the hose is not bent or raised above the drainage outlet level to allow for gravity drainage into a suitable floor drain or large container.
Video 1: Waykar 80 Pints Dehumidifiers for Home - This video demonstrates the setup and drainage options of the dehumidifier, including the continuous drain hose connection.
6. Instruccions de funcionament
6.1 Funcions del tauler de control
The intuitive touch control panel allows for easy adjustment of settings:
- Botó d'encesa: Encén/apaga la unitat.
- Humidity Adjustment Buttons (∨ / ∧): Adjusts the target humidity level (35% RH to 80% RH).
- Botó de velocitat del ventilador: Cycles through High, Medium, and Low fan speeds.
- Botó del temporitzador: Configura el temporitzador d'encesa/apagada de 24 hores.
- Auto Mode (Hold for 3s): Activates Auto Comfort Mode.
Figura 7: Detallada View del Panell de Control
The control panel provides clear indicators and responsive buttons for all operational settings.
6.2 Modes de funcionament
- Auto Comfort Mode: The dehumidifier automatically controls humidity to a comfortable level based on ambient temperature. Humidity and fan speed are not adjustable in this mode.
- Control manual: Use the humidity adjustment buttons to set your desired relative humidity (RH) level. The unit will operate until the set humidity is reached.
- Continuous Dehumidifying: Lower the humidity setting until "CO" appears on the screen. The unit will run continuously to keep the space dry, regardless of the humidity level.
Figure 8: Auto Comfort Mode in operation
This mode intelligently maintains optimal humidity for comfort without manual adjustments.
Figure 9: Manual Humidity Control
Customize humidity and fan speed settings to your preference for specific needs.
6.3 característiques addicionals
- Descongelació automàtica: Prevents frost buildup on the coils.
- Protecció de sobrecàrrega: Safeguards the compressor from damage.
- Potència OutagMemòria electrònica: Restaura la configuració anterior després d'una interrupció del corrent.
- Protecció de desbordament: Automatically shuts off when the water tank is full.
- Apagada automàtica de la pantalla: Dims the display after a period of inactivity for quiet operation.
7. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del deshumidificador.
7.1 Neteja del filtre d'aire
The washable, reusable A/C grade filter should be cleaned regularly (e.g., every two weeks or as needed) to prevent hair and pet fur from entering the machine and to maintain efficiency.
- Apagueu i desconnecteu el deshumidificador.
- Traieu el filtre de la part posterior de la unitat.
- Renteu el filtre amb aigua tèbia i sabonosa.
- Esbandiu-ho bé i deixeu-ho assecar completament a l'aire abans de tornar-ho a posar.
7.2 Neteja del dipòsit d'aigua
Clean the water tank periodically to prevent mold and mildew growth. Use mild detergent and warm water, rinse thoroughly, and dry before reinserting.
7.3 Emmagatzematge
When storing the unit for an extended period, ensure the water tank is empty and clean, and the filter is dry. Use the integrated cable wrap post to neatly organize and secure the power cord, preventing tangles and damage.
8. Solució De Problemes
If you encounter issues with your dehumidifier, refer to the following common problems and solutions. For more detailed troubleshooting, please consult the full user manual (PDF) linked in the support section.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | No power, water tank full, or tank not properly seated. | Comproveu la connexió elèctrica, buideu el dipòsit d'aigua i torneu-lo a inserir correctament. |
| No s'ha recollit aigua. | Humidity too low, air filter clogged, or room temperature too low. | Increase target humidity, clean air filter, ensure room temperature is above 41°F (5°C). |
| La unitat fa soroll. | Unit not level, air filter clogged, or fan speed too high. | Place on a level surface, clean air filter, select a lower fan speed. |
9. Especificacions
| Característica | Detall |
|---|---|
| Marca | Waykar |
| Nom del model | Deshumidificador Energy Star de 80 pintes |
| Número de model | CTH80A |
| Capacitat de deshumidificació | 80 Pints per Day (under 95°F, 90% RH) |
| Àrea de cobertura | Fins a 5,000 metres quadrats. Ft. |
| Volum del dipòsit d'aigua | 1.24 galons (4.7 litres) |
| Dimensions del producte | 9 "P x 12.2" W x 19.7" H |
| Pes de l'article | 27.06 lliures |
| Velocitats del ventilador | 3 (Alt, Mitjà, Baix) |
| Nivell de soroll | Below 40 dB (lowest setting) |
| Wattage | 390 watts |
| Capacitat de cabal d'aire | 200 peus cúbics per minut (CFM) |
| Característiques especials | Automatic Restart, Portable, Adjustable Humidity Control, Automatic Defrost, Timer, Overload Protection, Power Outage Memory, Overflow Protection, Auto Screen Off, Compressor Self-Protection |
| Components inclosos | Dehumidifier, Instruction Manual, Repair Card, Drainage Hose, Wire Holder |
10. Garantia i assistència
All Waykar dehumidifiers come with a comprehensive 2 any de garantia i lifetime expert technical support. Our customer care team is dedicated to providing a worry-free experience.
Contacta amb nosaltres
Should you have any questions or require assistance, please reach out to us through the following channels. We aim to respond within 24 hours.
- Telèfon: Refer to your Repair Card for contact number.
- Correu electrònic: Refer to your Repair Card for email address.
- Xat en línia: Visit the official Waykar website for online chat support.
Recursos addicionals
For a complete guide and further details, you can download the official User Manual (PDF): Waykar 80 Pint Dehumidifier User Manual (PDF)
