chartustriable 47.2-inch Lift Top Coffee Table with LED Lights

1. Informació de seguretat

Si us plau, llegiu atentament totes les instruccions abans del muntatge i l'ús. Conserveu aquest manual per a futures consultes.

• Límits de pes: Do not exceed the maximum weight recommendation of 180 lbs (81.6 kg) on the tabletop.
• Punts de pinçament: Exercise caution when operating the lift-top mechanism to avoid pinching fingers or objects.
• Muntatge: Ensure all components are securely fastened according to the assembly guide. Loose parts can cause instability.
• Seguretat elèctrica: Only use the integrated power outlets and USB ports for compatible devices. Do not overload the outlets.
• Només per a ús interior: This product is designed for indoor use. Do not expose to outdoor elements.

2. Muntatge i muntatge

2.1 Desembalatge i inspecció

Carefully remove all components from the packaging. Verify that all parts listed in the included assembly guide are present and undamaged. If any parts are missing or damaged, contact customer support before proceeding.

2.2 Instruccions de muntatge

Refer to the dedicated Guia de muntatge included with your product for detailed, step-by-step instructions. It is recommended that dues persones perform the assembly to ensure stability and ease of construction.

• Eines recomanades: A hammer and screwdriver are recommended for assembly. An electric screwdriver can save time.
• Lay all accessories flat on the floor before beginning assembly to easily identify each part.
• Follow the diagrams and instructions precisely to ensure correct and safe assembly.

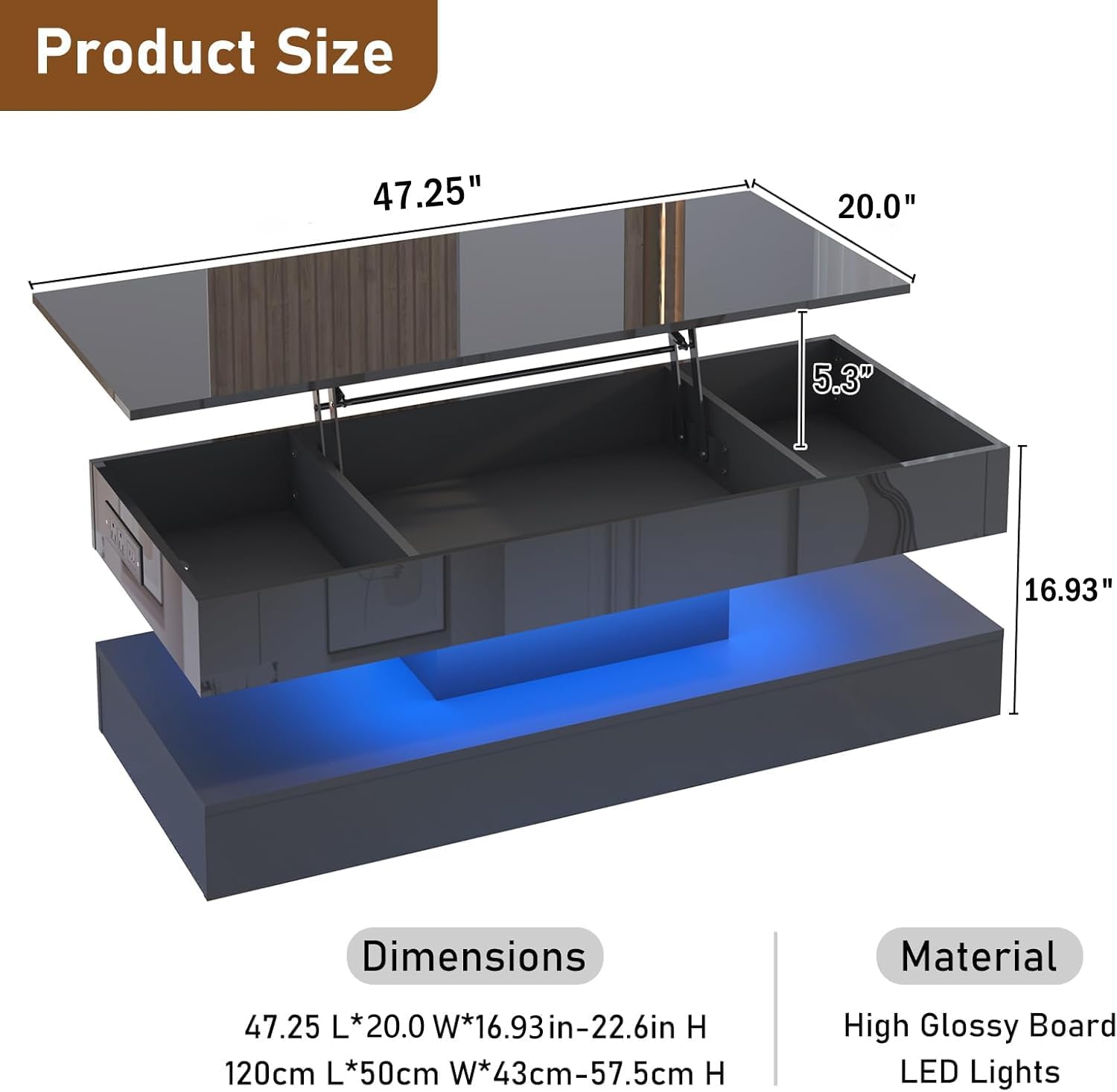

Image: Product dimensions. The table measures 47.25 inches (L) x 20.0 inches (W) x 16.93 inches (H), with the lift-top extending up to 5.3 inches.

3. Instruccions de funcionament

3.1 Lift-Top Mechanism

The coffee table features an advanced metal gas support lifting mechanism, allowing the tabletop to be smoothly raised and lowered. The lifting range is approximately 0 to 5.3 inches (0 to 13.5 cm).

• To raise the tabletop, gently pull it upwards. The gas supports will assist in the lifting motion.
• To lower the tabletop, gently push it downwards until it rests in the closed position.
• When the lift-top is raised, it provides a convenient surface for dining, working, or gaming. When closed, it conceals a storage compartment.

Image: The coffee table with its lift-top mechanism extended, showing the elevated surface and internal storage compartments.

3.2 Smart APP RGB LED System

The integrated LED lighting system can be controlled via a mobile application, offering extensive customization options.

• Control de l’APP: Download the designated mobile application (refer to the LED system's specific instructions for app name and download details).
• Connectivitat: Connect your mobile device directly to the RGB LED lighting system via Bluetooth.
• Característiques: The app provides access to over 70,000 colors, 30 flashing modes, and a timing function. The LED lights can also change rhythmically with sound and music.

Image: Control options for the LED lighting system, illustrating both remote and mobile application interfaces for color and mode selection.

3.3 Integrated Power Outlet

The coffee table includes a desktop power strip for convenient charging of electronic devices.

• Punts de venda: Features 2 AC power outlets (125V/15A), 1 Type-C port (5V/3A), and 2 USB ports (5V/2A).
• Cable d'alimentació: A 6.5-foot (approximately 2-meter) power cord is provided for connection to a wall outlet.
• Ús: Ideal for charging laptops, mobile phones, game consoles, and other small electronic devices.

Image: Detail of the integrated power outlet, highlighting the AC, Type-C, and USB charging ports.

4. Manteniment

4.1 Neteja

• The high-gloss surface is waterproof and scratch-resistant.
• Netegeu la superfície amb un suau, damp drap. Eviteu netejadors abrasius o productes químics agressius que puguin danyar l'acabat.
• For stubborn marks, use a mild, non-abrasive cleaner specifically designed for high-gloss furniture.

4.2 Atenció general

• Eviteu col·locar objectes calents directament sobre la superfície; utilitzeu posagots o estores protectores.
• Do not drag heavy objects across the tabletop to prevent scratches.
• Reviseu periòdicament tots els cargols i elements de fixació per assegurar-vos que estiguin ben ajustats. Torneu a apretar-los si cal.

5. Solució De Problemes

• Lift-Top Mechanism Issues: If the lift-top mechanism feels stiff or does not operate smoothly, ensure no obstructions are present in the lifting path. Check that all assembly screws related to the mechanism are securely tightened.
• Els llums LED no funcionen: Verify that the power cord is securely plugged into both the table and a functional wall outlet. Check the mobile app connection and settings.
• Preses de corrent que no funcionen: Ensure the table's power cord is properly connected to a live electrical outlet. Test the outlet with another device.
• Inestabilitat: If the table feels wobbly, re-check all assembly connections and tighten any loose screws. Ensure the table is placed on a flat, even surface.

Per a problemes persistents que no es resolen amb aquests passos, poseu-vos en contacte amb l'atenció al client.

6. Especificacions

7. Garantia i Suport

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

Fabricant: FUzanni

Marca: cartustriable

Per obtenir ajuda, visiteu el chartustriable Store on Amazon o poseu-vos en contacte amb el seu servei d'atenció al client.
