Bioby Electric Baby Bouncer Instruction Manual

1. Producte acabatview

The Bioby Electric Baby Bouncer is designed to provide a safe, comfortable, and soothing environment for your baby. It features multiple swing modes, Bluetooth connectivity for music, and a remote control for convenient operation. Its portable and ergonomic design ensures both baby's comfort and ease of use for parents.

Image: The Bioby Electric Baby Bouncer, showcasing its sleek grey design with a baby comfortably seated inside.

2. Informació de seguretat

Always prioritize your baby's safety. Read and understand all instructions before use. This product is intended for babies aged 0 to 12 months, weighing between 2 kg and 9 kg (approximately 4.4 to 20 lbs).

• Arnès de seguretat de 5 punts: Always secure your baby with the padded 5-point safety harness. Ensure it is snug but not too tight.
• Disseny ergonòmic: The bouncer features an ergonomic 25° recline angle to support healthy spinal development.
• Construcció estable: The stable aluminum frame with non-slip feet ensures the bouncer remains secure during use.
• Breathable Materials: The removable mat is made of skin-friendly, breathable material for your baby's comfort and safety.
• Supervisió: No deixeu mai el vostre fill sense vigilància al gandul.
• Col·locació: Col·loqueu la gorila en una superfície plana i estable lluny de perills.

Image: Illustration highlighting the ergonomic design of the bouncer, showing how it supports the baby's neck and spine, with a note about SGS Certification and 20 lbs weight capacity.

3. Muntatge i muntatge

The Bioby Electric Baby Bouncer is designed for quick and easy assembly. A screwdriver is required for full assembly.

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge.
2. Muntatge del marc: Connect the frame components using the provided fittings. Assembly typically takes about 3 minutes.
3. Adjunta el seient: Securely attach the seat to the assembled frame. Ensure all connections click into place.
4. Install Canopy and Net: Attach the overhead canopy. If desired, install the detachable protective net to shield your baby from insects and direct sunlight, especially when used outdoors.
5. Connexió d'alimentació: Connect the bouncer to a power source using the adapter. It can also be powered by a power bank for portability.

Image: A visual guide demonstrating the easy setup and quick detach mechanism of the bouncer, including its compact dimensions (28.1 in height, 25.6 in width/depth) and storage options.

Image: The bouncer with its detachable net, illustrating its function to protect the baby from direct sunlight and mosquitoes, highlighting its versatility for indoor and outdoor use.

Image: The bouncer demonstrating its dual power options: traditional plug-in and portable power bank, emphasizing its "use it everywhere" convenience.

4. Instruccions de funcionament

The bouncer offers various features to soothe and entertain your baby, controllable via the integrated panel or the remote control.

4.1. Swing Modes

The bouncer features five scientifically developed swing speeds to gently soothe your baby:

• Speed 1: 18°
• Speed 2: 21°
• Speed 3: 23°
• Speed 4: 25°
• Speed 5: 31°

Use the control panel or remote to select the desired swing speed. The electronic control ensures smooth and precise motion.

Image: A visual representation of the five adjustable sway motions (18°, 21°, 23°, 25°, 30°) of the bouncer, along with icons for Bluetooth, remote control, power options, and washable material.

4.2. Music and Sound

The bouncer comes with built-in speakers and offers two ways to play music:

• Connectivitat Bluetooth: Connect your smartphone or other Bluetooth-enabled device to stream your own relaxing music or playlists.
• Cançons predefinides: The bouncer includes 10 pre-installed soothing songs.

Adjust the volume using the control panel or remote.

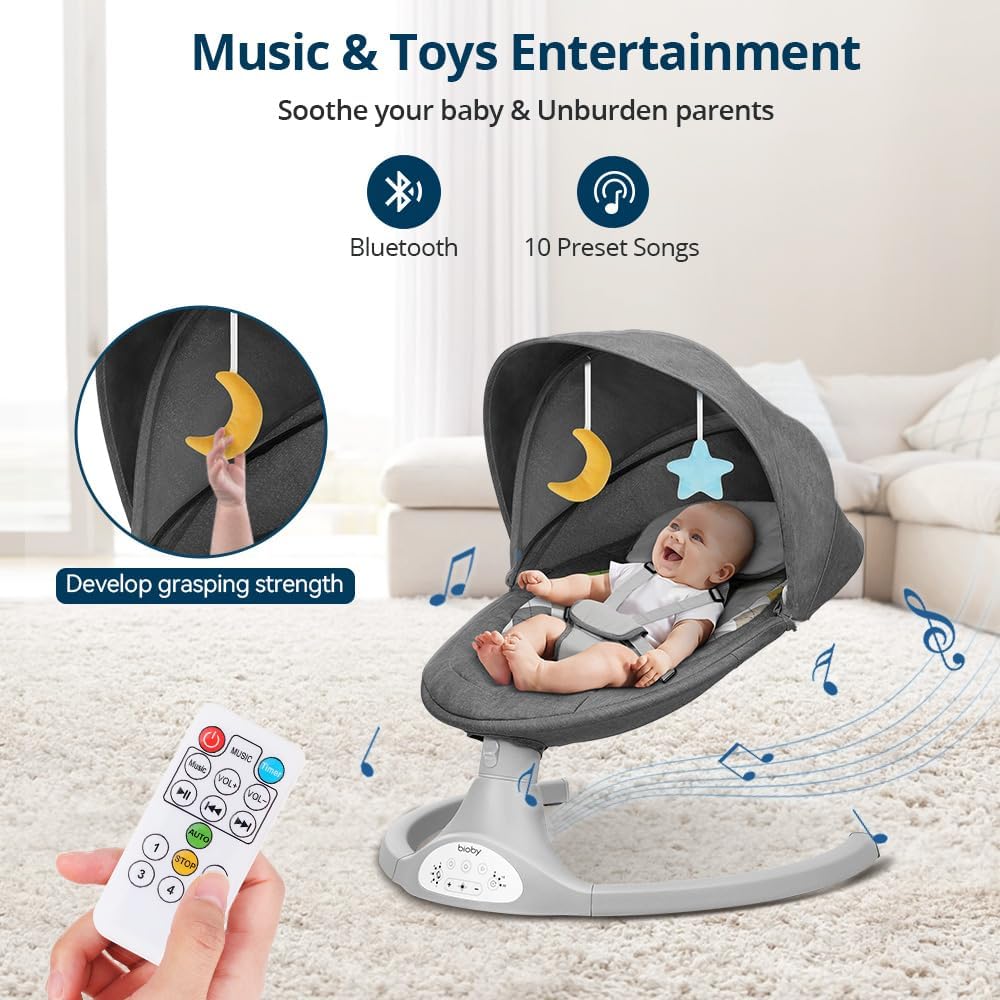

Image: The bouncer with hanging toys (moon and star) and musical notes, illustrating its entertainment features including Bluetooth connectivity and 10 preset songs. A remote control is also visible.

4.3. Configuració del temporitzador

To optimize energy consumption and manage swing duration, you can set a timer:

• 8 minuts
• 15 minuts
• 30 minuts

Select the desired timer setting using the control panel or remote control. The bouncer will automatically stop after the set time.

Image: A woman using a remote control to operate the bouncer, with a graphic displaying the three timer settings: 8 min, 15 min, and 30 min.

5. Manteniment i cura

Proper maintenance ensures the longevity and hygiene of your Bioby Electric Baby Bouncer.

• Cleaning the Seat Cover: The seat cover is removable and made of washable fabric. Refer to the care label for specific washing instructions. Typically, machine wash on a gentle cycle with mild detergent. Air dry or tumble dry on low heat.
• Neteja del marc: Wipe the frame and plastic parts with a damp drap i sabó suau. No utilitzeu netejadors abrasius.
• Emmagatzematge: When not in use, store the bouncer in a clean, dry place. Its compact design allows for easy storage.
• Comprovacions periòdiques: Periodically check all screws, fasteners, and moving parts to ensure they are secure and functioning correctly.

6. Solució De Problemes

If you encounter any issues with your Bioby Electric Baby Bouncer, please refer to the following common solutions:

• Bouncer Not Swinging:
  • Ensure the power adapter is securely plugged into both the bouncer and a working electrical outlet.
  • If using a power bank, ensure it is charged and properly connected.
  • Check if the timer function is active and has reached its set limit.
• No hi ha so dels altaveus:
  • Verify that the volume is turned up on both the bouncer and your connected Bluetooth device.
  • Ensure your Bluetooth device is correctly paired with the bouncer.
• El control remot no funciona:
  • Comproveu la pila del comandament a distància i substituïu-la si cal.
  • Ensure there are no obstructions between the remote control and the bouncer's receiver.

For further assistance, please contact Bioby customer service.

7. Especificacions del producte

8. Garantia i atenció al client

Bioby is committed to providing high-quality products and excellent customer service.

For any questions, concerns, or assistance with your Bioby Electric Baby Bouncer, our customer service team is available 24/7. Please refer to your purchase documentation or the Bioby official weblloc per obtenir dades de contacte.
