1. Introducció
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your E MOTORAD Trex+ Electric Cycle. Please read this manual thoroughly before your first ride and retain it for future reference. Proper understanding of these instructions will ensure optimal performance and longevity of your electric cycle.
Figure 1: E MOTORAD Trex+ Electric Cycle (Crimson Black, 27.5" Wheel)
2. Informació de seguretat
La vostra seguretat és primordial. Seguiu sempre les directrius següents:
- Always wear a helmet that meets safety standards.
- Perform a pre-ride inspection before each use, checking brakes, tires, battery, and all fasteners.
- Familiaritzeu-vos amb les lleis i regulacions de trànsit locals per a bicicletes elèctriques.
- Do not operate the electric cycle under the influence of alcohol or drugs.
- Assegureu-vos que tots els components estiguin ben fixats abans de conduir.
- Eviteu conduir en condicions meteorològiques adverses o sobre superfícies relliscoses.
- Mantingueu una distància de seguretat amb altres vehicles i vianants.
- Do not modify the electric cycle's electrical system or components.
- Mantingueu les mans i els peus allunyats de les peces mòbils.
3. Muntatge i muntatge
The E MOTORAD Trex+ Electric Cycle requires some assembly upon arrival. The package includes the following components:
- Electric Cycle (partially assembled)
- Bateria
- Carregador
- Kit d'eines
For detailed assembly instructions, refer to the included quick start guide or utilize the virtual guided support provided by E MOTORAD. This support includes step-by-step video guides and quick troubleshooting assistance.
Figure 2: Virtual Guided Support for Assembly
3.1 Càrrega inicial de la bateria
Before your first ride, fully charge the battery. Connect the charger to the battery and then to a power outlet. The charging indicator on the charger will show the charging status. A full charge typically takes 4-5 hours.
4. Components mésview
Understanding the key components of your Trex+ Electric Cycle is essential for proper operation.
4.1 Marc
The Trex+ features a robust 18-inch Aluminium Alloy 6061 frame, designed for durability and comfort.
Figure 3: Aluminium Alloy 6061 Frame
4.2 Motor
Equipped with a high-torque 250W Rear Hub Motor, providing smooth and powerful assistance.
4.3 Bateria
The removable 36V 10.2Ah Lithium-ion battery powers the electric motor, offering an extended range.
Figure 4: Removable Lithium-ion Battery
Figure 5: Battery Features (Key Lock)
4.4 Pantalla
The Stem Integrated M8 LCD Display provides real-time riding data, including speed, battery level, and Pedal Assist System (PAS) level.

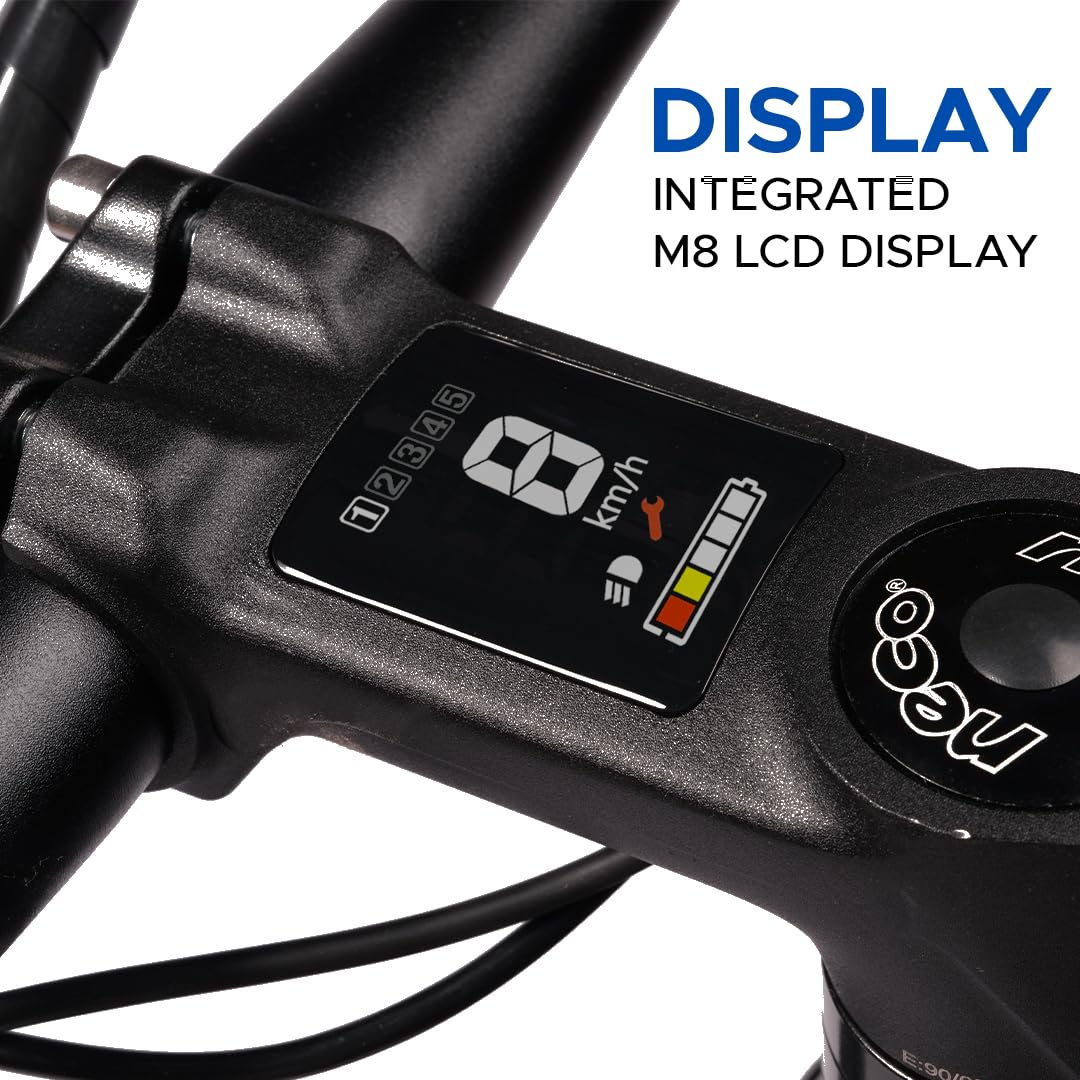

Figure 6: M8 LCD Display
Figure 7: Integrated Display View
4.5 Suspensió
A 100mm front fork suspension with lockout ensures a comfortable ride over varied terrains.

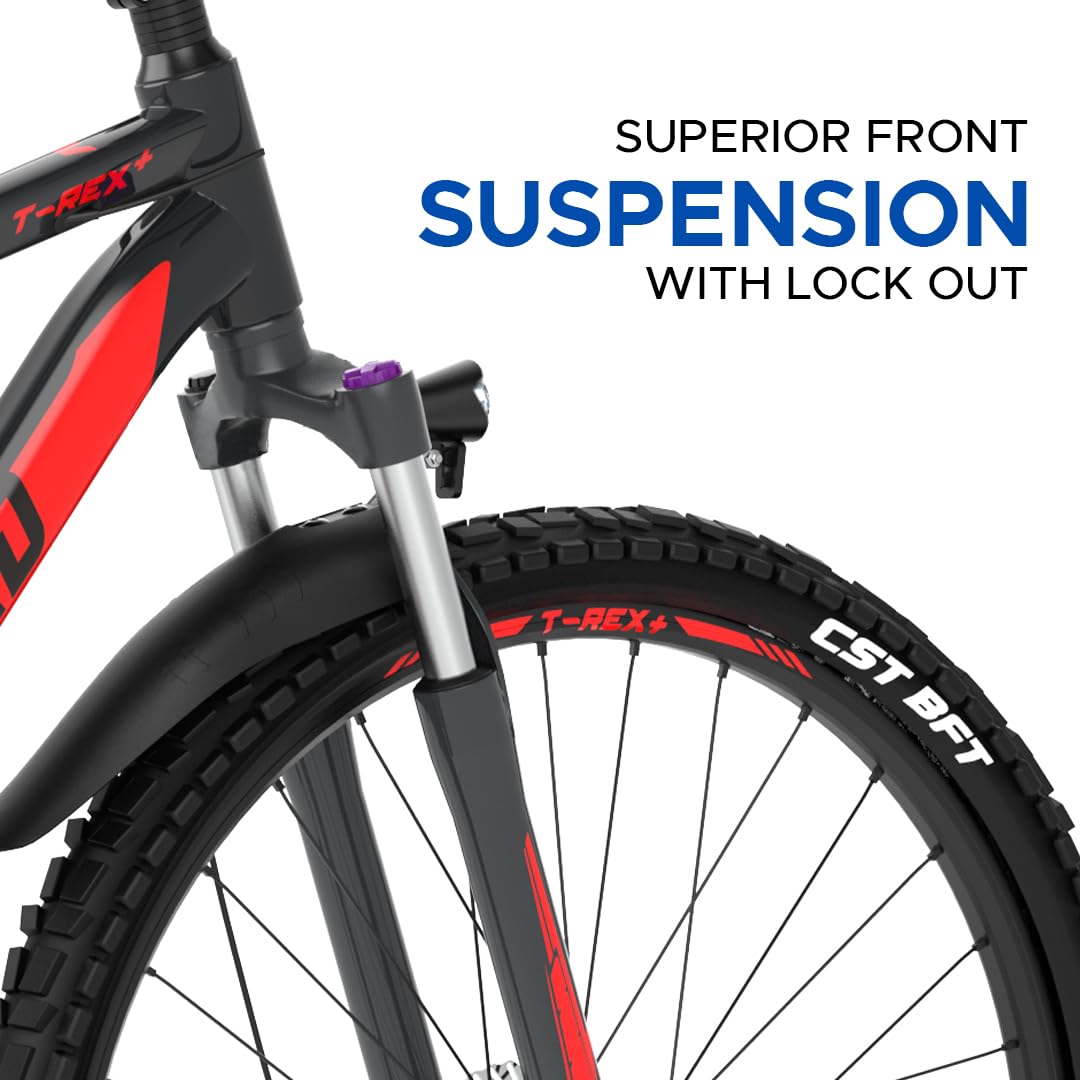

Figure 8: Front Suspension
4.6 Transmissió
The 7-Speed Shimano Altus drivetrain provides smooth and precise gear shifting for various riding conditions.

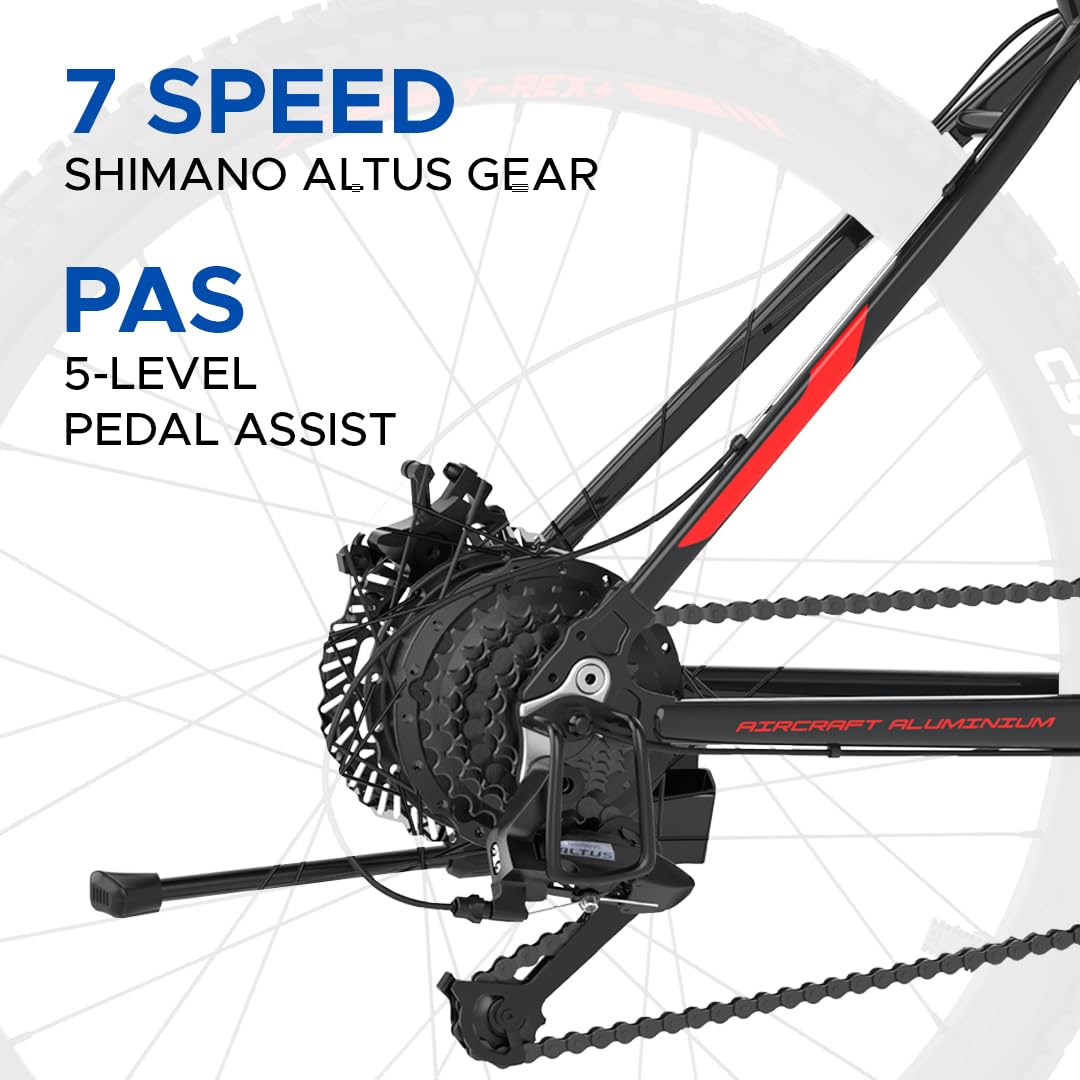

Figure 9: Shimano Altus Drivetrain and PAS
Figure 10: Shimano Altus Drivetrain
5. Instruccions de funcionament
5.1 Encès/Apagat
To power on the electric cycle, press and hold the power button on the M8 LCD Display. Repeat the action to power off.
5.2 Modes de conducció
The Trex+ offers multiple riding modes:
- Mode del sistema d'assistència al pedaleig (PAS): Provides electric assistance as you pedal. The M8 LCD Display allows you to select from multiple PAS levels (e.g., 1-5), with higher levels offering more assistance. This mode offers a range of 45+ km.
- Mode d'acceleració: Engages the motor without pedaling, similar to a scooter. This mode offers a range of 35+ km.
- Mode mecànic: Operates as a traditional bicycle with no electric assistance.
Figure 11: PAS Mode
Figure 12: Throttle Mode
Figure 13: Mechanical Mode
The maximum speed achievable with electric assistance is 25 km/h.
Figure 14: Range and Speed Capabilities
5.3 Canvi de marxes
Use the trigger shifter to change between the 7 Shimano Altus gears. Shift gears smoothly to match terrain and speed, avoiding abrupt changes under heavy load.
5.4 Frenades
The Trex+ is equipped with disc brakes. Apply both front and rear brakes simultaneously for effective stopping. Practice braking in a safe area to understand the stopping distance and feel.
6. Manteniment
Regular maintenance ensures the longevity and safe operation of your electric cycle.
- Neteja: Clean the frame and components with a damp drap. Eviteu rentar directament els components elèctrics a alta pressió.
- Pneumàtics: Check tire pressure regularly. Refer to the tire sidewall for recommended pressure.
- Frens: Inspect brake pads for wear and ensure brake levers operate smoothly. Adjust as needed.
- Cadena: Mantingueu la cadena neta i lubricada per a canvis de marxes suaus i per evitar el desgast.
- Elements de fixació: Comproveu periòdicament que tots els cargols i femelles estiguin ben ajustats, especialment al manillar, la tija del seient i les rodes.
- Cura de la bateria: Store the battery in a cool, dry place. If storing for an extended period, charge it to 50-70% every few months.
7. Solució De Problemes
This section addresses common issues you might encounter with your E MOTORAD Trex+ Electric Cycle.
| Problema | Causa possible | Solució |
|---|---|---|
| Electric assistance not working | Battery low or not connected; system error; PAS level set to zero. | Check battery charge and connection; restart the system; increase PAS level on display. |
| La pantalla no s'encén | Battery discharged; loose cable connection. | Charge battery; check all electrical connections. |
| Les marxes no canvien suaument | Dirty or unlubricated chain; derailleur misalignment. | Clean and lubricate chain; consult a bike mechanic for derailleur adjustment. |
| Els frens es senten febles | Worn brake pads; air in hydraulic system (if applicable); misaligned calipers. | Inspect and replace brake pads; consult a bike mechanic for brake system service. |
If you encounter issues not listed here or require further assistance, please contact E MOTORAD customer support.
8. Especificacions
| Característica | Detall |
|---|---|
| Nom del model | Trex+ V3 |
| Tipus de bicicleta | Bicicleta elèctrica |
| Franja d'edat | Adult |
| Material del marc | Aluminium Alloy 6061 |
| Mida del marc | 18 polzades |
| Mida de la roda | 27.5 polzades |
| Color | Crimson Black |
| Motor | Motor de cub posterior de 250 W |
| Bateria | 36V 10.2Ah Lithium-ion (Removable) |
| Contingut d'energia de la bateria | 367.2 watts-hora |
| Temps de càrrega | Aprox. 4-5 hores |
| Mostra | Stem Integrated M8 LCD Display |
| Tipus de suspensió | Front (100mm travel with lockout) |
| Engranatges | 7 Speed Shimano Altus |
| Estil de fre | Frens de disc |
| Max Speed (Electric Assist) | 25 km/h |
| Range (Throttle Mode) | Més de 35 km |
| Range (PAS Mode) | Més de 45 km |
| Pes de l'article | 30.25 quilos |
| Recomanació de pes màxim | 110 quilos |
| Dimensions (LxWxH) | 169.5 x 68 x 106 centímetres |
| Muntatge obligatori | Sí |
9. Garantia i Suport
9.1 Informació de la garantia
The E MOTORAD Trex+ Electric Cycle comes with the following warranty coverage:
- Marc: 5 any de garantia
- Motor Shell, Hub Motor, Controller: Cobertura de 1 anys
- Electronic Handlebar Controls, Electrical Connections, Battery Charger, Lighting System: 6 months coverage
- Pintura: 1-year warranty (excluding accidental or deliberate damage)
- Bateria: 2 years coverage
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
9.2 Atenció al client
For any queries, technical assistance, or warranty claims, please contact E MOTORAD customer support:
- Telèfon: +91 8686050590
- Correu electrònic: contactus@emotorad.com
- Fabricant: INKODOP TECHNOLOGIES PVT LTD
- Adreça: At post Jambe, taluka Mulshi169 2 Sangawade Road, Pune-411033, Maharashtra
