Y&H 30A Solar Panel Charge Controller User Manual

1. Producte acabatview

The Y&H 30A Solar Panel Charge Controller is designed to manage the power flow from solar panels to batteries in a solar system. It is compatible with 12V and 24V systems and supports various battery types, including lead-acid (OPEN, AGM, GEL), lithium-ion, and lithium iron phosphate batteries. This controller features a backlight LCD display for monitoring system parameters and dual USB outputs for charging electronic devices.

It incorporates an industrial-grade STM8 microprocessor and utilizes Power MOSFET as an electronic switch, ensuring efficient and reliable operation. The controller is equipped with multiple protection functions to safeguard the battery and the system.

2. Instruccions de seguretat

Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in damage to the controller, battery, or other components, and may cause personal injury.

• Ensure the battery has sufficient voltage for the controller to recognize the battery type before initial installation.
• El regulador de càrrega només és adequat per regular mòduls solars. No connecteu mai cap altra font de càrrega al regulador de càrrega.
• The controller will automatically turn off if the battery voltage drops below 8V to protect the battery lifespan.
• Always connect the battery first, then the solar panel, and finally the load. Disconnect in the reverse order: load, then solar panel, then battery. An improper sequence can damage the controller.
• Install the controller in a well-ventilated area, away from direct sunlight, high temperatures, and water.
• Ensure all connections are tight and correct to avoid loose connections that can cause excessive heat.

3. Característiques del producte

• Automatic System Voltage Reconeixement: Automatically identifies 12V/24V systems.
• Advanced PWM Charging: Característiques 4-stage PWM charge management (Boost, ABS, Equalization, Float) to optimize battery charging and prolong battery life.
• Compatibilitat de la bateria: Supports lead-acid (OPEN, AGM, GEL), lithium-ion (3 strings of 11.1V), and lithium iron phosphate (4 strings of 12.8V) batteries.
• Backlight LCD Display: Provides real-time display of PV, battery, and load charge/discharge parameters.
• Sortida USB dual: Two USB ports provide 5V/2.5A (max) for charging external devices.
• Multiple Load Timer Settings: Allows for flexible control of DC loads.
• Industrial-Grade Microprocessor: Equipped with an STM8 microprocessor for stable and reliable operation.
• Protecció integral: Includes dual MOSFET reverse current protection, over-heat protection, under-voltage discharge protection, short-circuit protection, open-circuit protection, over-load protection, over-charging protection, and power-off memory protection.

4. Connexió del sistema

Follow these steps to connect the solar charge controller to your system. Always connect components in the specified order to prevent damage.

1. Connecteu la bateria: Connect the battery to the charge regulator's battery terminals (plus and minus). Ensure correct polarity.
2. Connect the Photovoltaic Module (Solar Panel): Connect the solar panel to the regulator's solar panel terminals (plus and minus). Ensure correct polarity.
3. Connect the Load: Connect the DC load to the charge regulator's load terminals (plus and minus). Ensure correct polarity.

Nota: The reverse order applies when de-installing. Disconnect the load first, then the solar panel, and finally the battery. An improper sequence order can damage the controller.

Imatge 1: System Connection Diagram. This diagram illustrates the correct wiring sequence for the solar panel, battery, and DC load to the charge controller.

Imatge 2: Controller with USB and Connection Example. This image shows the controller's USB ports and a basic connection setup including a solar panel, battery, and a light bulb as a load.

5. Battery Type Settings

The controller supports three types of batteries. It is crucial to select the correct battery type for optimal charging and battery lifespan. The factory default setting is B2 (Lithium-ion battery).

• B1: Lead-acid batteries (12V/24V auto-recognition).
• B2: Lithium-ion batteries (3 strings of 11.1V lithium batteries).
• B3: Lithium iron phosphate batteries (4 strings of 12.8V lithium iron phosphate batteries).

To change the battery type, refer to the "LCD Display and Settings" section for navigation instructions.

Imatge 3: Battery Type Selection. This image illustrates the three battery types (B1, B2, B3) compatible with the controller, including lead-acid (OPEN, AGM, GEL), lithium-ion, and lithium iron phosphate batteries.

6. LCD Display and Settings

The LCD provides various system parameters and allows for configuration. Use the buttons below the display to navigate and adjust settings.

Imatge 4: LCD Display and Setting Interface. This image shows the controller's LCD screen, displaying battery voltage, charge/discharge status, and the three control buttons for navigation and parameter adjustment.

6.1. Modes de visualització

• Pantalla principal: Shows current battery voltage.
• Browsing Interface: Press the MENU button to browse different interfaces (e.g., charge current, discharge current, temperature).
• Float Voltage: Displays the float charge voltage.
• Tipus de bateria: Displays the currently selected battery type (B1, B2, or B3).
• Mode de treball: Displays the load work mode (e.g., 24H for continuous output, 1-23H for timer setting, 0H for dusk to dawn).
• Parada de descàrrega: Displays the discharge stop voltage.

6.2. Configuració de paràmetres

To enter the setting mode, press and hold the MENU button for 5 seconds. Use the UP and DOWN buttons to adjust values, and press MENU again to confirm and exit, or long press MENU to save and exit.

• Set Parameter: Adjust various parameters such as equalization voltage, discharge reconnect voltage, discharge stop voltage, and load timer settings.

7. Operating Parameters and Specifications

Below are the technical specifications and default operating parameters for the Y&H 30A Solar Panel Charge Controller.

Nota: Tot color vermell voltage values are multiplied by 2 when using a 24V system. Product specifications are subject to change without prior notice.

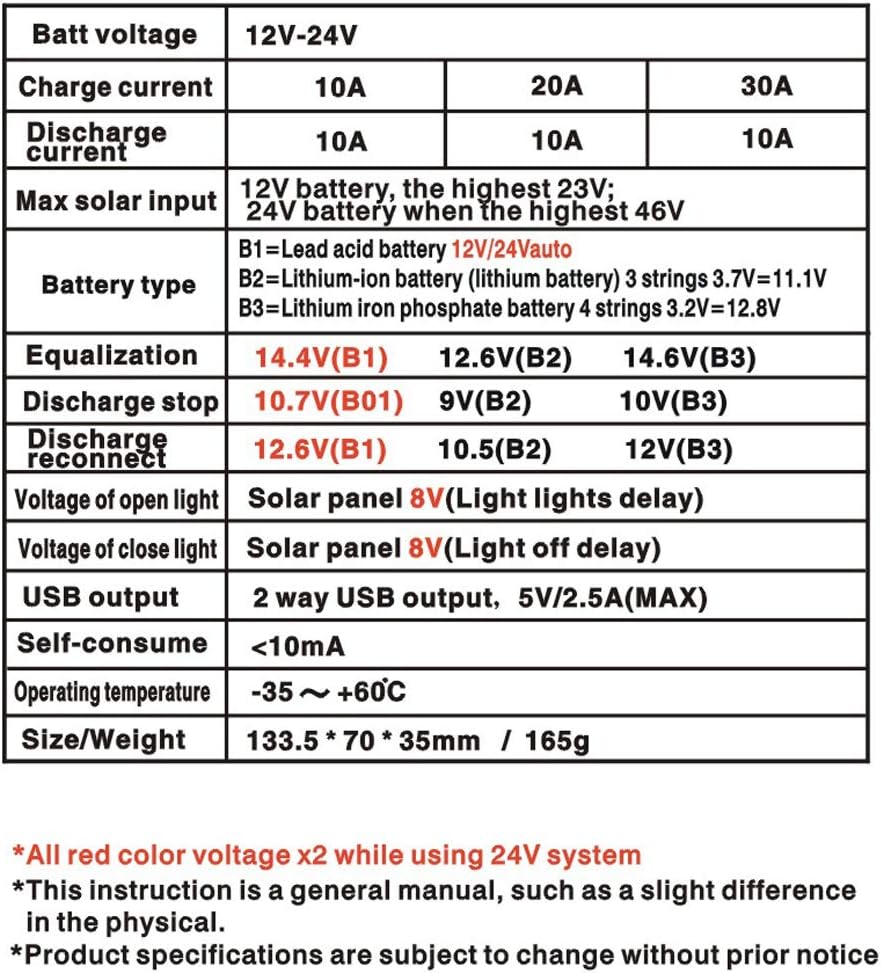

Imatge 5: Technical Parameters Table. This image provides a detailed table of various electrical and environmental specifications for the charge controller, including battery voltage, charge current, max solar input, and operating conditions.

8. Característiques de protecció

The Y&H Solar Charge Controller is equipped with eight protection mechanisms to ensure the safety and longevity of your solar system components:

• Dual MOSFET Reverse Current Protection: Evita que el corrent torni de la bateria al panell solar a la nit.
• Protecció contra la calor: Shuts down the controller if internal temperature exceeds safe limits.
• Sota Voltage Discharge Protection: Prevents over-discharge of the battery by disconnecting the load when battery voltage drops below a set threshold.
• Protecció contra curtcircuits: Protects against short circuits in the load or solar panel connections.
• Open-Circuit Protection: Safeguards the system if the solar panel or battery connection is open.
• Protecció de sobrecàrrega: Disconnects the load if the current exceeds the rated capacity.
• Protecció de sobrecàrrega: Prevents battery overcharge by regulating the charging voltage i corrent.
• Power Off Memory Protection: Retains user settings even after power loss.

9. Solució De Problemes

If you encounter issues with your solar charge controller, refer to the table below for common problems and their solutions.

10. Garantia i Suport

Y&H offers a 30-day free return policy for this product. For any issues or support inquiries, please contact Y&H customer service. We aim to provide 24-hour after-sales service to ensure your satisfaction.
