Solar LED Flashing Warning Light User Manual

1. Introducció

This manual provides comprehensive instructions for the safe and effective use of your Generico Solar LED Flashing Warning Light. This device is designed to enhance safety and visibility in various environments by providing a clear, flashing warning signal.

2. Característiques clau

• Seguretat millorada: Designed to ensure safe driving on dangerous roads, making it ideal for accident-prone areas, hazardous sections, and construction sites, including complex routes and deceleration zones.
• Eficiència solar: Utilizes polycrystalline silicon solar panels for efficient and sustainable energy conversion, maximizing light-to-electricity conversion probability.
• Alta visibilitat: Equipped with ultra-bright LED beads, offering a visibility range of up to 1000 meters (approximately 3280 feet) to illuminate night roads effectively.
• Durabilitat: Features a waterproof and dustproof design, ensuring resistance and a long lifespan for outdoor use, unaffected by water or dust.
• Aplicació versàtil: Prevents accidents and alerts drivers to potential road hazards. The dual red and blue flashing lights are highly effective in attracting attention, providing maximum safety assurance.

3. Components del producte

Familiarize yourself with the main components of your Solar LED Flashing Warning Light:

Figura 3.1: Davant view of the warning light, displaying the prominent red and blue LED lenses and the integrated solar panel on top. This view highlights the dual-color flashing capability.

Figura 3.2: Angled perspective of the warning light, clearly showing the solar panel on the upper surface and the sturdy mounting bracket at the base. This view illustrates the compact design and readiness for installation.

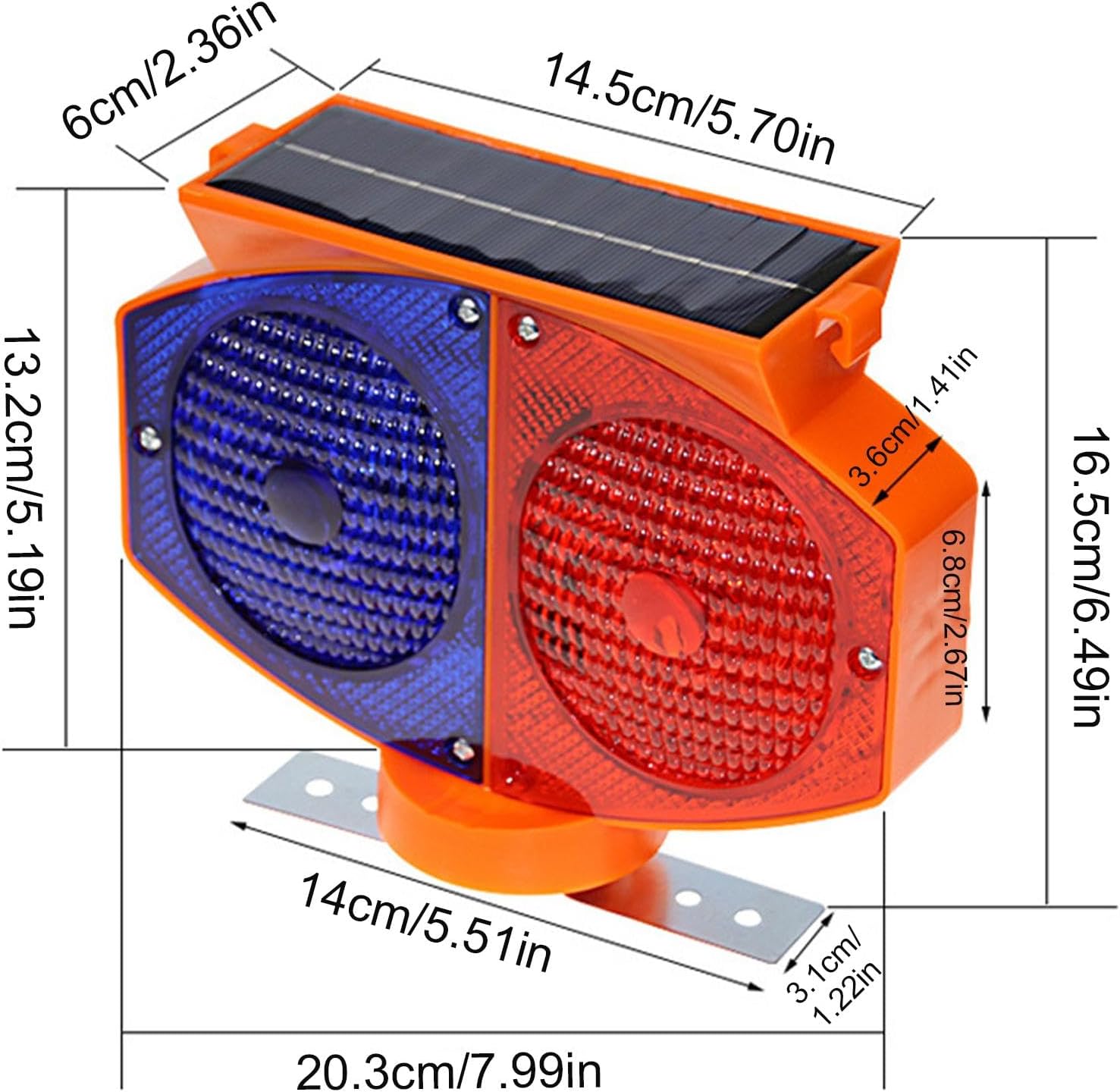

Figura 3.3: Detailed diagram illustrating the precise dimensions of the warning light in both centimeters and inches. This image is crucial for planning installation and understanding the physical footprint of the device.

• Panell solar: Located on top, converts sunlight into electrical energy to charge the internal battery.
• LED Lenses: Dual red and blue lenses on the front for high-visibility flashing.
• Suport de muntatge: A metal bracket at the base for secure attachment to various surfaces.
• C duradorasing: Made from polystyrene, providing waterproof and dustproof protection.

4. Configuració i instal·lació

Follow these steps to properly set up your Solar LED Flashing Warning Light:

1. Desembalar: Carefully remove the warning light from its packaging. Inspect for any signs of damage.
2. Càrrec inicial: Before first use, place the warning light in direct sunlight for at least 8-10 hours to ensure the internal battery is fully charged. This is crucial for optimal performance.
3. Tria la ubicació: Seleccioneu una ubicació que rebi ample direct sunlight throughout the day for the solar panel. Ensure the light's visibility is not obstructed. Common installation areas include construction barriers, road signs, forklifts, or hazardous zones.
4. Muntatge:
   • Position the mounting bracket on the desired surface.
   • Mark the drilling points through the holes in the bracket.
   • Drill appropriate holes and secure the light using screws or bolts (not included) suitable for your mounting surface. Ensure it is firmly attached to prevent dislodgement.
5. Orientació: Ensure the solar panel faces upwards and is angled to receive maximum sunlight. The LED lenses should face the direction where the warning signal is needed.

5. Funcionament

The Generico Solar LED Flashing Warning Light is designed for automatic operation:

• Activació automàtica: The light features a built-in light sensor. It will automatically turn on and begin flashing its red and blue LEDs when ambient light levels drop (e.g., at dusk or in dark conditions).
• Desactivació automàtica: The light will automatically turn off when ambient light levels increase (e.g., at dawn).
• Càrrega solar: During daylight hours, the solar panel continuously charges the internal battery, ensuring sufficient power for night operation.

No manual on/off switch is typically required for this type of solar warning light, as its operation is fully automated based on light conditions.

6. Manteniment

To ensure the longevity and optimal performance of your warning light, follow these simple maintenance guidelines:

• Panell solar net: Netegeu regularment el panell solar amb un drap suau iamp cloth to remove dust, dirt, leaves, or snow. A clean solar panel ensures maximum charging efficiency. Avoid abrasive cleaners.
• Clean LED Lenses: Keep the red and blue LED lenses clean to maintain maximum light output and visibility.
• Comproveu el muntatge: Periodically inspect the mounting bracket and fasteners to ensure the light remains securely attached. Tighten any loose screws.
• Consideracions ambientals: While waterproof and dustproof, extreme weather conditions (e.g., prolonged heavy snow, severe storms) may temporarily affect performance. Ensure the light is clear of obstructions.

7. Solució De Problemes

If your Solar LED Flashing Warning Light is not functioning as expected, try the following solutions:

8. Especificacions tècniques

9. Informació de seguretat

Si us plau, llegiu i respecteu les següents precaucions de seguretat:

• Do not attempt to open or modify the unit. This may damage the product and void any potential warranty.
• Mantenir fora de l'abast dels nens.
• Ensure the light is securely mounted to prevent it from falling and causing injury or damage.
• Do not stare directly into the flashing LEDs, as this may cause temporary vision impairment.
• Dispose of the product responsibly at the end of its lifespan, following local regulations for electronic waste.

10. Garantia i Suport

No specific warranty information or dedicated support contact details are provided within this manual. For any inquiries regarding warranty or product support, please refer to the retailer or point of purchase.
